*** Andy Steere's Alfa Corsair Build ***


These pictures show the Alfa Corsair during assembly.

Items used:

  • Model Motors Mini-AC 1215/16 Brushless motor
  • Castle Creations Phoenix 25amp Brushless ESC
  • MPJet 3.5:1 gearbox with a few cooling holes drilled.
  • APC 8x8 Thin-E Prop
  • Tanic 1500 and 1550 3S Lipo batteries.
  • 30amp Anderson connectors on battery side.
  • GWS Heatsink (had to be opened up a little bit)
  • Hitec 555 RX (JR shift)
  • Azarr M72-G Micro Receiver Antenna
  • Hitec HS-55 servos.

    This combination draws 16amps (~160watts input) and spins the 8x8 nearly 9000 rpm. Most flights should be at half throttle or so, with a few high-speed passes mixed in.


    Click on the number below each image for a larger version of the picture (larger number, larger version of the picture)

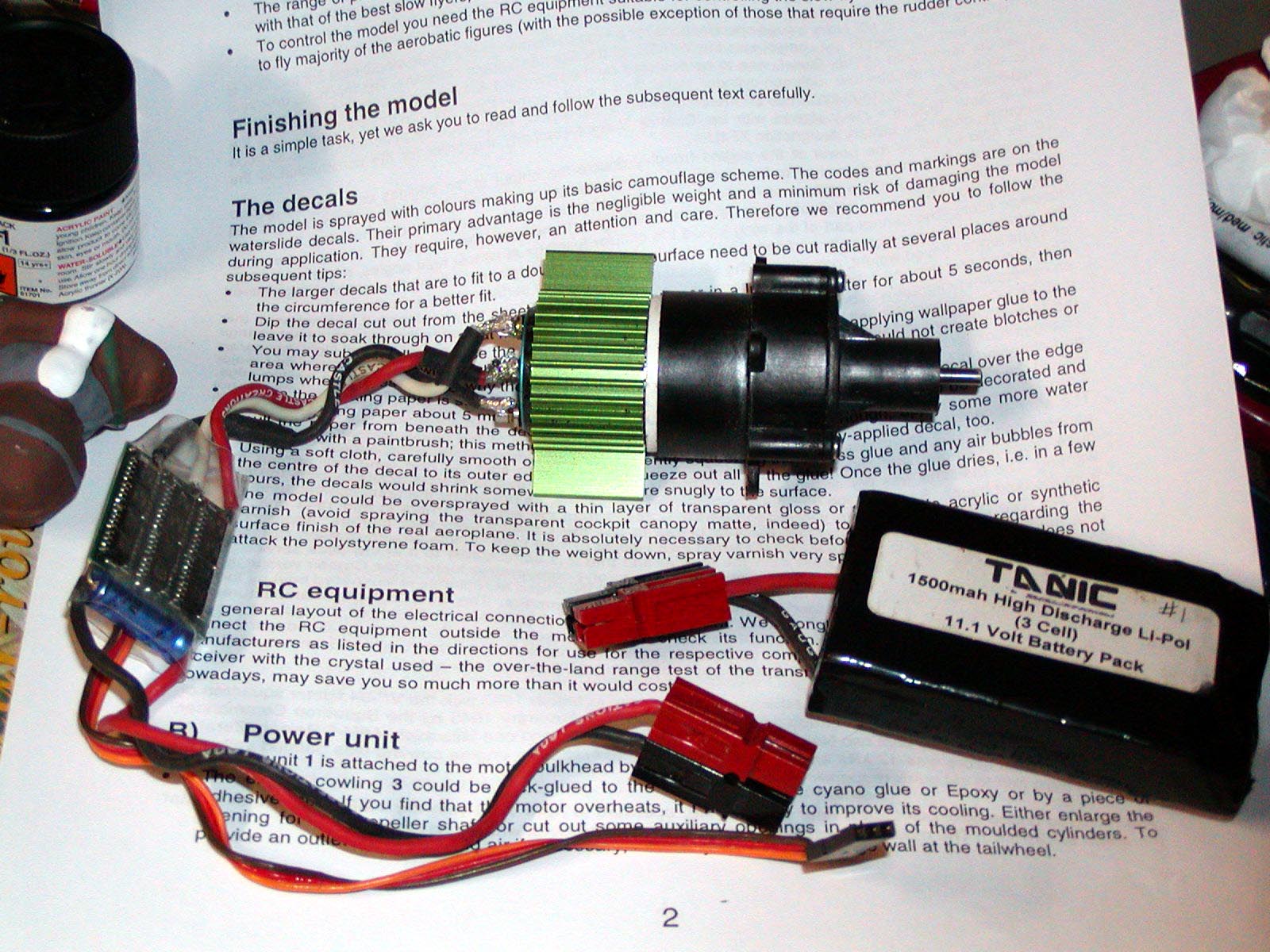

    1600 / 1024 / 640 - Power system pre-benchtested.

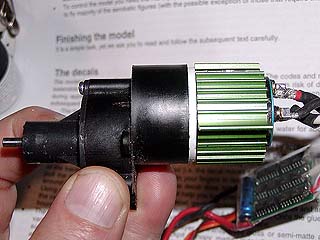

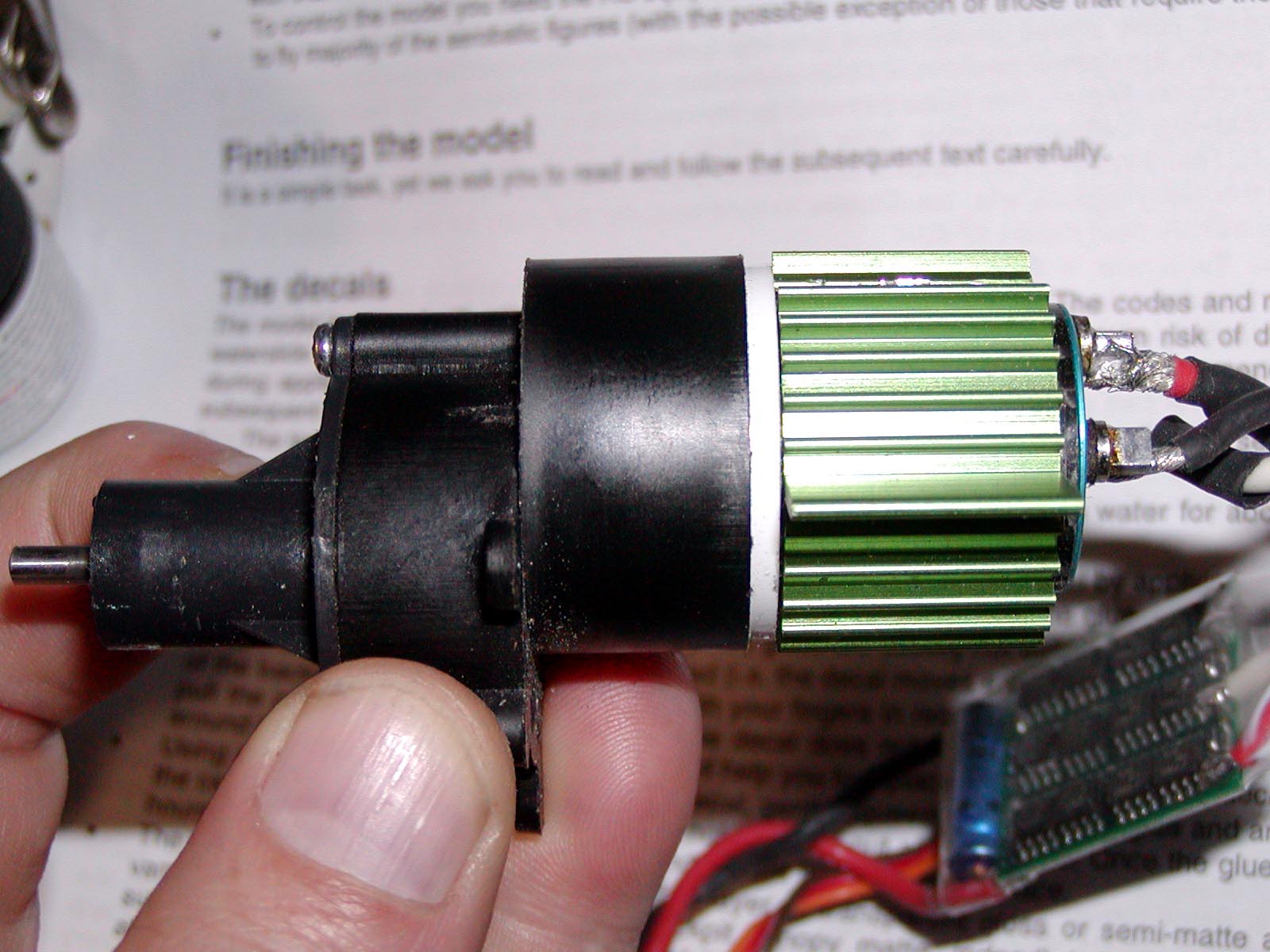

    1600 / 1024 / 640 - GWS heatsink to help cool it.

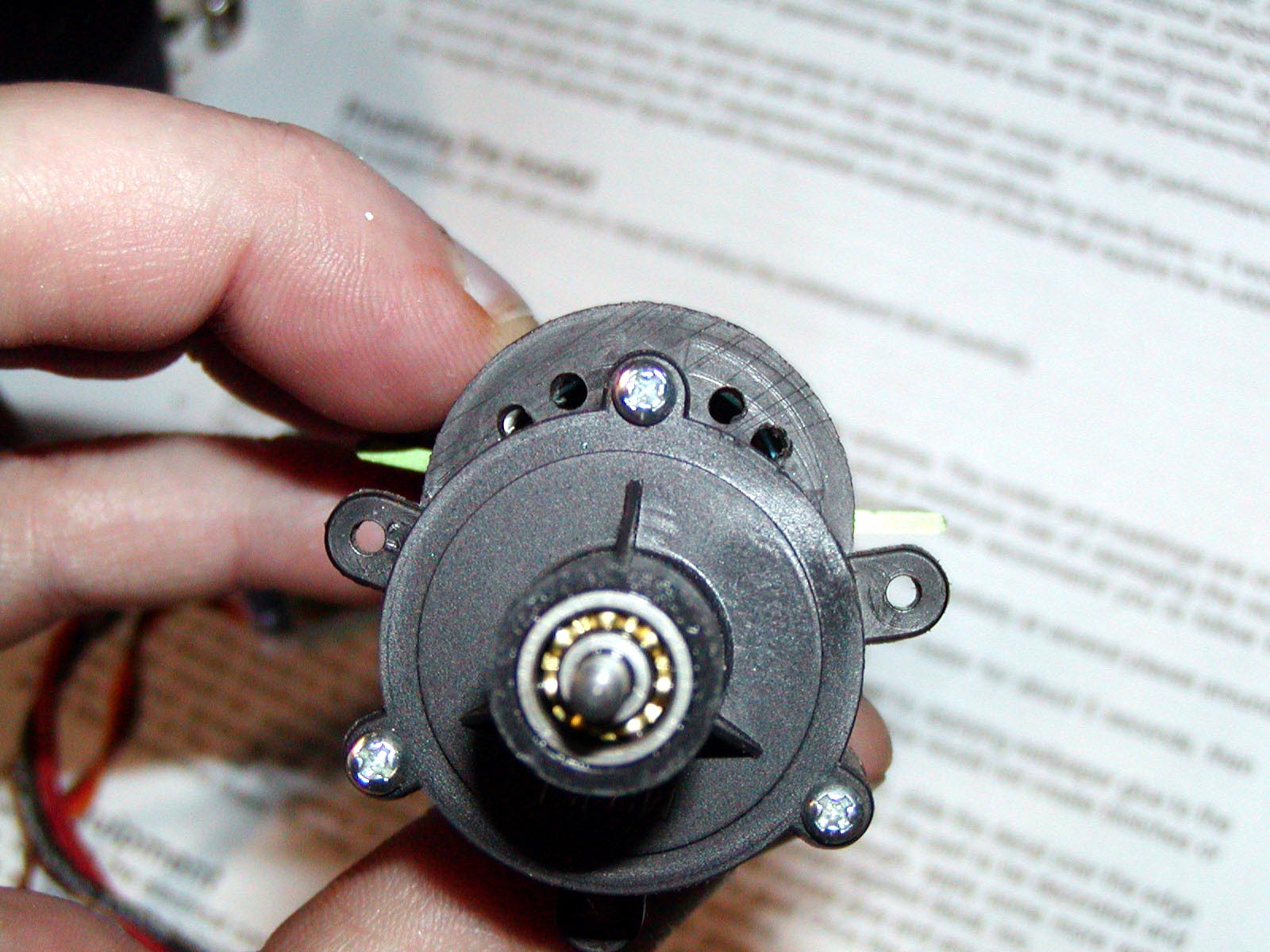

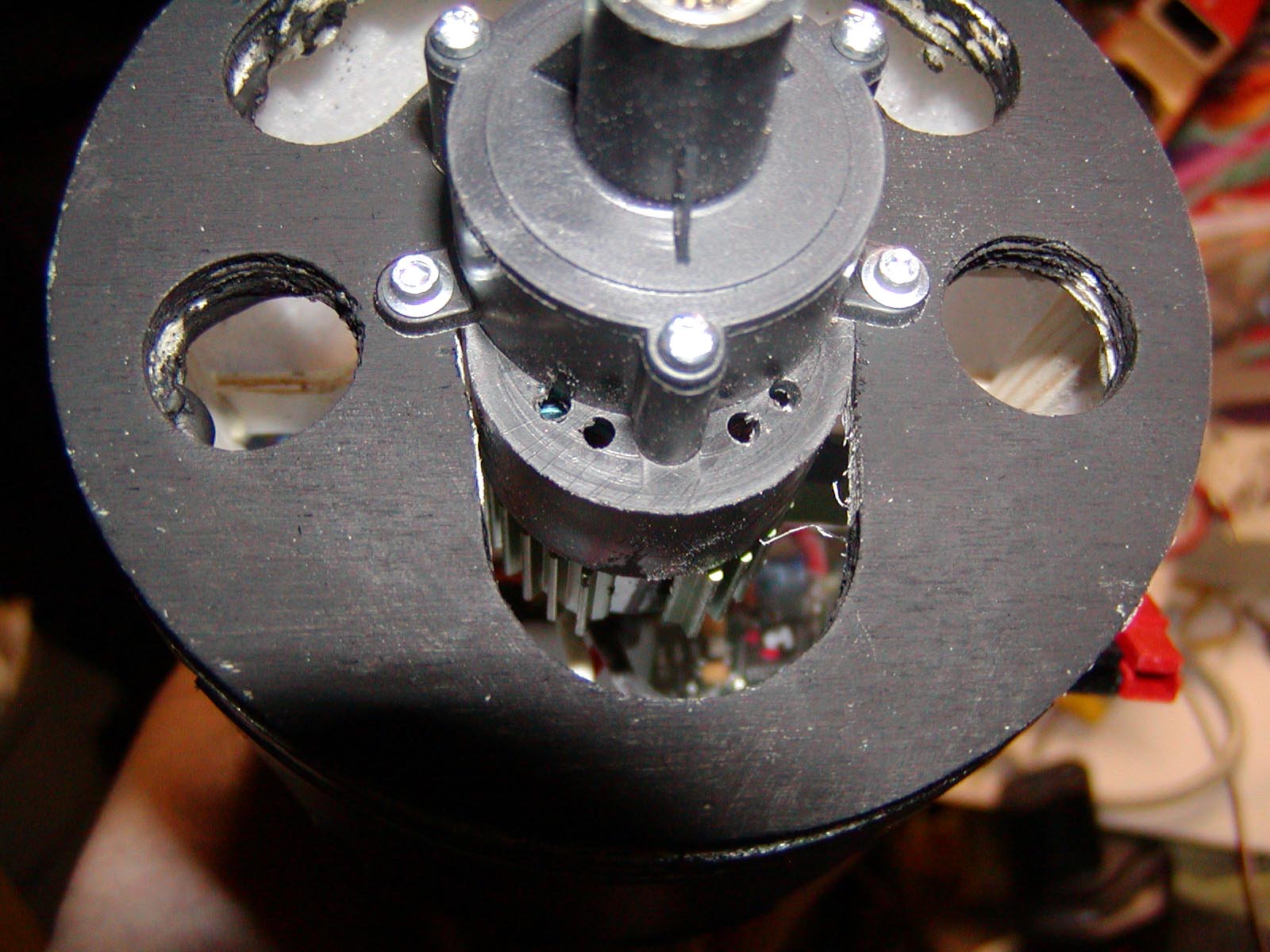

    1600 / 1024 / 640 - A few extra cooling holes.

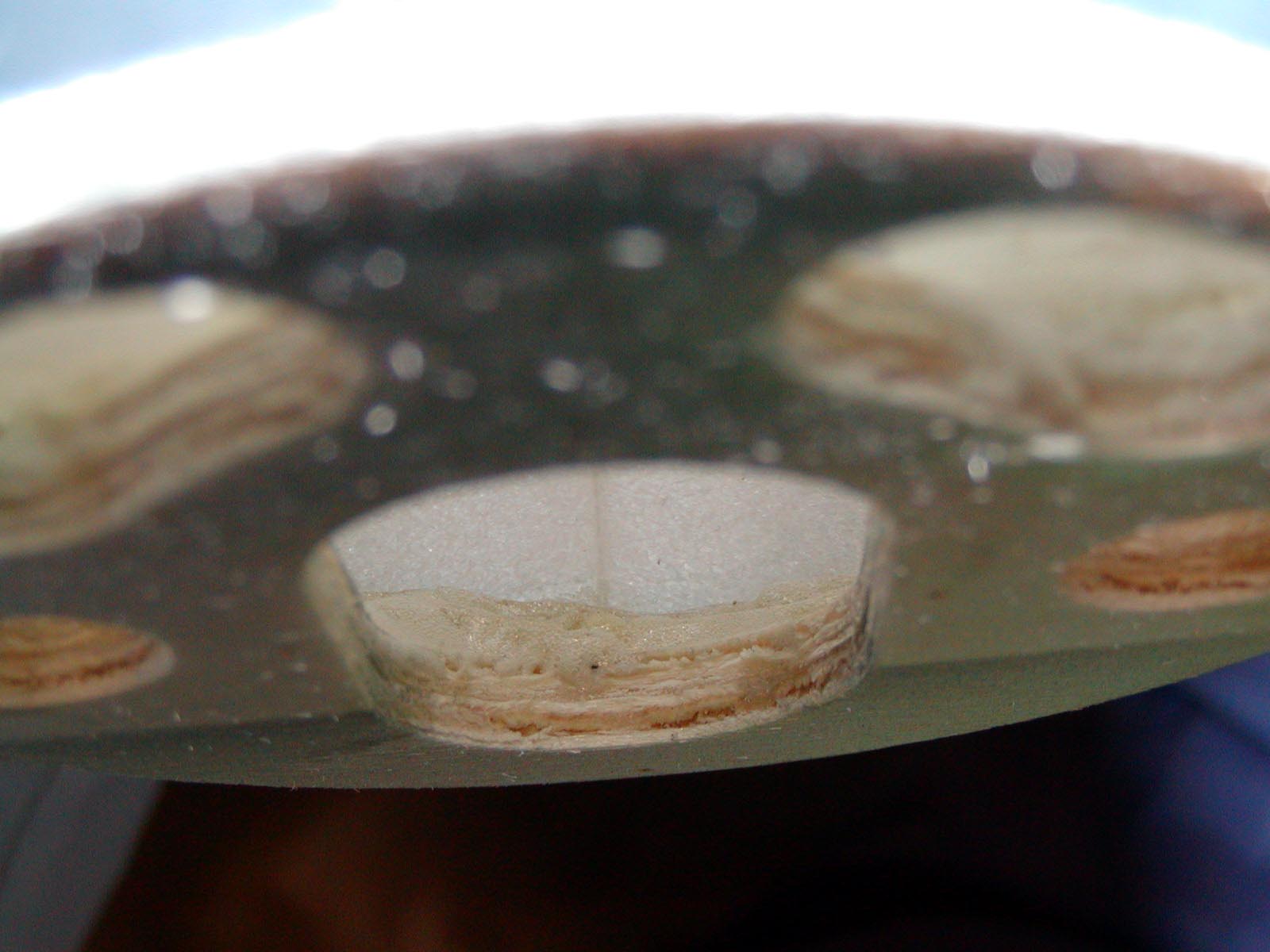

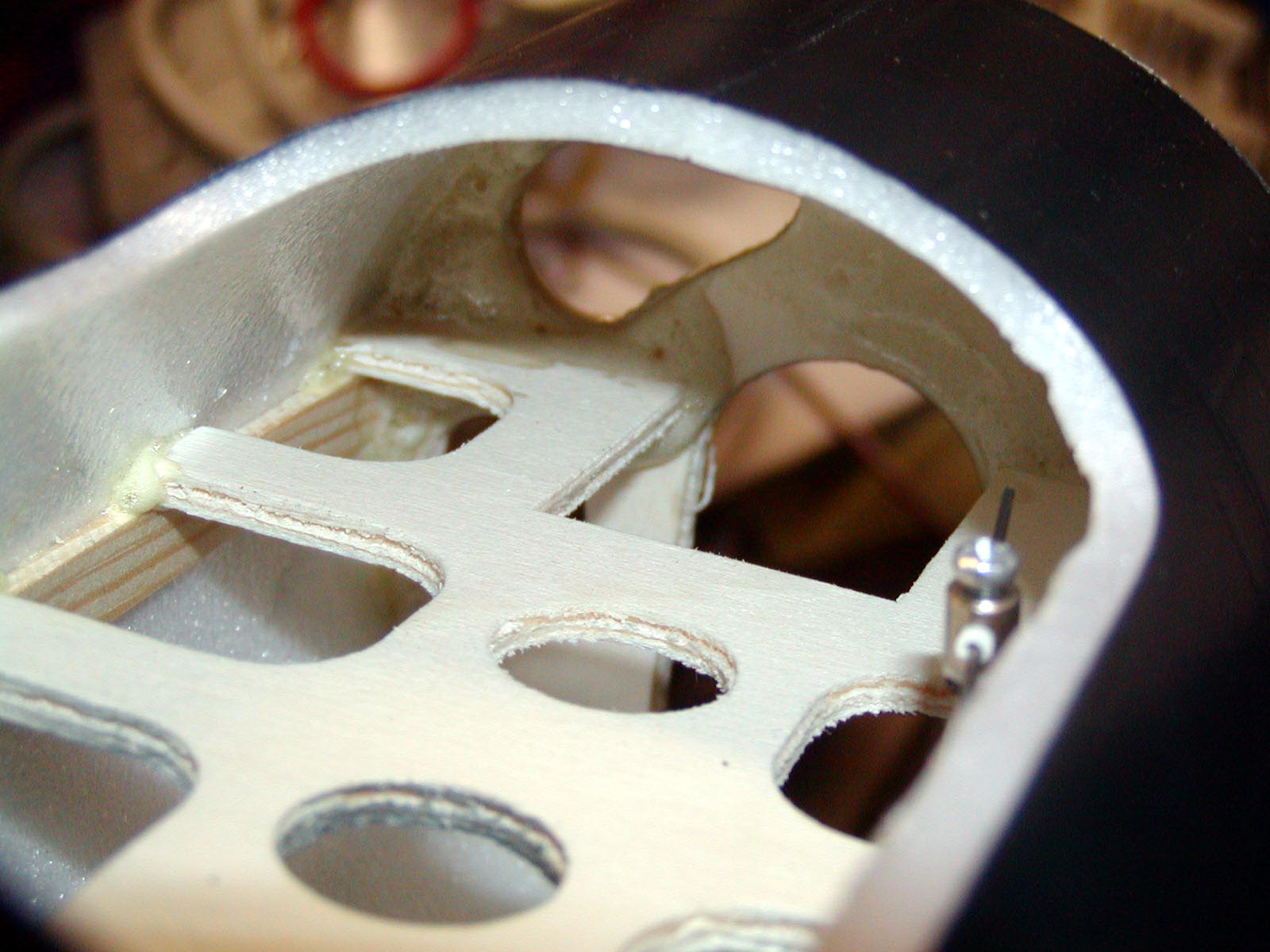

    1600 / 1024 / 640 - Reinforced the firewall with...

    1600 / 1024 / 640 - additional Gorilla Glue (PU).

    1600 / 1024 / 640 - Painted. Motor/gearbox installed.

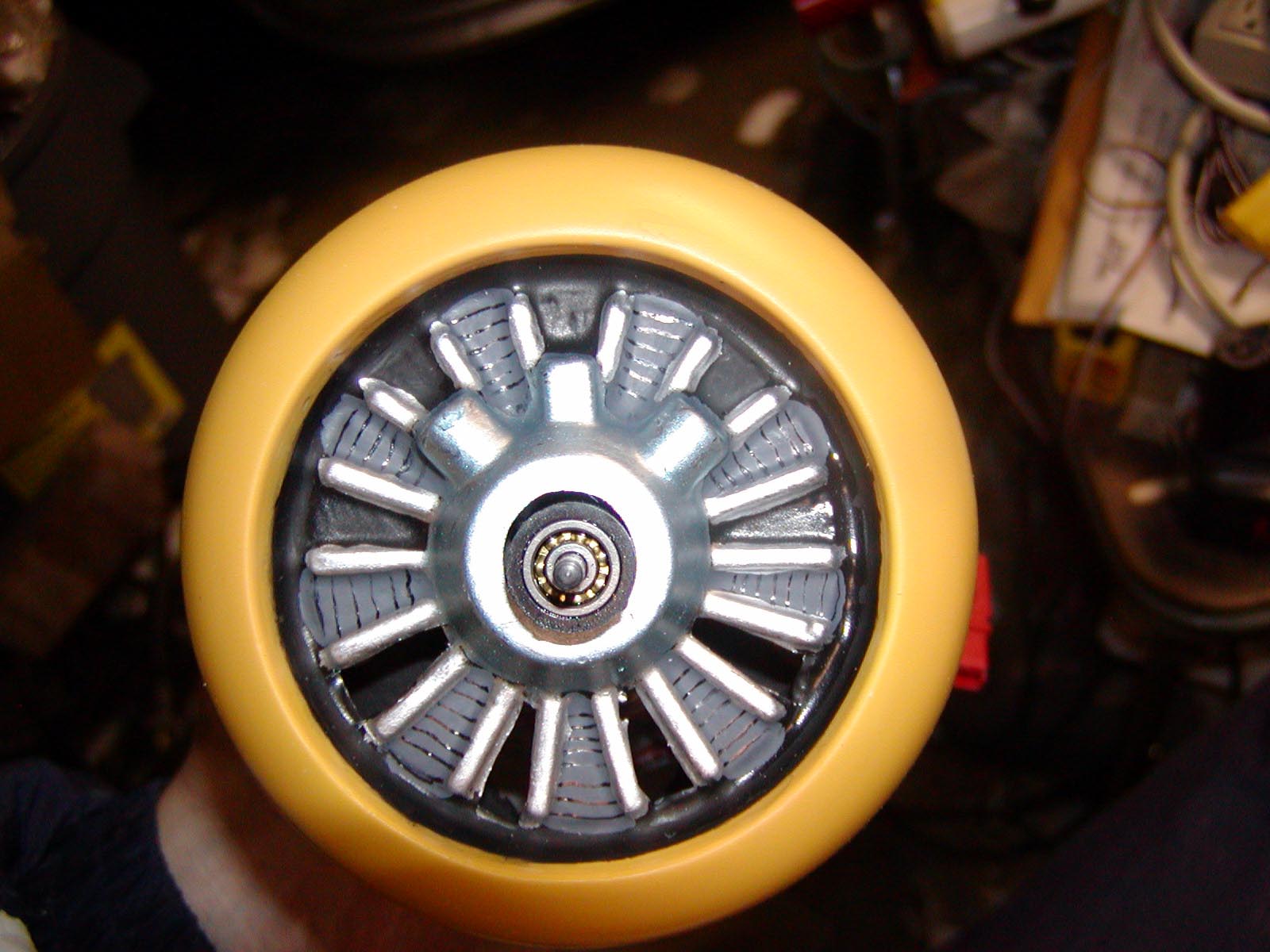

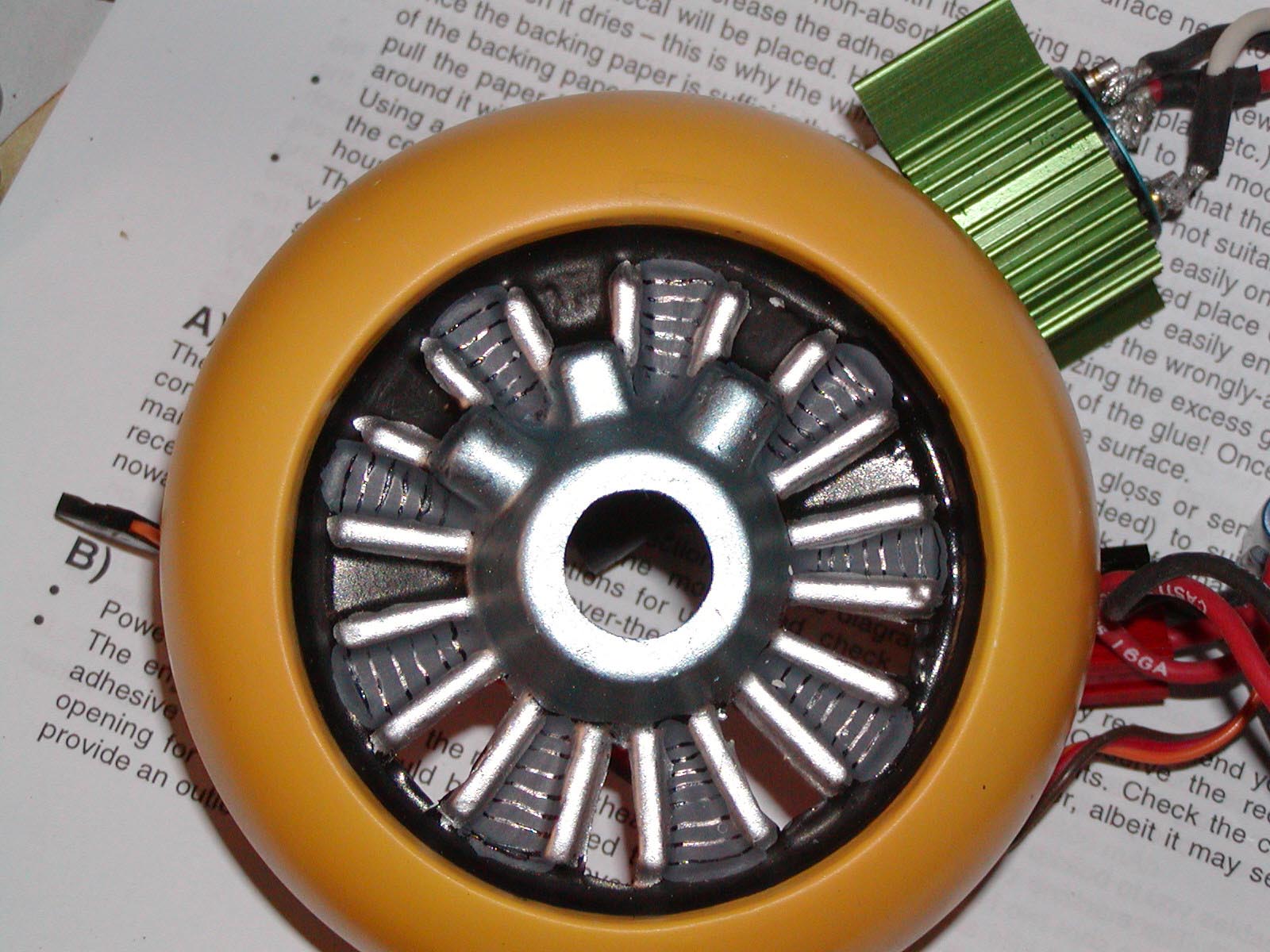

    1600 / 1024 / 640 - Painted all-black dummy-radial

    1600 / 1024 / 640 - Acrylic paints & fine-line marker.

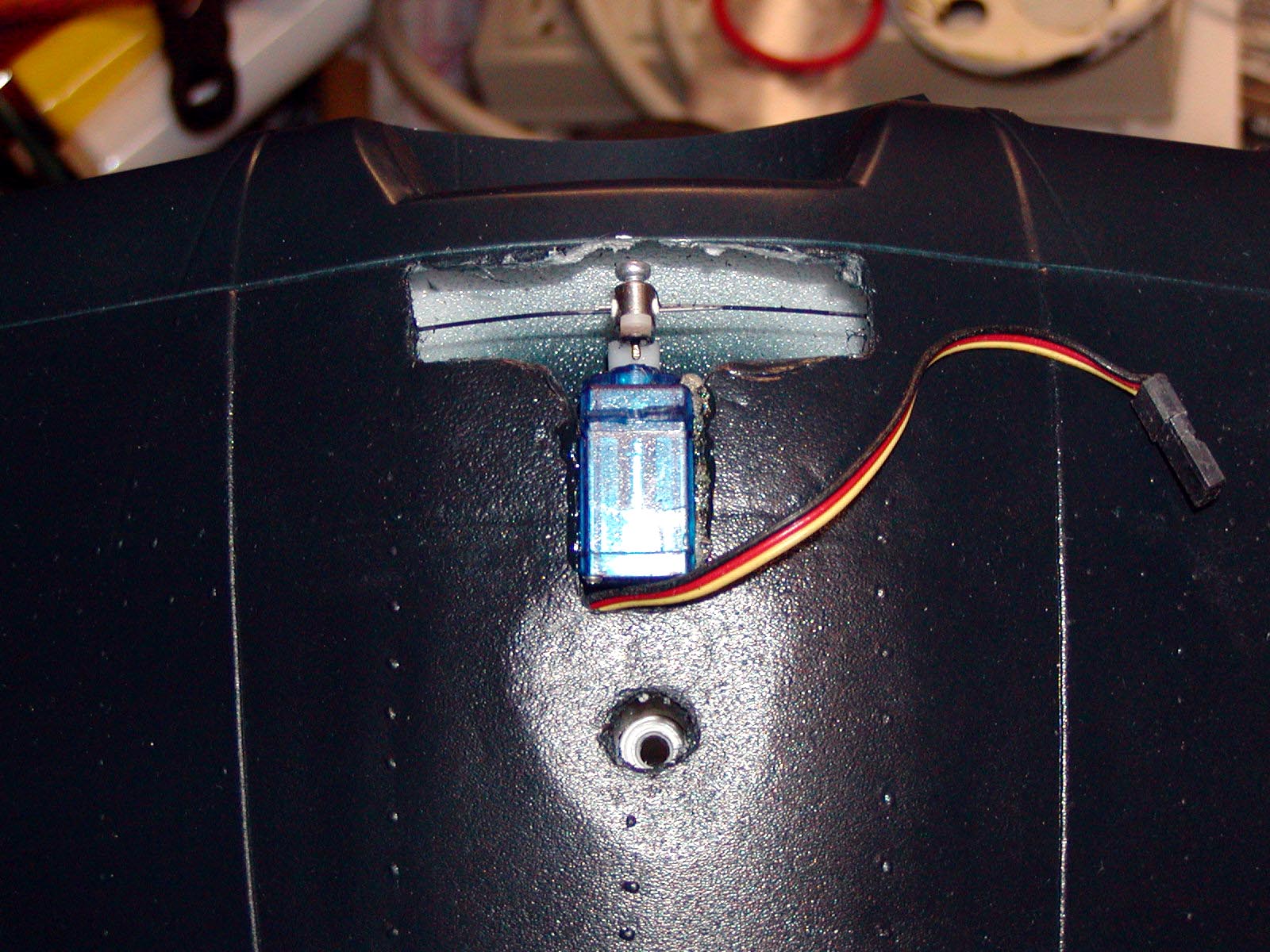

    1600 / 1024 / 640 - Install elevator servo.

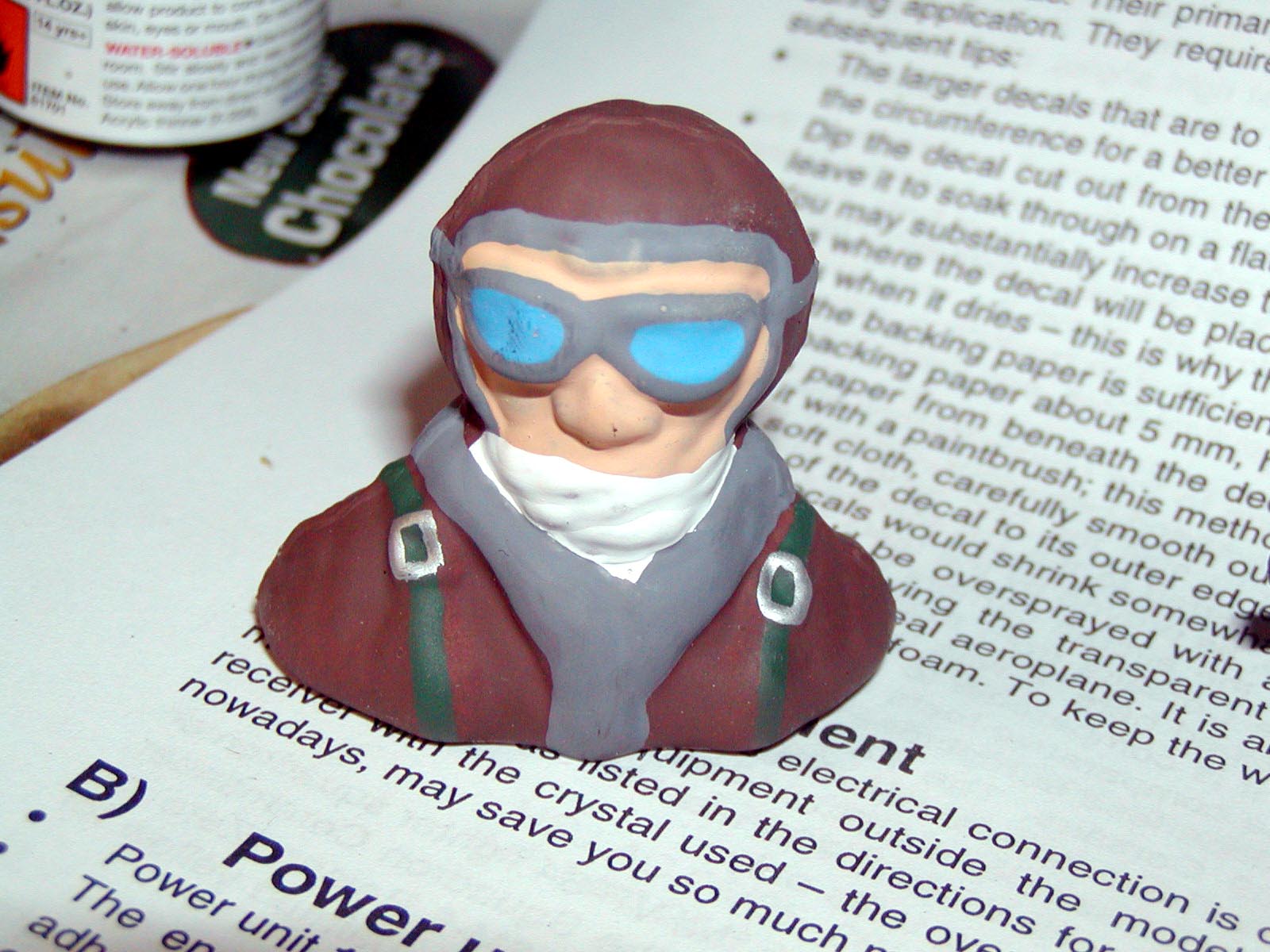

    1600 / 1024 / 640 - Painted pilot from HobbyLobby.

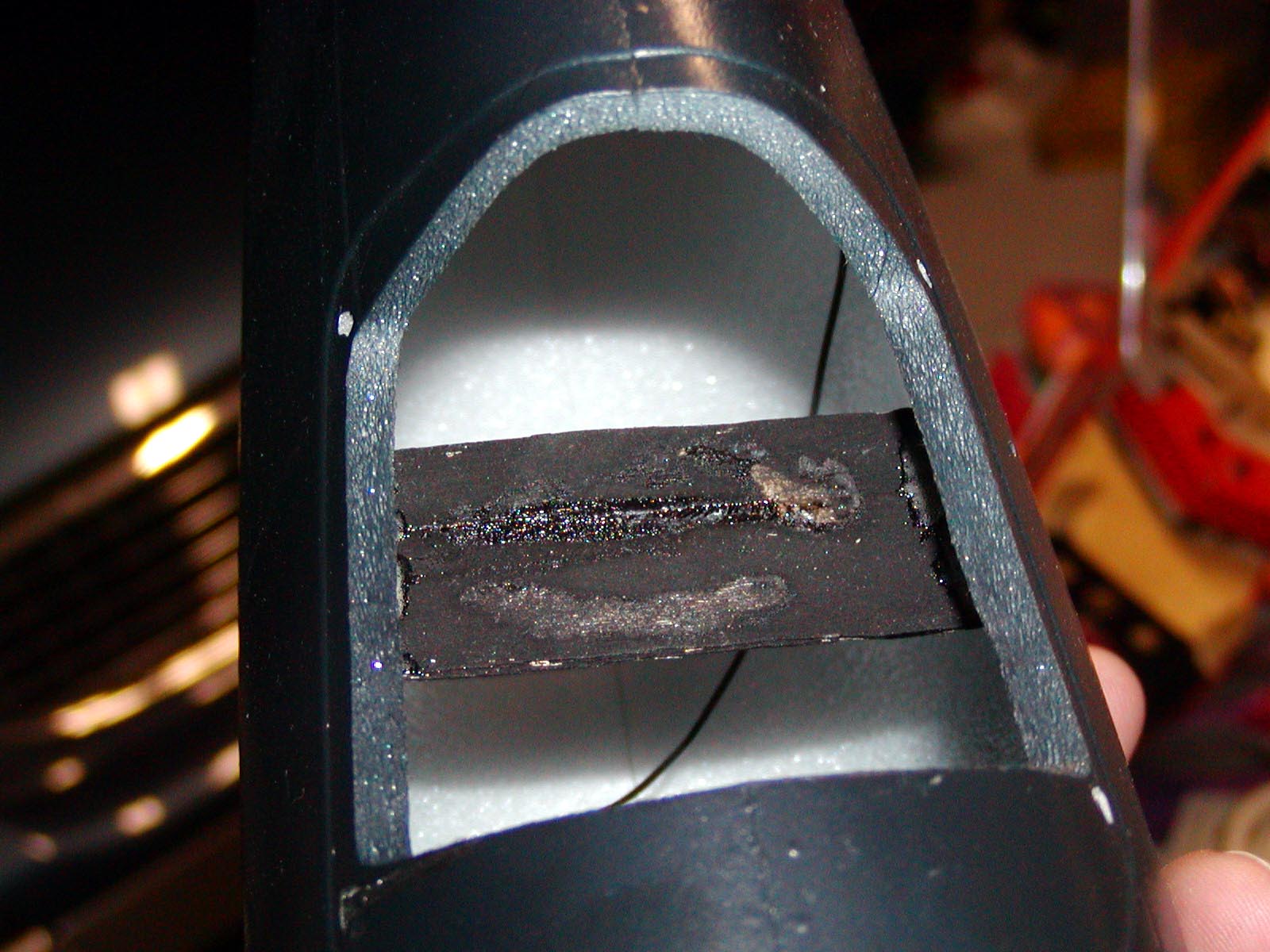

    1600 / 1024 / 640 - Stand for him to sit on.

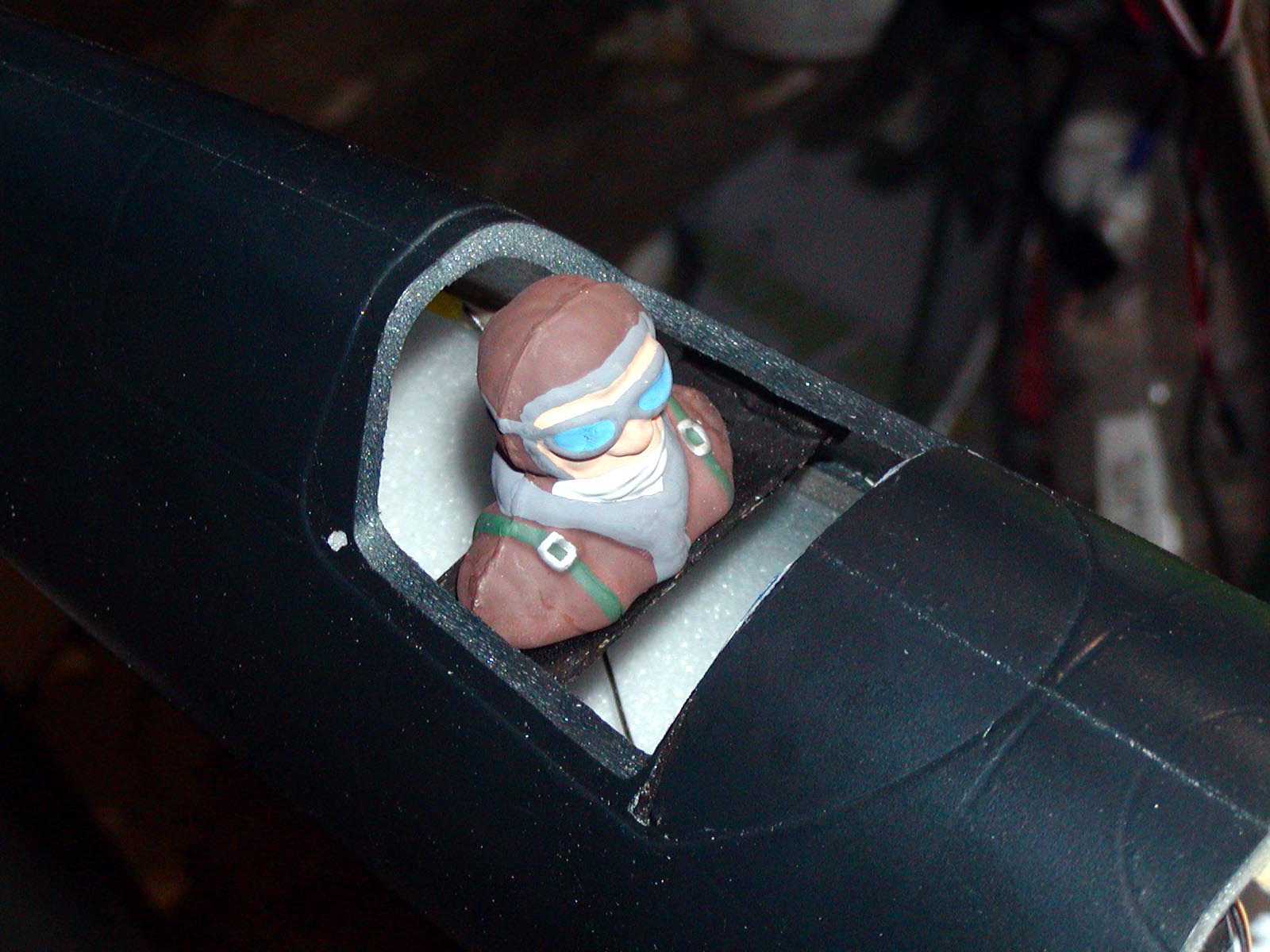

    1600 / 1024 / 640 - Installed.

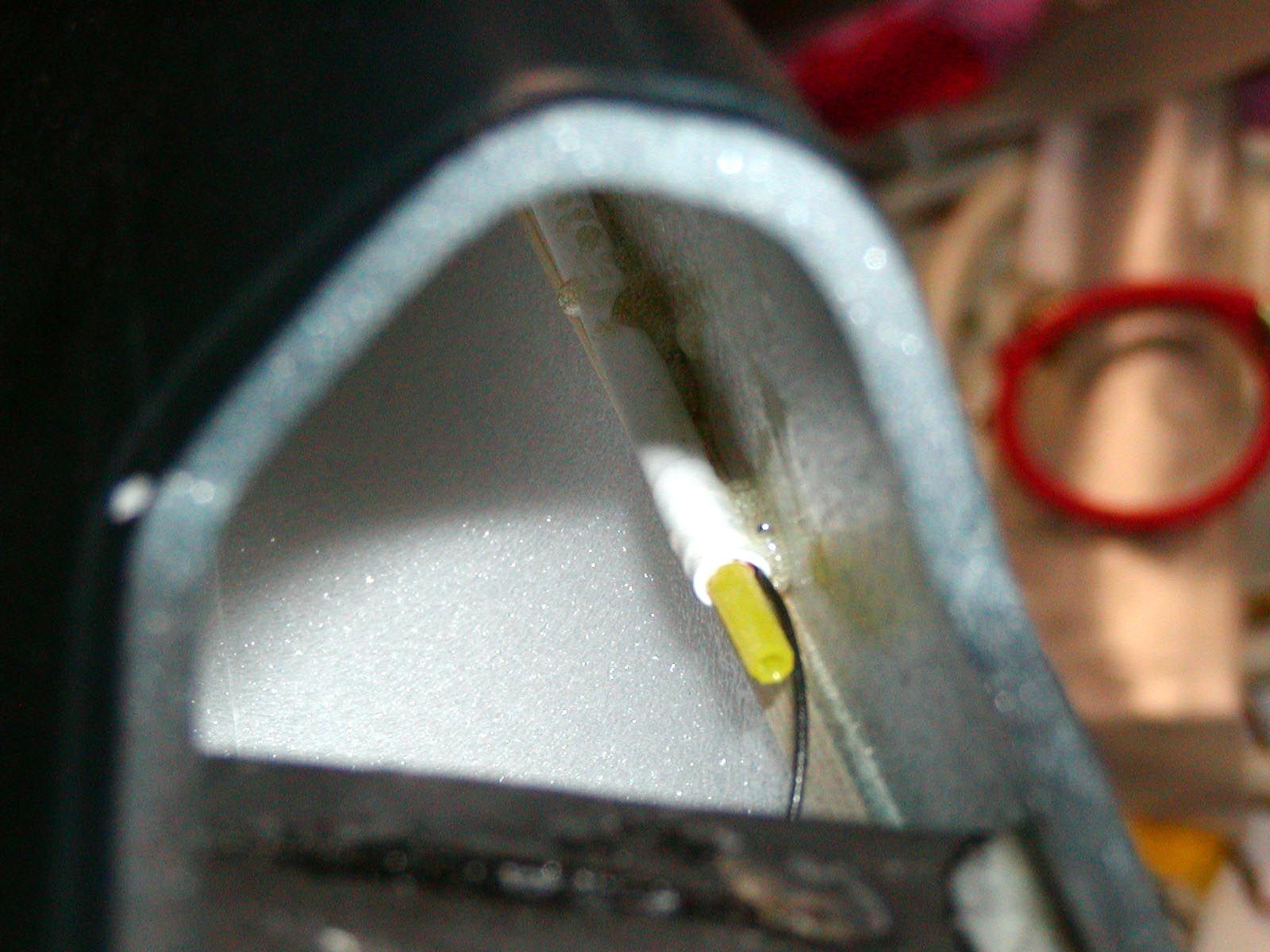

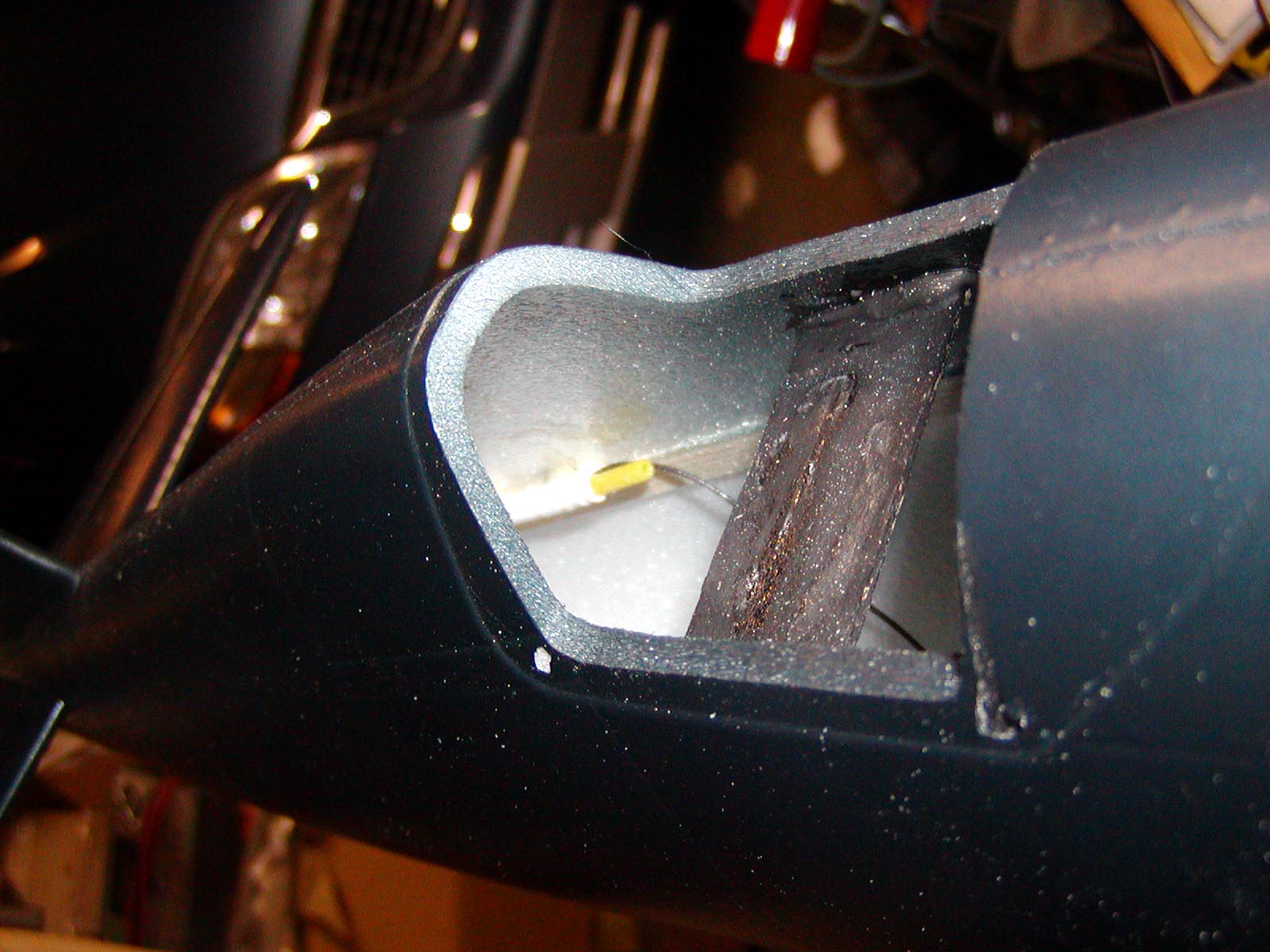

    1600 / 1024 / 640 - RX-Antenna installed.

    1600 / 1024 / 640 - No dangling antenna!

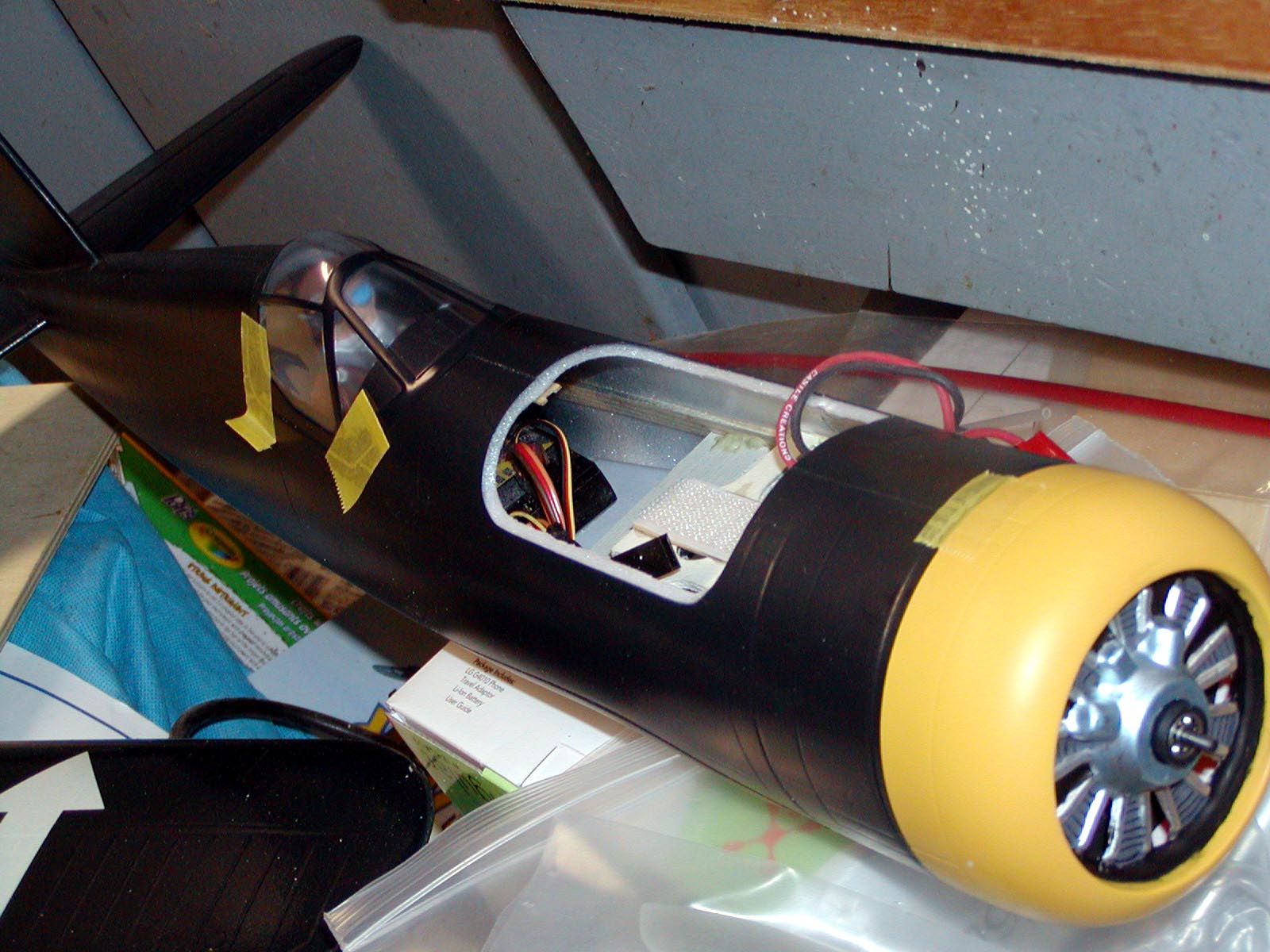

    1600 / 1024 / 640 - Got to be careful with tape.

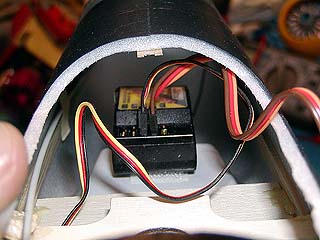

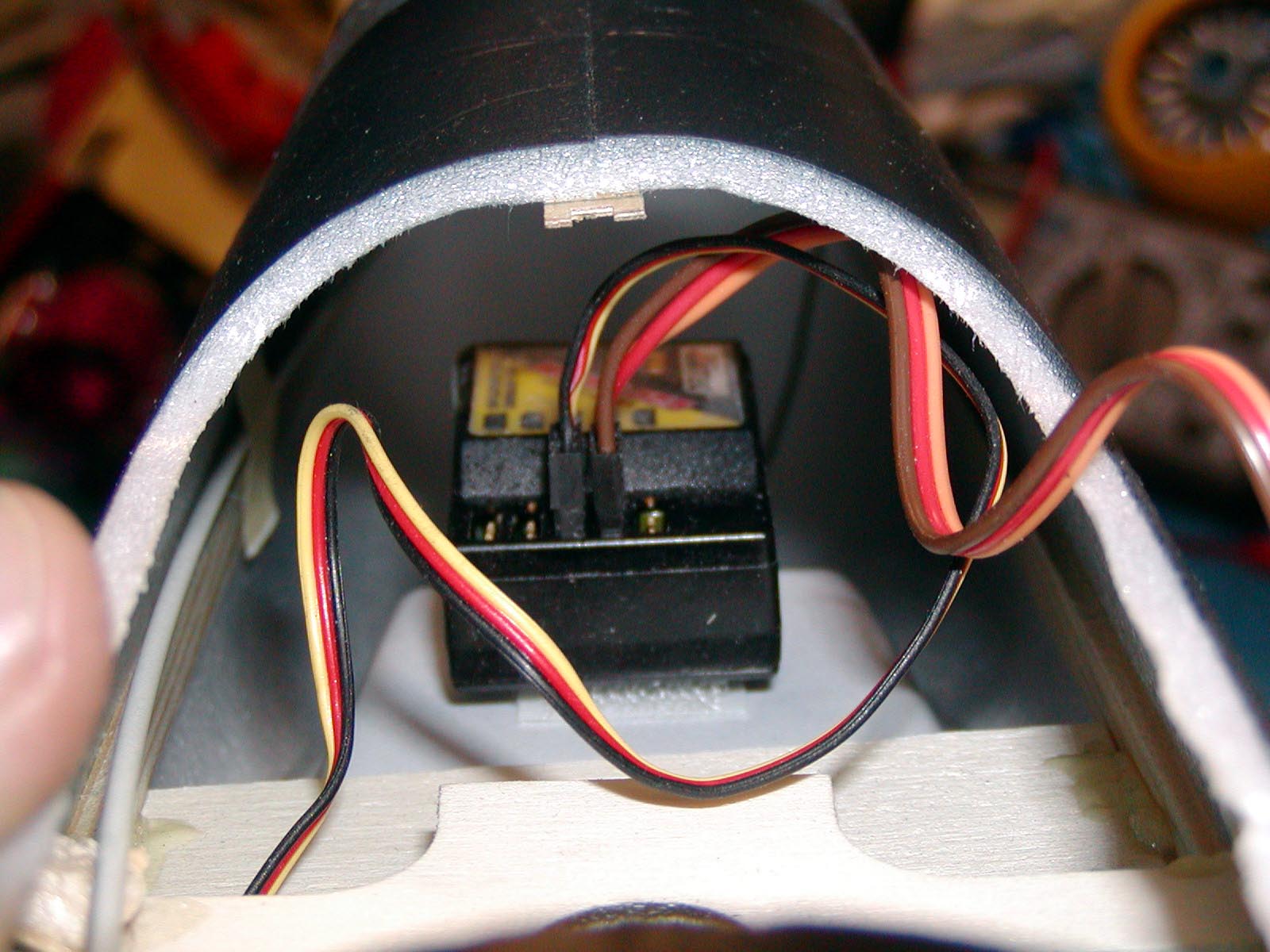

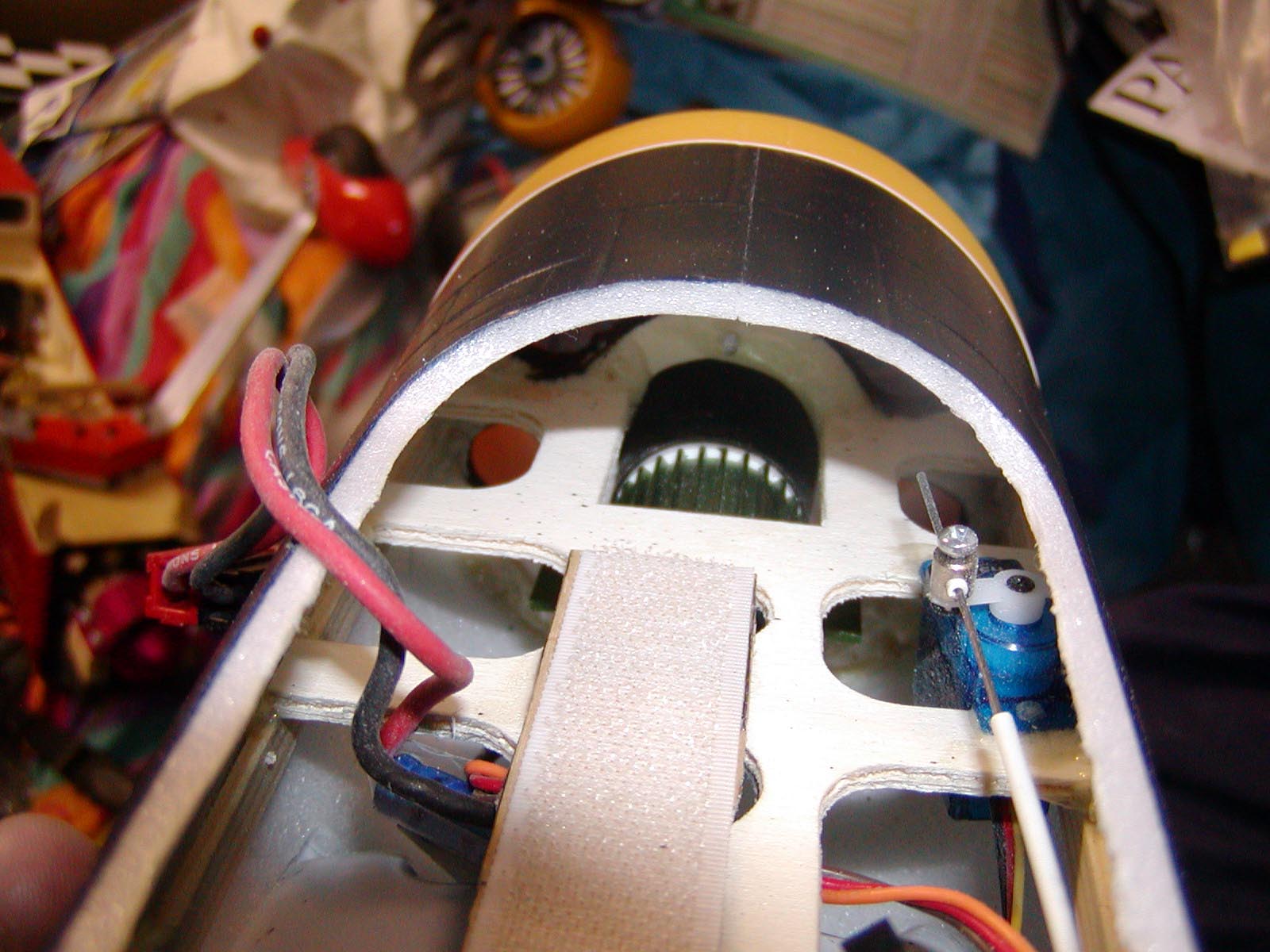

    1600 / 1024 / 640 - RX on velcro.

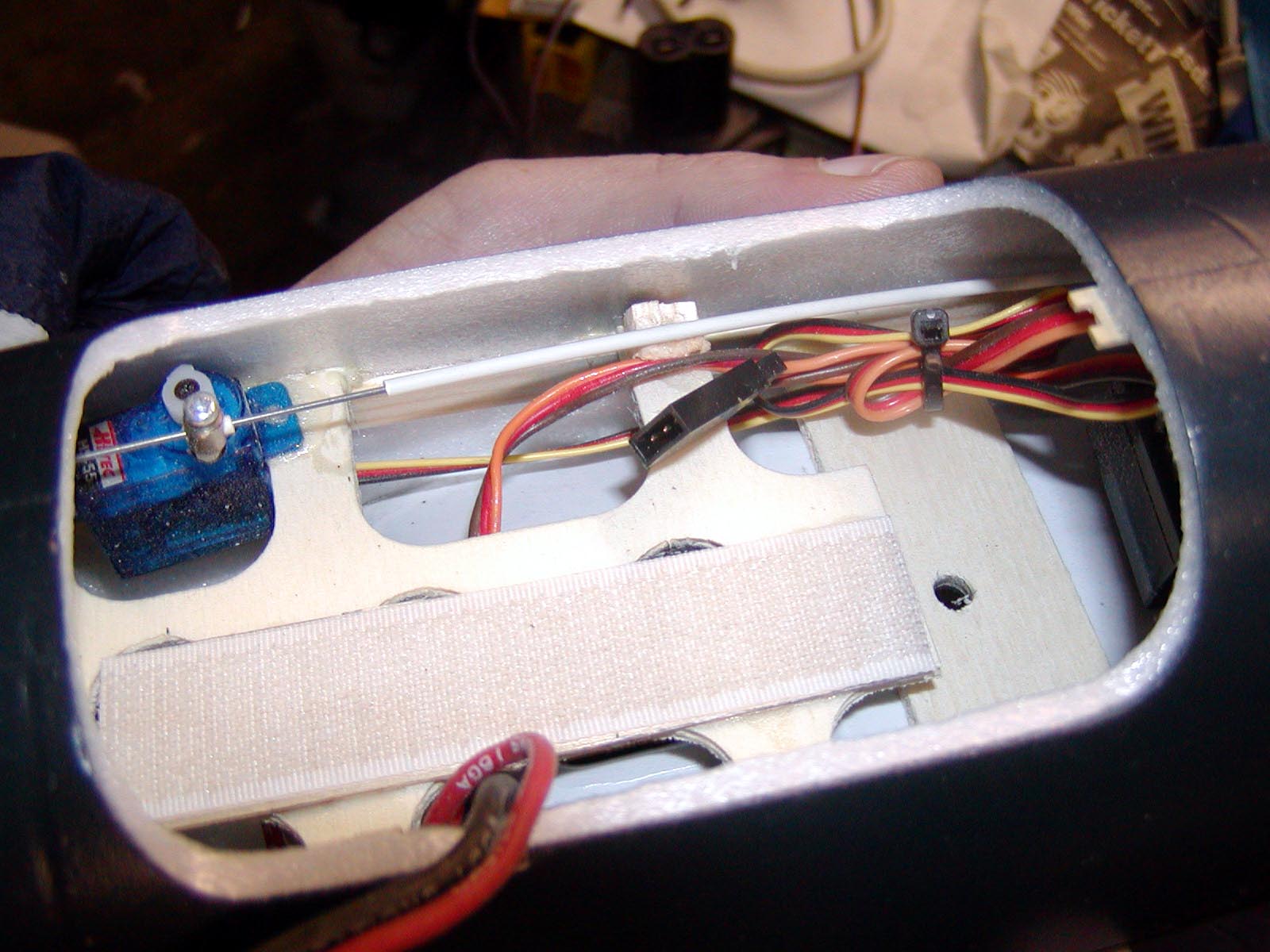

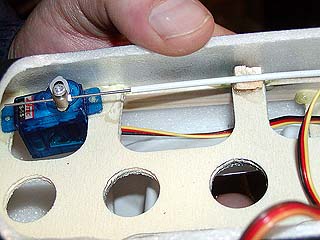

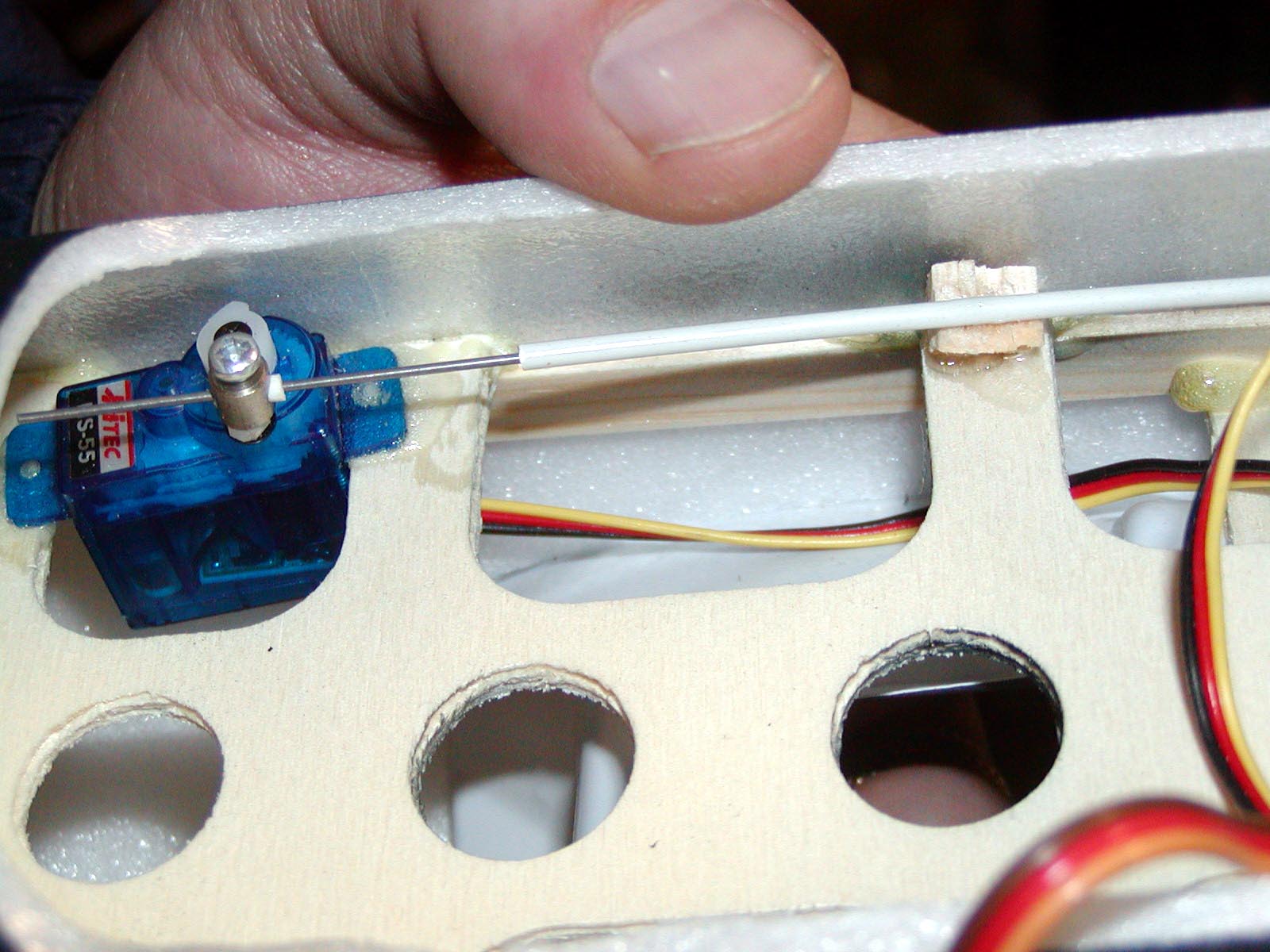

    1600 / 1024 / 640 - Elev servo w/pushrod support.

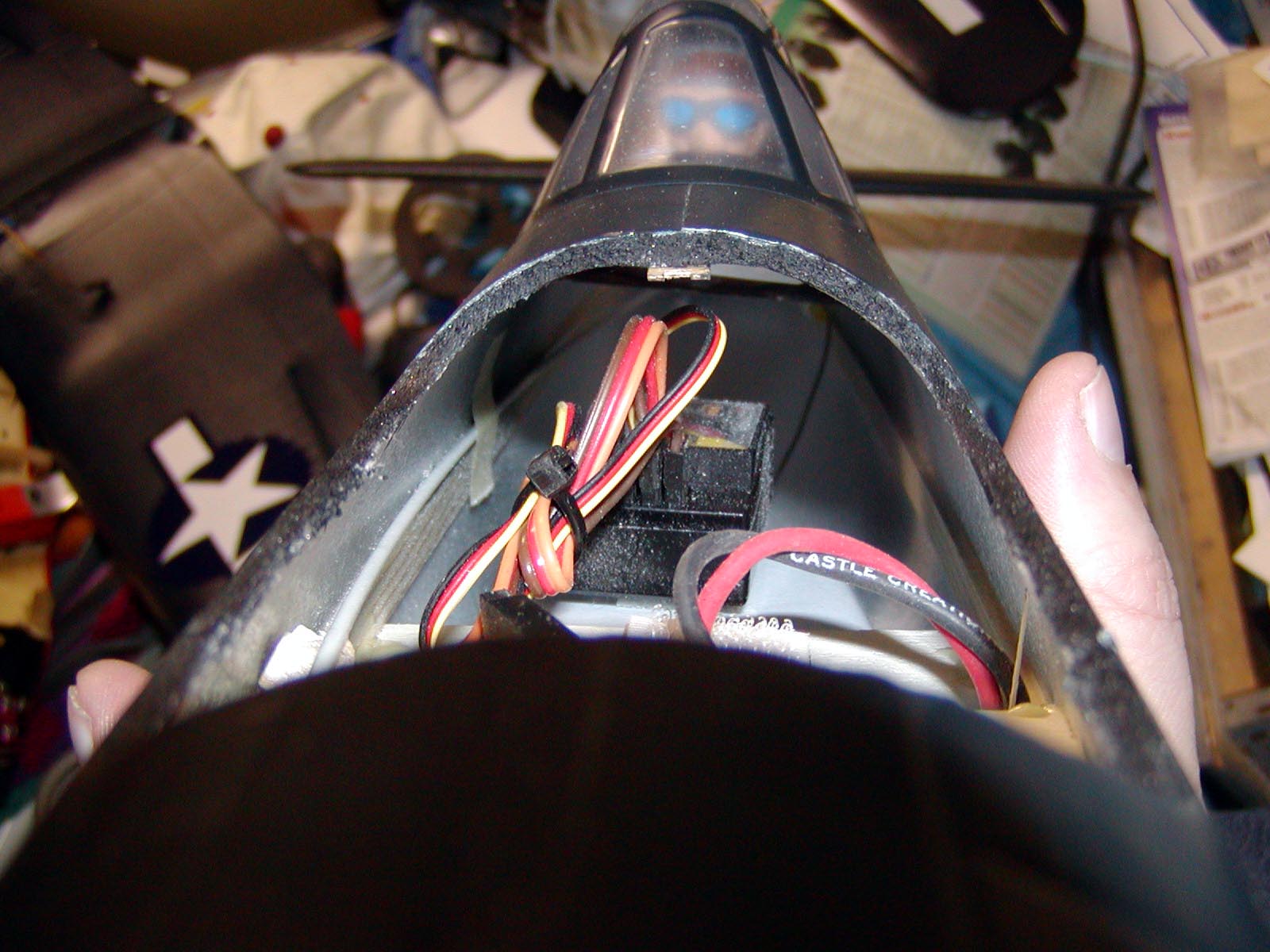

    1600 / 1024 / 640 - Clean up wiring.

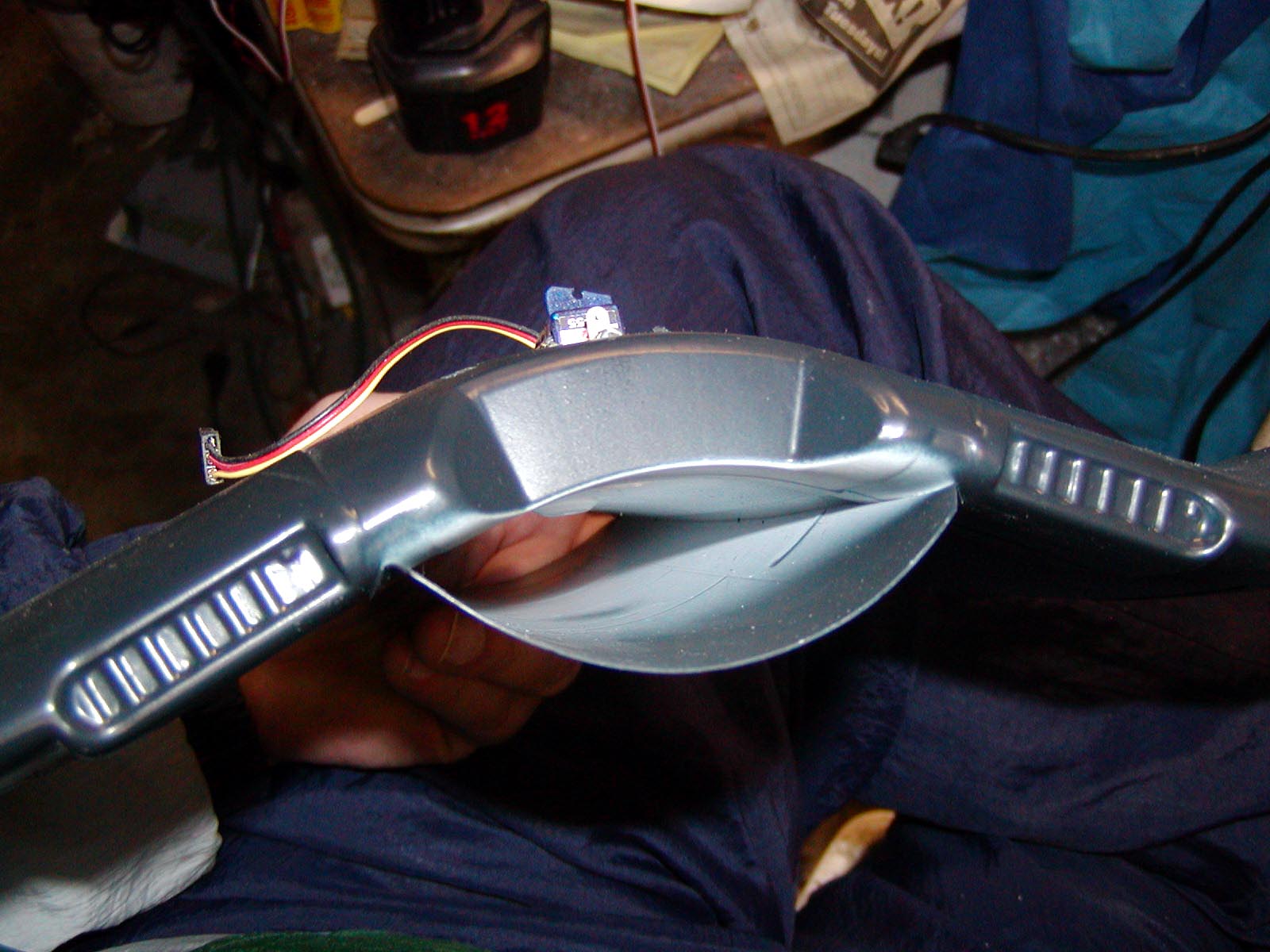

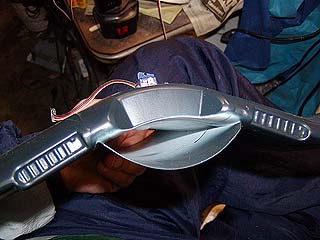

    1600 / 1024 / 640 - Install aileron servo.

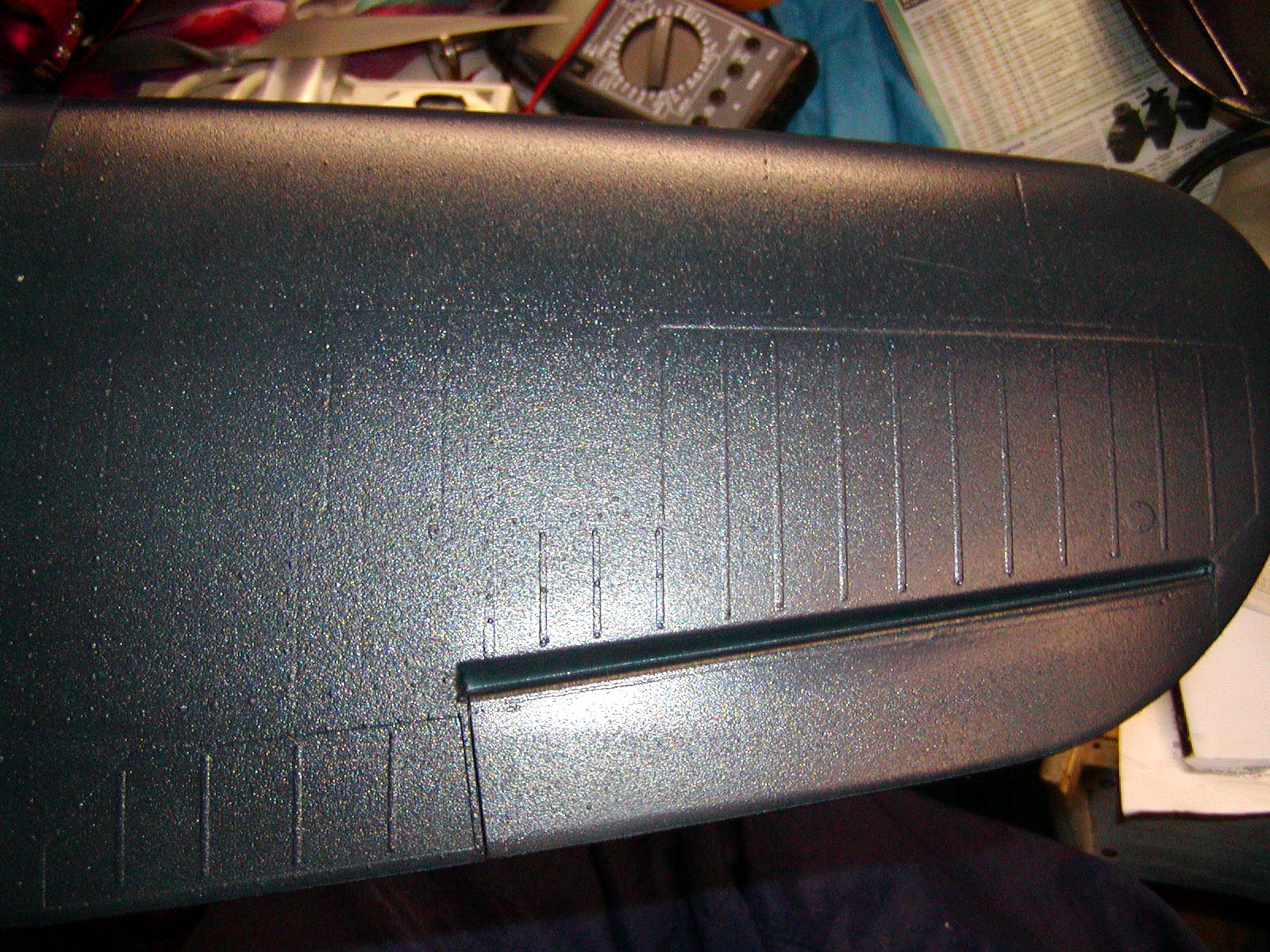

    1600 / 1024 / 640 -

    1600 / 1024 / 640 -

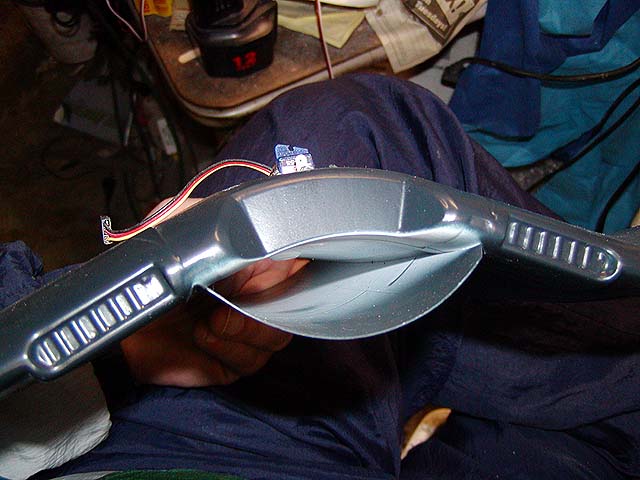

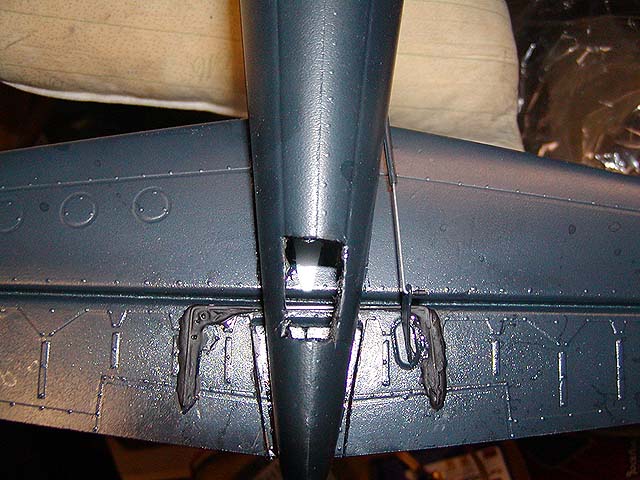

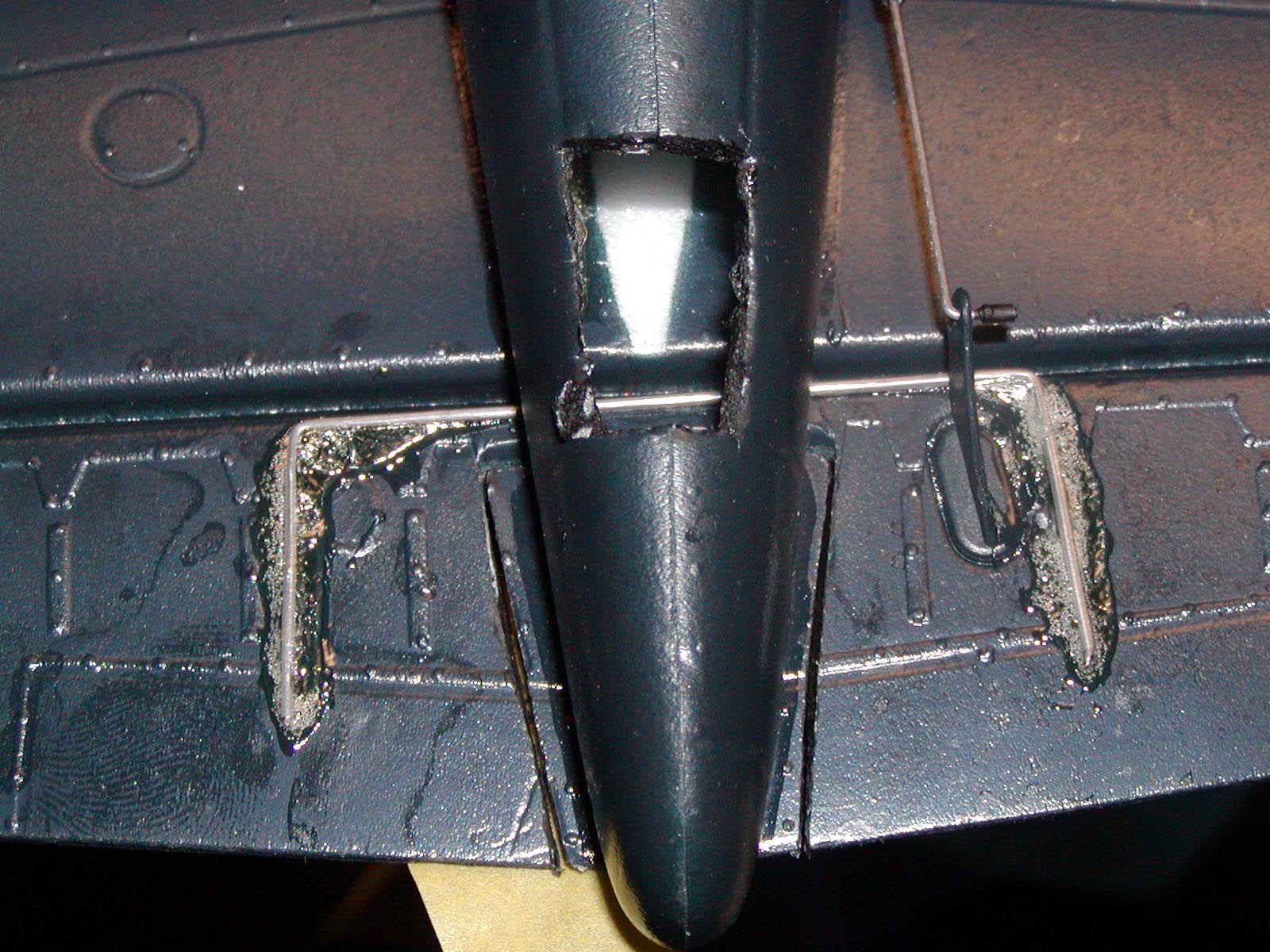

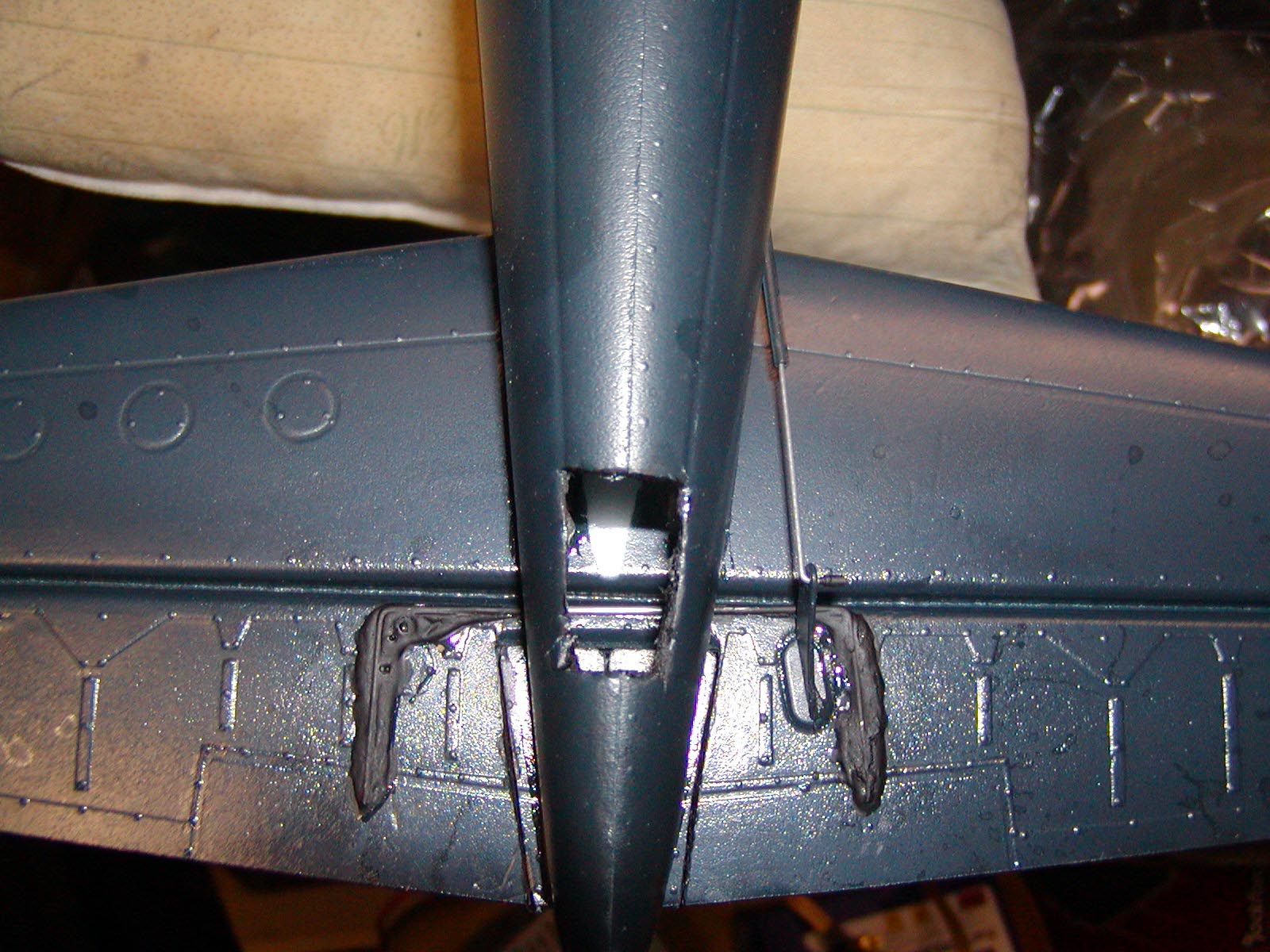

    1600 / 1024 / 640 - Extra wire joiner stiffens elevator

    1600 / 1024 / 640 - Painted black to be less obvious.

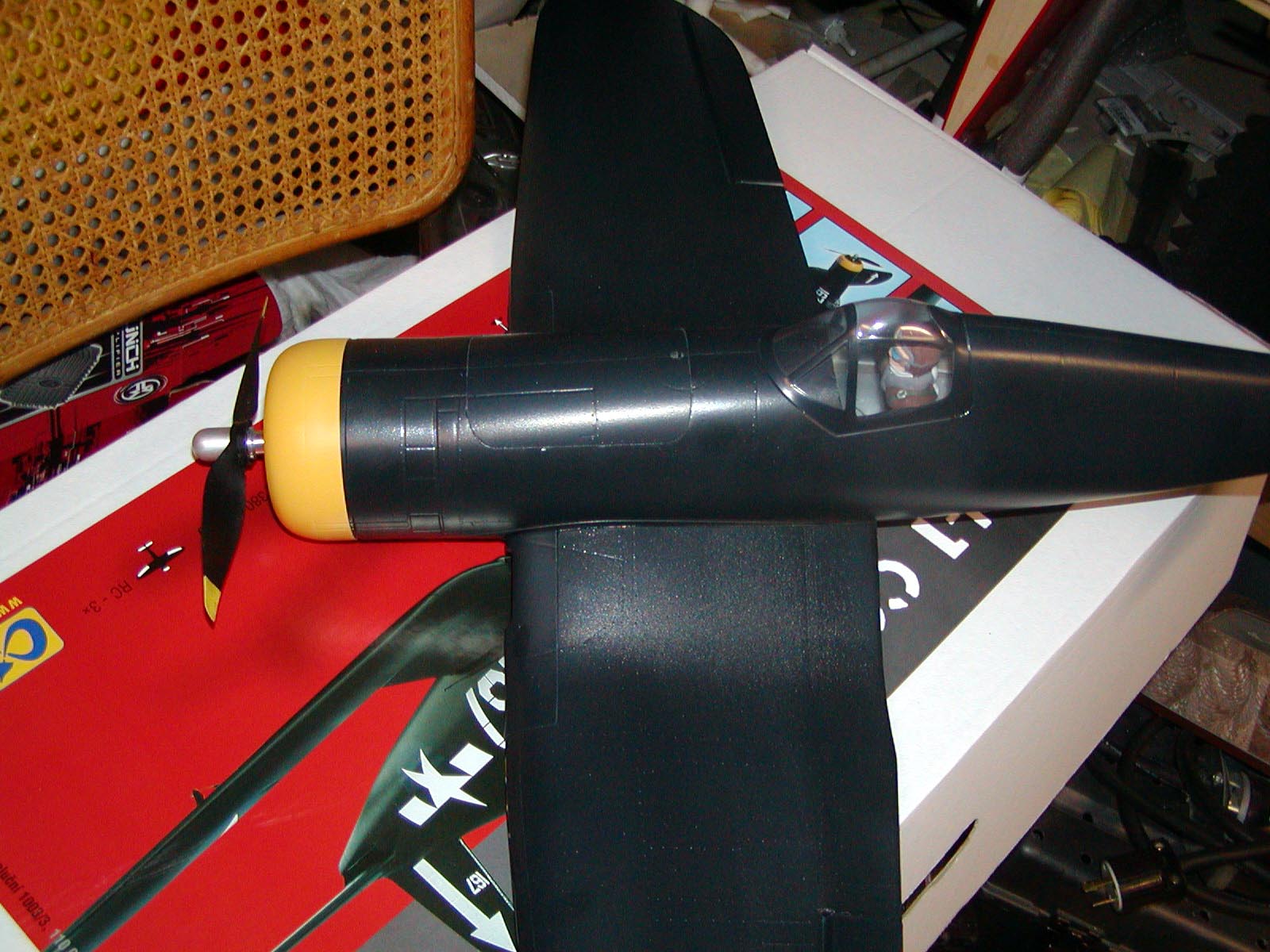

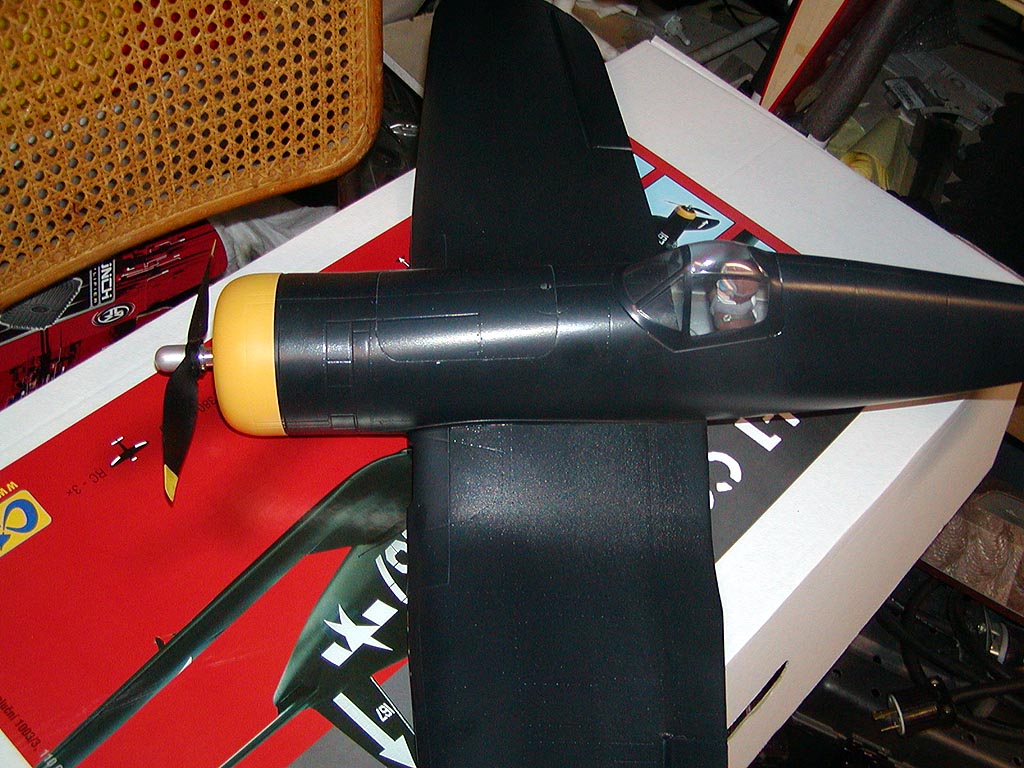

    1600 / 1024 / 640 - Ready to install decals.

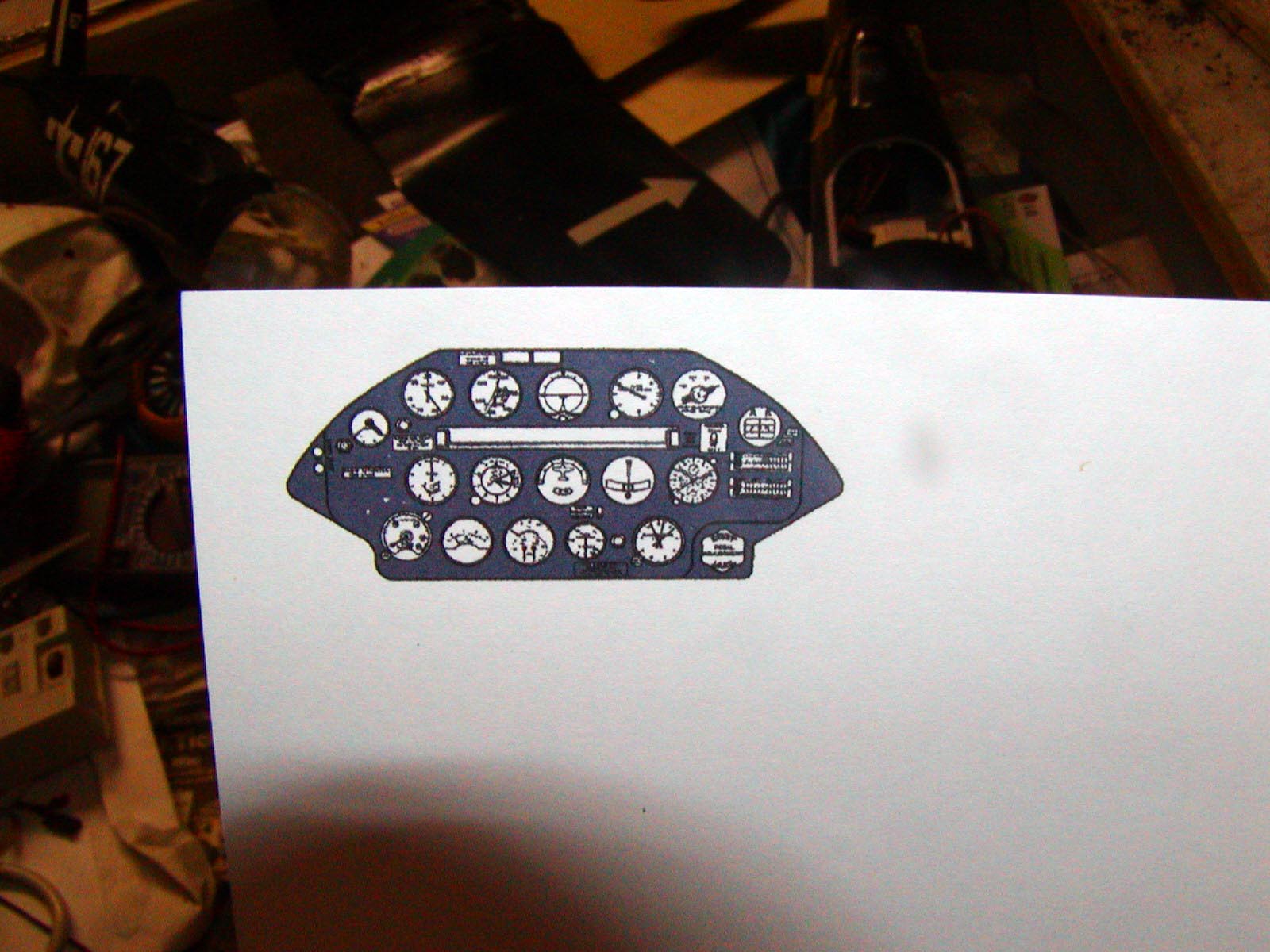

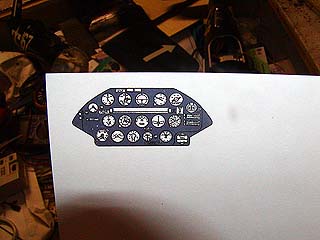

    1600 / 1024 / 640 - Made my own panel on cardstock.

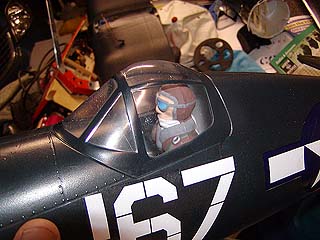

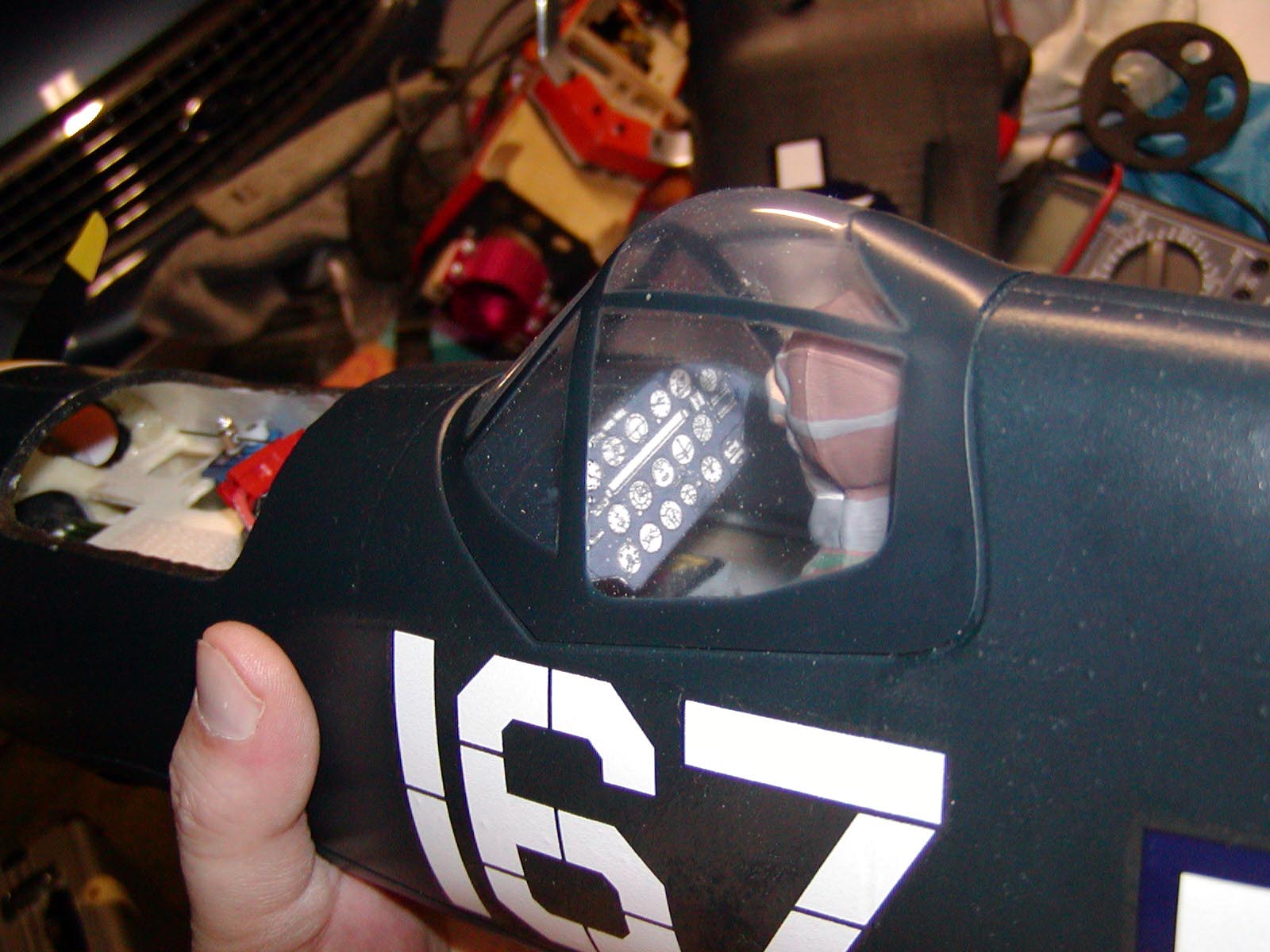

    1600 / 1024 / 640 - glued it in the cockpit.

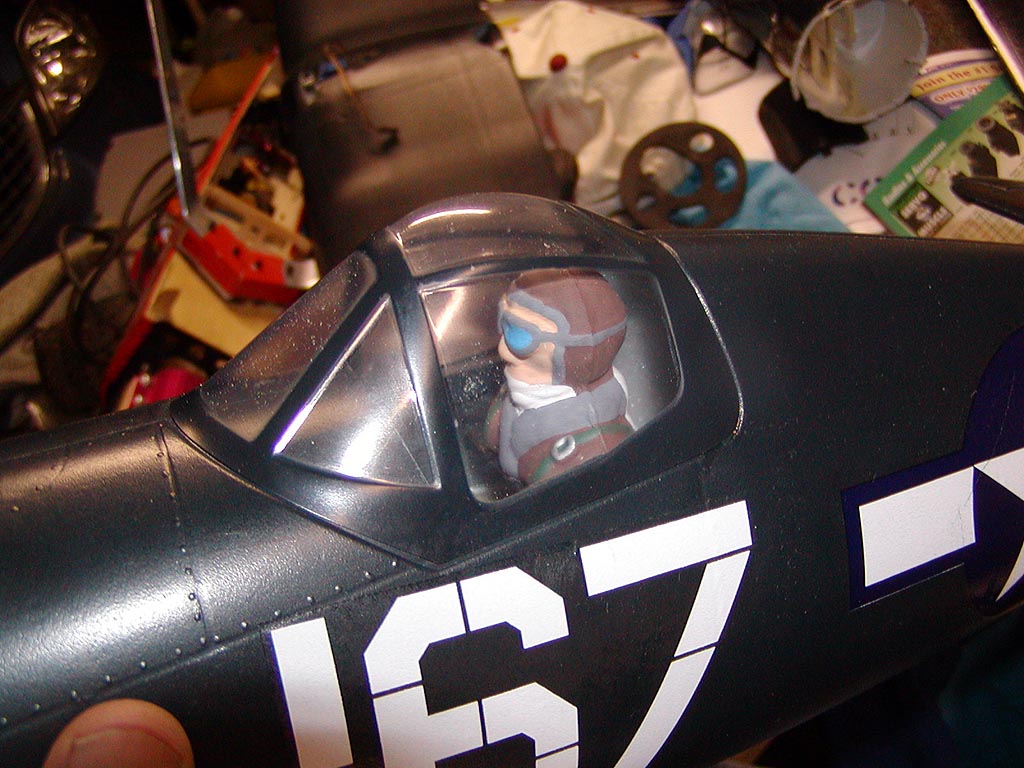

    1600 / 1024 / 640 - Looks ok.

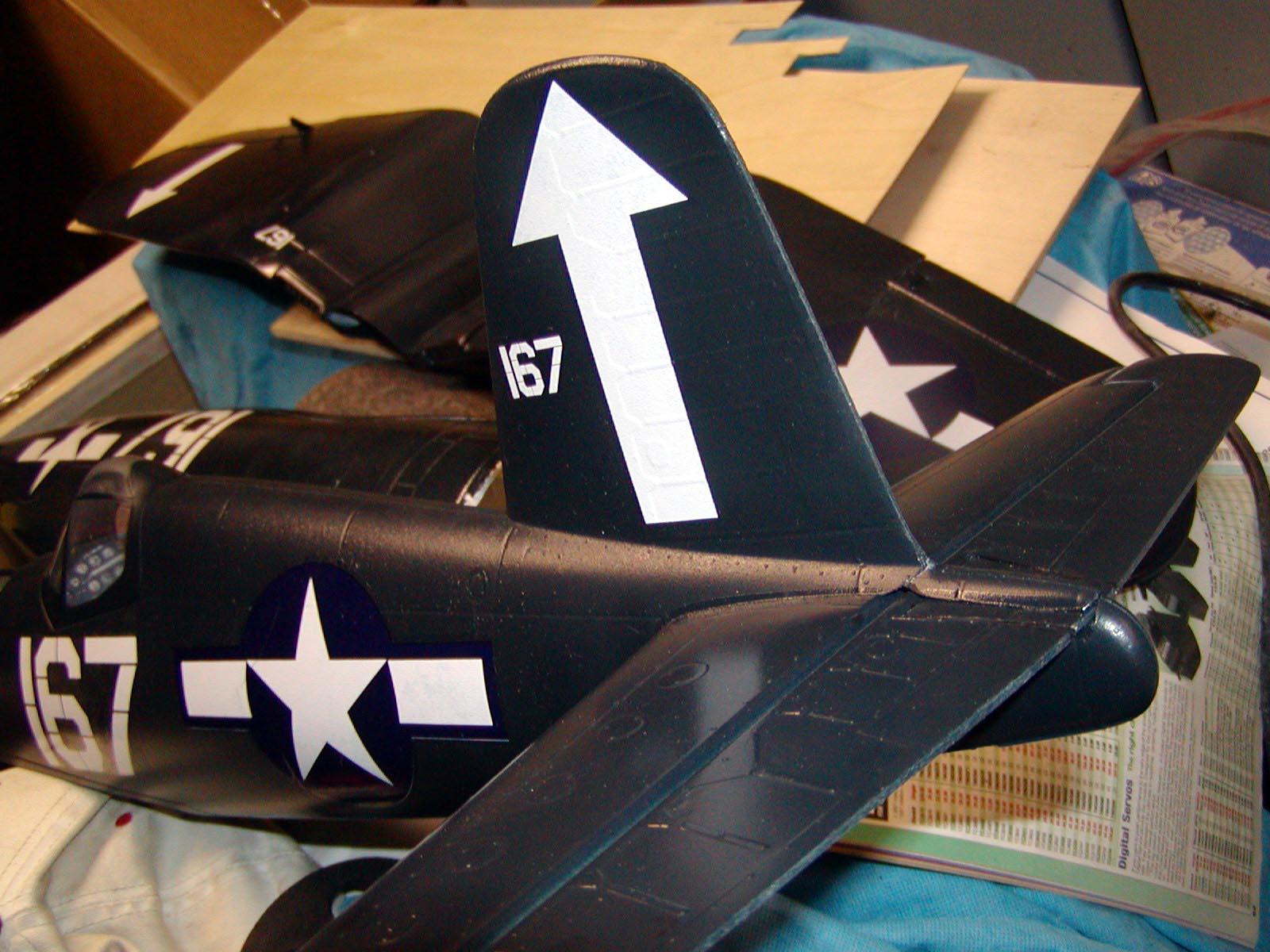

    1600 / 1024 / 640 - Decals for tail.

    1600 / 1024 / 640 -

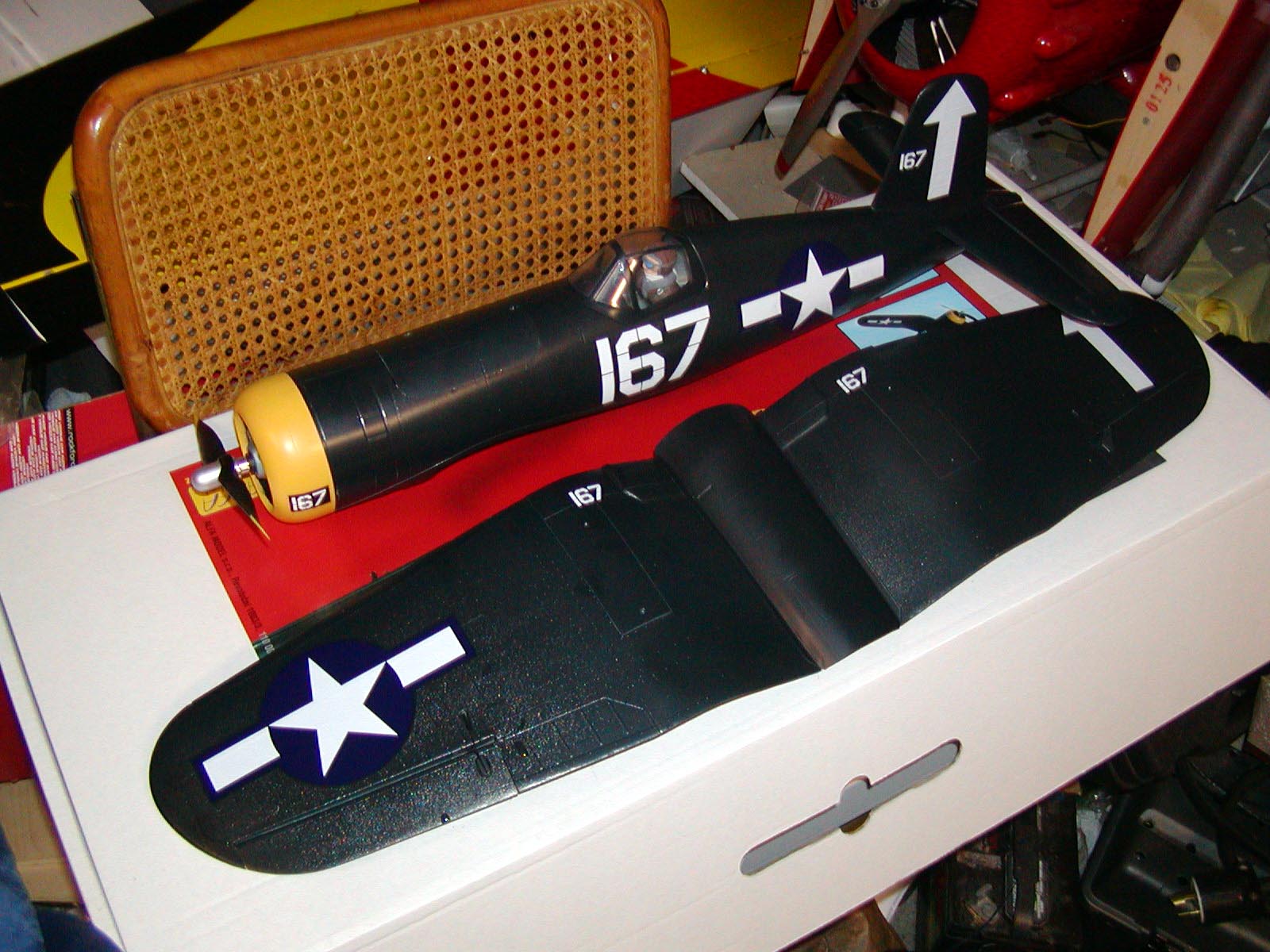

    1600 / 1024 / 640 - Ready to fly!
