*** Andy Steere's E-Flite P-47 Assembly Images ***

PAGE ONE


These are pictures and such of an E-Flite P-47, during assembly. Not as many pics as I normally take... sorry!


Click on the number below each image for a larger version of the picture (larger number, larger version of the picture)

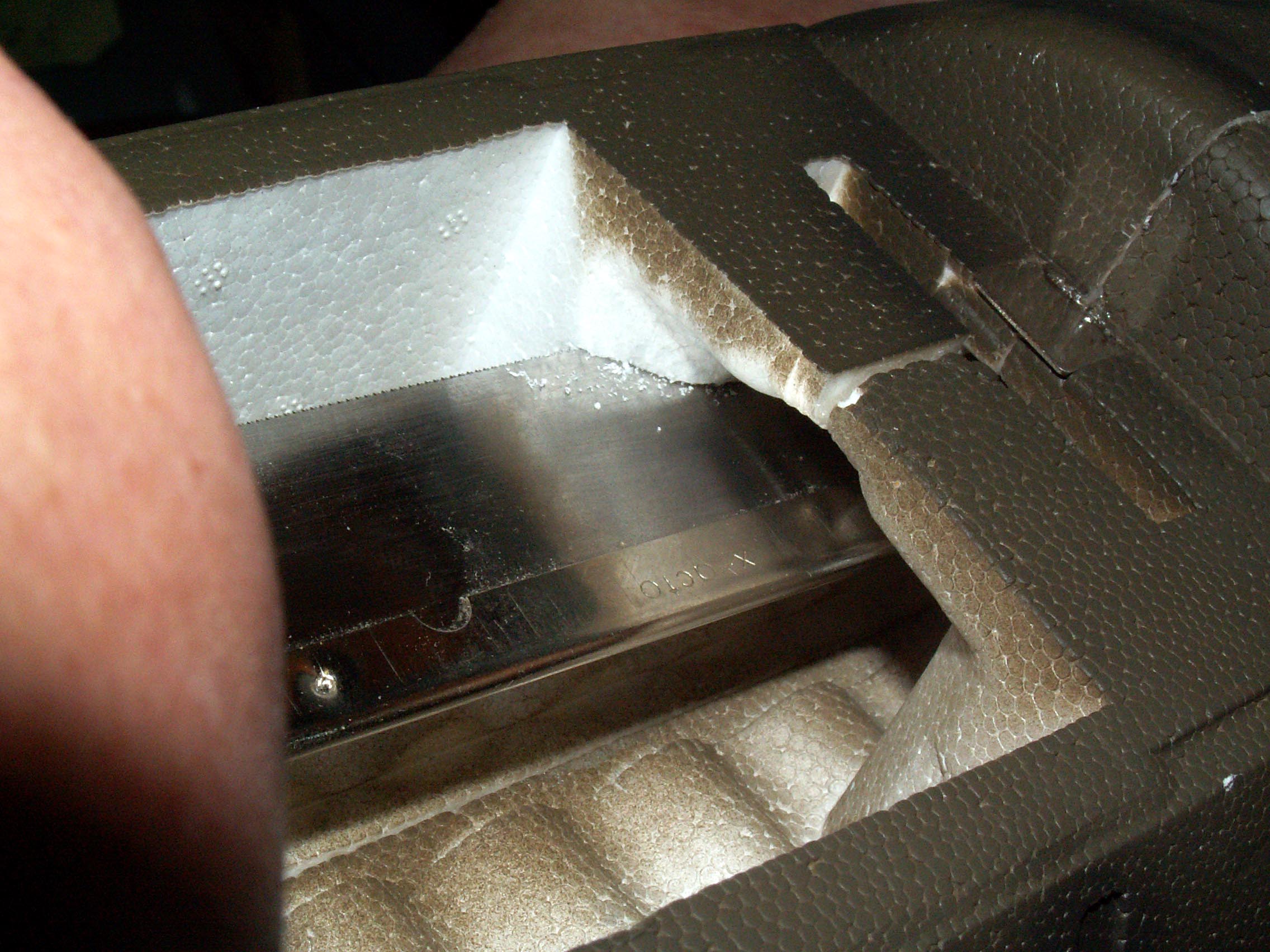

2272 / 1024 / 640 - Used a razor saw to cut the battery opening.

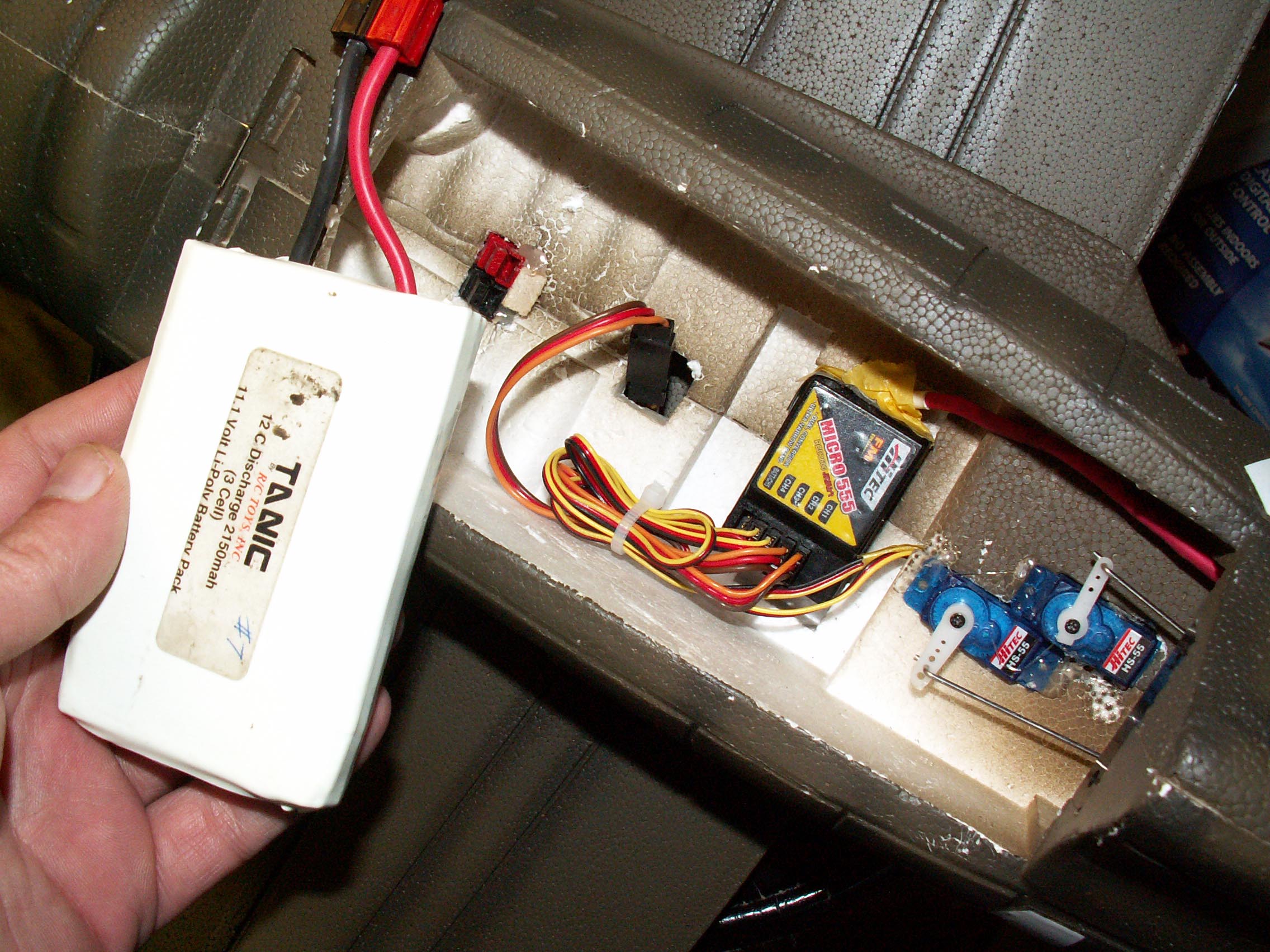

2272 / 1024 / 640 - Tanic 2150 3s packs are wide and long, but thin.

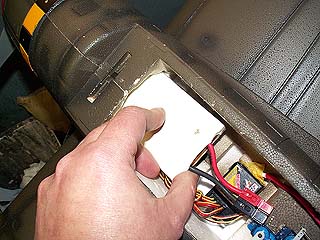

2272 / 1024 / 640 - Slide into the hole cut for it.

2272 / 1024 / 640 - Connect to ESC wires.

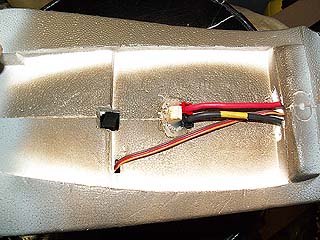

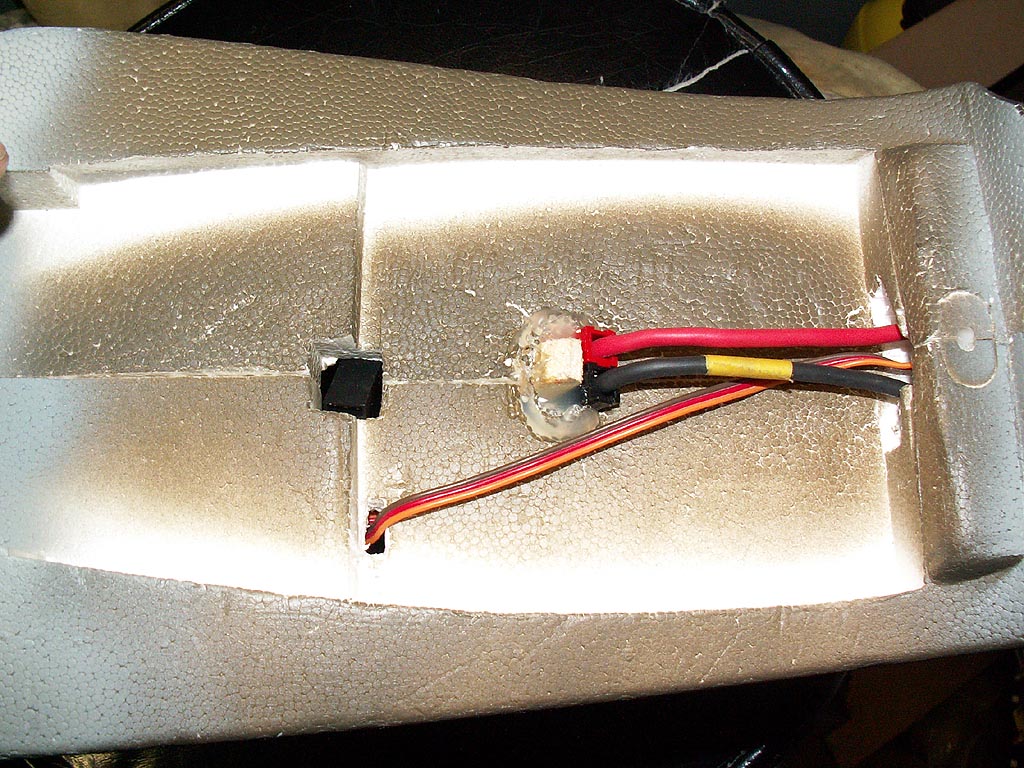

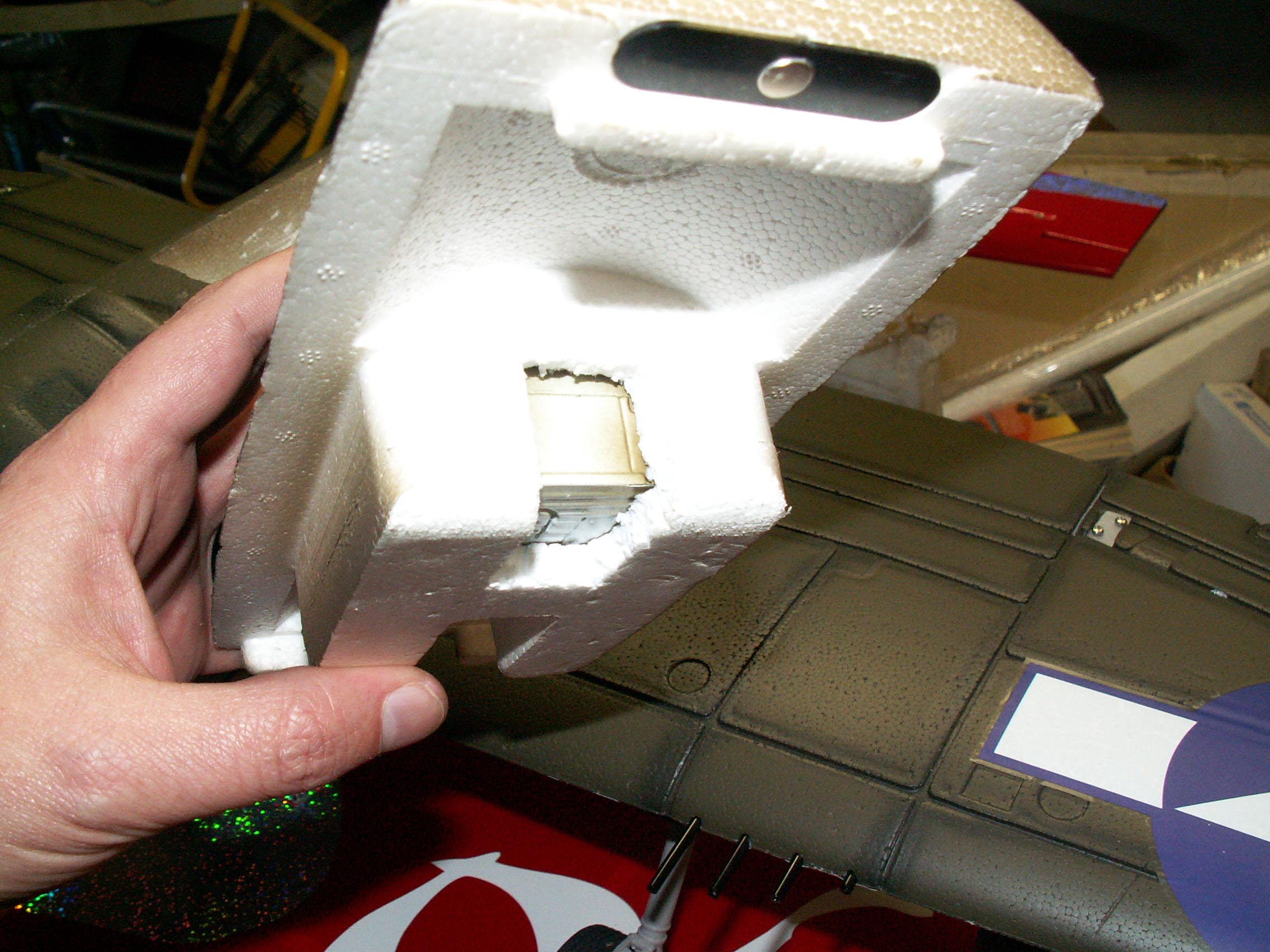

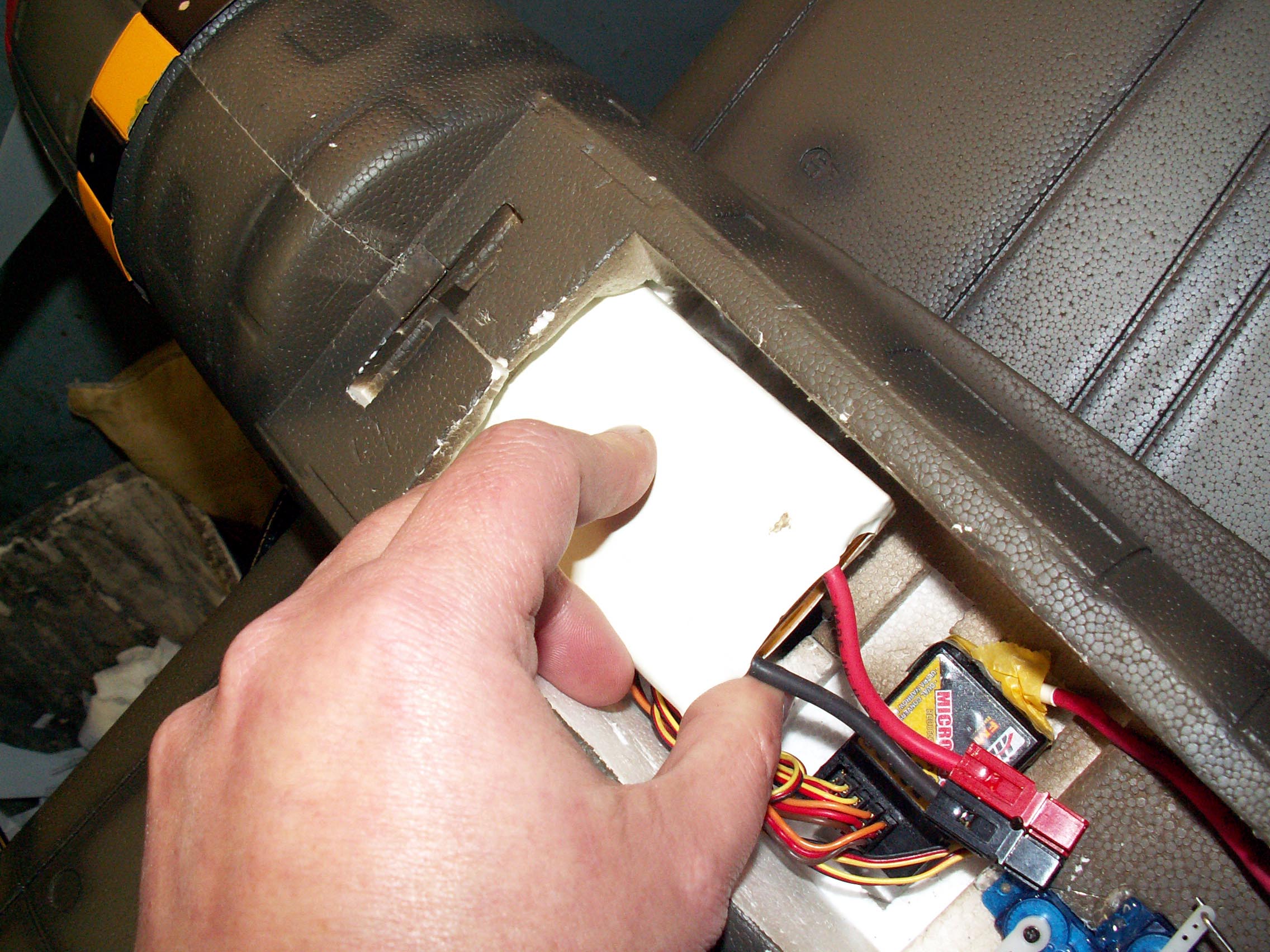

2272 / 1024 / 640 - Notch cut in hatch foam to clear wires.

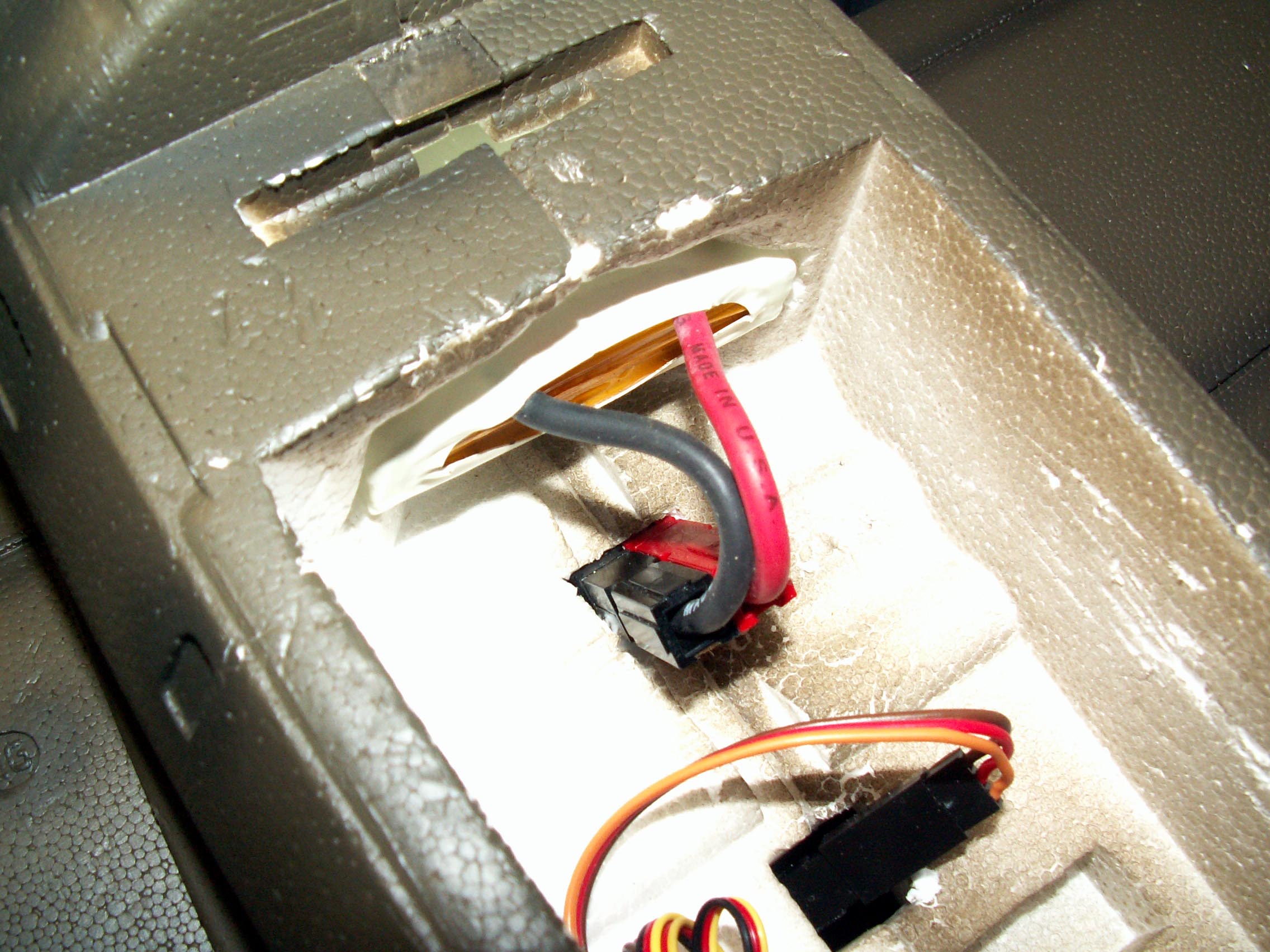

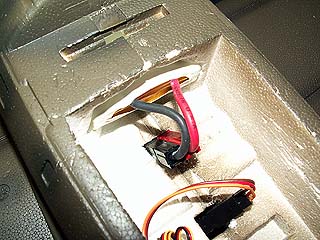

2272 / 1024 / 640 - ESC connectors from the bottom... held in place with balsa block and hot-glue.

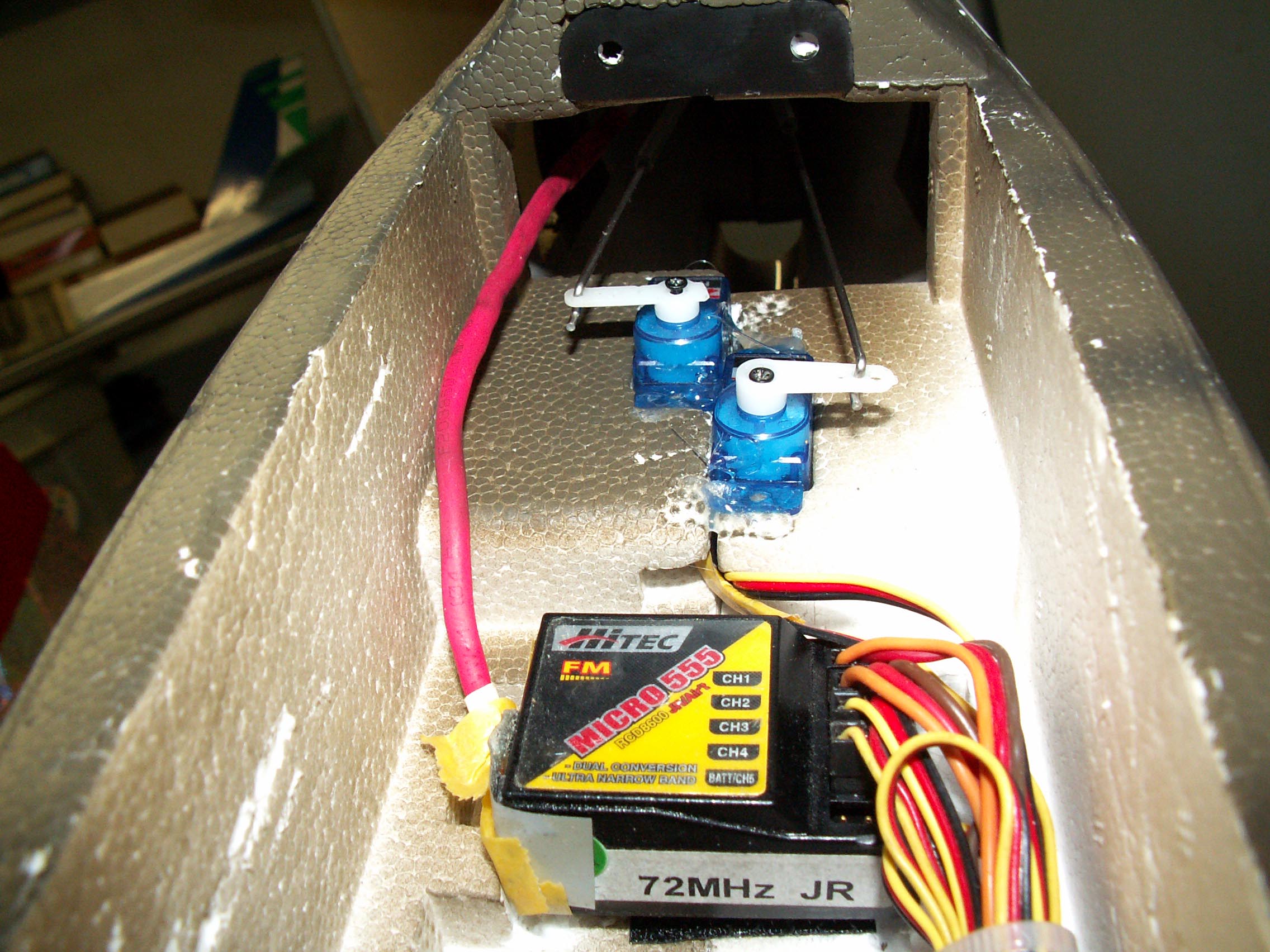

2272 / 1024 / 640 - Hitec 555 RX with its E-Cubed antenna and HS55 tail servos.

2272 / 1024 / 640 - Rudder, but stock tailwheel.

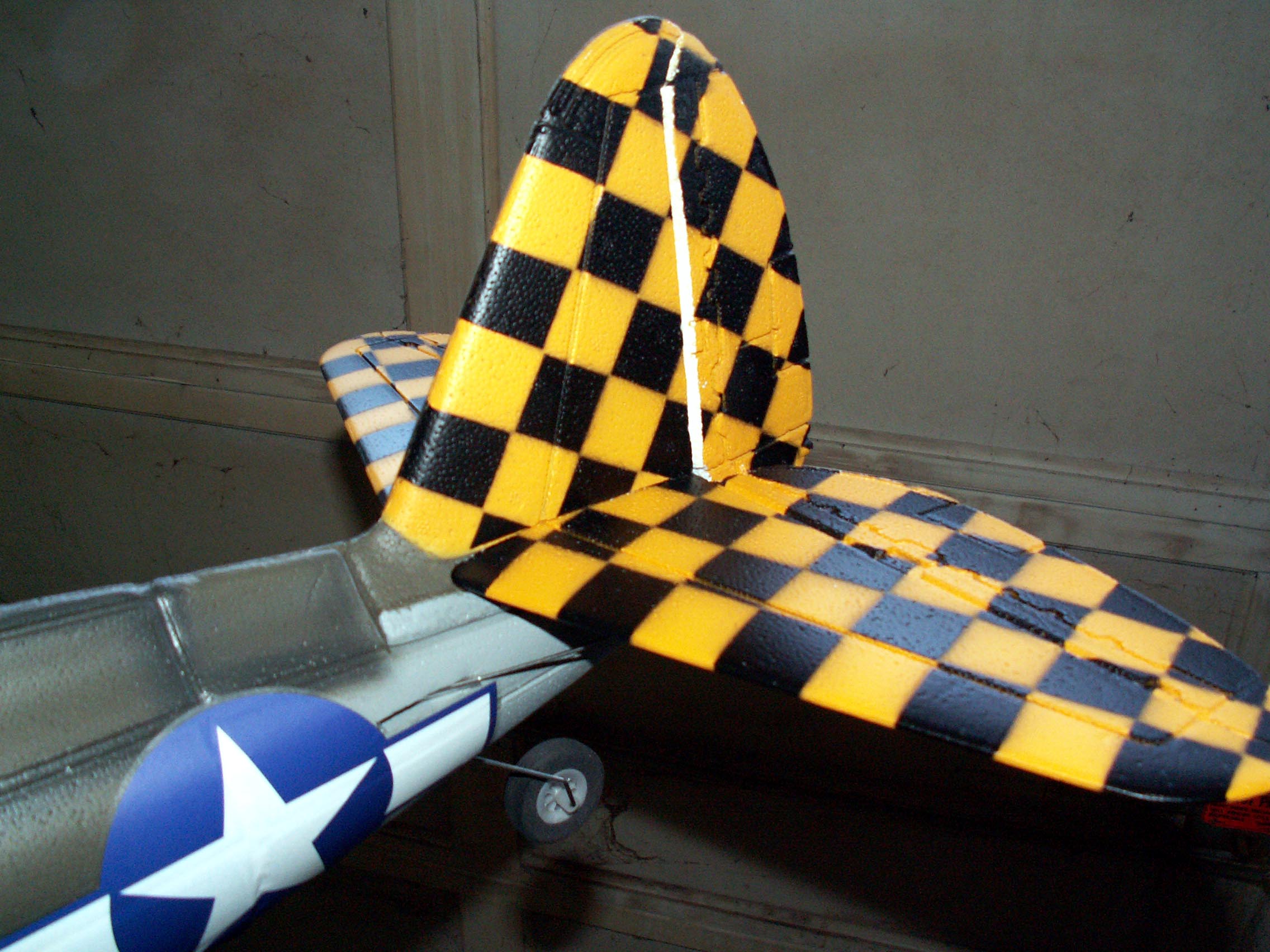

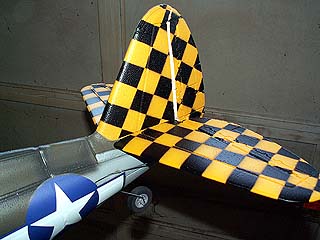

2272 / 1024 / 640 - Tail.

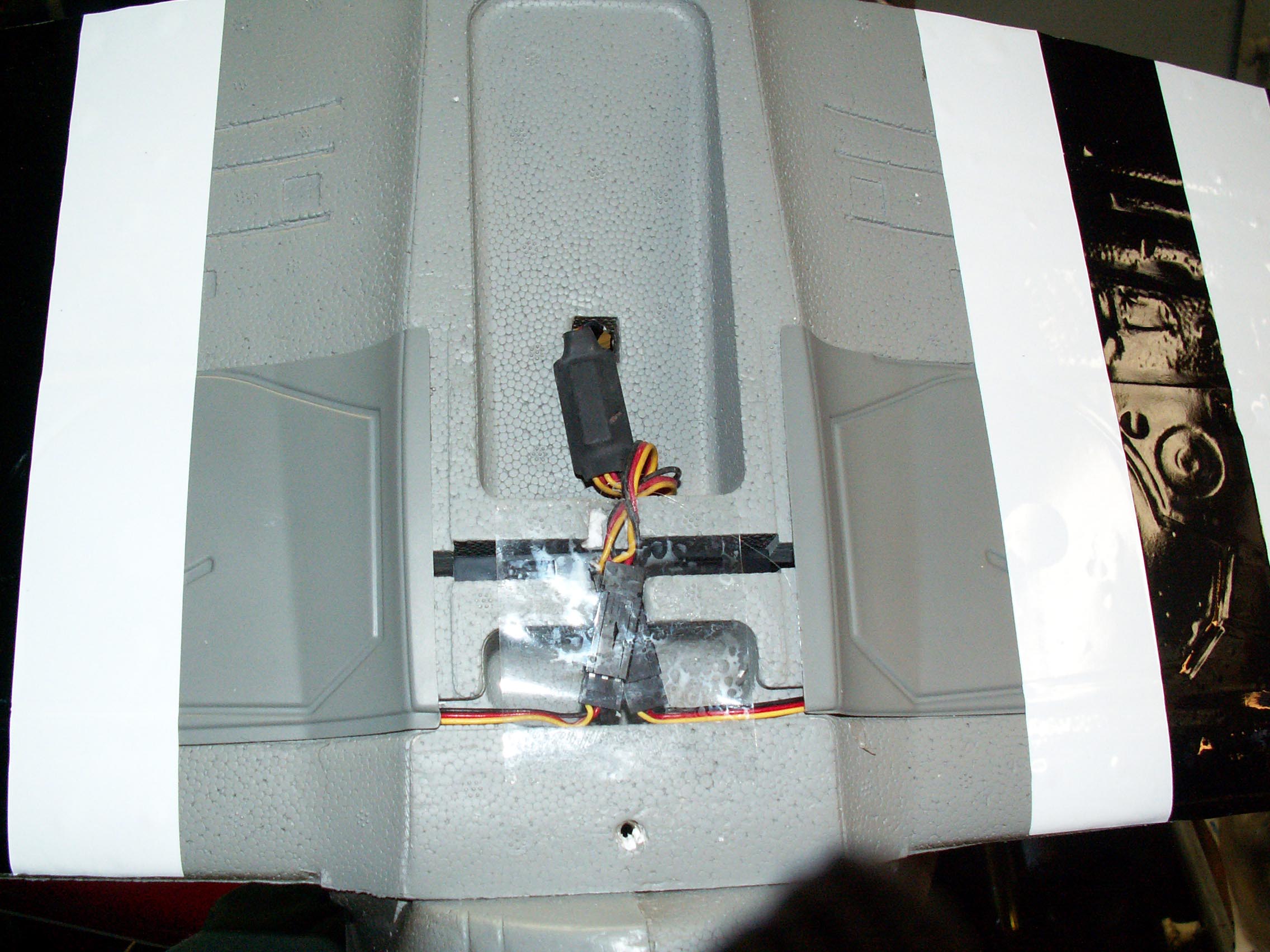

2272 / 1024 / 640 - Wing with servos installed. Y-connector covered in clear tape.

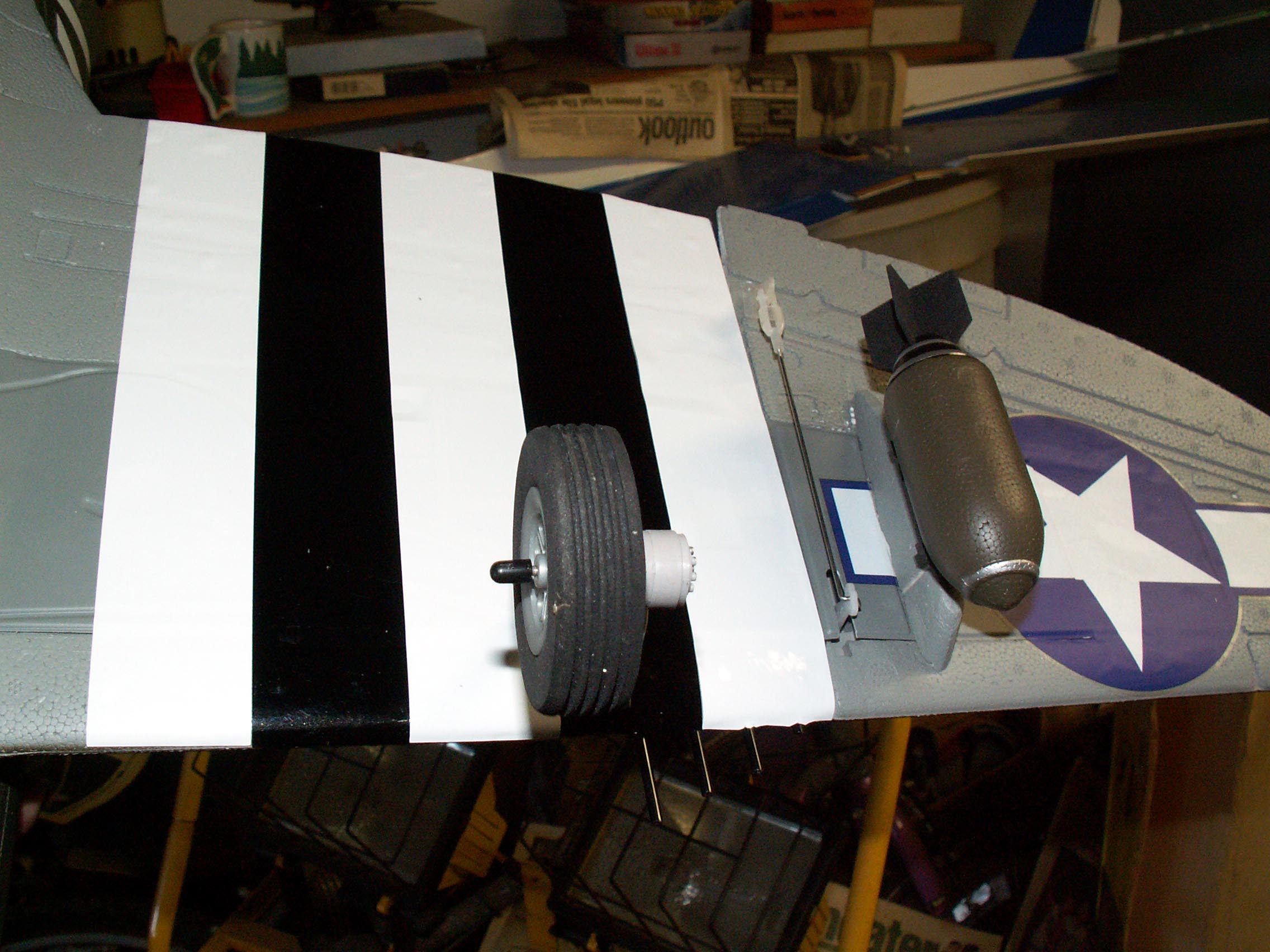

2272 / 1024 / 640 - Invasion stripes to aid visibility.

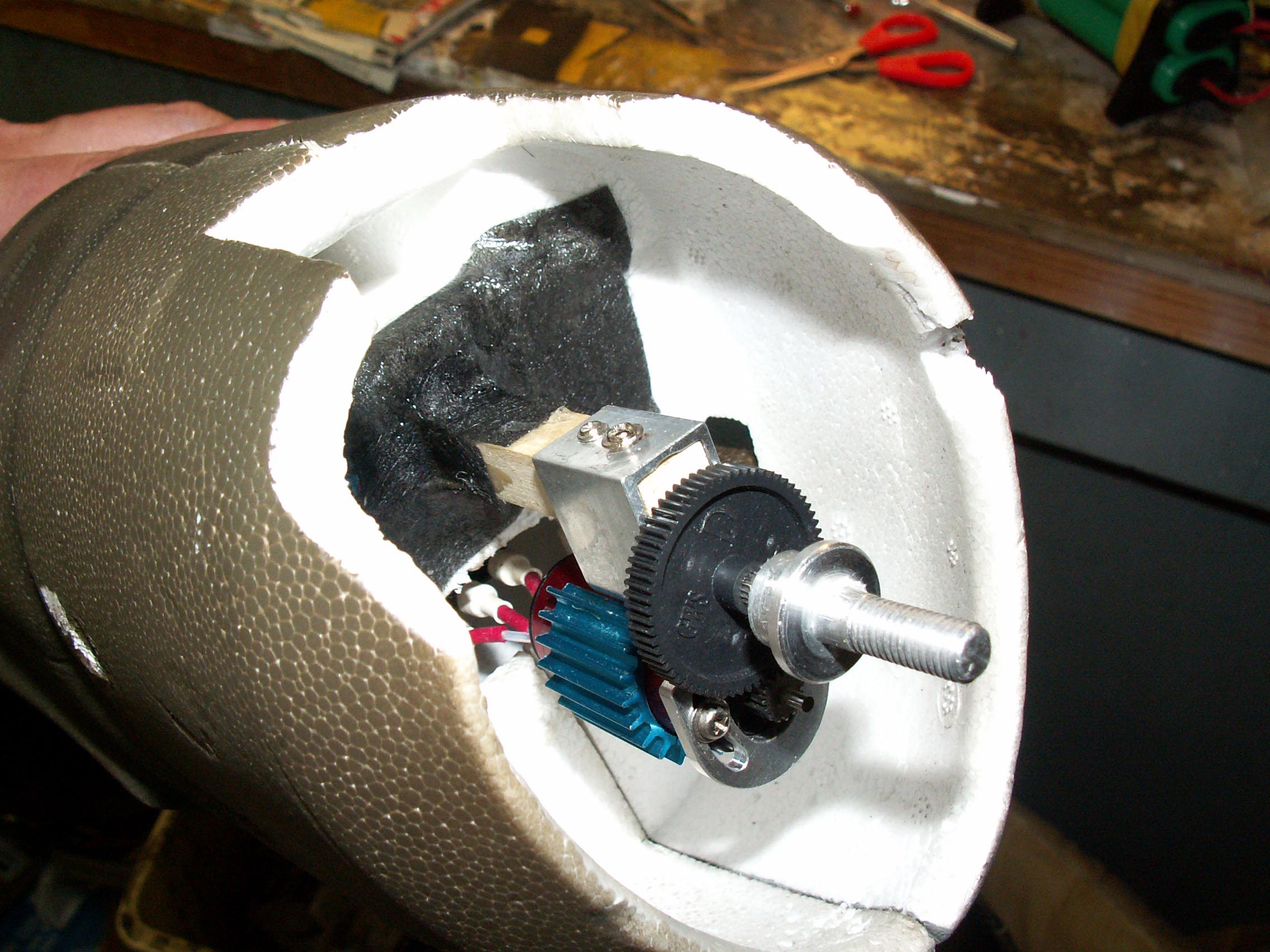

2272 / 1024 / 640 - Razor RZ-2500 on a Cobri gearbox with an MPI heatsink and E-Flite 40amp ESC.

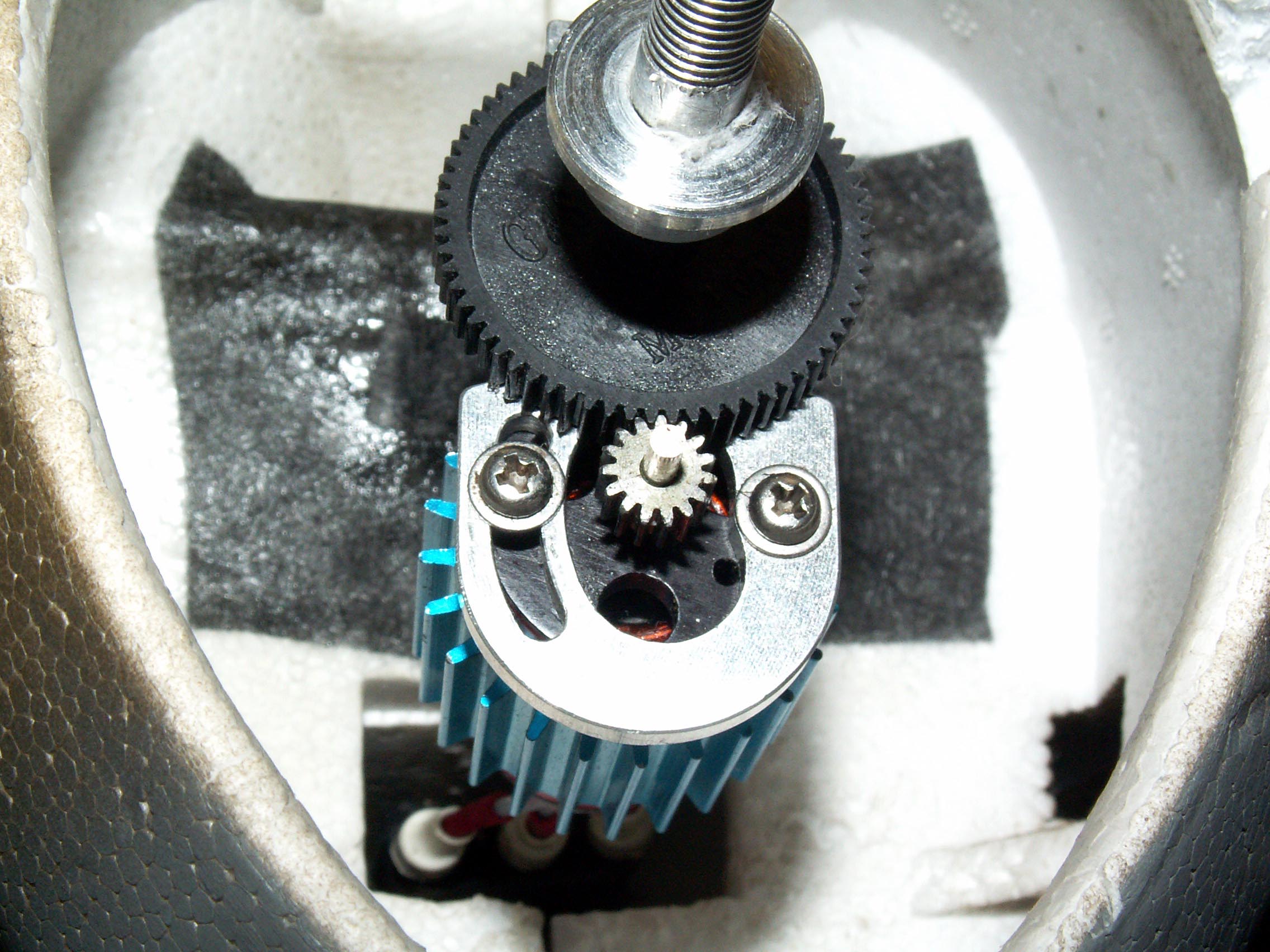

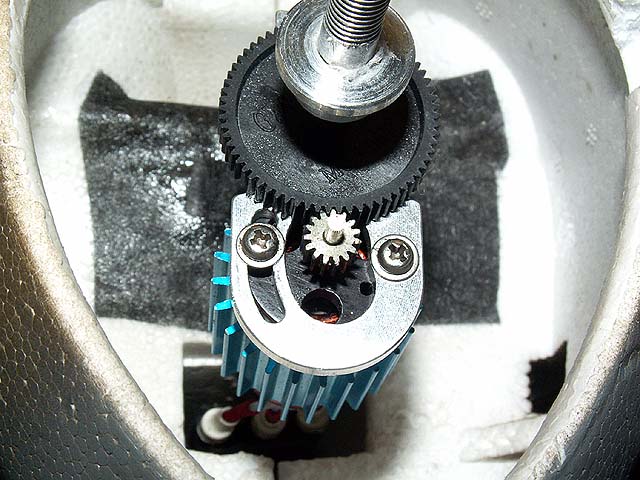

2272 / 1024 / 640 - Geared 4.4:1 (spur:66t/pinion:15t) spinning an APC 10x10E with 240watts

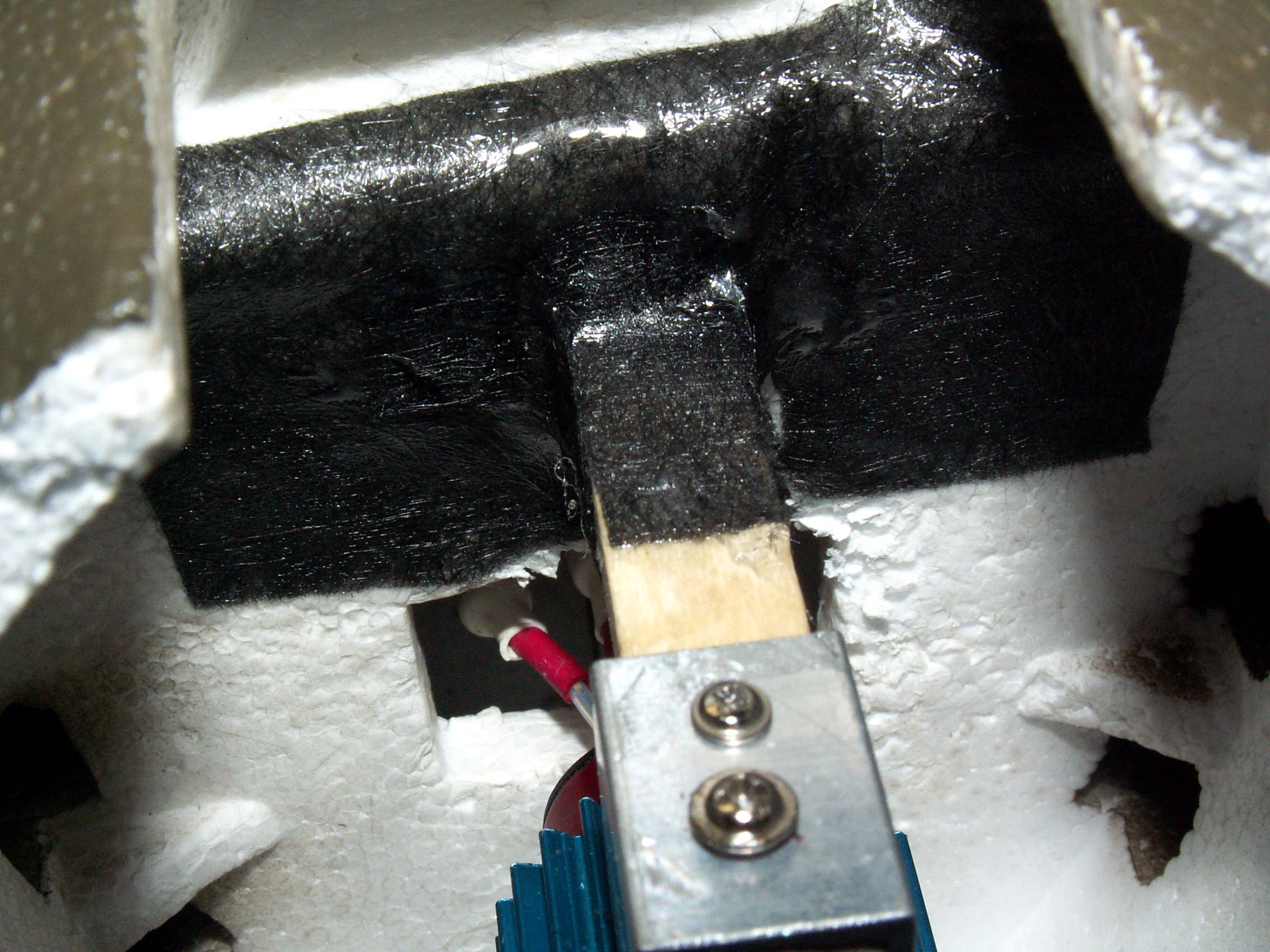

2272 / 1024 / 640 - Reinforced motor stick with carbon fiber. It was loose.

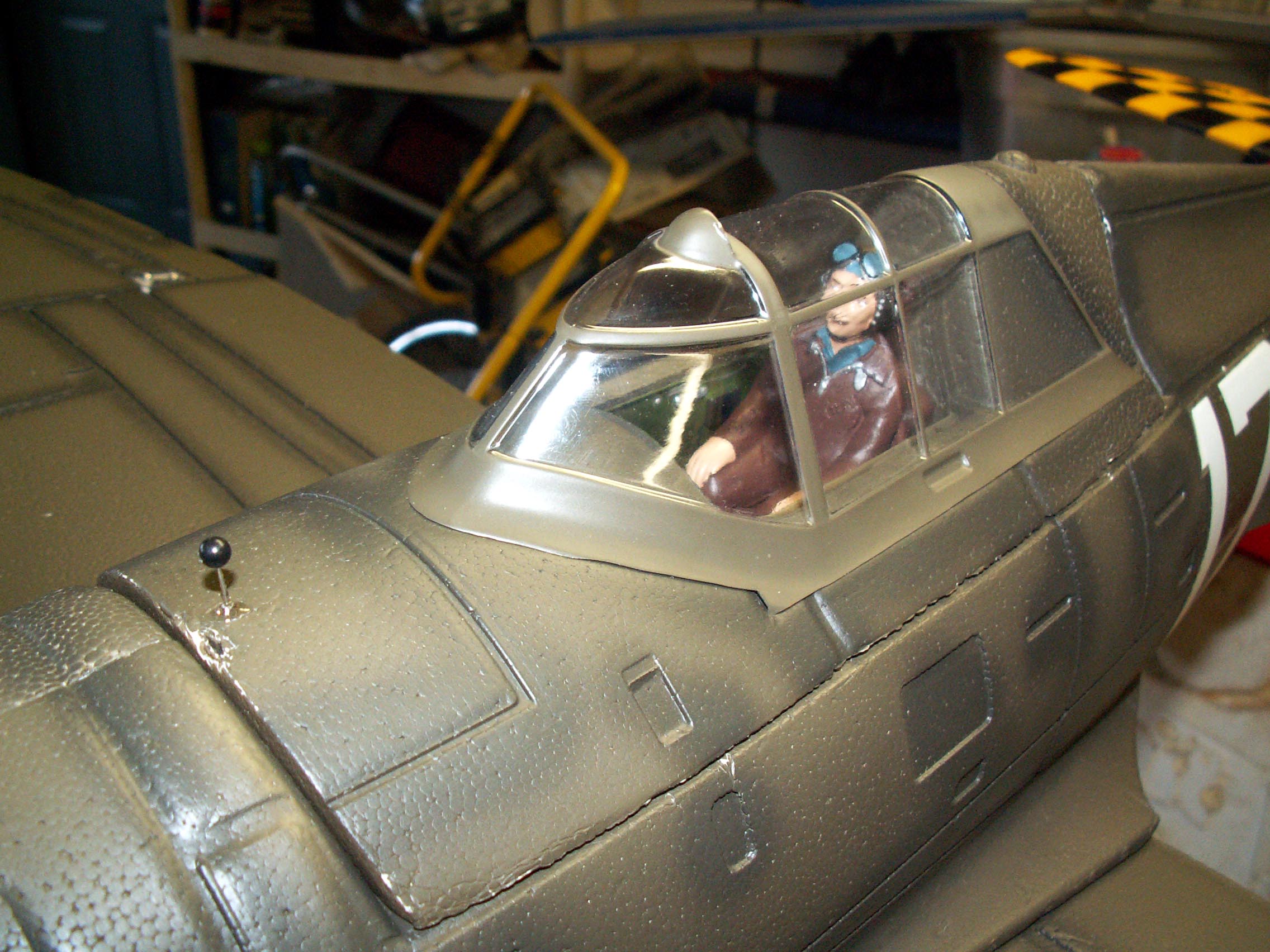

2272 / 1024 / 640 - All done... added gunsite to ease hatch removal.
