*** Andy Steere's FOMOJO FOAMY Assembly Images ***
PAGE ONE
These are pictures and such of an FOMOJO FOAMY, during assembly.

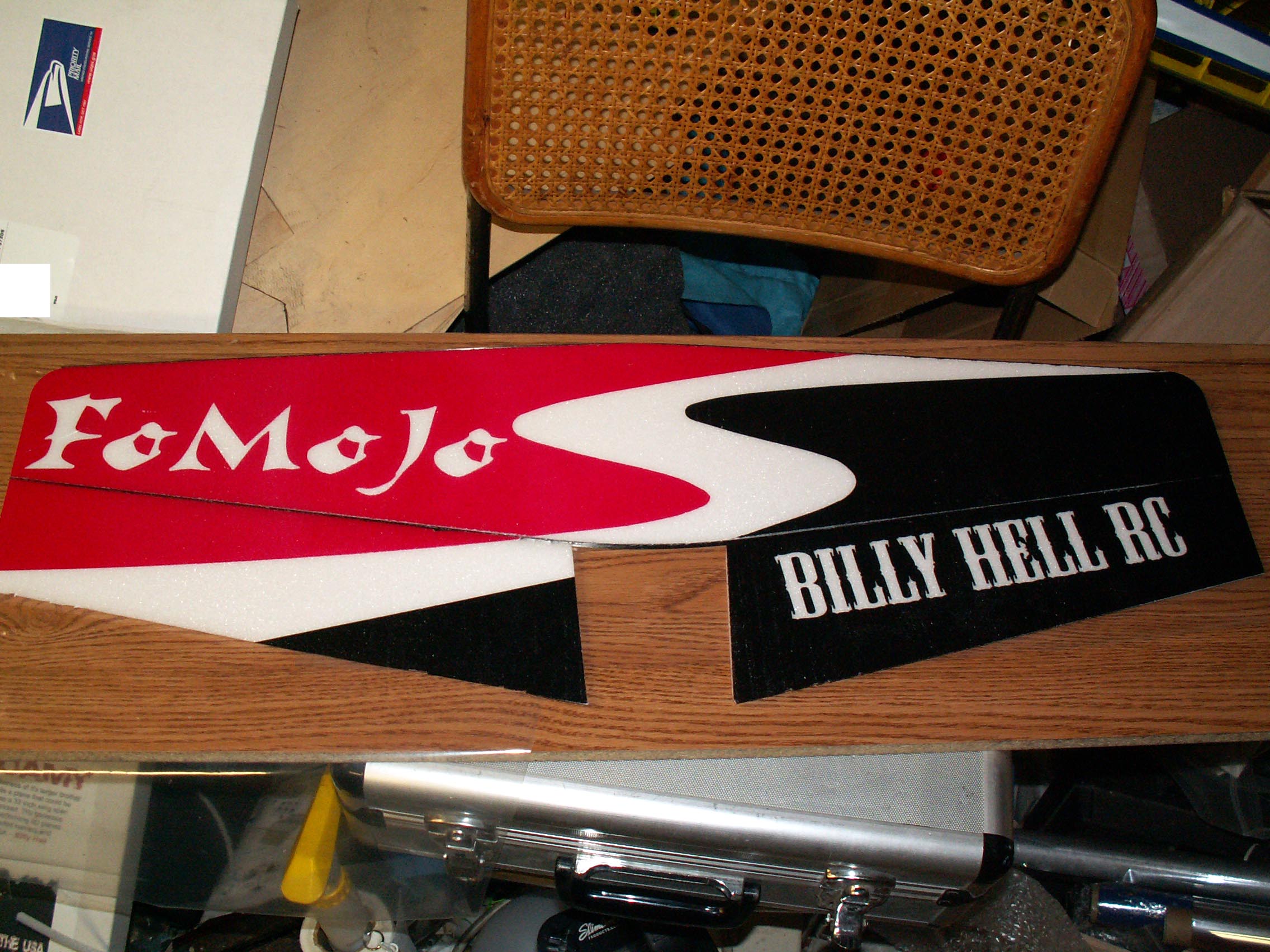

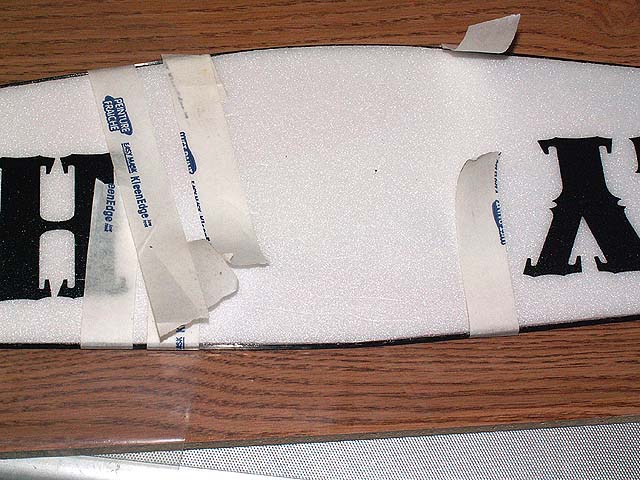

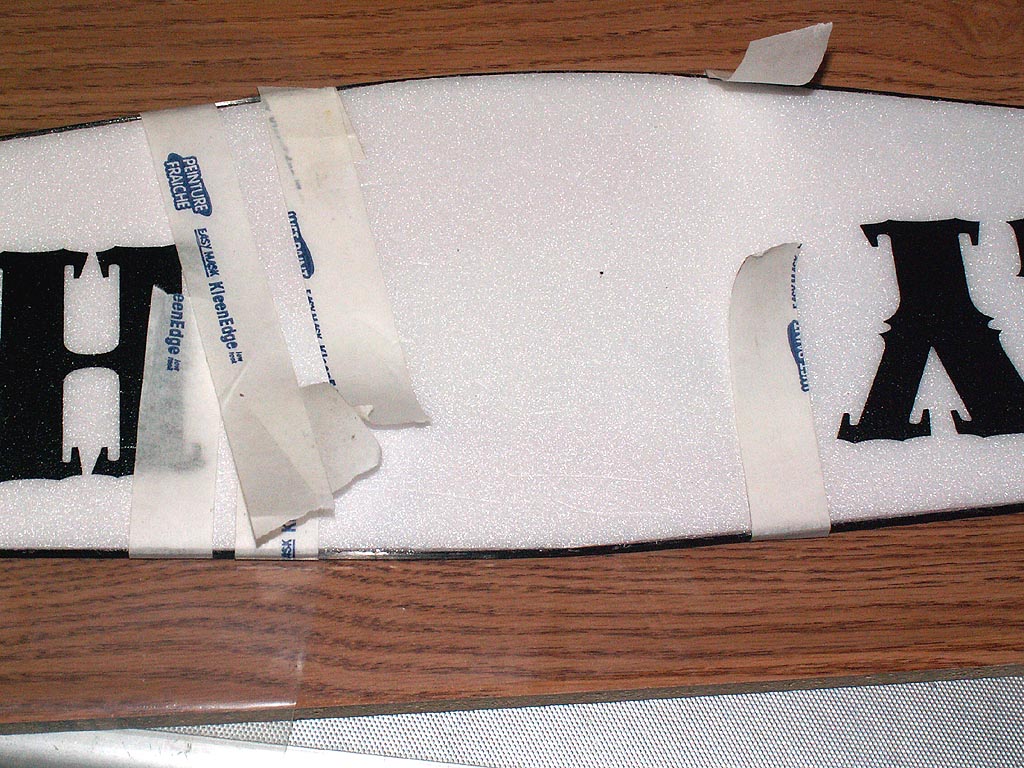

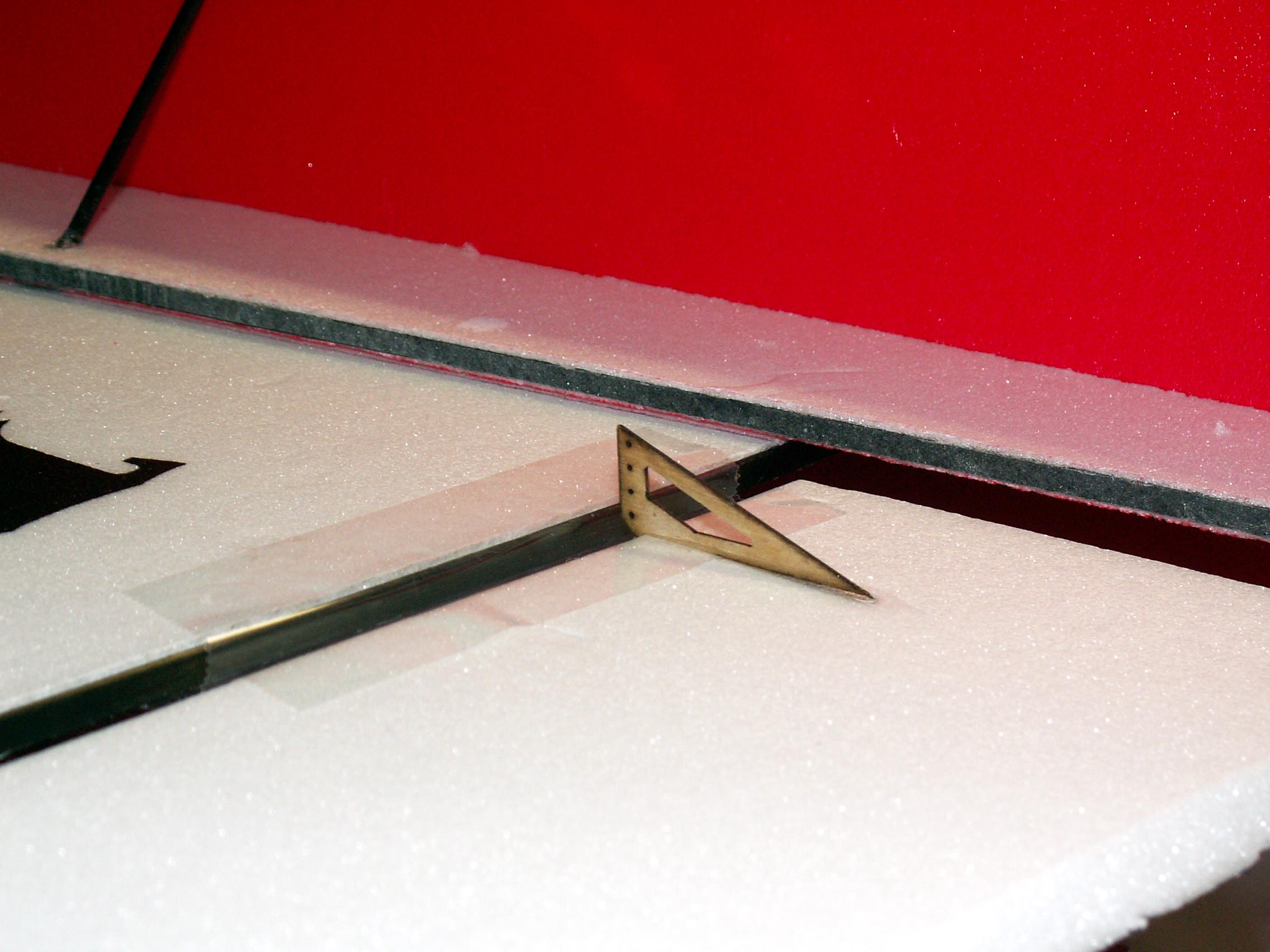

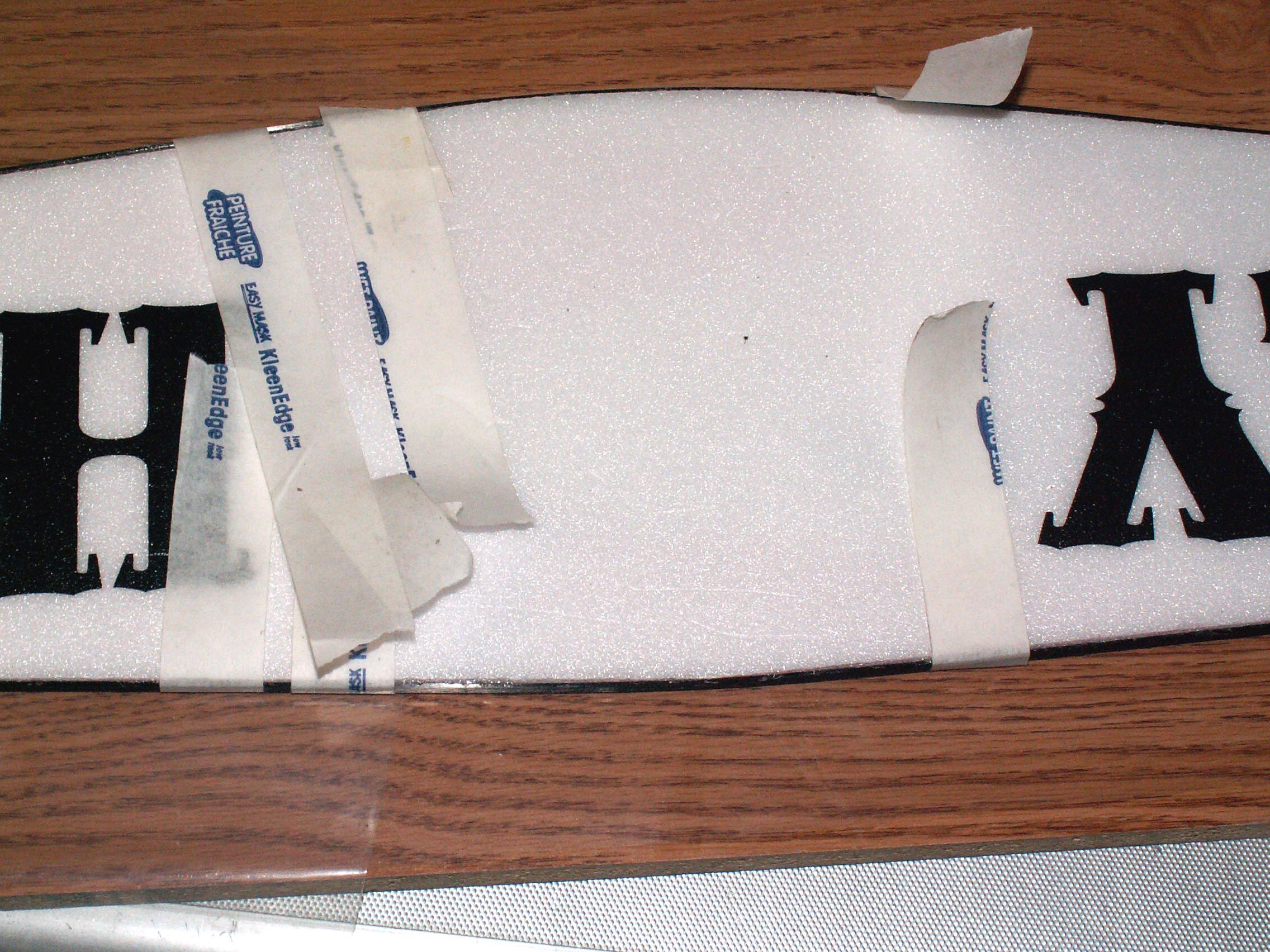

2272 / 1024 / 640 - First step, glue the carbon strips on the wing. Tape holds it. |
2272 / 1024 / 640 - Same thing with the elvator. |

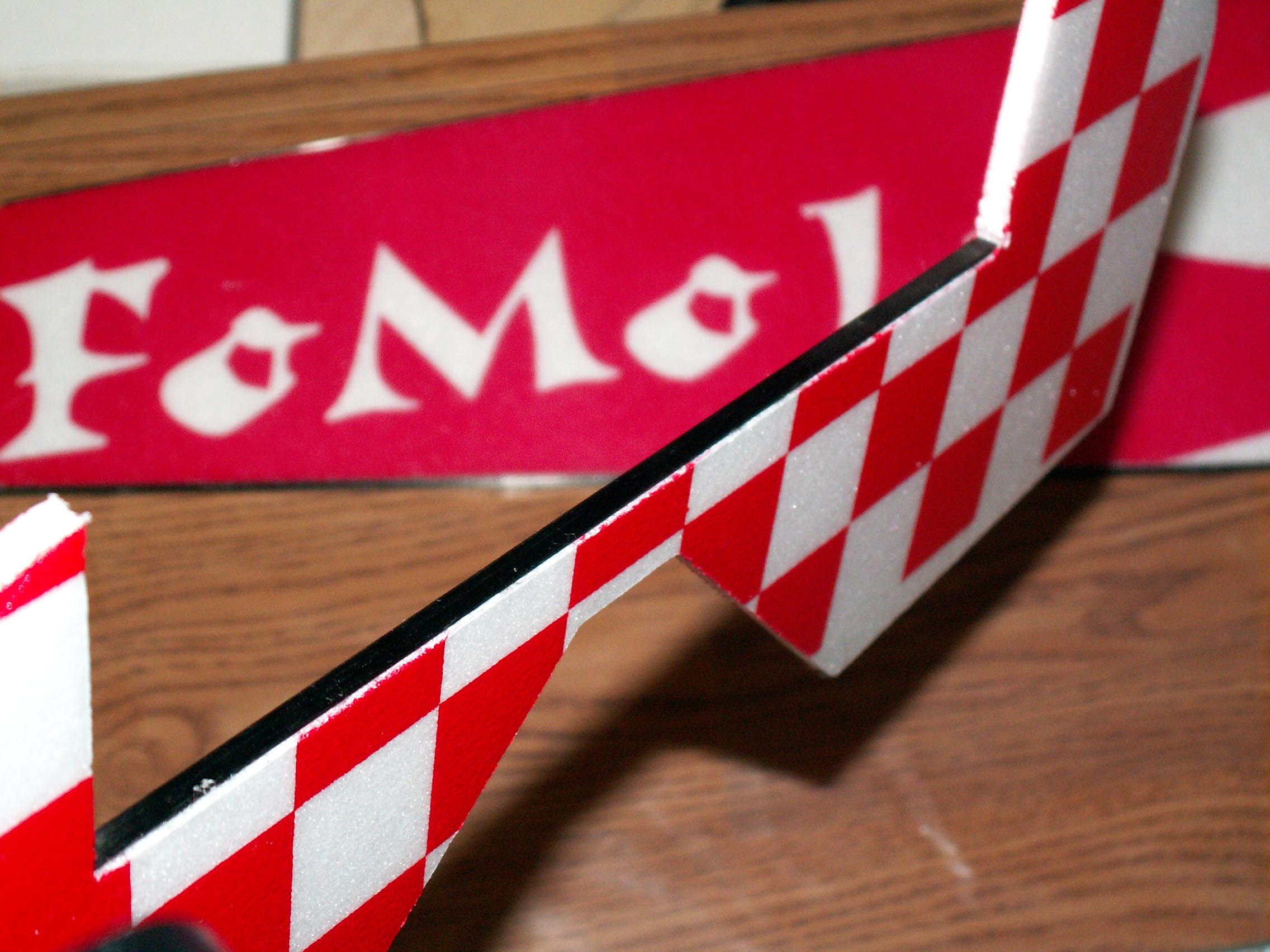

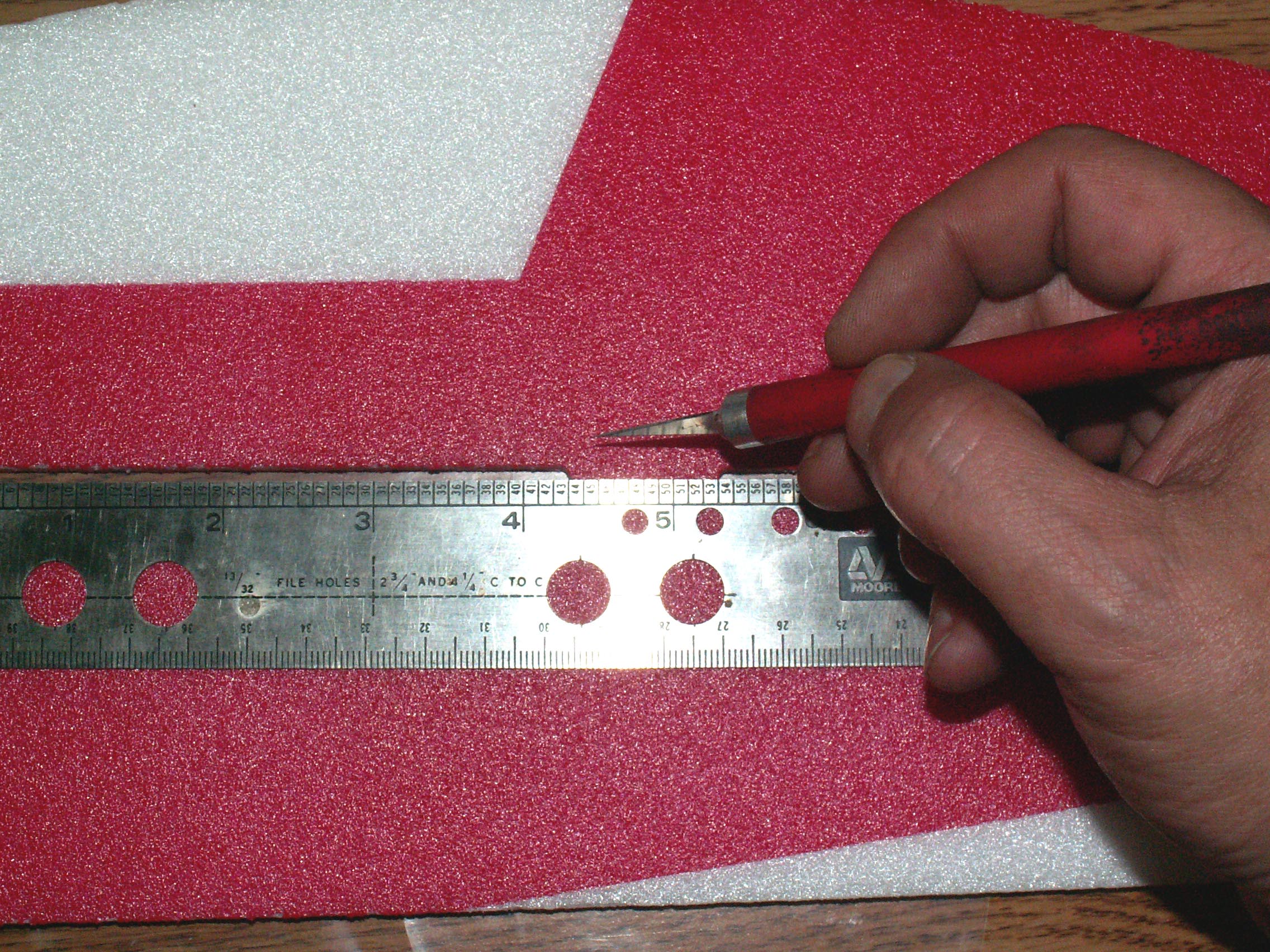

2272 / 1024 / 640 - Bevel the aileron edges for the hinge. |
2272 / 1024 / 640 - Looking good! |

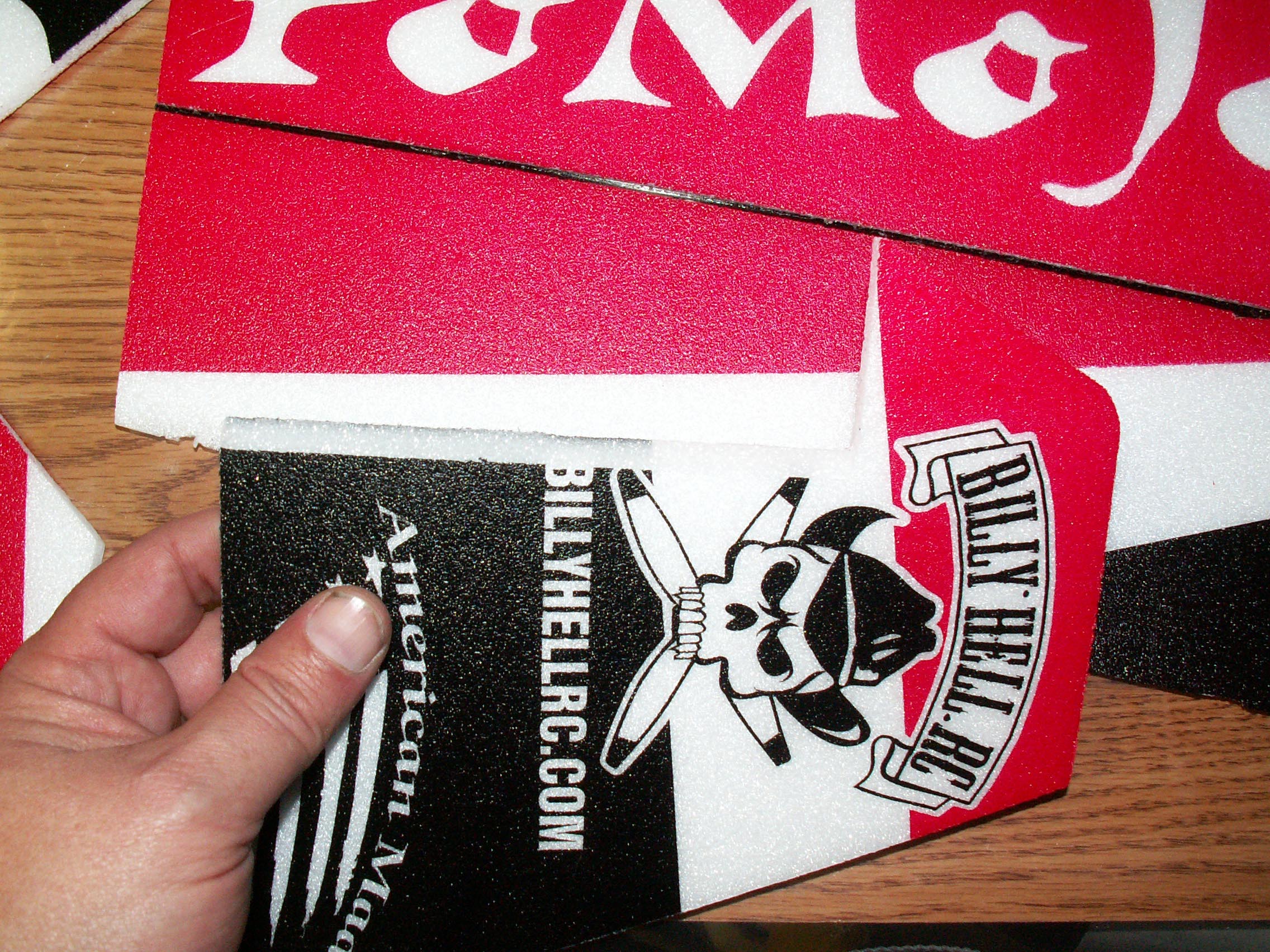

2272 / 1024 / 640 - Bevel the rudder. |

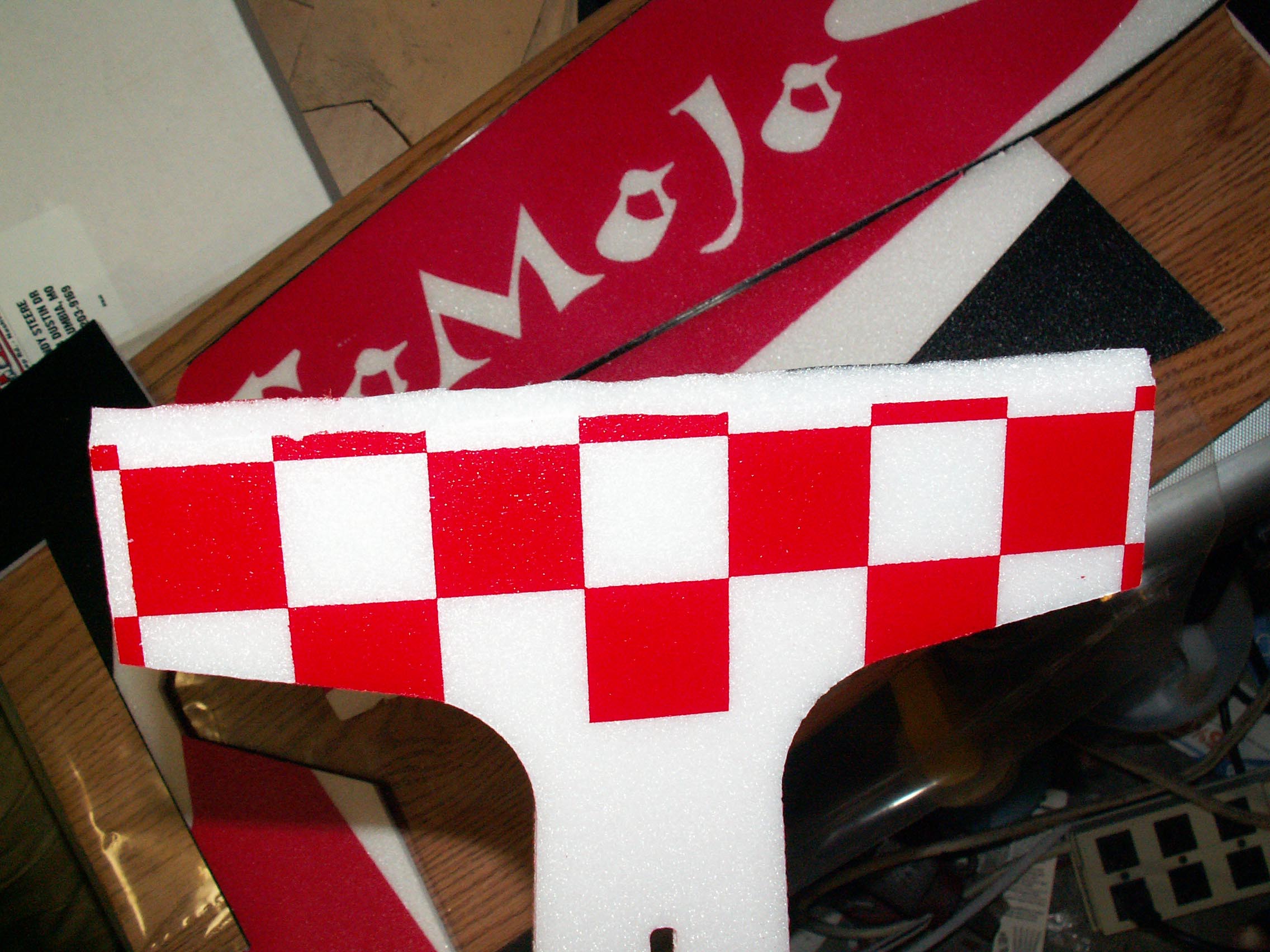

2272 / 1024 / 640 - and the horizontal stab. |

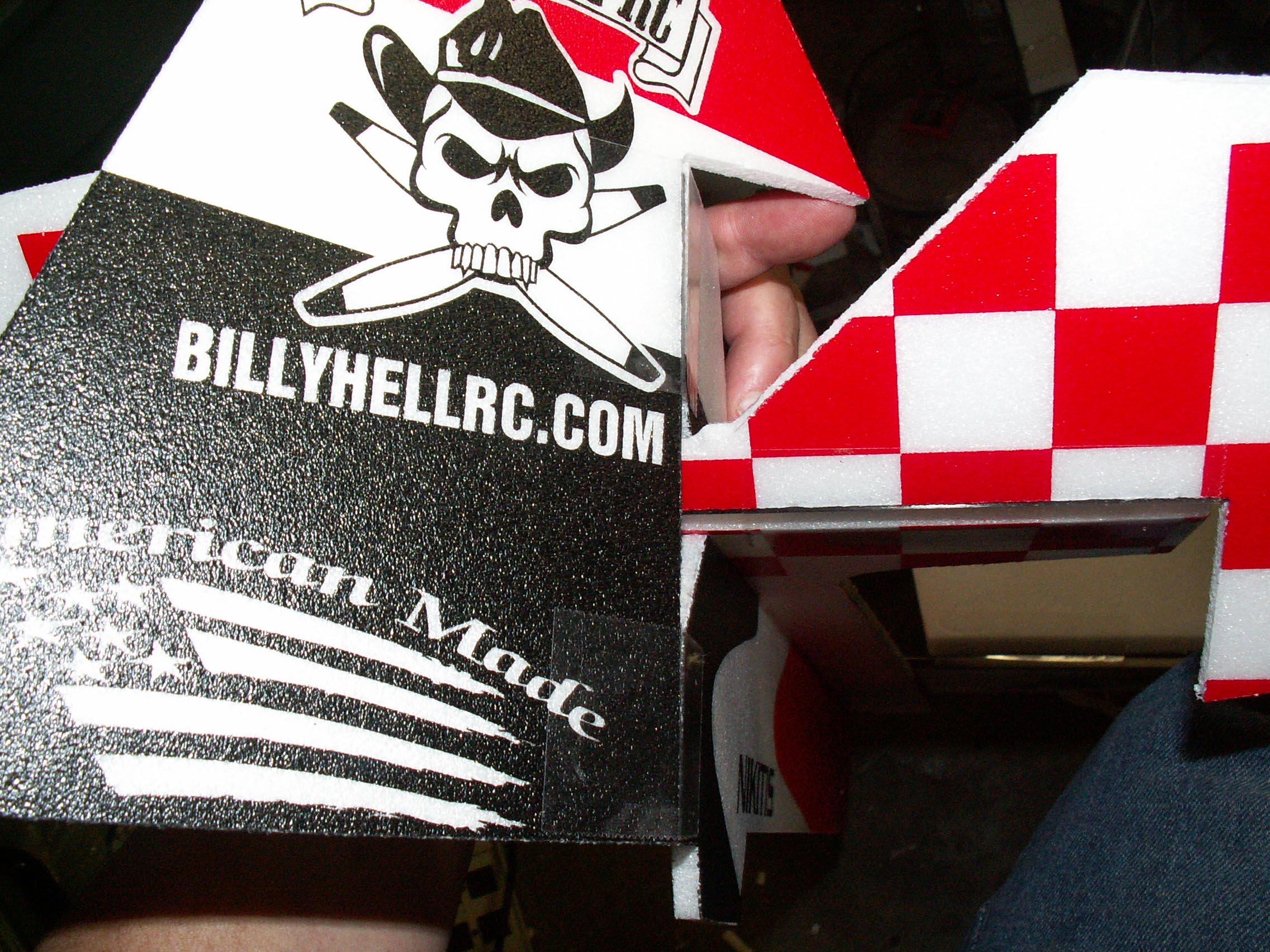

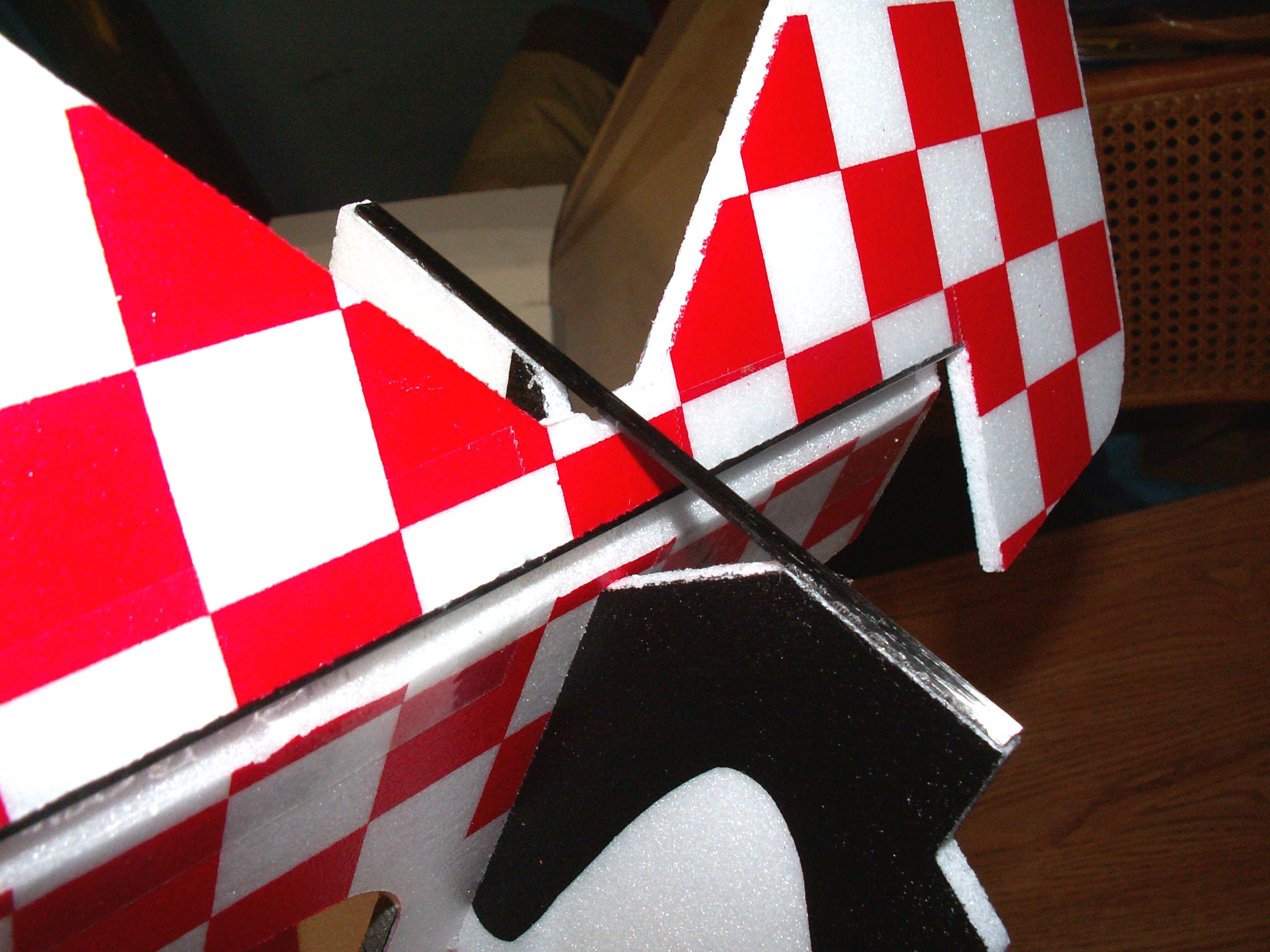

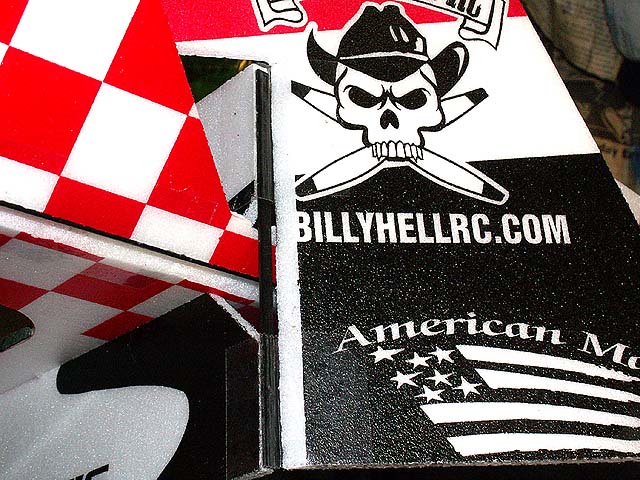

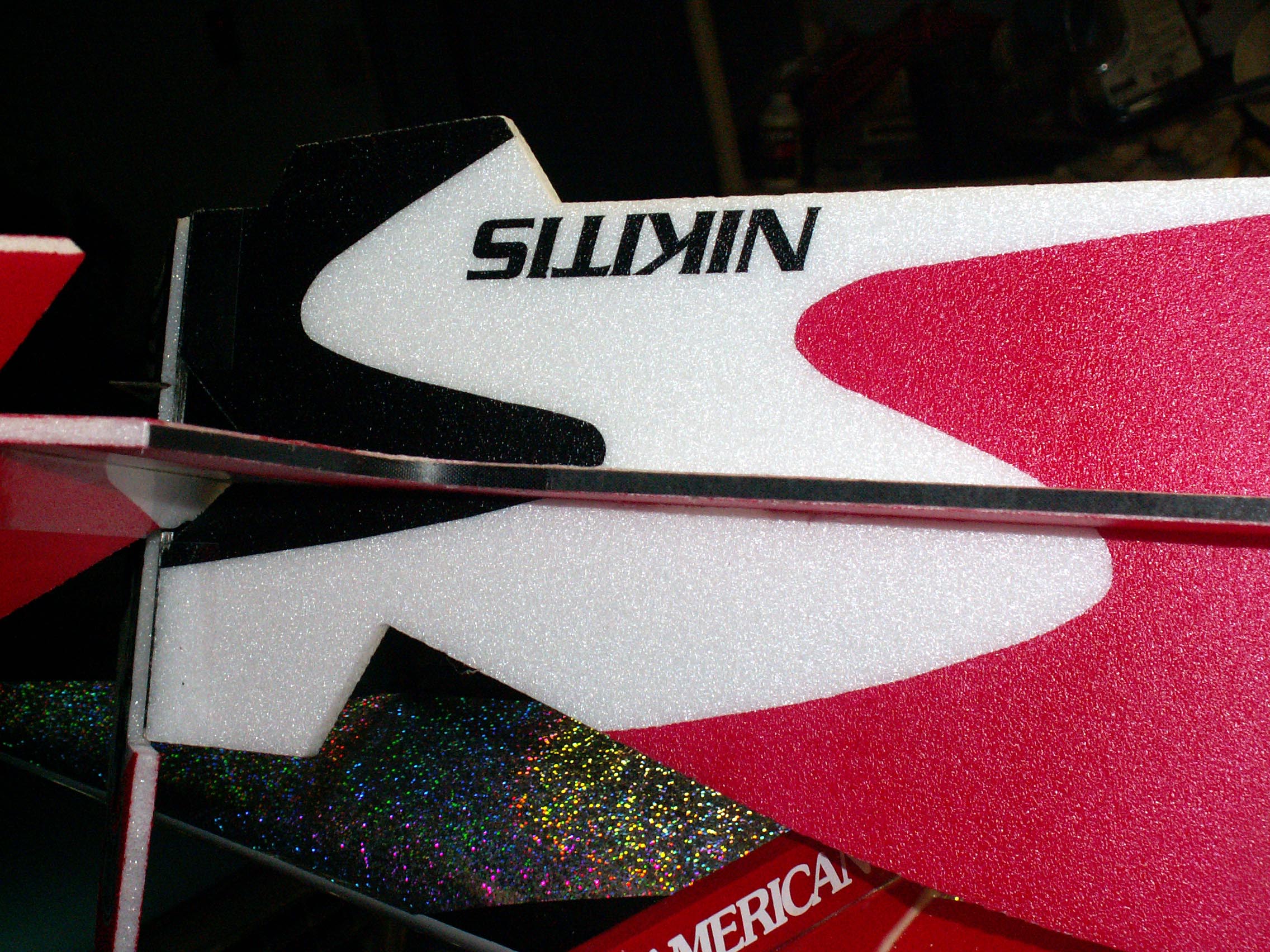

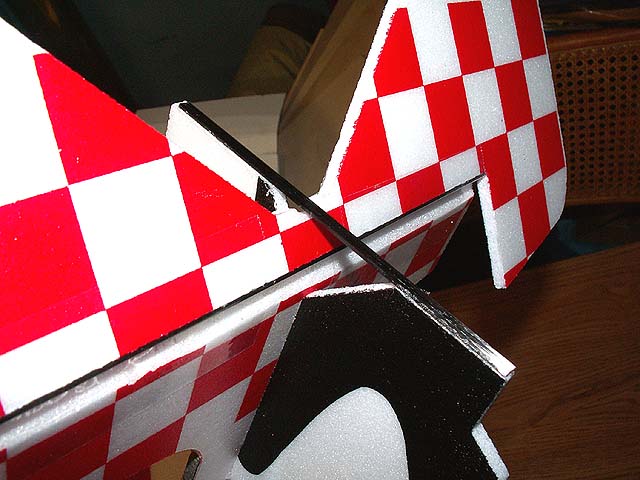

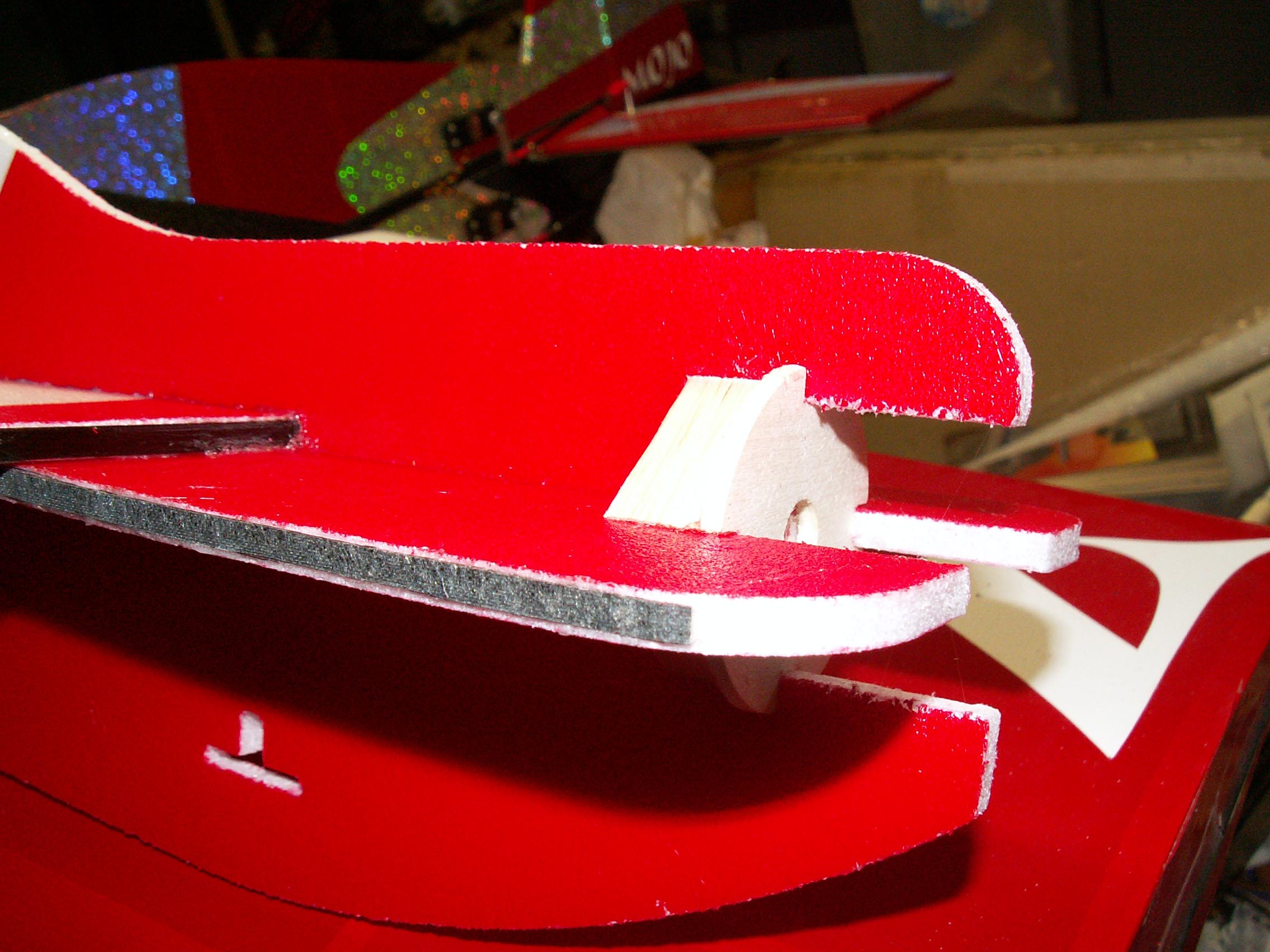

2272 / 1024 / 640 - test fitting. |

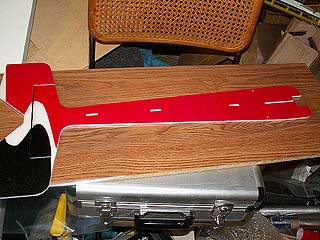

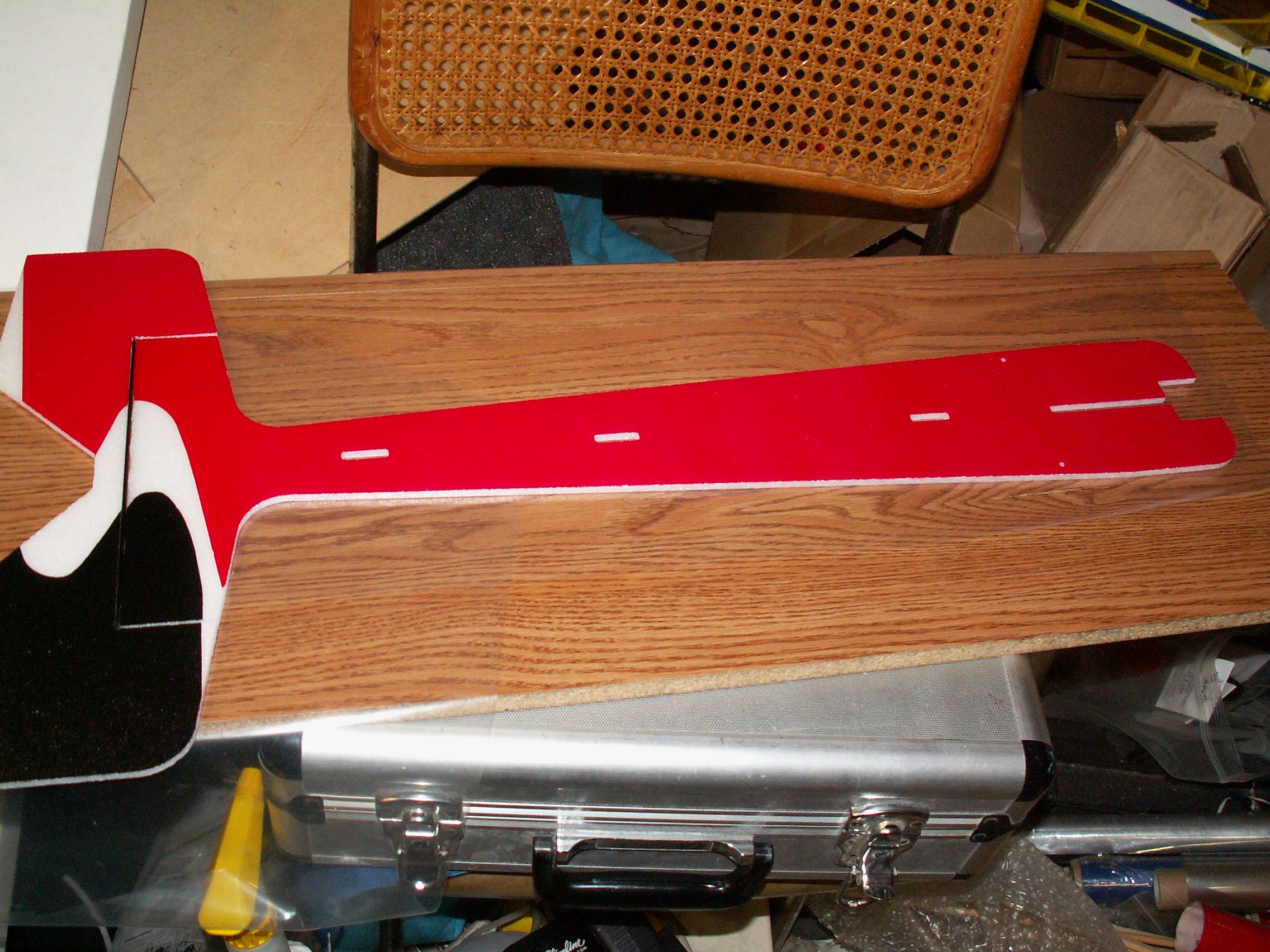

2272 / 1024 / 640 - Split fuselage at points required. |

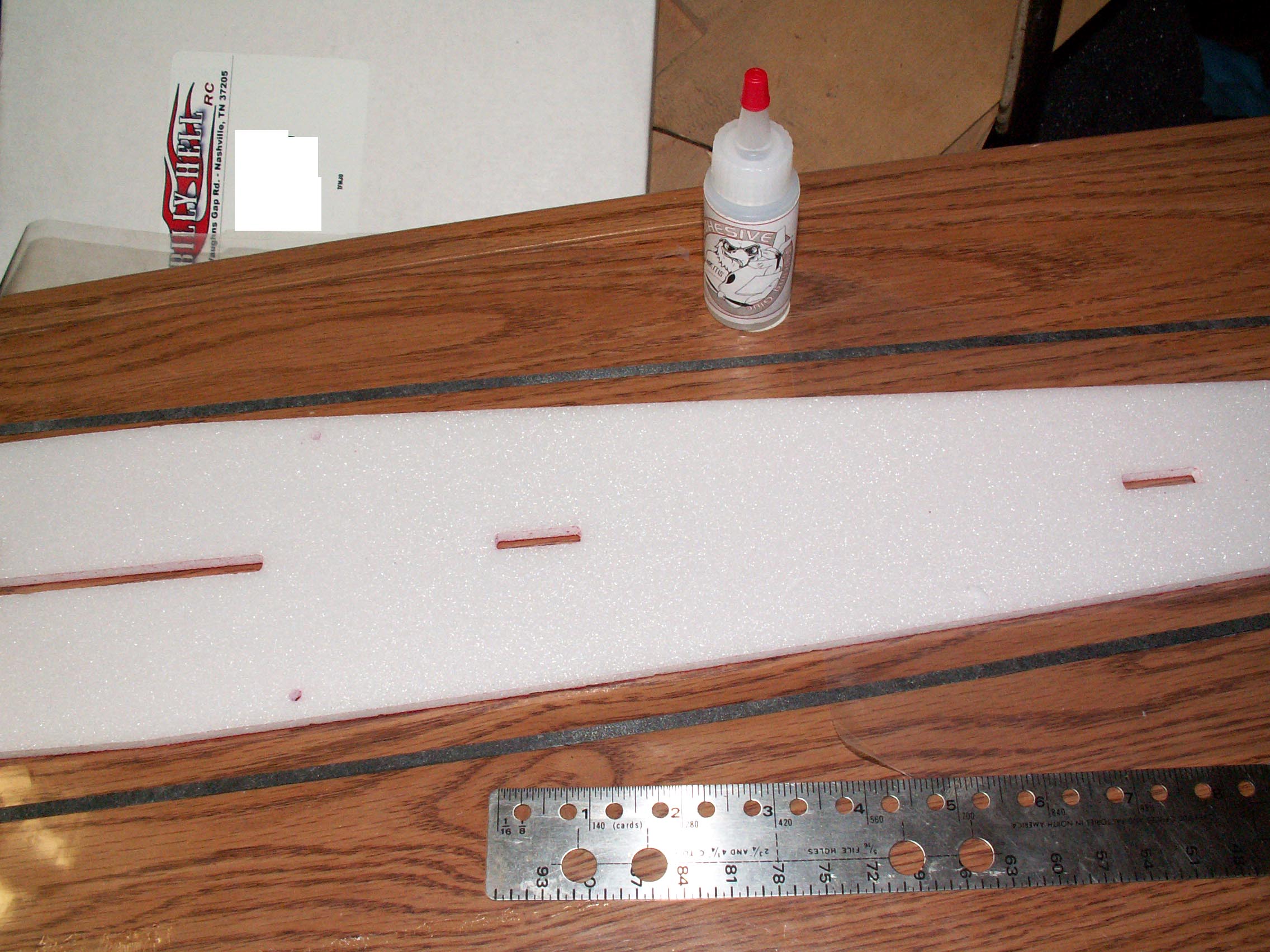

2272 / 1024 / 640 - I glued carbon strips to the fuse too. Foamheasive used for most everything. |

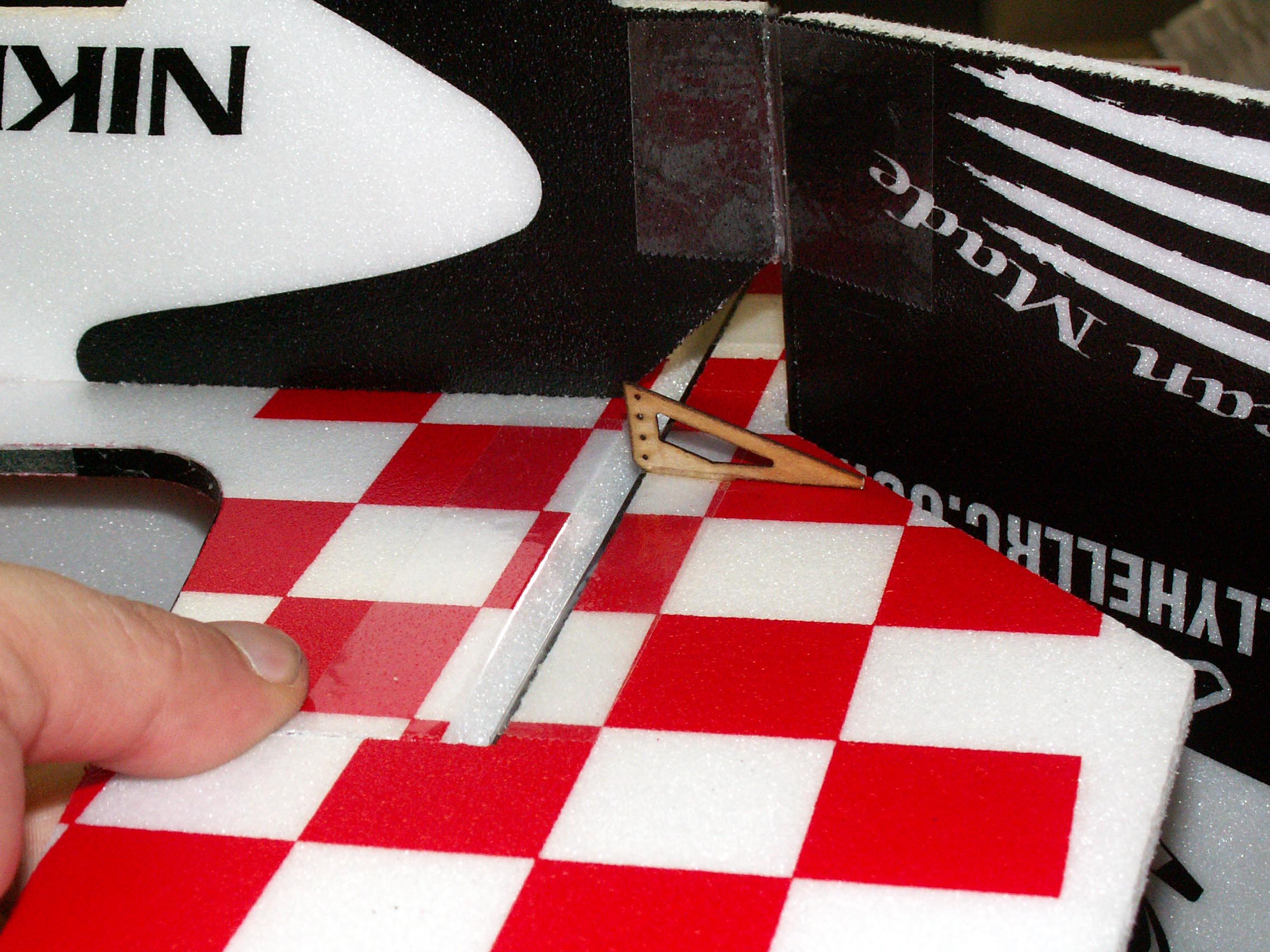

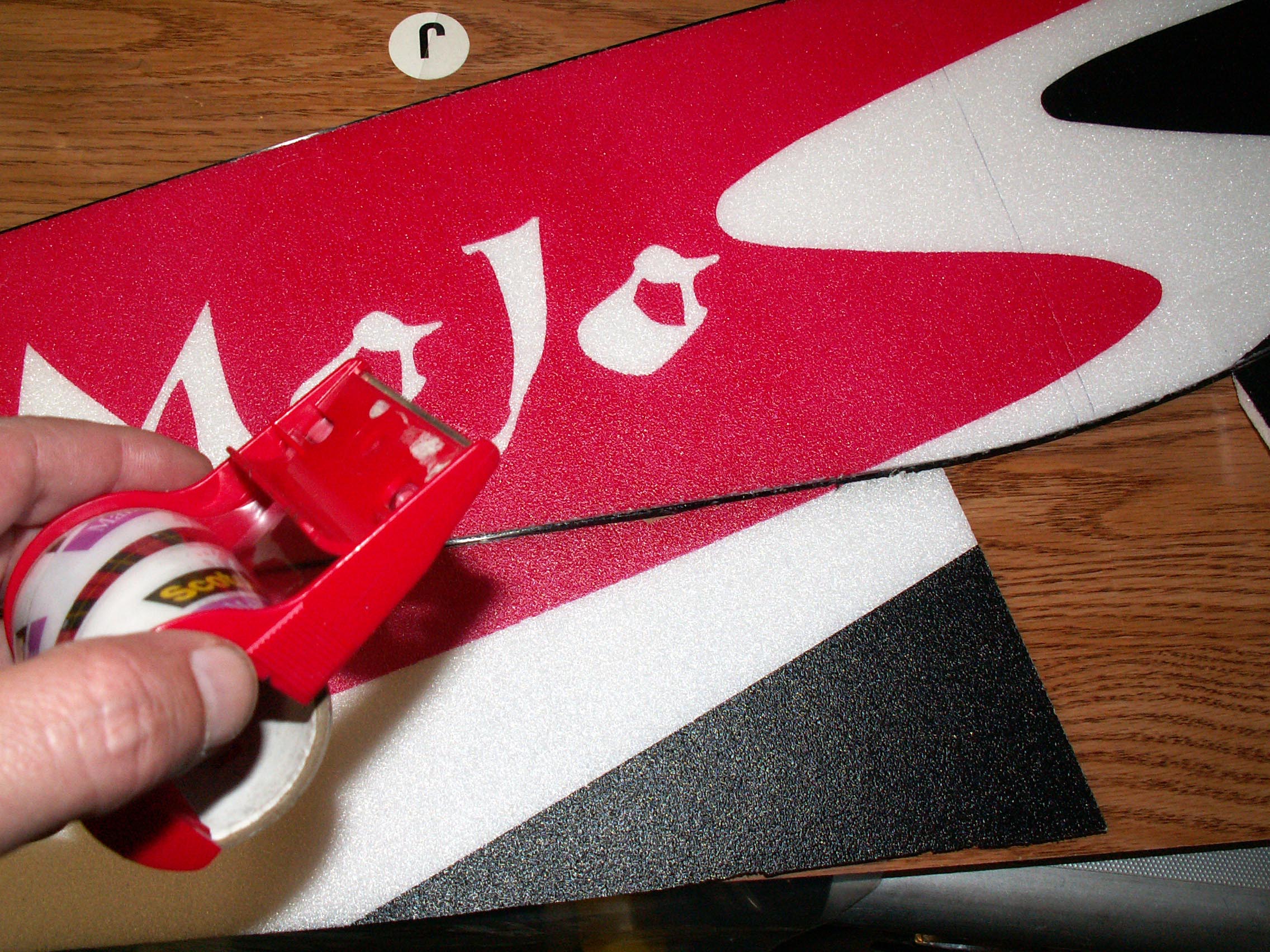

2272 / 1024 / 640 - Hinge tape... couldn't find Blenderm. |
2272 / 1024 / 640 - Carbon strip for rudder. |

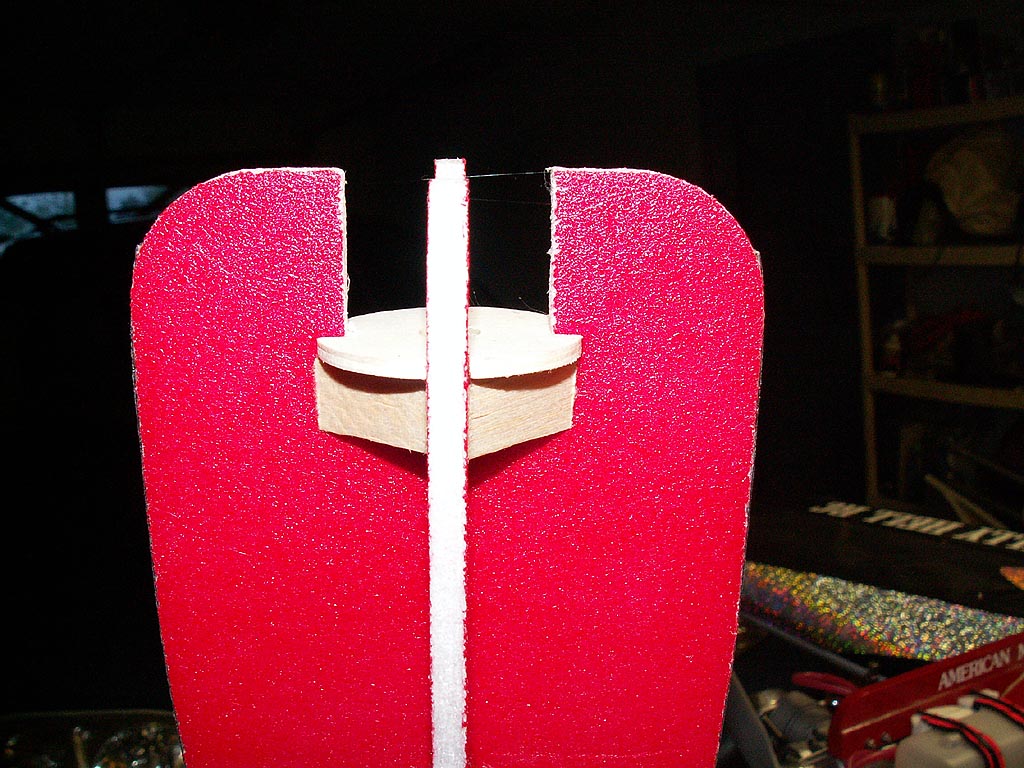

2272 / 1024 / 640 - Hinge the rudder. |
2272 / 1024 / 640 - Good throw. |

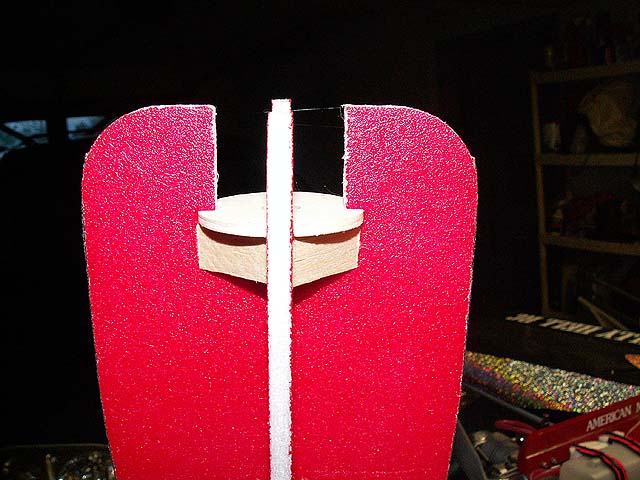

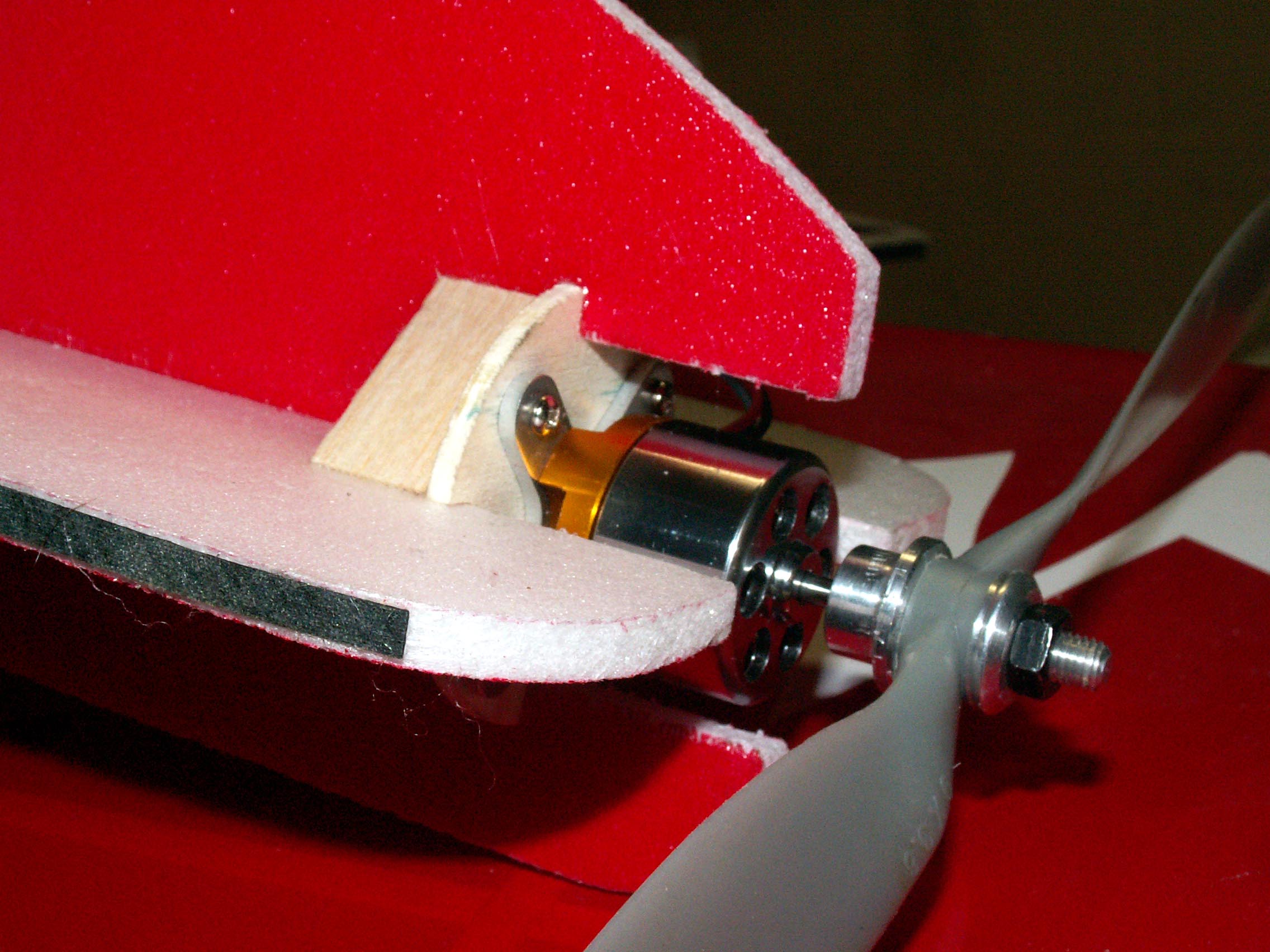

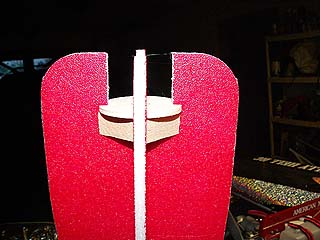

2272 / 1024 / 640 - Glue fuse and wing, then motor mount. |
2272 / 1024 / 640 - Some unintentional left thrust... will correct with spacers. |
2272 / 1024 / 640 - Small carbon tube to support landing gear... seems upside down to me. |

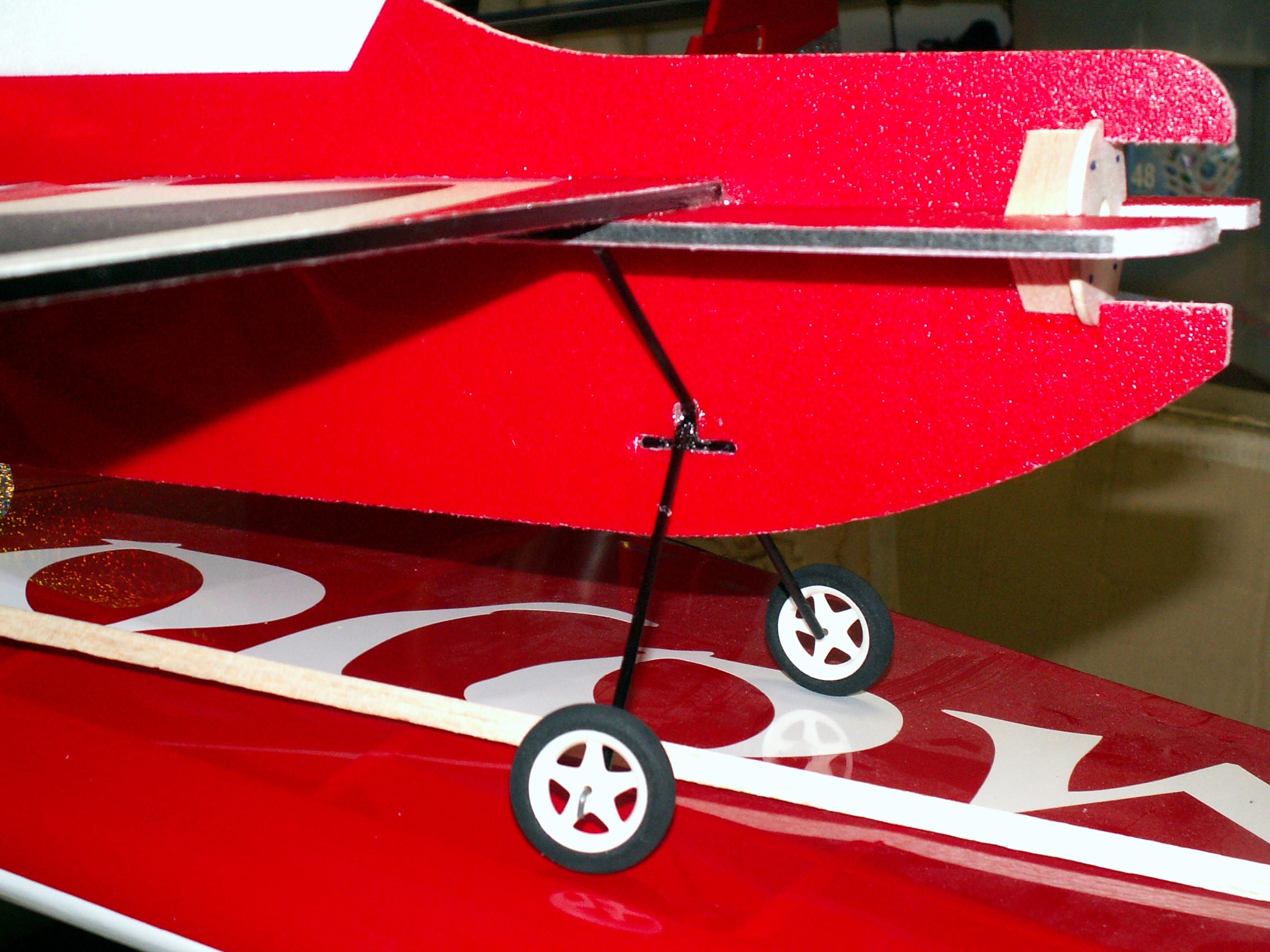

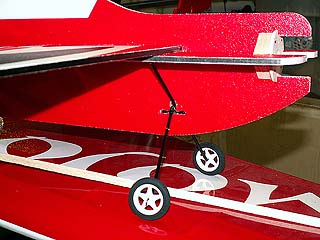

2272 / 1024 / 640 - Landing gear installed. |
2272 / 1024 / 640 - |

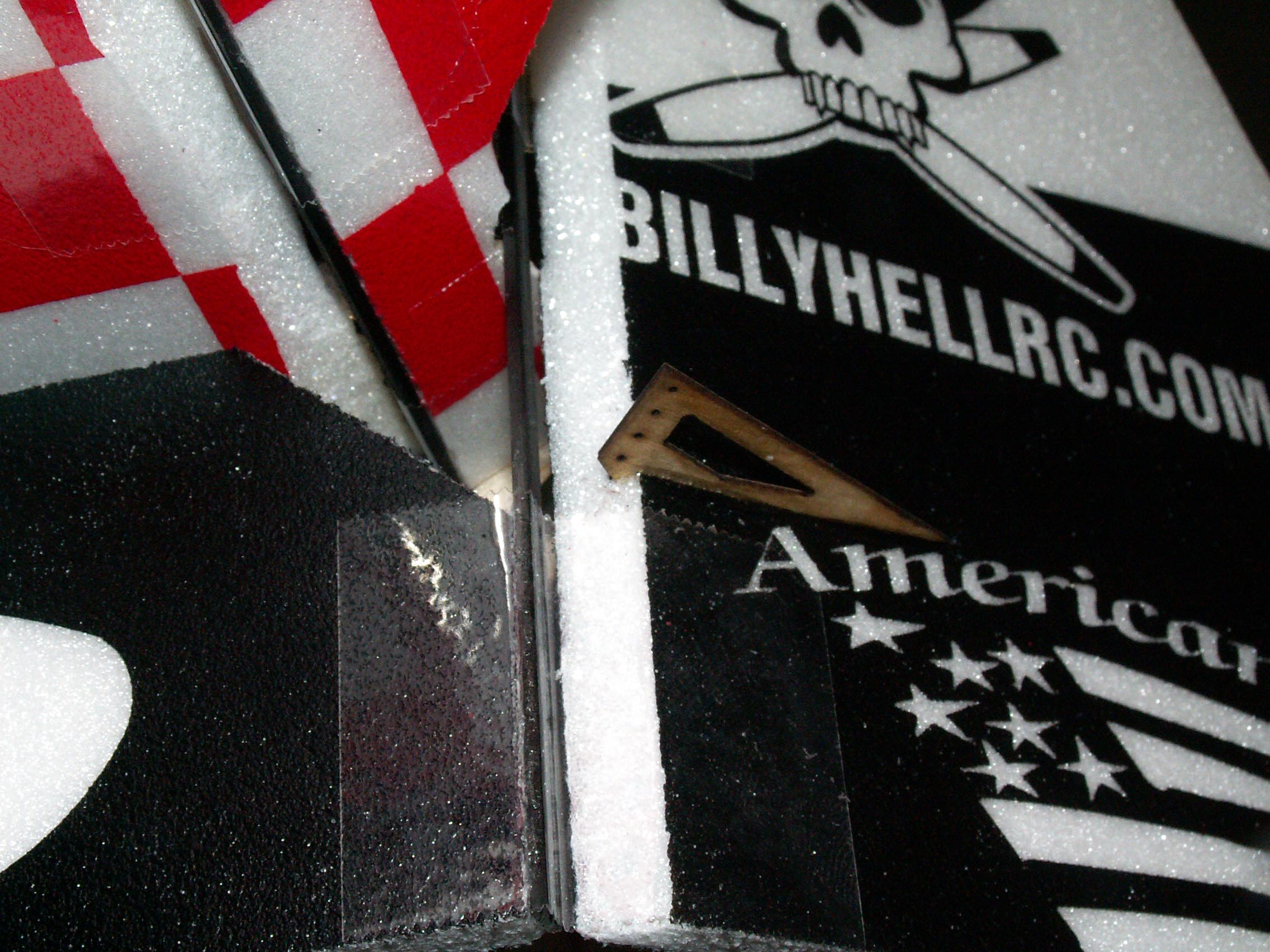

2272 / 1024 / 640 - Included aileron horns. |
2272 / 1024 / 640 - Elevator... |
2272 / 1024 / 640 - Rudder... |

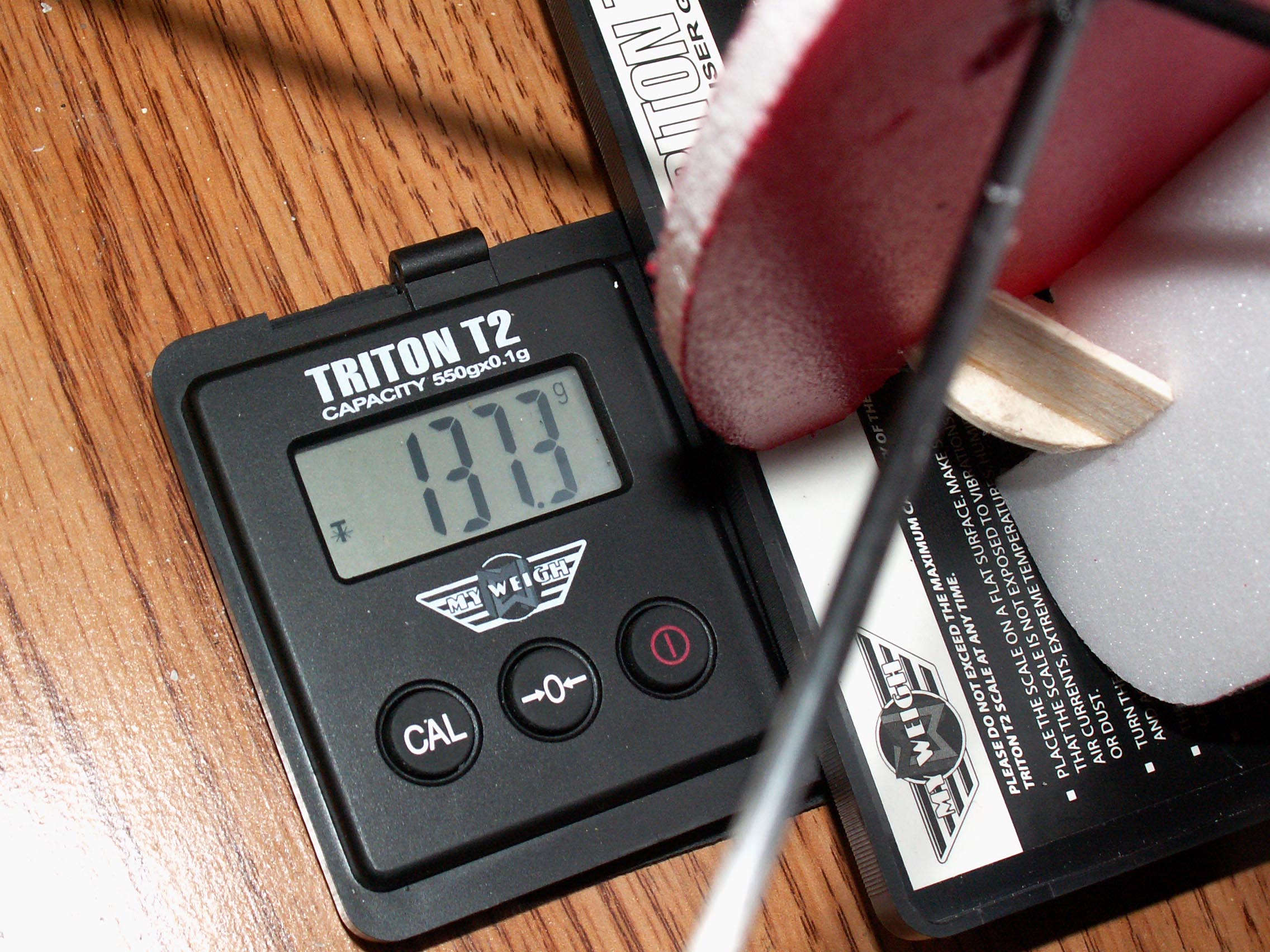

2272 / 1024 / 640 - Bare airframe weighed before equipment installed. |

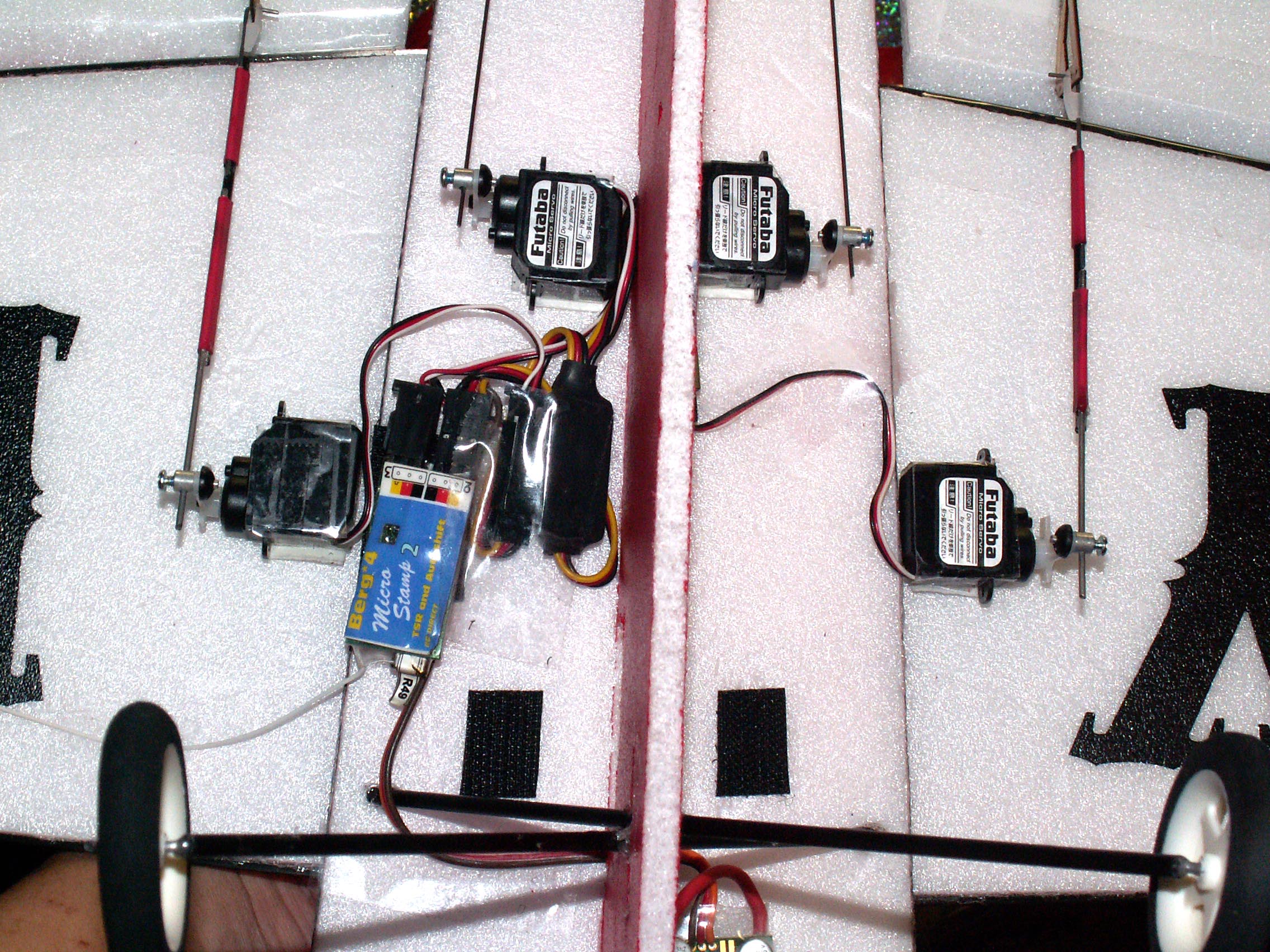

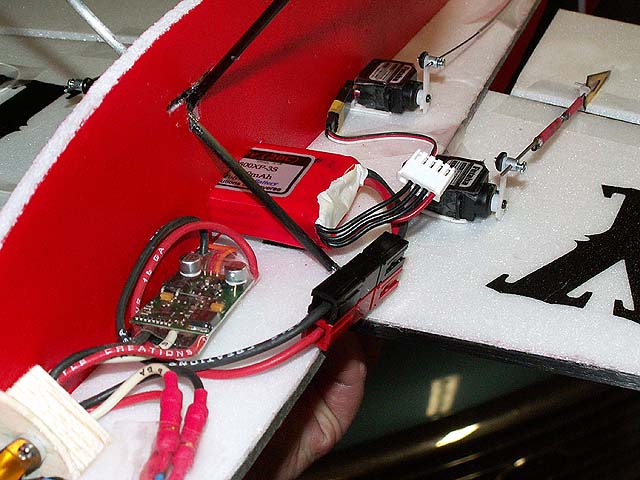

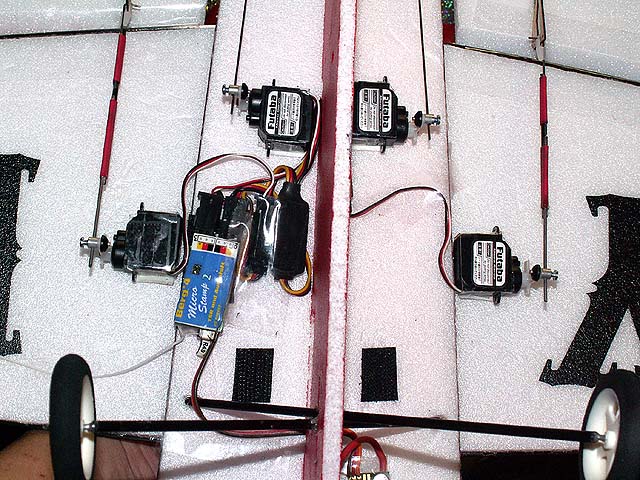

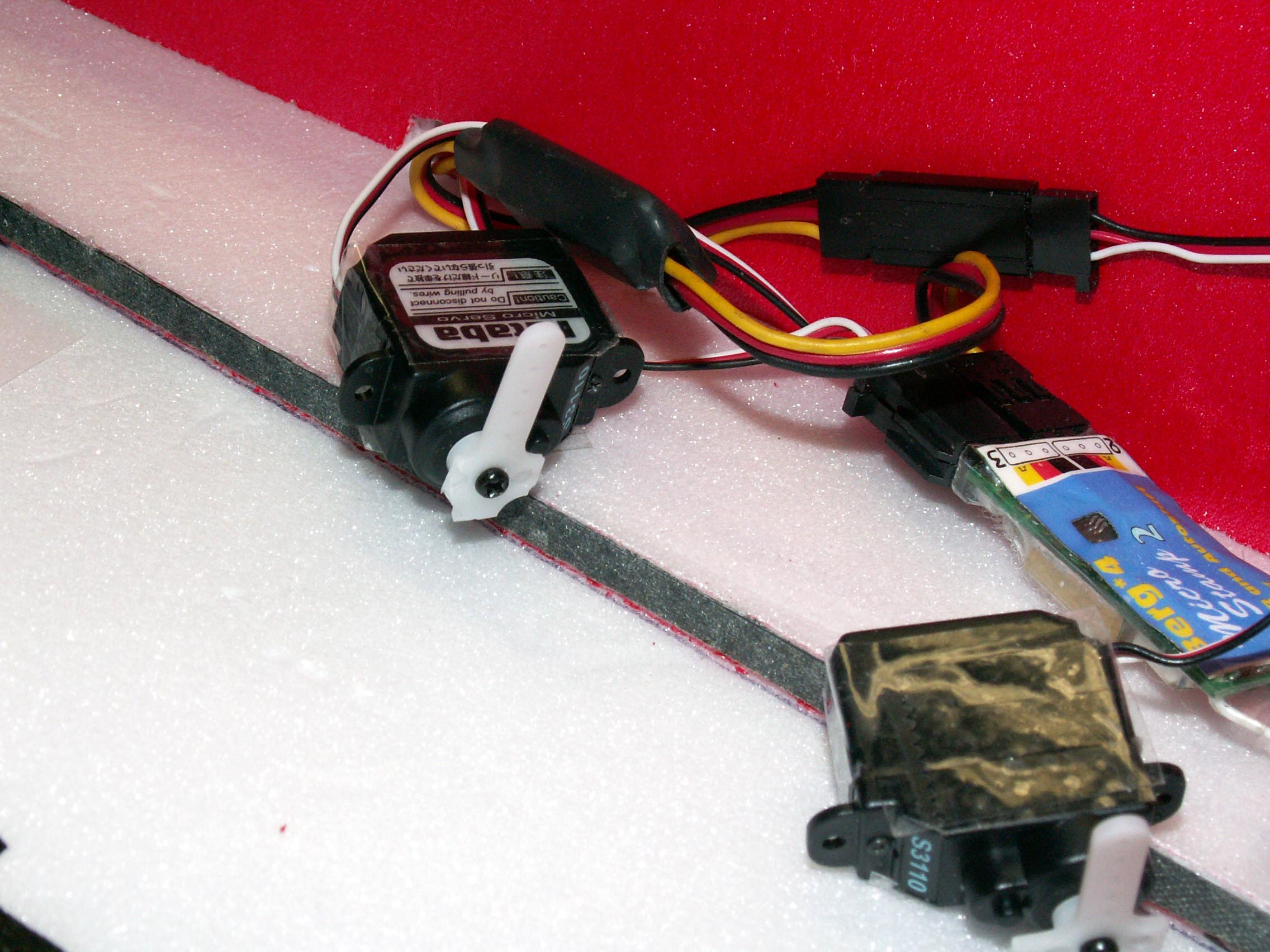

2272 / 1024 / 640 - Futaba S3110's and Berg 4*DSP-II RX |

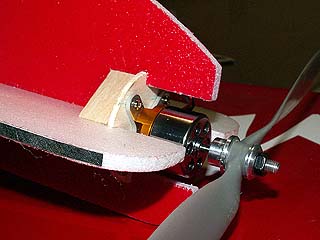

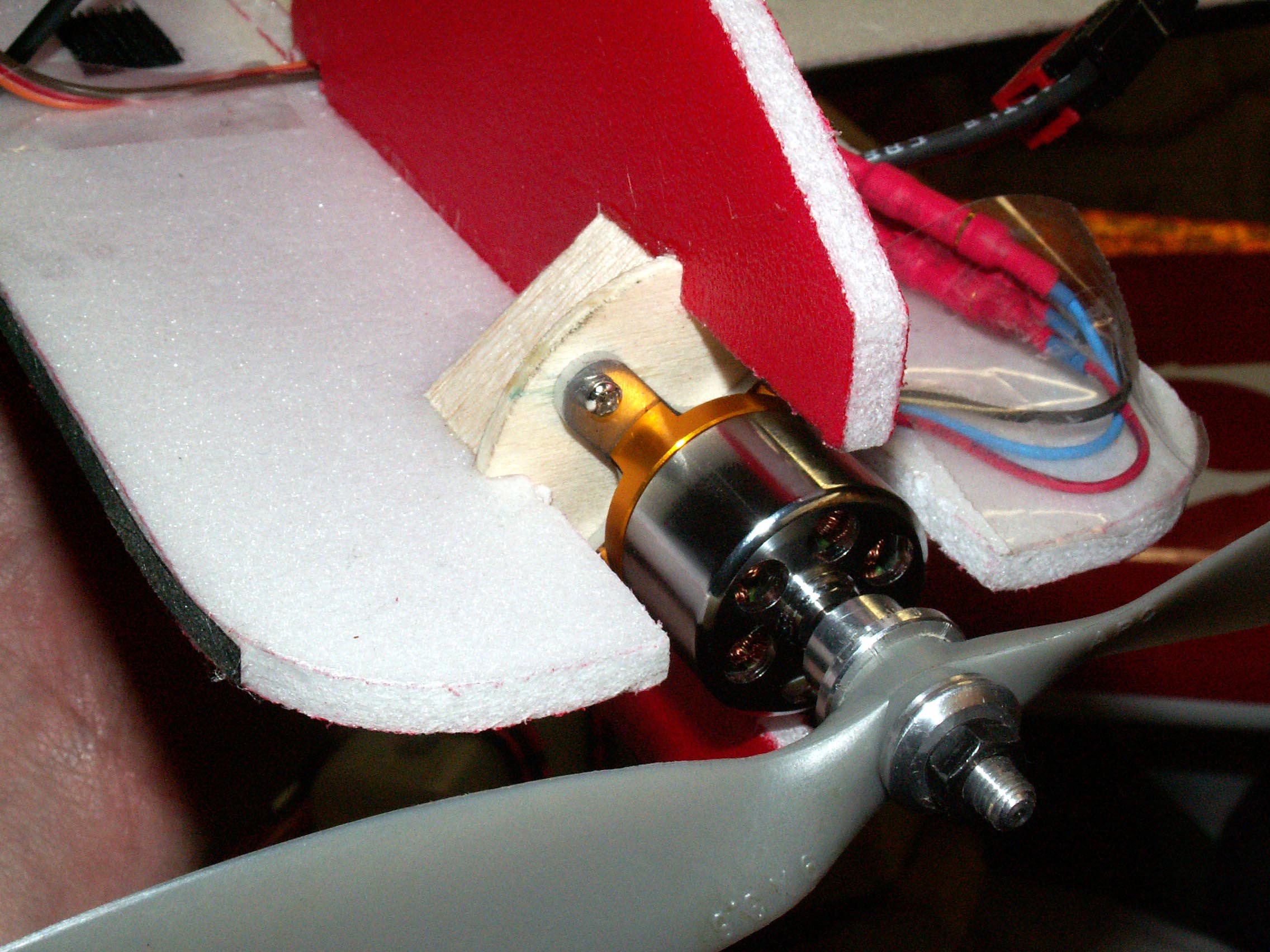

2272 / 1024 / 640 - Mount the $19 Esskay motor. |
2272 / 1024 / 640 - |

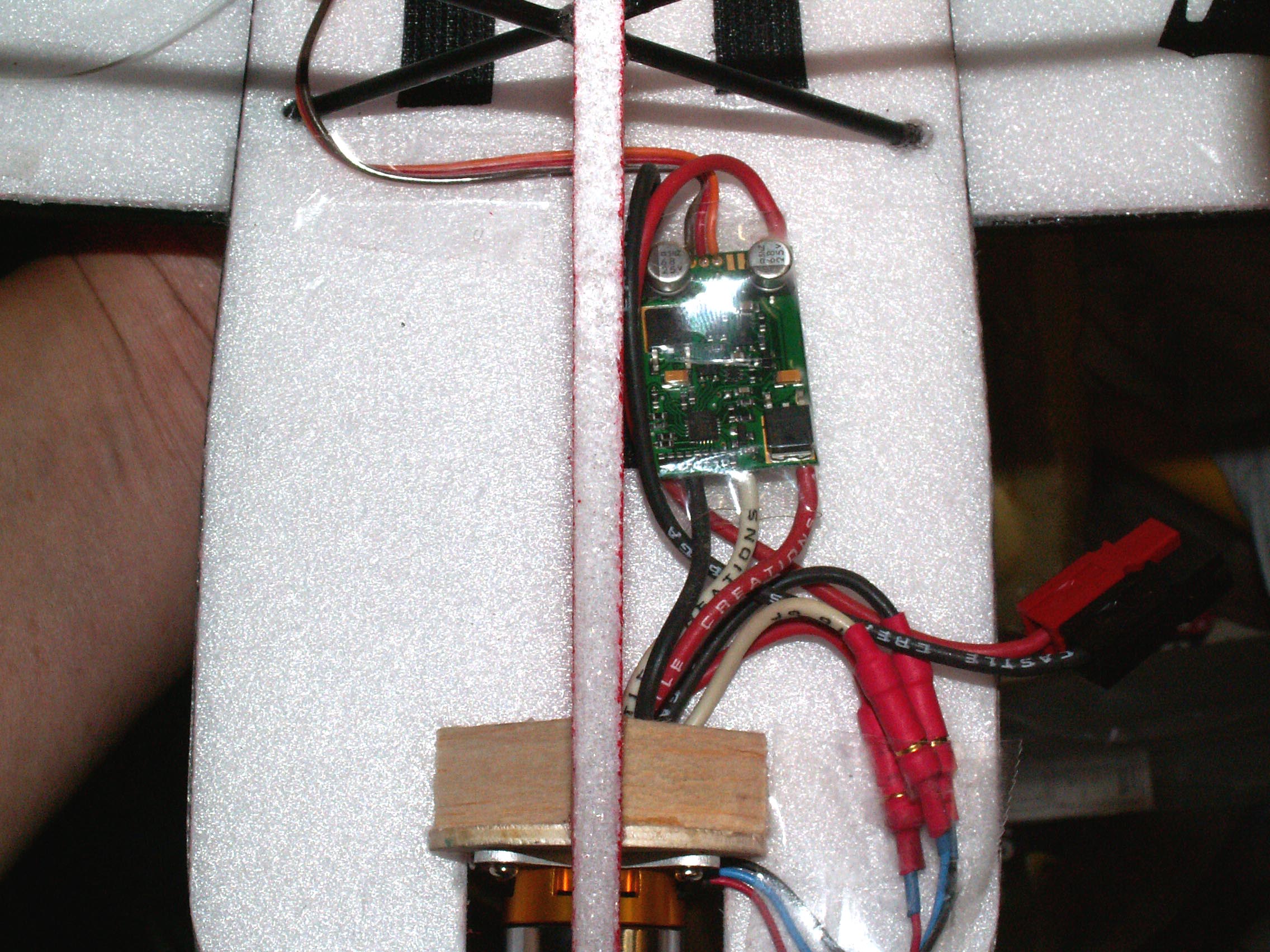

2272 / 1024 / 640 - Thunderbird-18 ESC |

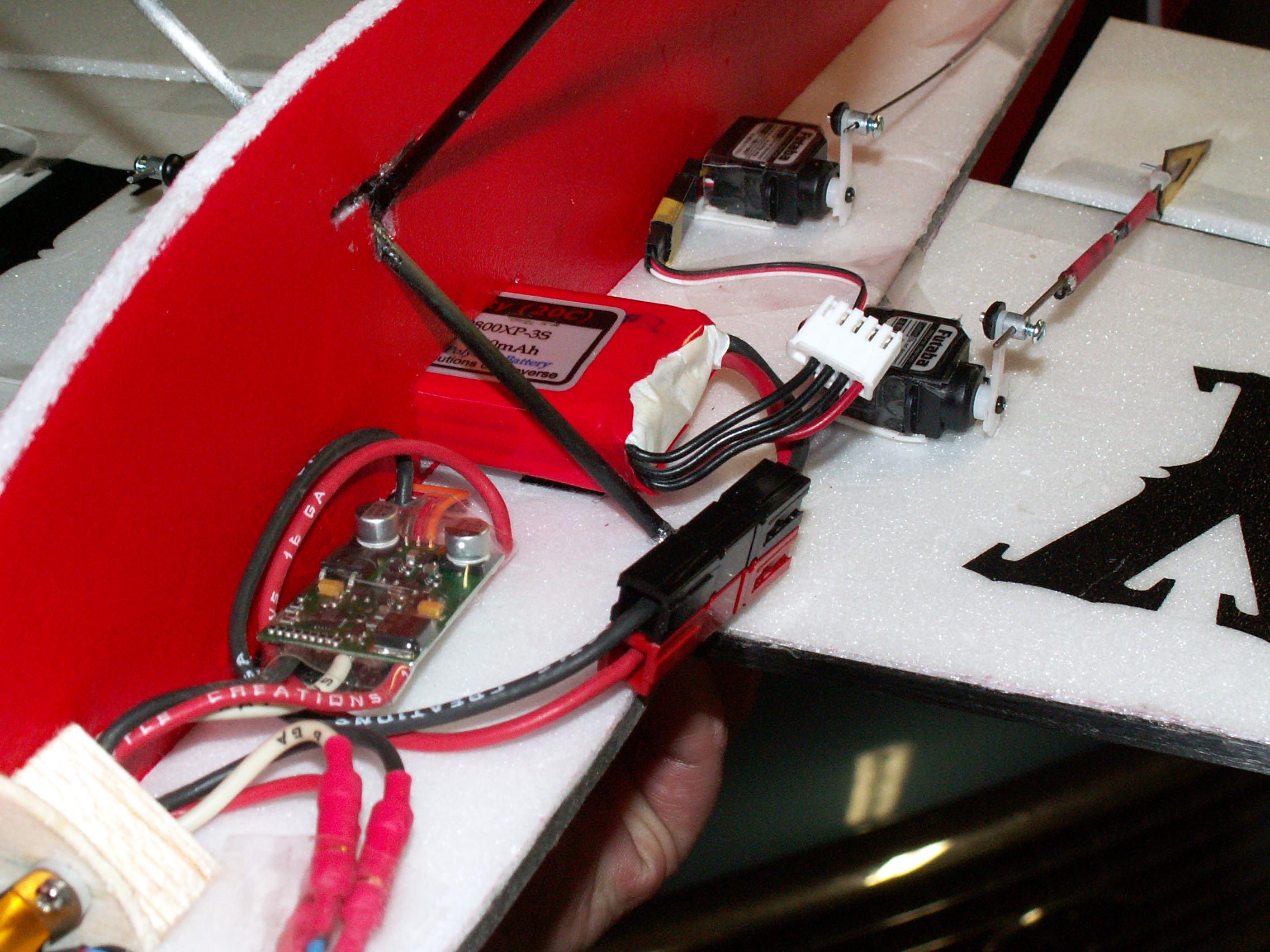

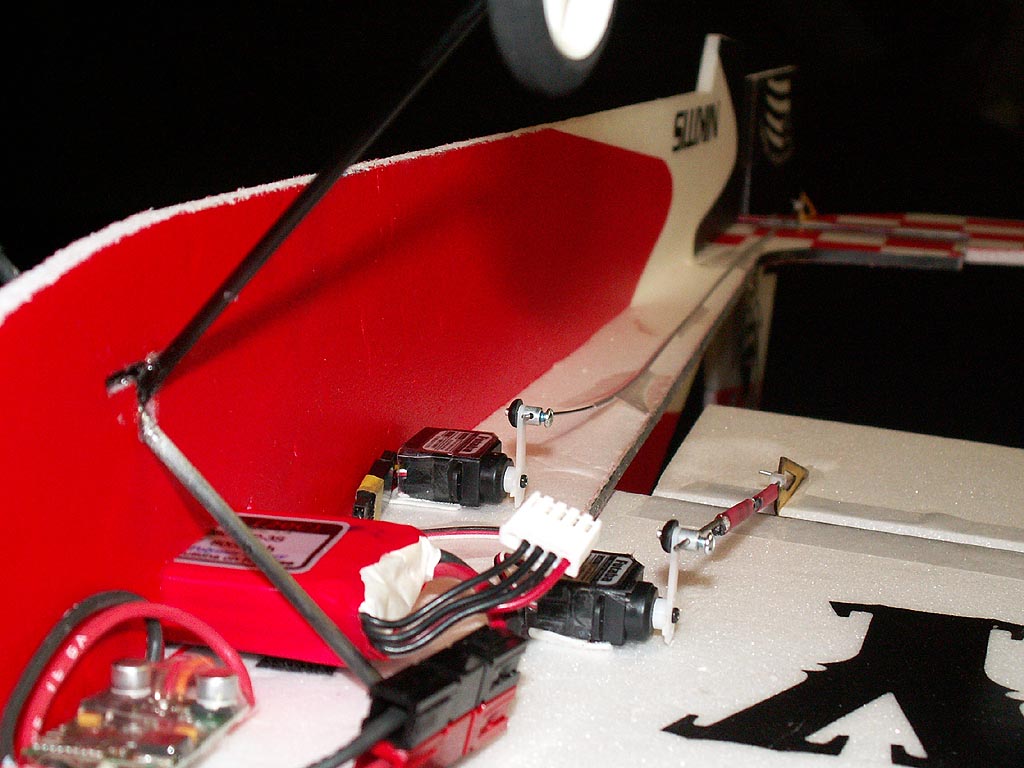

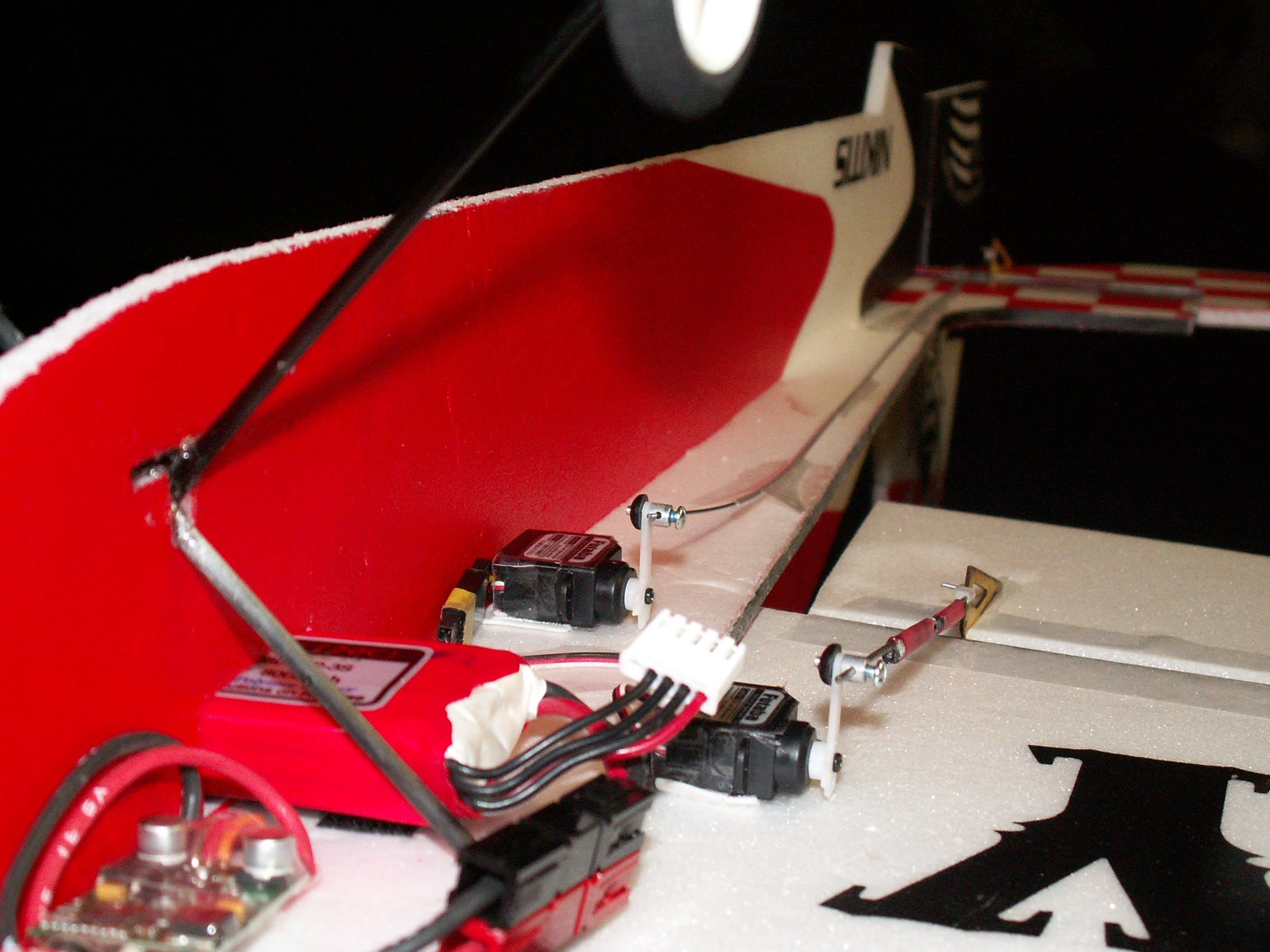

2272 / 1024 / 640 - Equipment installation complete. |

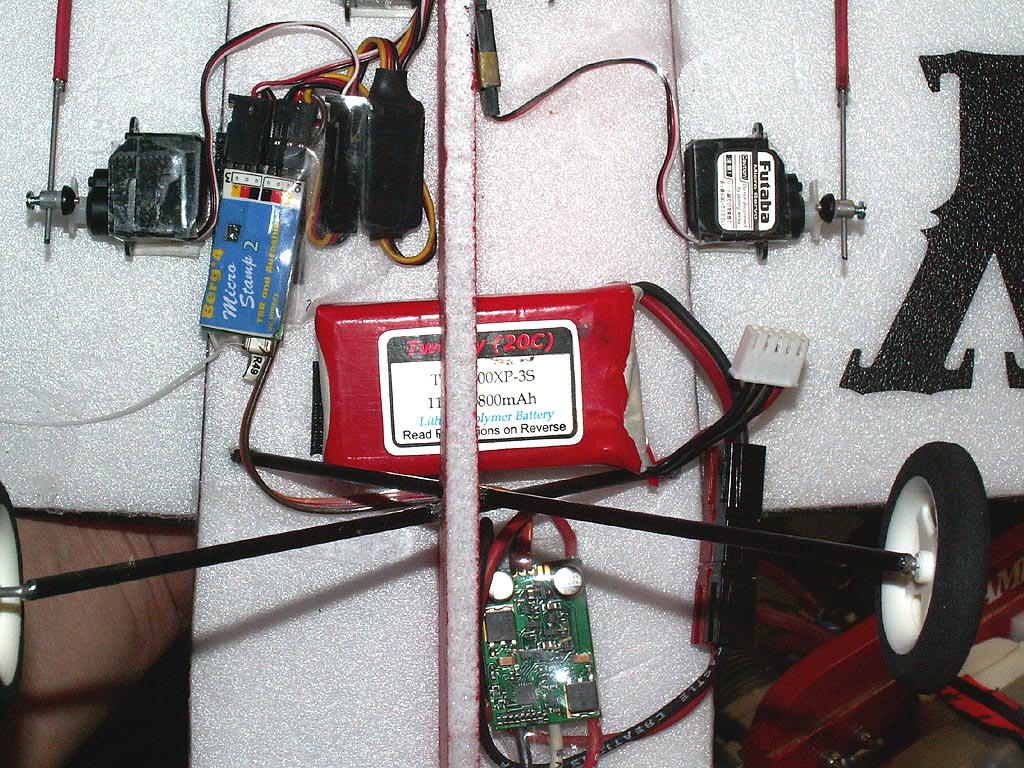

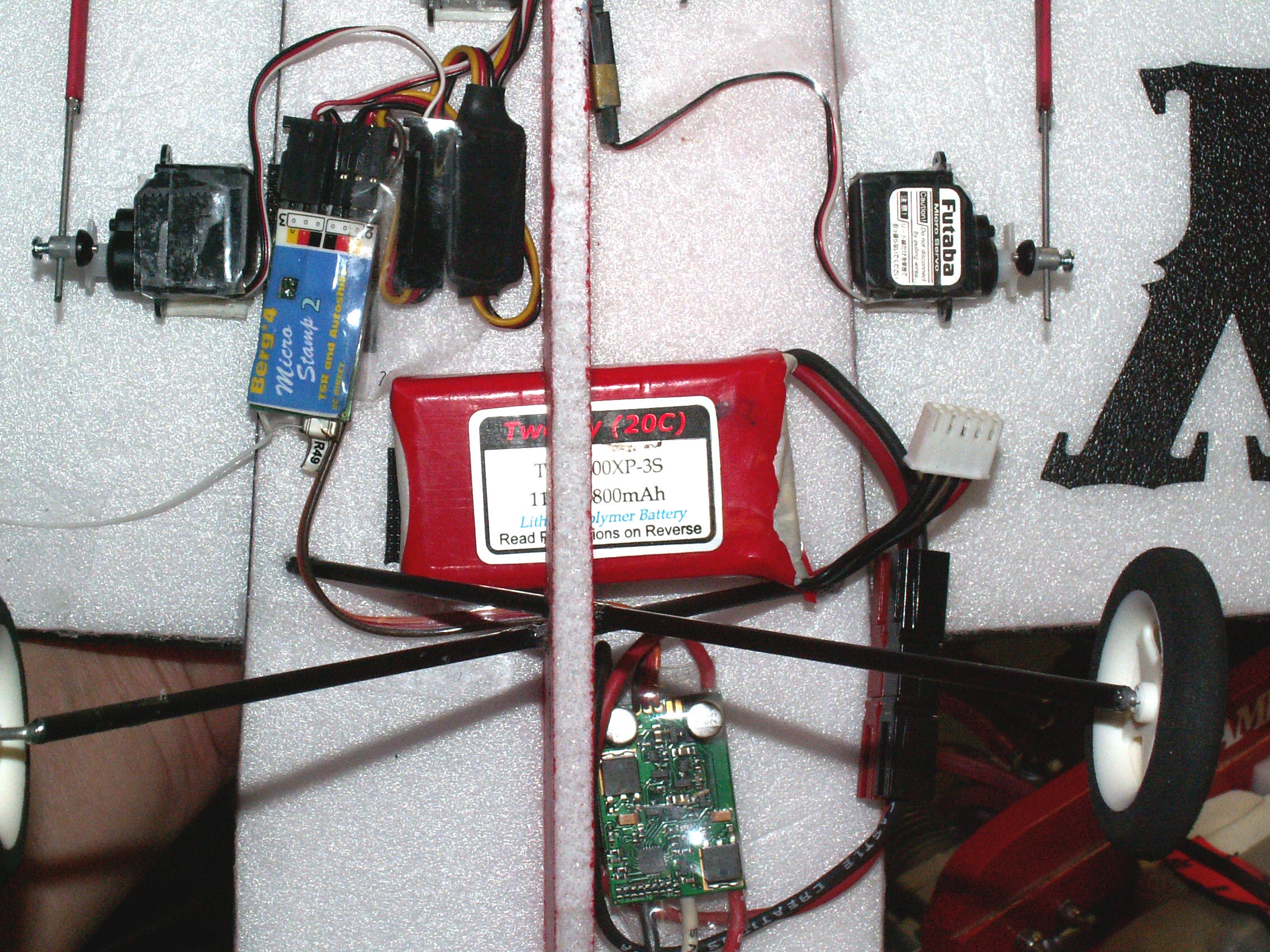

2272 / 1024 / 640 - Battery location. |
2272 / 1024 / 640 - |
2272 / 1024 / 640 - Ready to fly! |
