*** Andy Steere's P-38 FOAMY Assembly Images ***

These are pictures and such of an P-38 FOAMY, during assembly.

Here is the equipment I used:

Esskay 400XT Brushless Motor (pair).
APC 10x3.8SF or 9x6SF props (pair).
Castle Creations Thunderbird-18 18amp Brushless Speed controllers (pair).
ThunderPower 1320mah Pro-Lite and Tanic 1500/1550mah 10-12C 3cell lithium polymer Batteries (pair).
Hitec HS-55 Servos (two aileron, one elevator, no rudder).
Hitec 555 RX.

Click on the number below each image for a larger version of the picture (larger number, larger version of the picture)

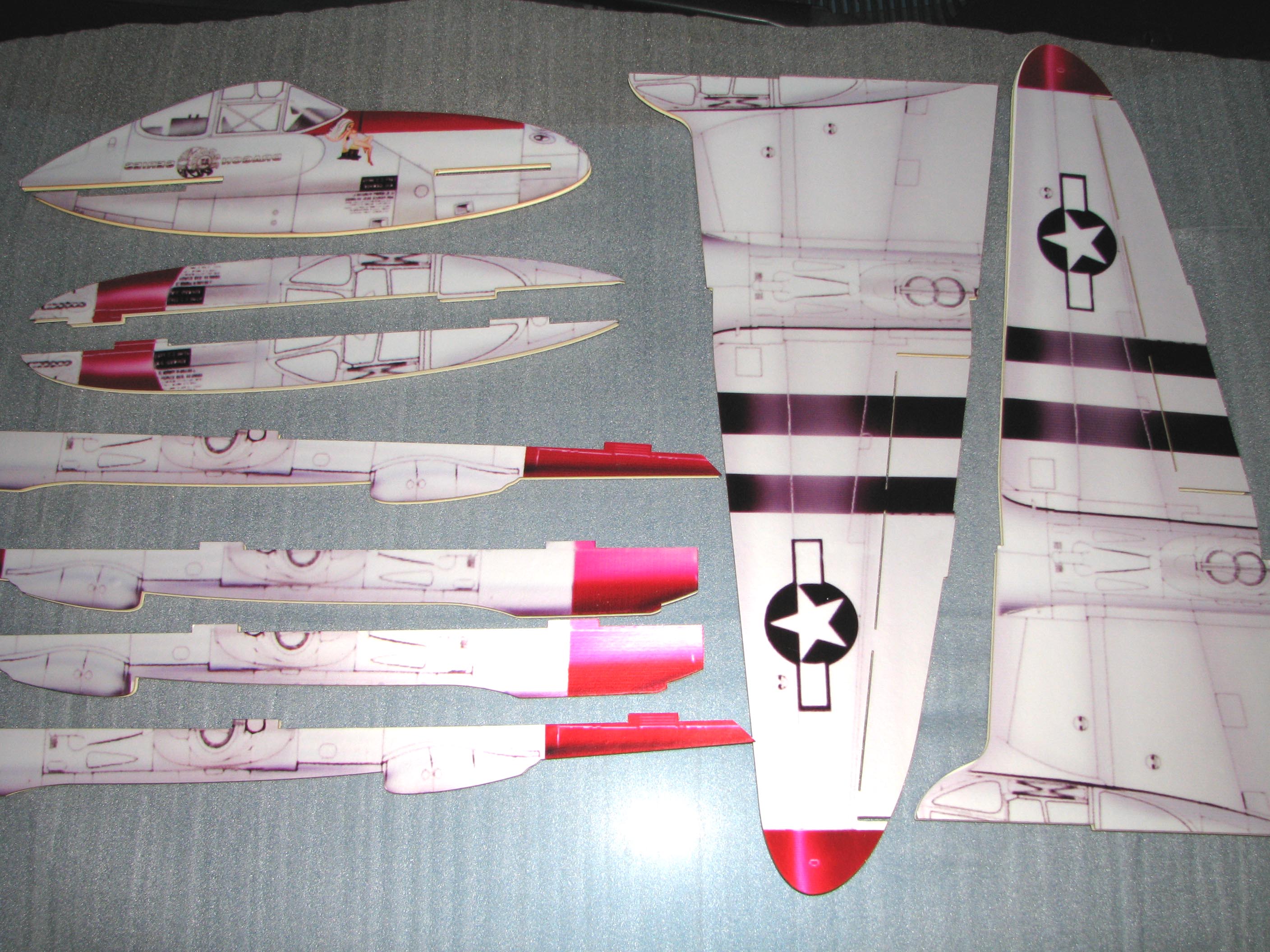

2816 / 1024 / 640 - Foam parts.

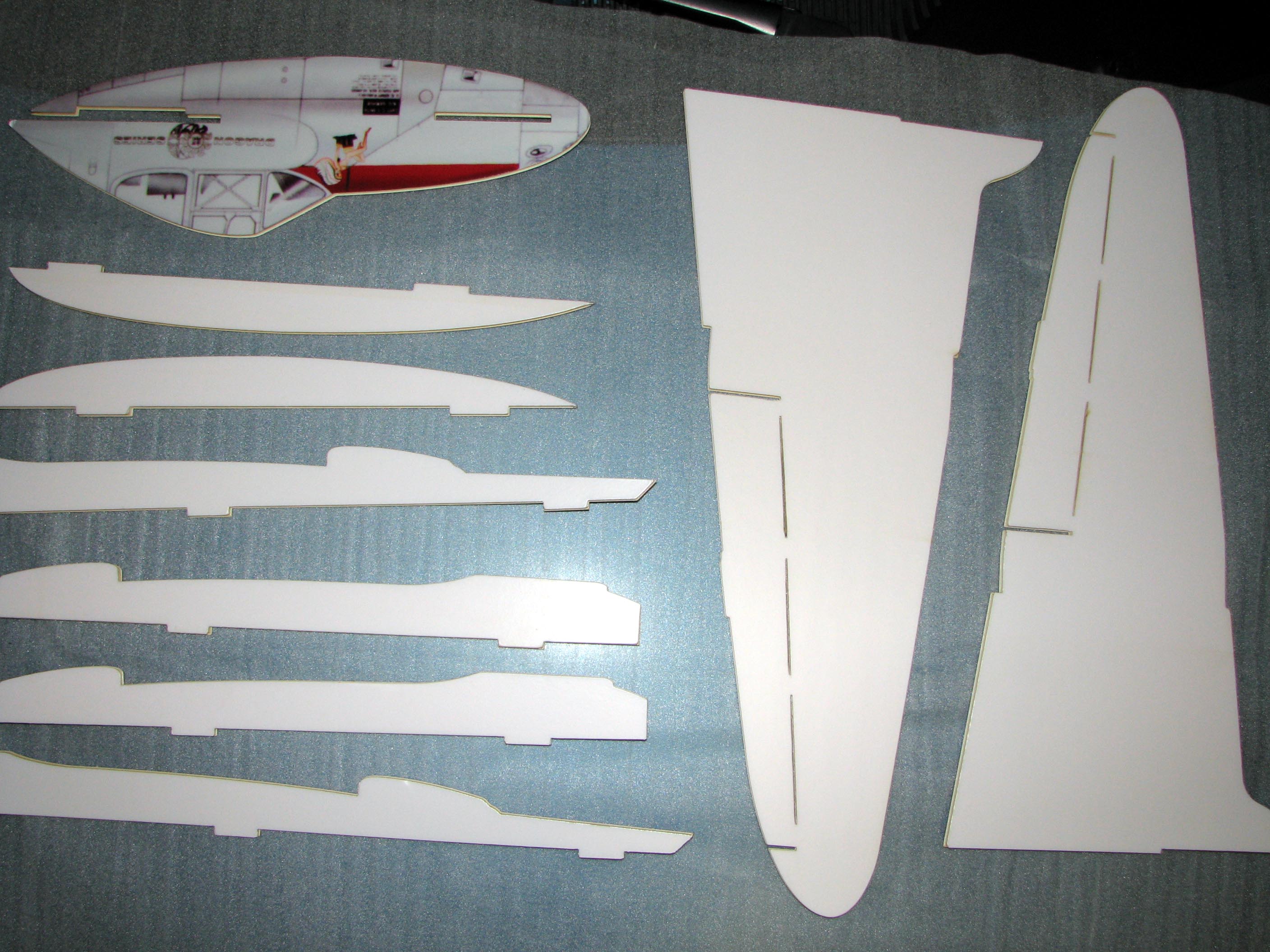

2816 / 1024 / 640 - white on the bottom

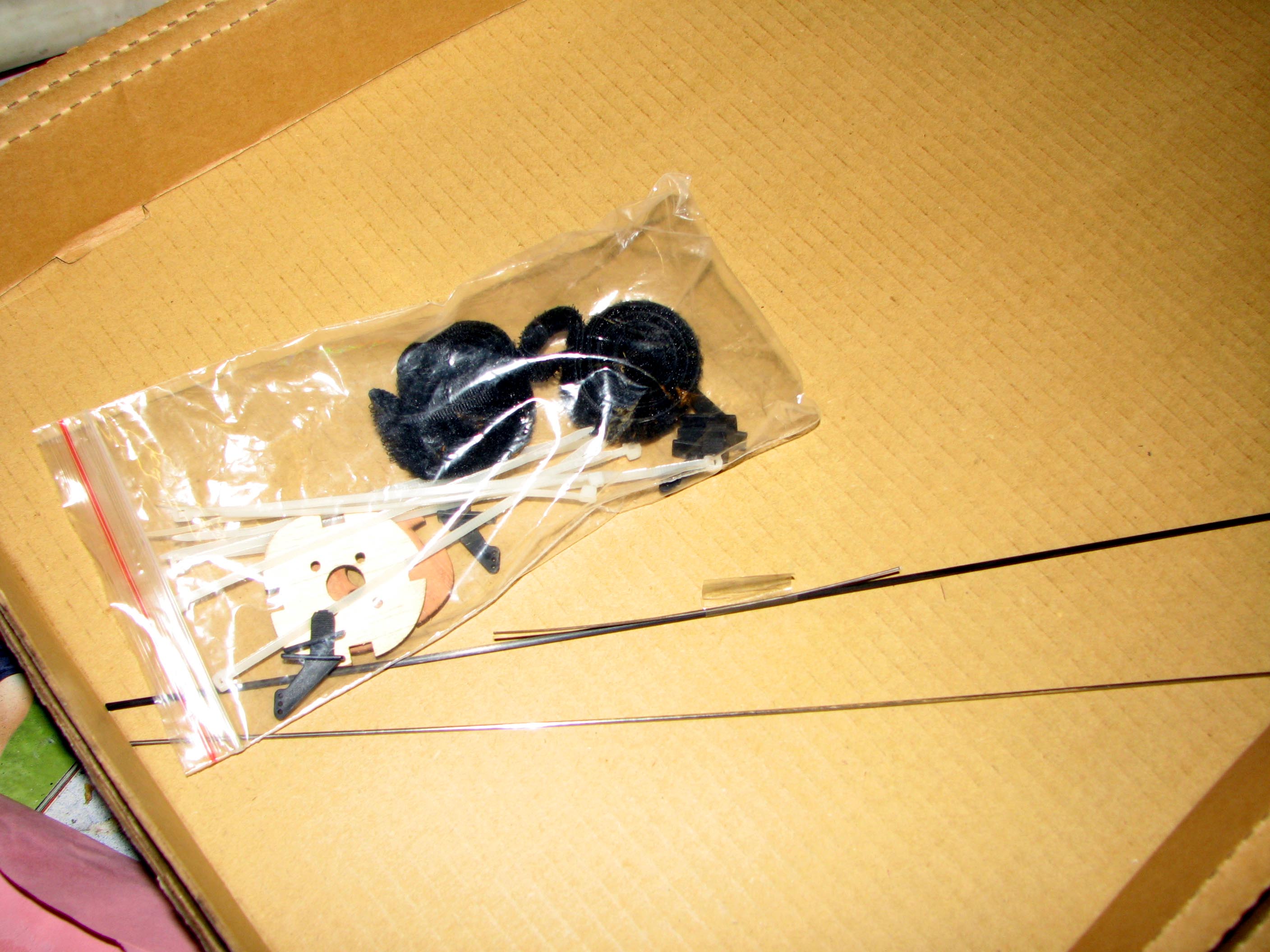

2816 / 1024 / 640 - hardware pack

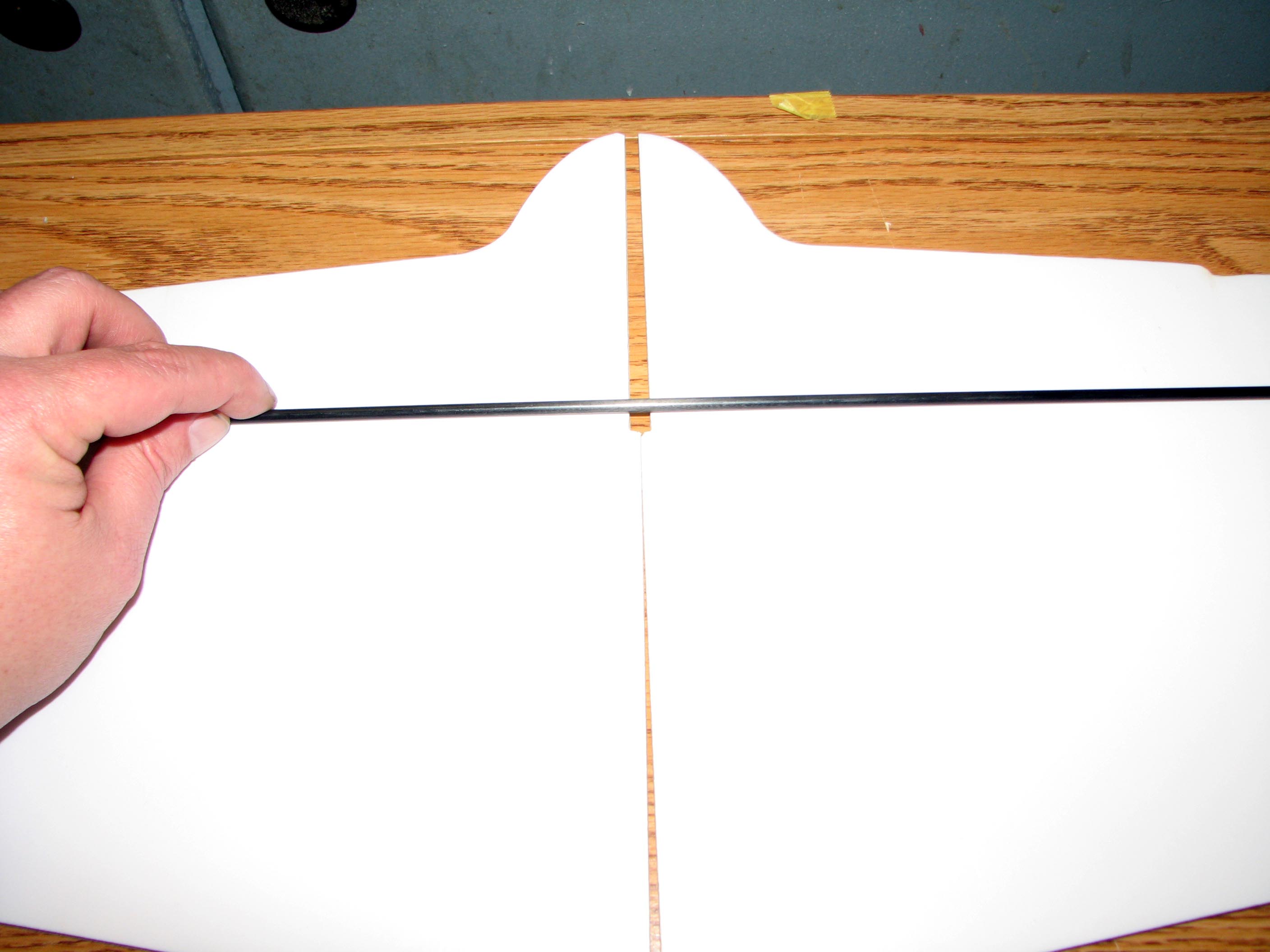

2816 / 1024 / 640 - install CF-tube wing spar

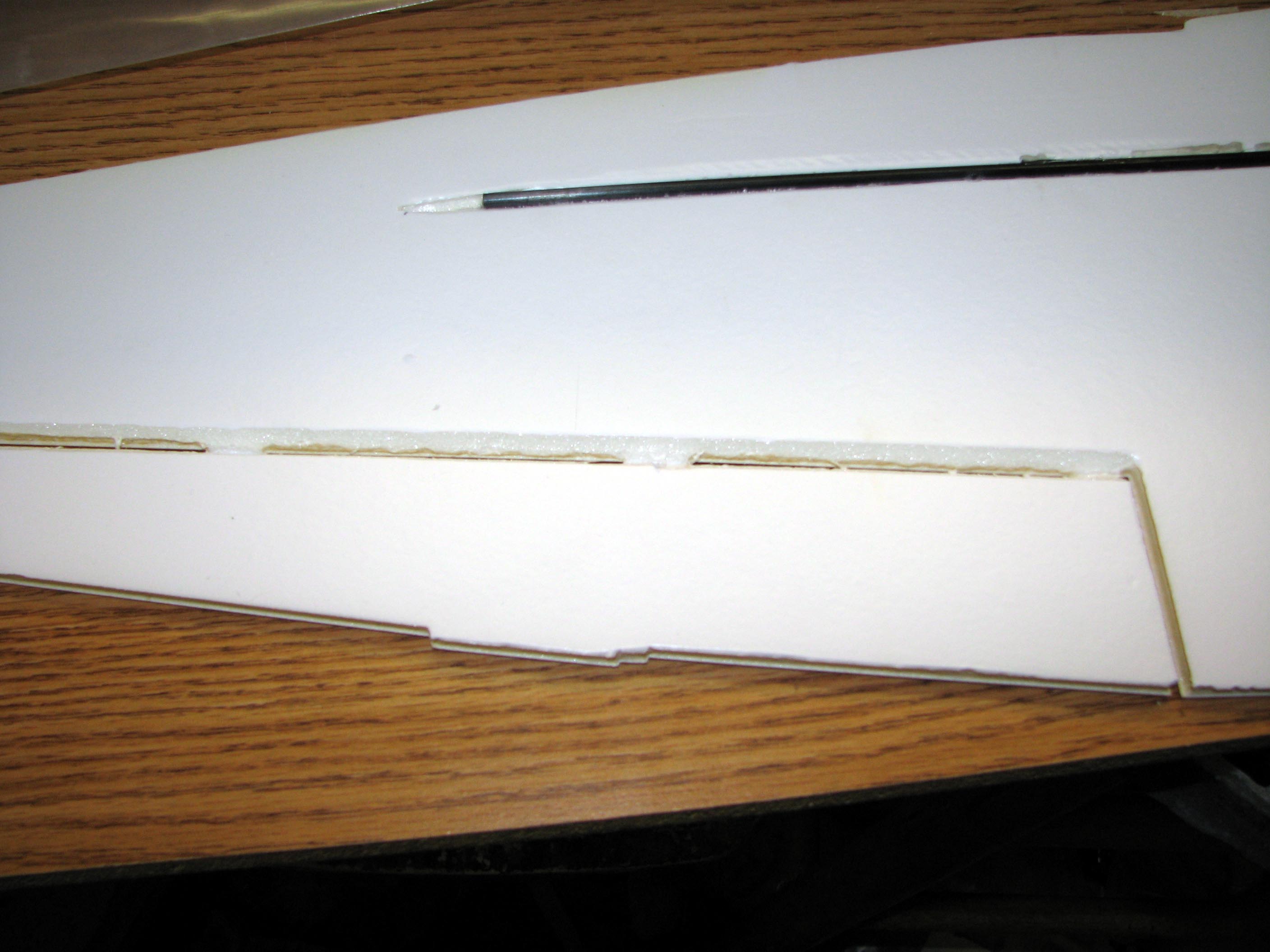

2816 / 1024 / 640 - Cut and bevel ailerons

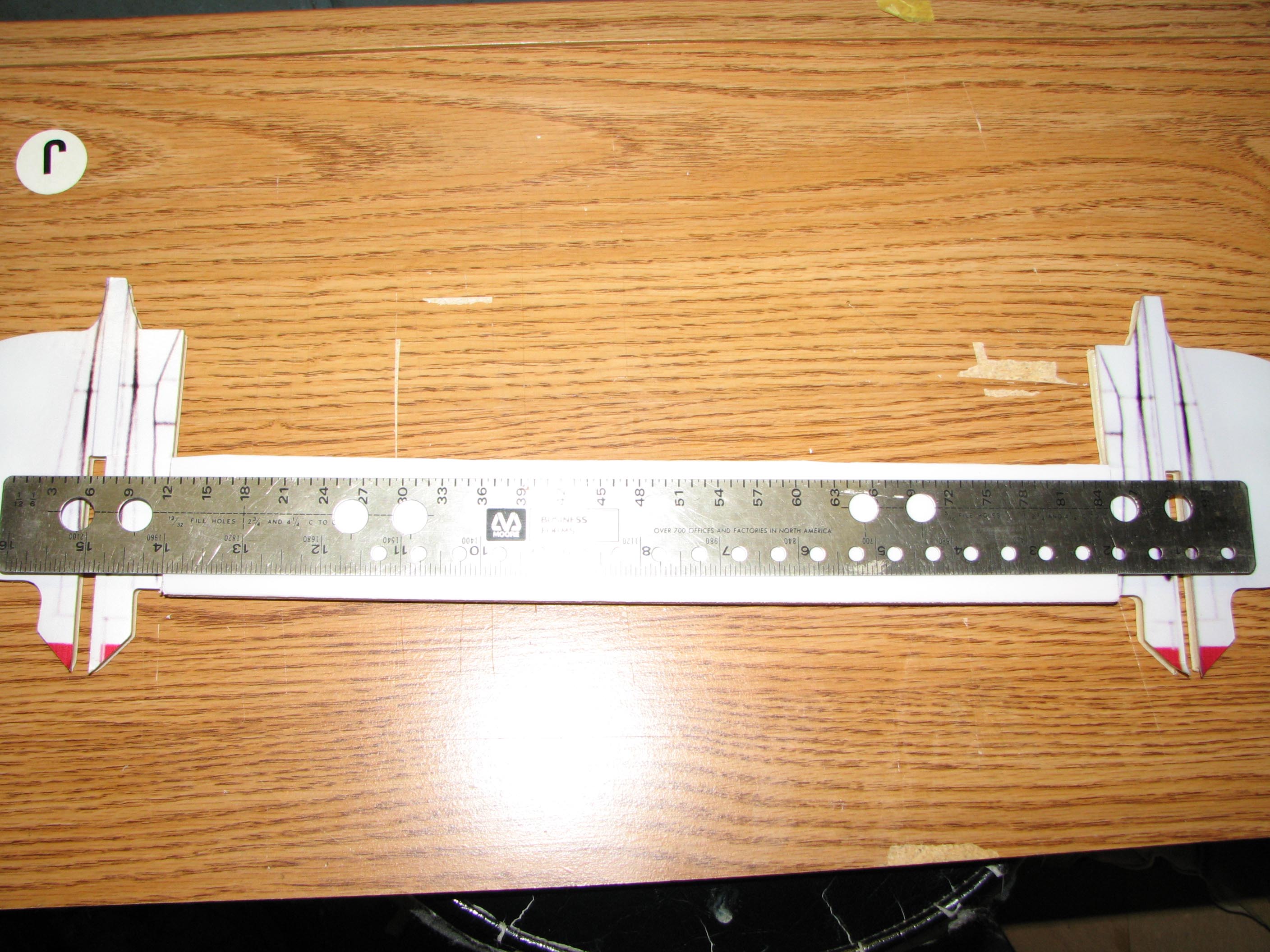

2816 / 1024 / 640 - Same with elevator

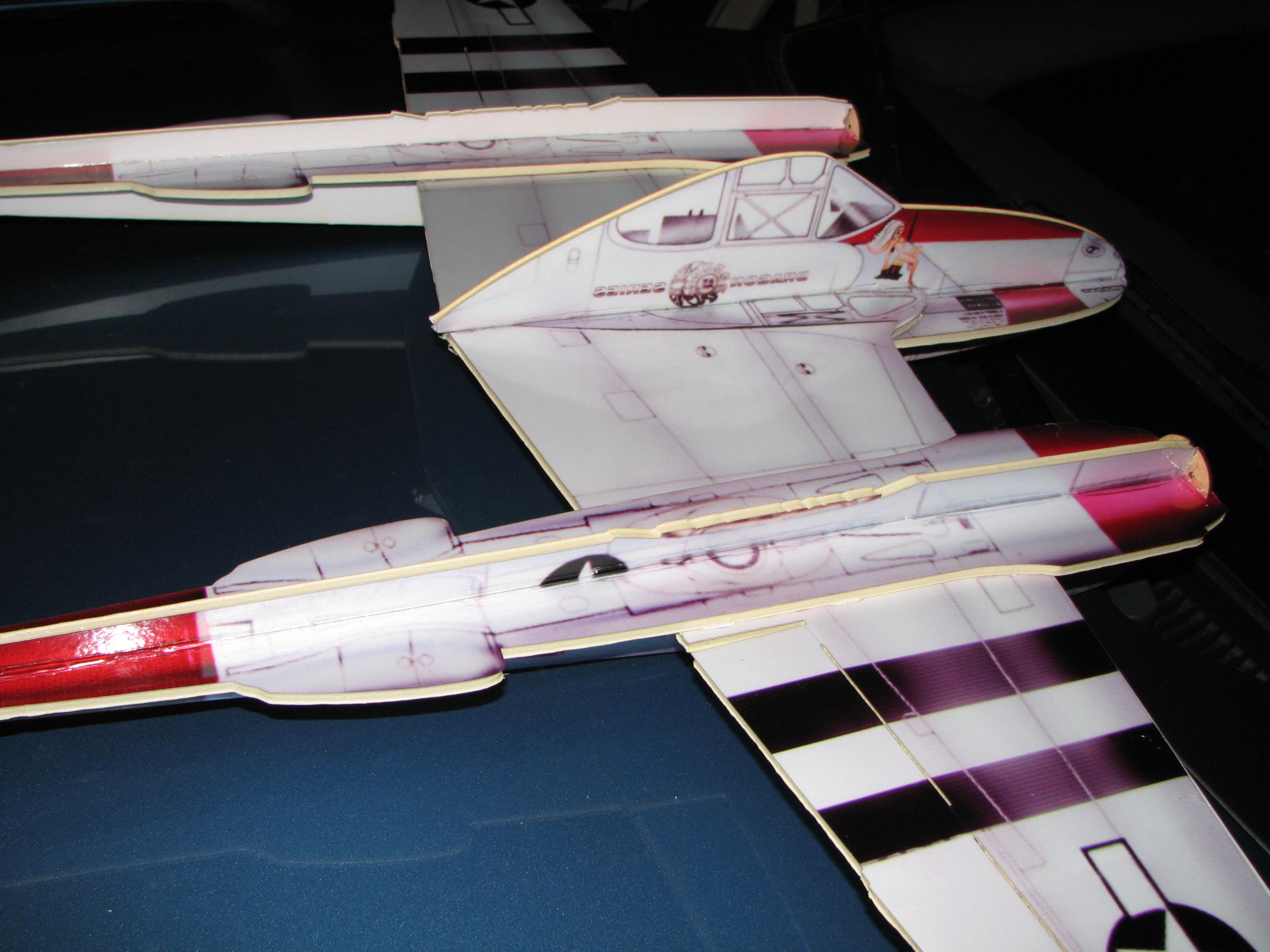

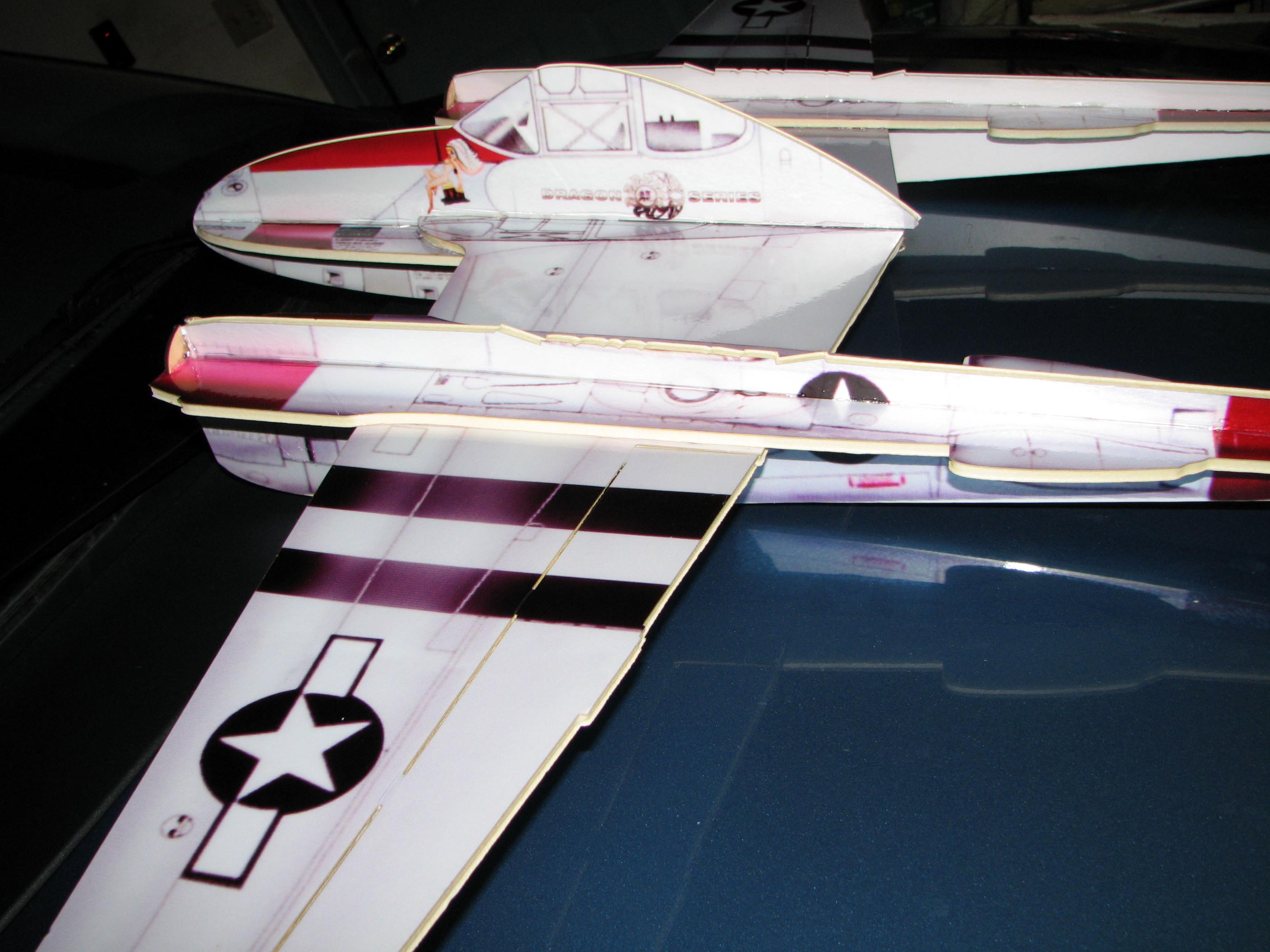

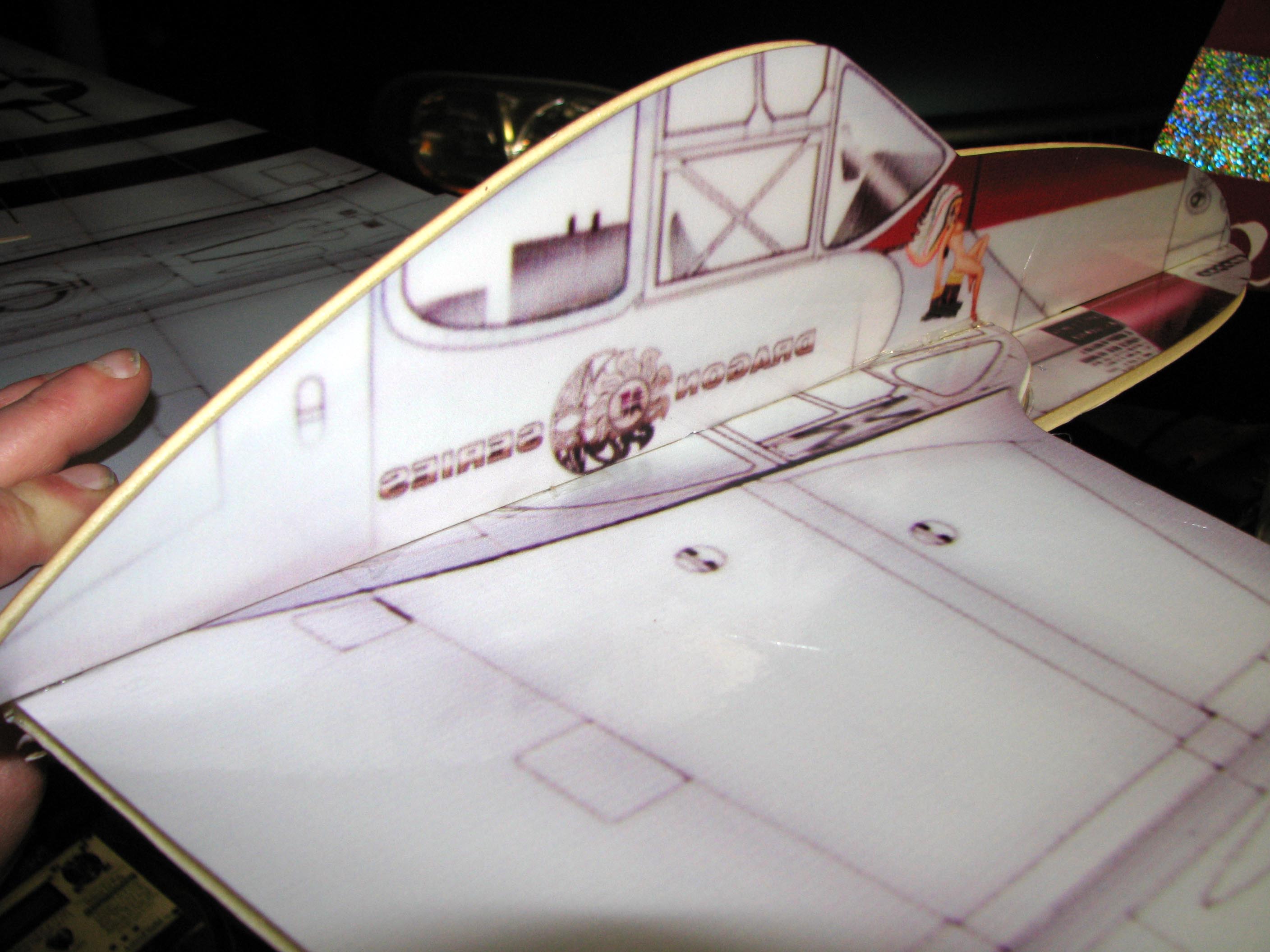

2816 / 1024 / 640 - good detail, but heavy.

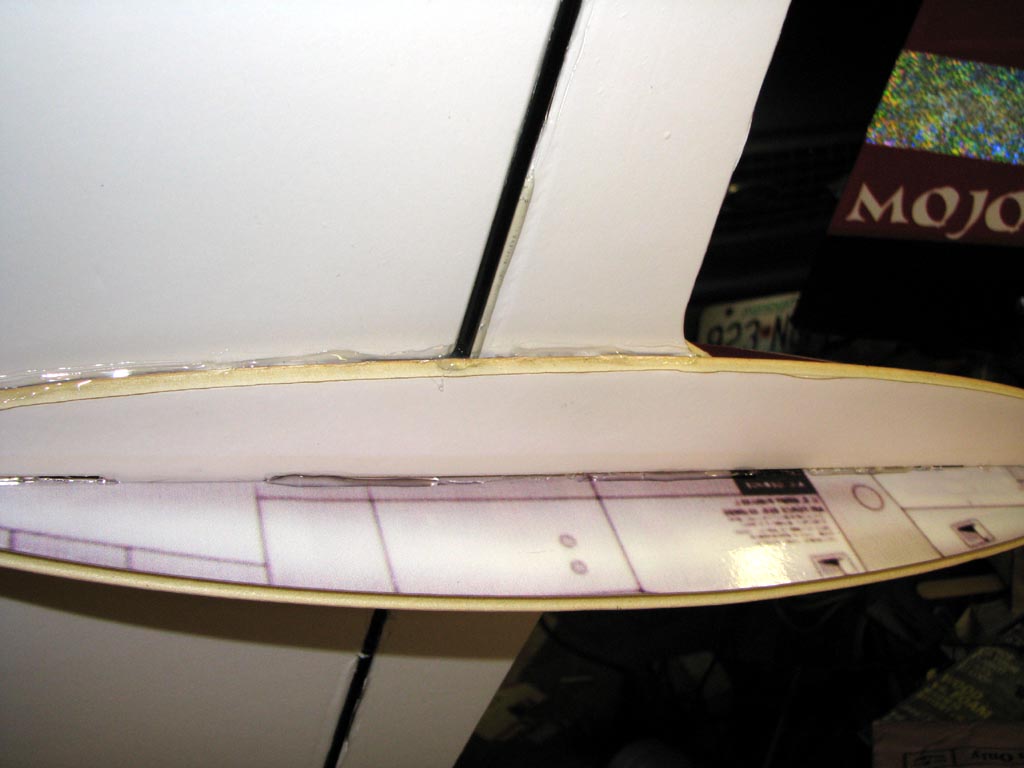

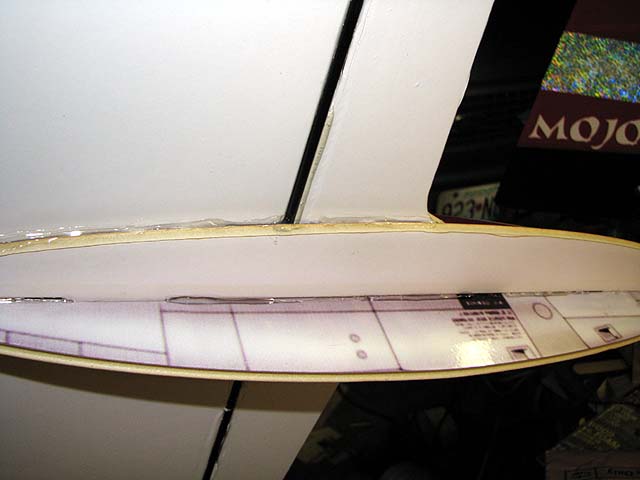

2816 / 1024 / 640 - Hot glue mostly (also heavy)

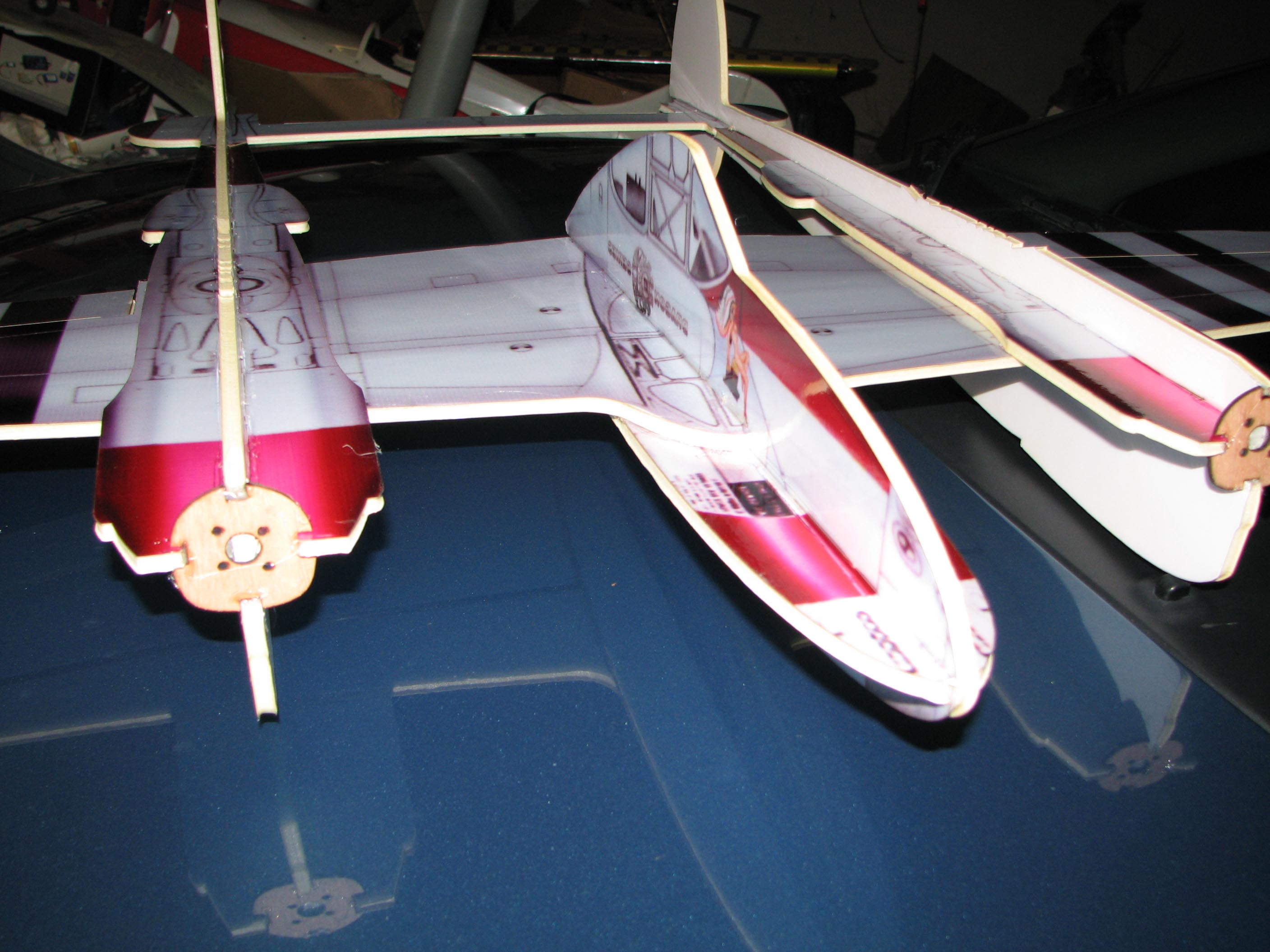

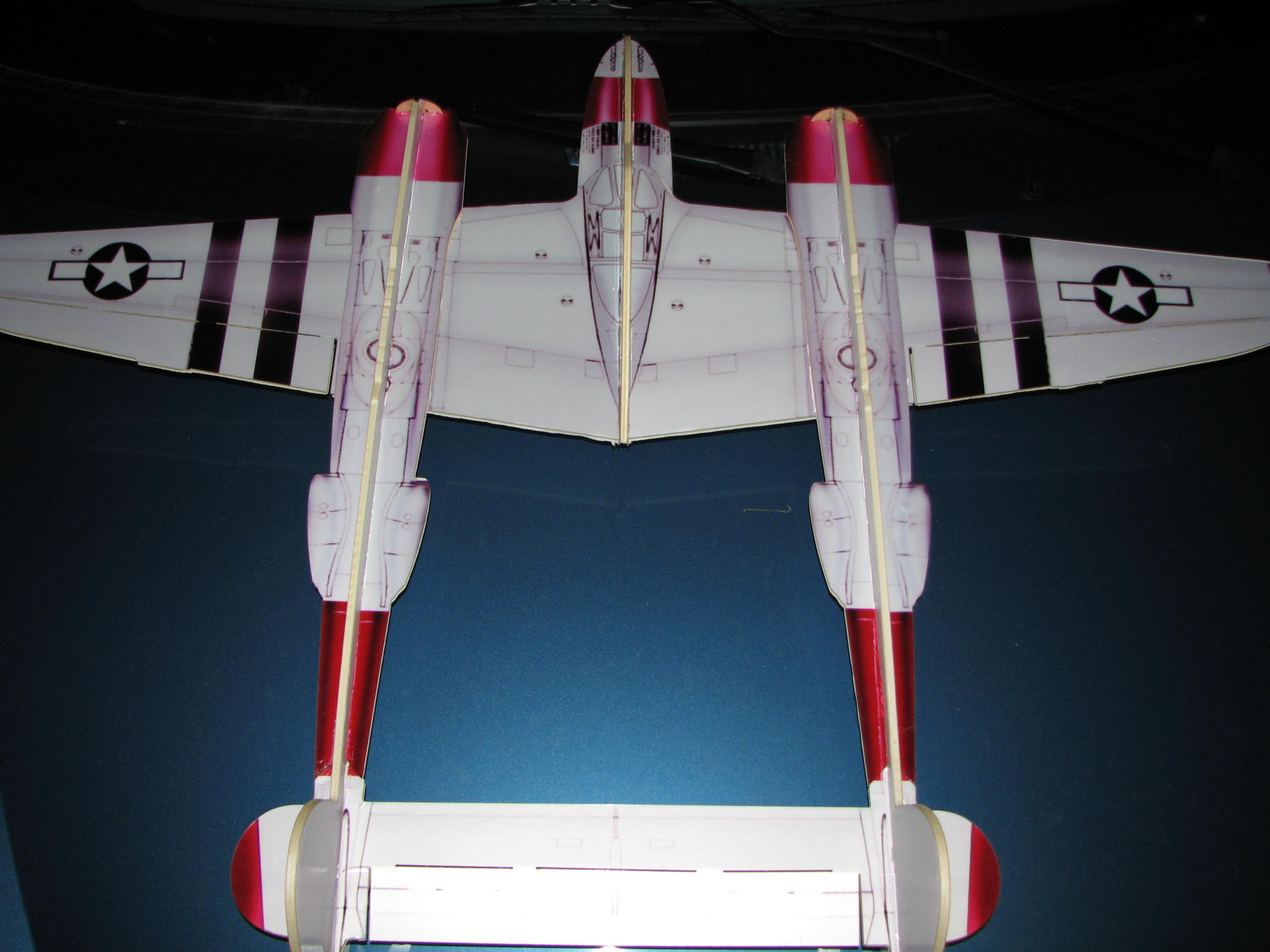

2816 / 1024 / 640 - starting to come together.

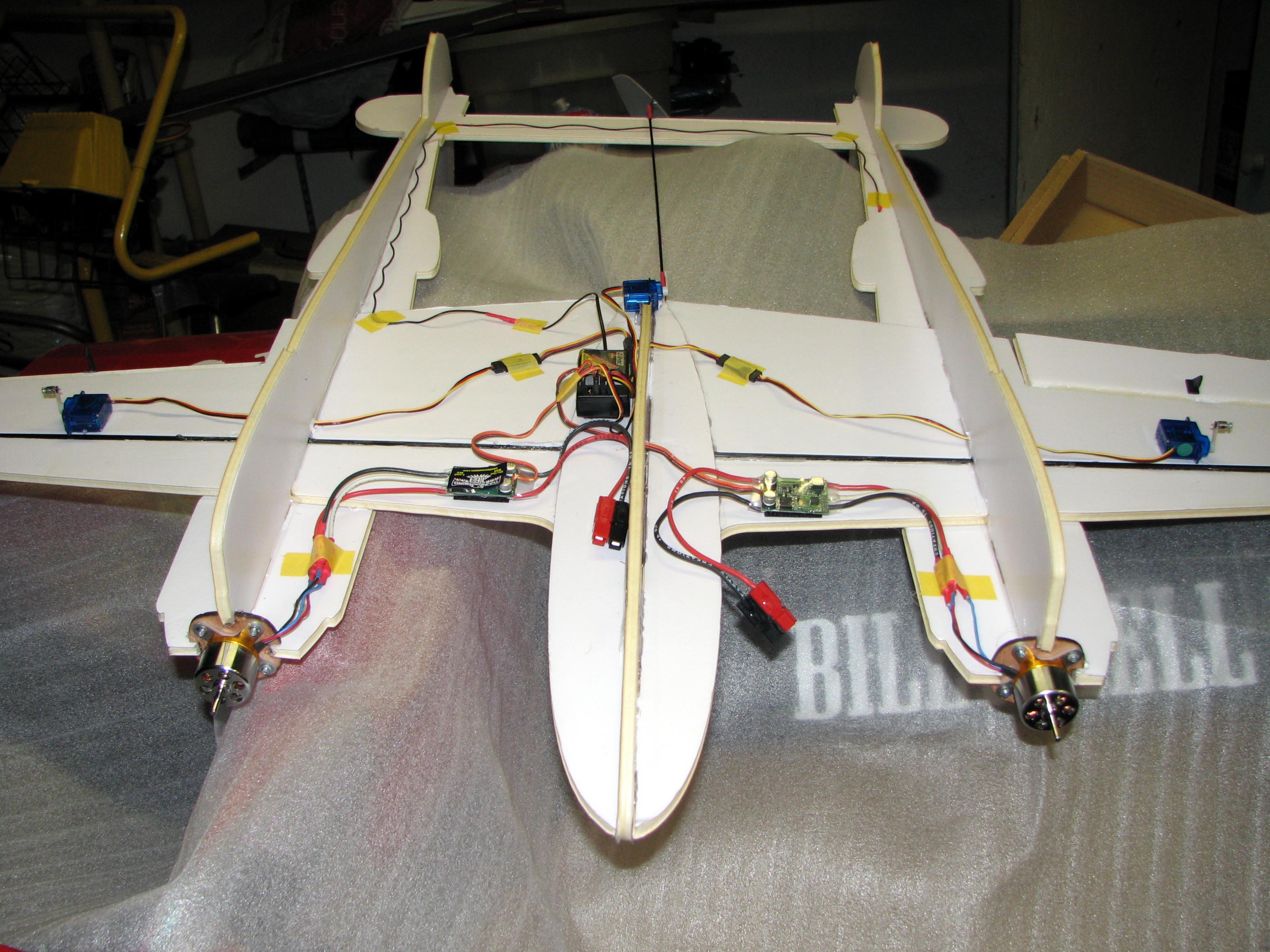

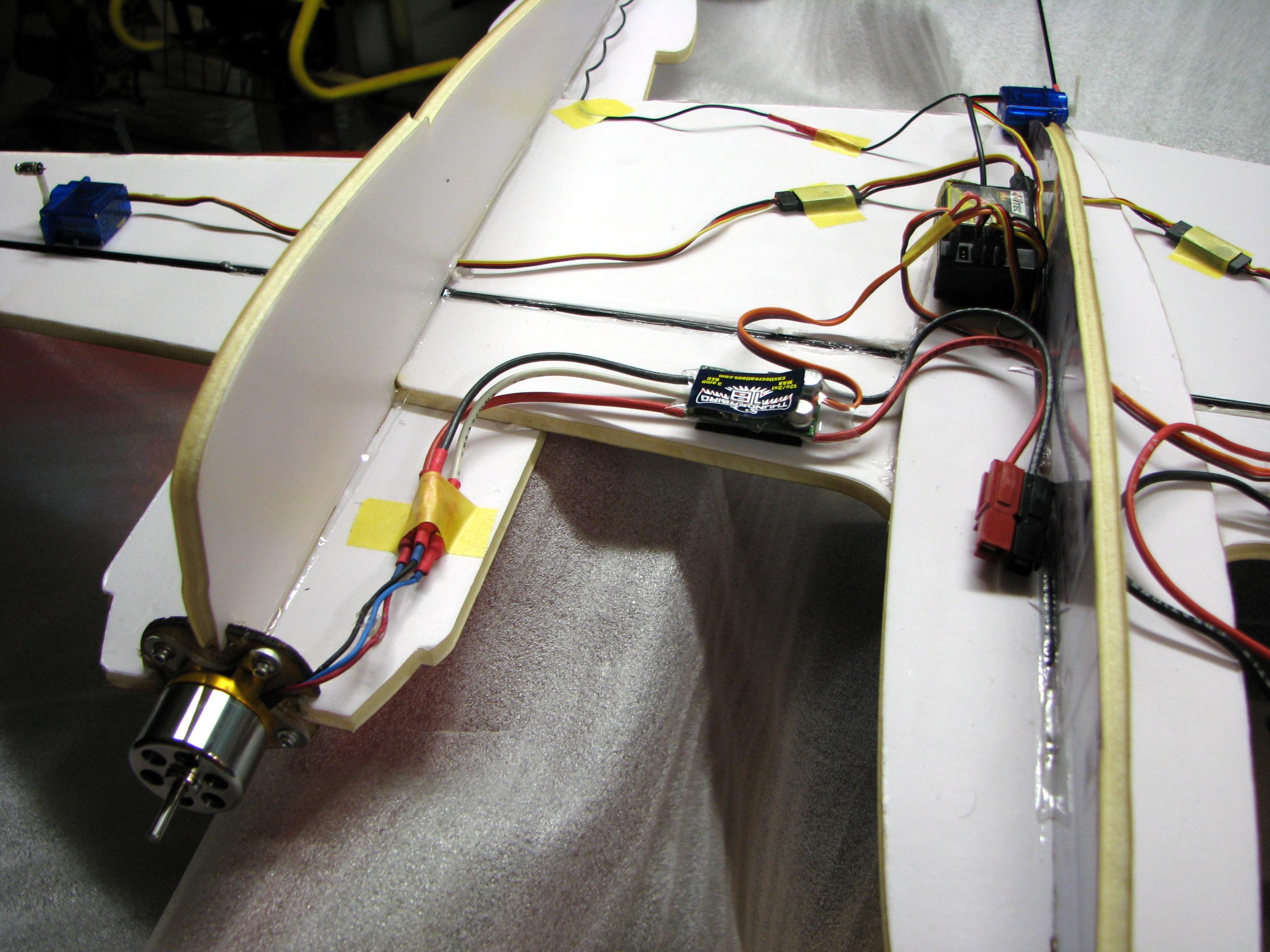

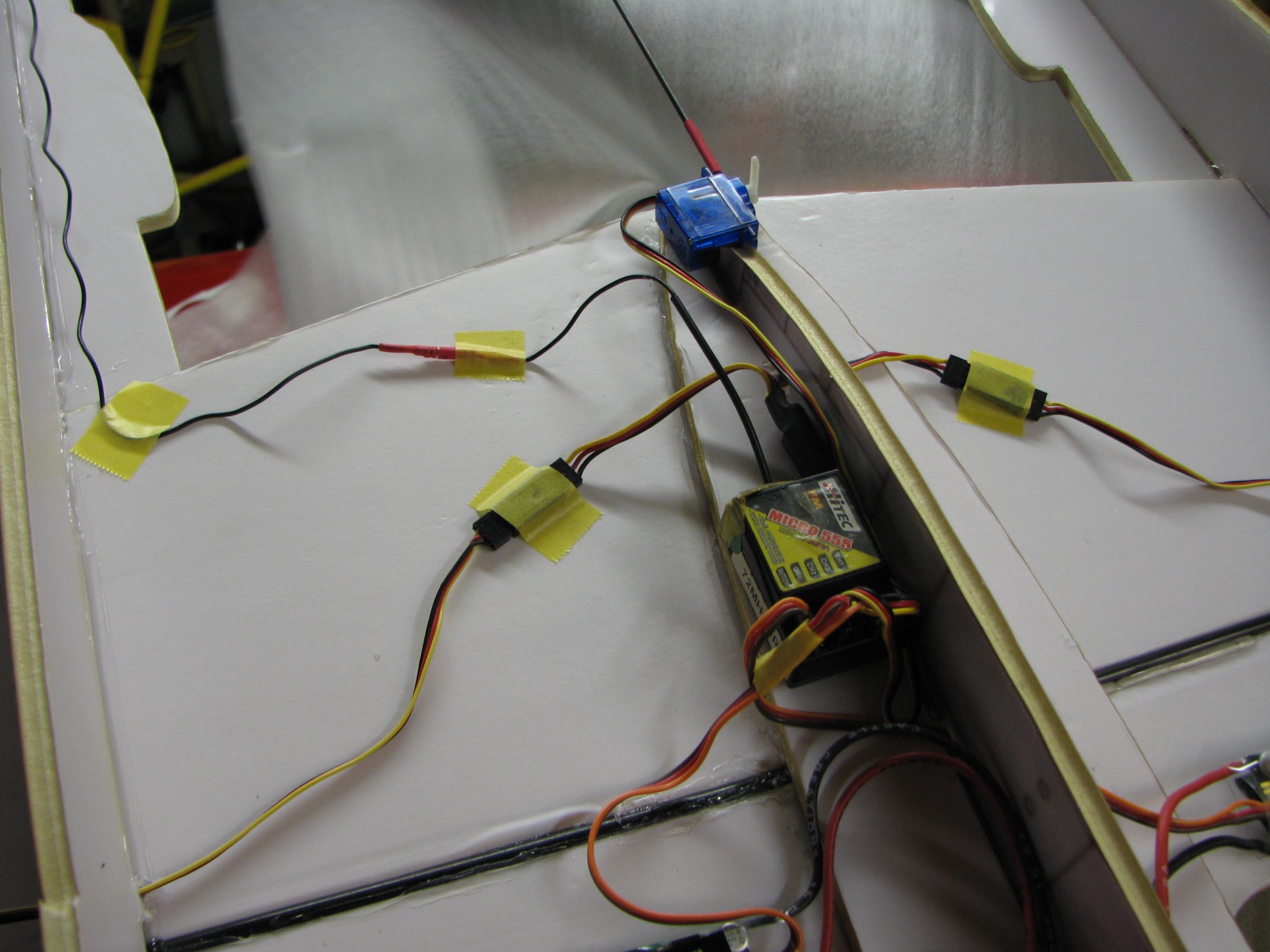

2816 / 1024 / 640 - electronics installed.
2816 / 1024 / 640 -
2816 / 1024 / 640 -

2816 / 1024 / 640 -
2816 / 1024 / 640 -
2816 / 1024 / 640 -
