*** Andy Steere's P-47 ***

(Pre-Flight Checks)


This section is for images and movies from checks and tests before the first flight.

Notes about the pictures below:

  • Pictures labeled #1 are from April 1st, 2002. On this date the engine was started for the first time and an initial ground range-check was performed. Didn't have time to do a full range check... but the mixture settings need to be adjusted first anyway.
  • Idle mixture seems fine, but I think the high end is way too rich. Started "burbling" about 50% throttle and developed maximum RPM at 75% throttle. Any more throttle than this made the exhaust tone a lot "wetter" and a bit louder, but no increase in RPM's. Due to the rather difficult-to-reach location of the adjustment screws, added to the fact I wanted to maintain as much of a scale outline as I could... adjustments to the carb require removing the cowl. I may try to engineer something better.
  • Pictures labeled #2 are from April 4, 2002. Back on the bench to resolve final issues.
  • Pictures labeled #3 are from April 13, 2002. See below.
  • Pictures labeled #4 are from April 16, 2002. See farther below.
  • Pictures labeled #4 are from April 20, 2002 at the Spring Fun-Fly. See even farther below.

    Check out the Video Clips section below. First clip is of the RCS140 running.

    04/13/2002 update

    I'm having some trouble with my landing gear... and with a nasty tendency to nose over. The Century Jet retracts, which looked very heavy duty when I was installing them, have proven to be less than I had hoped (which comes as no surprise to my buddy Carl... who tried to tell me). I've had to repair a small section of the bottom of the wing when I lost an axle during a taxi test. I've had to put a strut on the vise and bend it back after it bent during an aborted takeoff.

    I have done a couple things to help the nose-over tendency. First thing was to increase the elevator throws on high rates by 25% (along with a slight increase in the exponential I have dialed into the elevators). Second thing was to replace the 1 3/4" tailwheel with a 1 1/2" version, to lower the tail a little more. These two things helped a little... but not enough. On the first real attempt at flight, I let up on the elevator, after I was rolling faster than normal taxi-speed, coming up on the throttle for takeoff... and it nosed over. So, the next attempt I held the elevator longer... too long. It tried to fly too early, well actually did fly 20-30' and started to bank left, but I shut down the engine and aborted the takeoff. When I backed off the throttle, I must have neutralized the rudder, because the model continued left and came to rest in the rough grass at the side of the runway. This caused it to flip over on its back... and bent the retracts, sheered off the nylon wing-mounting bolts, and loosened the canopy.

    John Fangohr had a good suggestion for me. He said to shim up the back side of the retracts so the strut faced forward more. The gear struts were pointing pretty much straight up when the wing was laid on its top (built to plan). I put two 1/16" birch-ply shims laminated together (1/8" total thickness) under the back rail of both retracts. This moved the wheels forward more than an inch at the axle. Now they stick out beyond the leading edge of the wing when the gear are down. I fully expected to have to butcher the wheel wells after my mod, but much to my surprise... very little trimming was required. If the CJM retracts didn't have any front-to-back slop... I probably wouldn't have had to trim anything. But they do, and I did, just to be safe. See the pictures (labled #3) below that show the modification.

    Anyway... everything is fixed now and I'm ready to try again tomorrow.

    04/16/2002 update

    Still waiting for good flying weather. Decided to address an engine running issue I had. Run the engine with the cowl off and adjust the carb mixture screws, then put the cowl back on and its too rich at full throttle. Must not be allowing enough combustion air to get in... so I hacked on the cowl a good deal more to bring in more air. We'll see if it helps.

    04/20/2002 update

    STILL waiting for good flying weather. Took the P-47 to the Spring 2002 Fun-Fly. A stiff crosswind prevented flying it for the first time. Took some pictures of it assembled and at the field (see #5 photos below). I'll get a good weather day here before long. I did run the engine and the new holes in the cowl seemed to help.

    Check back for updates! (04/21/2002)


    Click on the number below each image for a larger version of the picture (larger number, larger version of the picture)

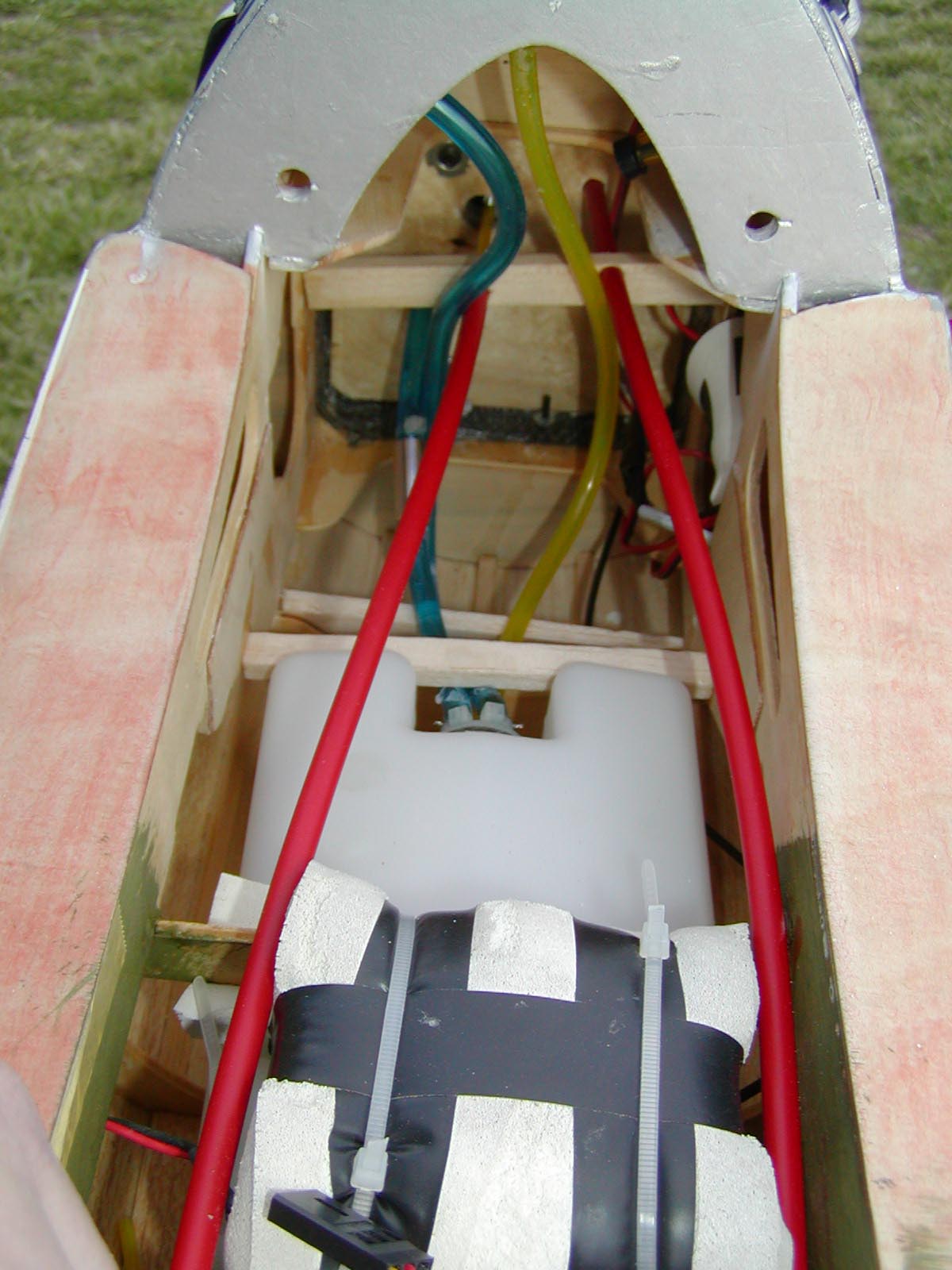

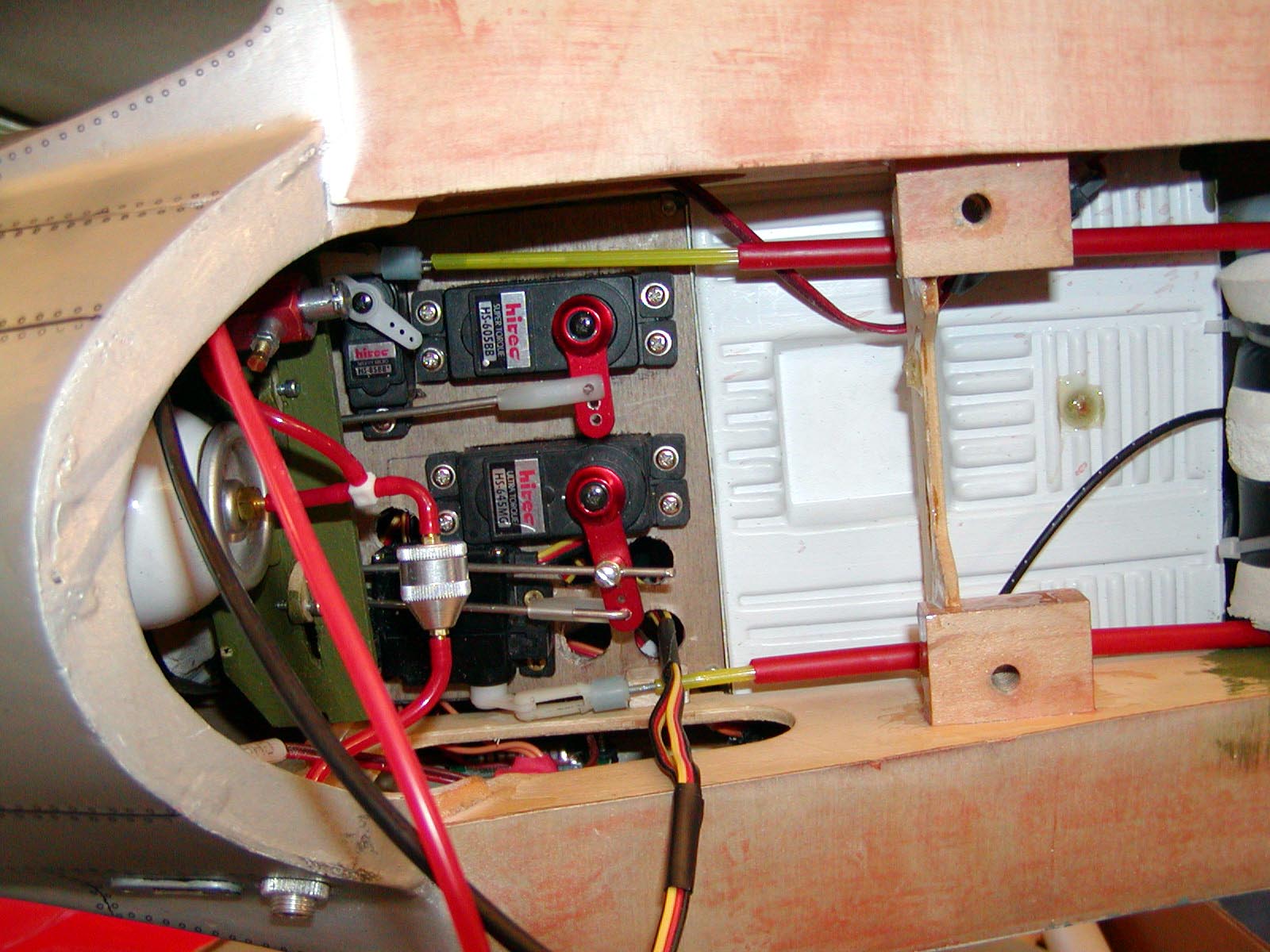

    1600 / 1024 / 640 - #1 Fuse interior, toward firewall.

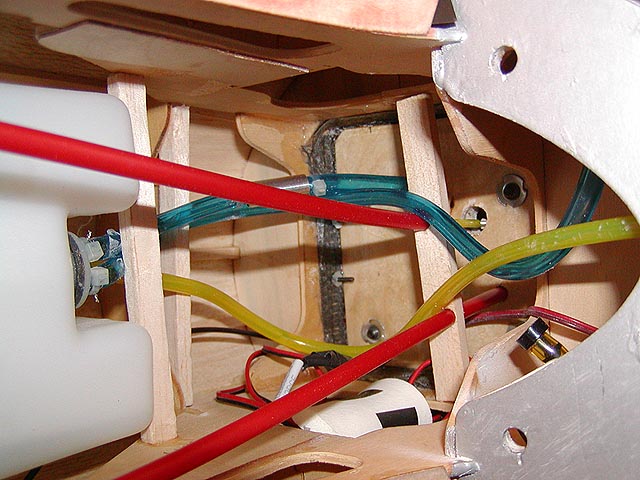

    1600 / 1024 / 640 - #1 Looking toward tail.

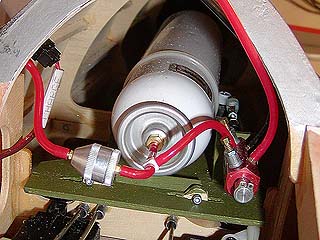

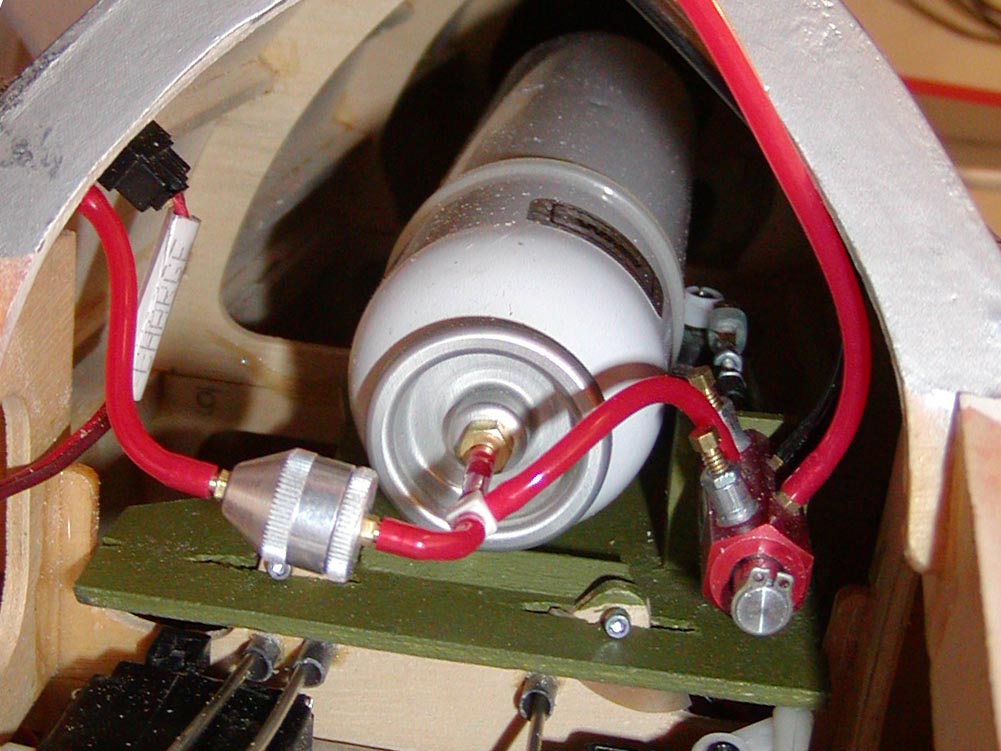

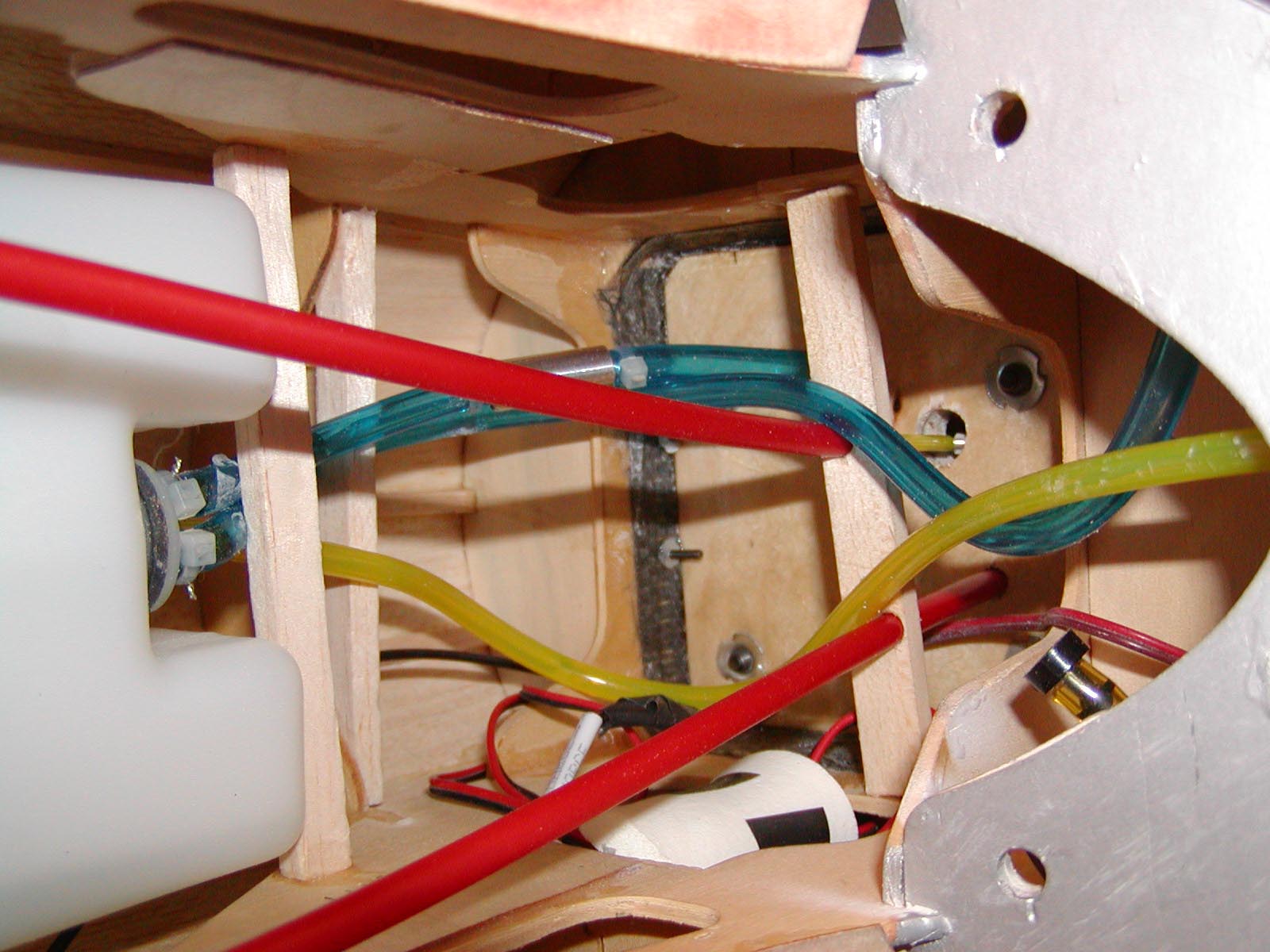

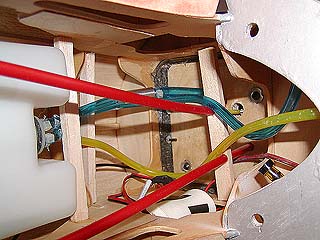

    1600 / 1024 / 640 - #1 Closeup of air system

    1600 / 1024 / 640 - #1 Fueled and ready to start!

    1600 / 1024 / 640 - #2 Cooling holes show yellow

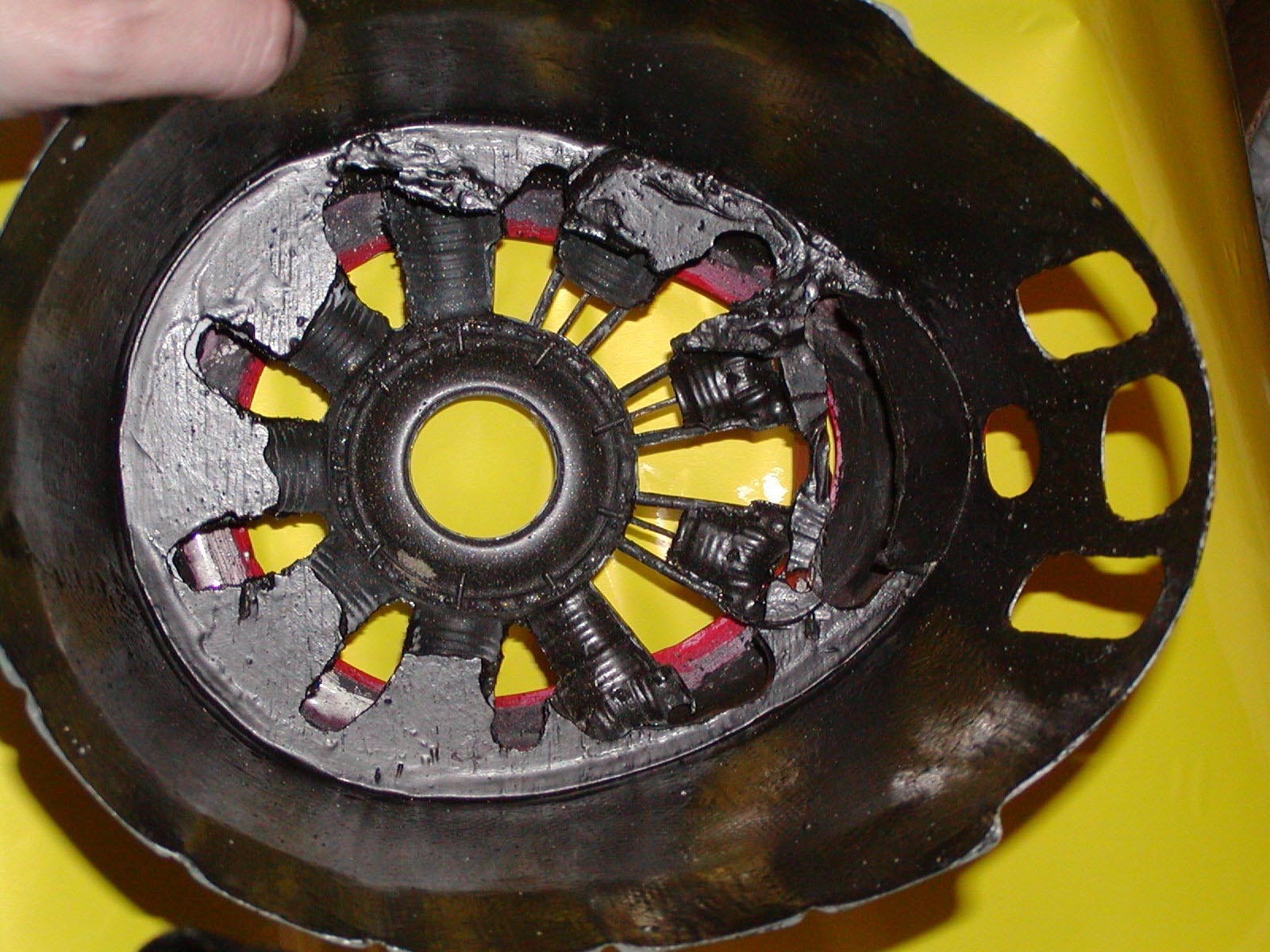

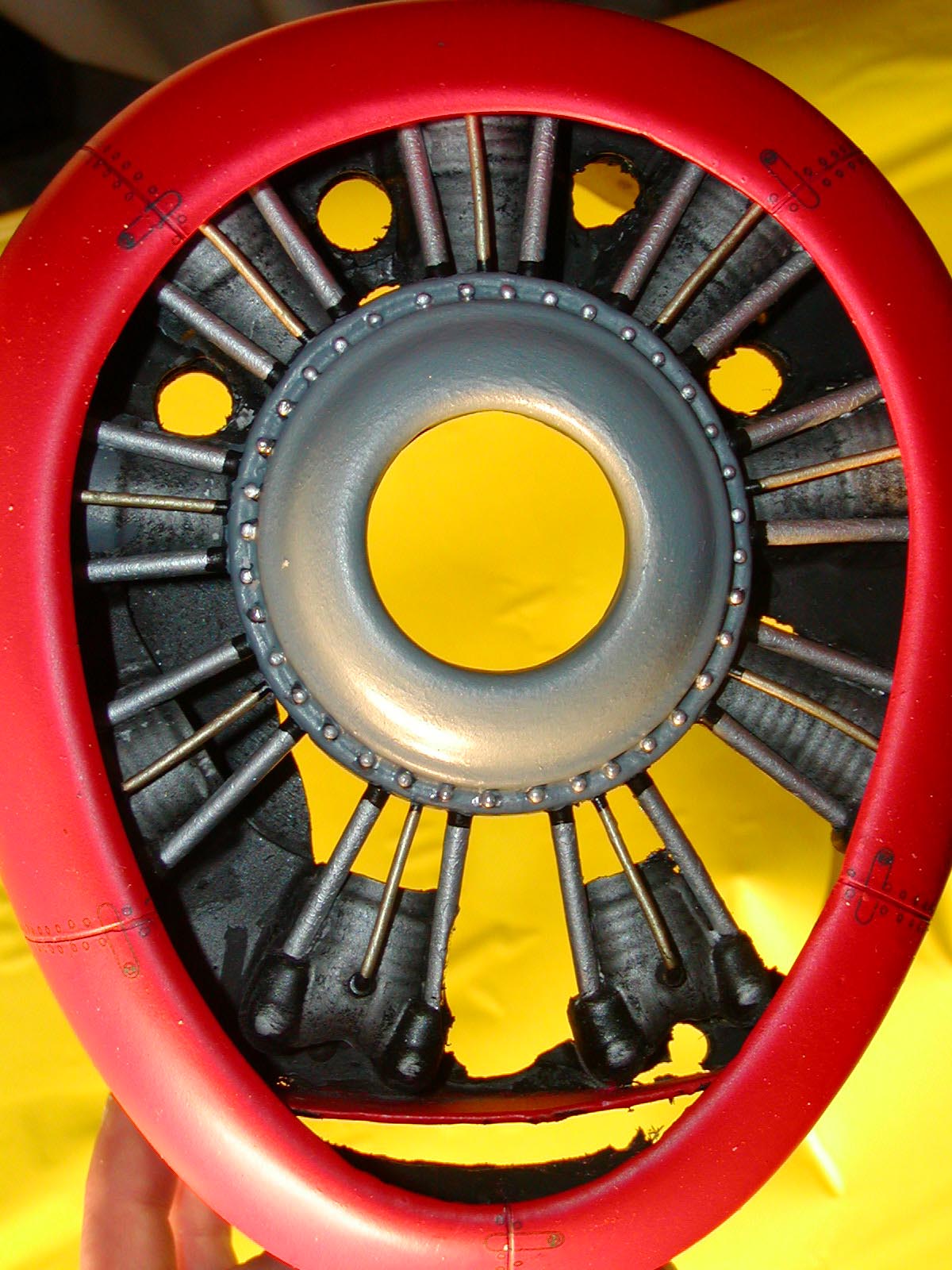

    1600 / 1024 / 640 - #2 Inside cowl, high-temp paint

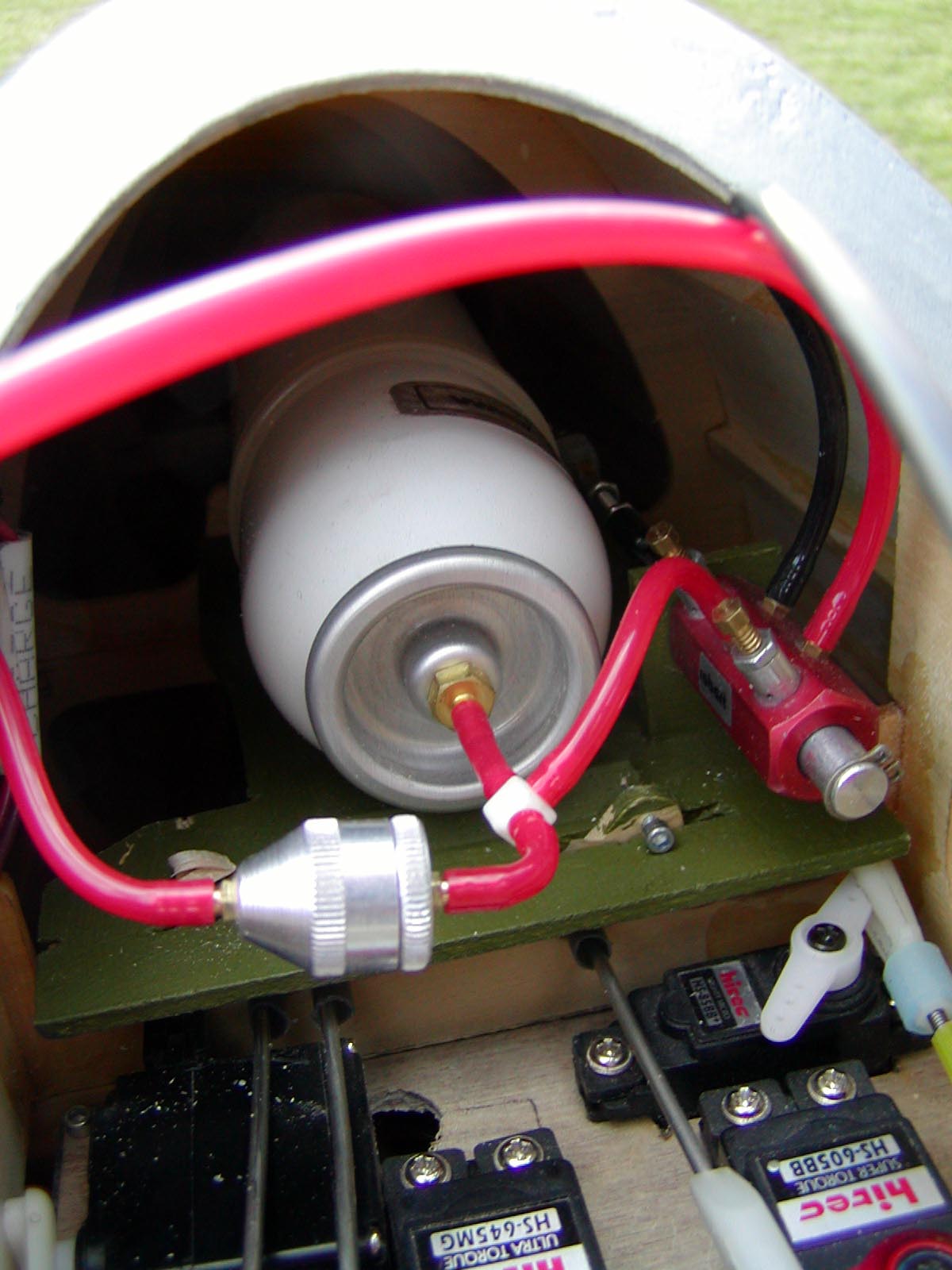

    1600 / 1024 / 640 - #2 Another shot of air system

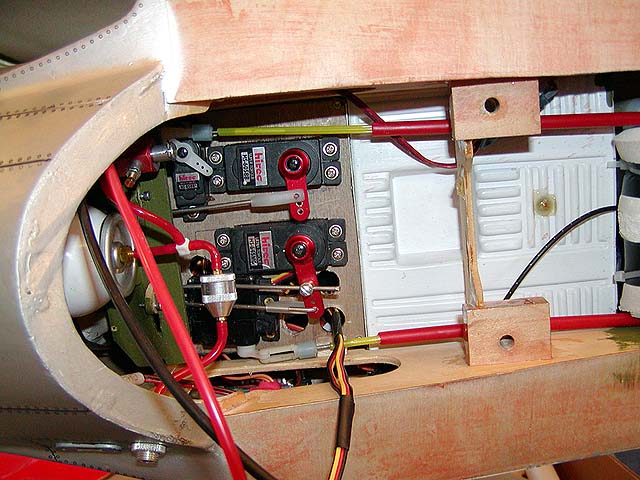

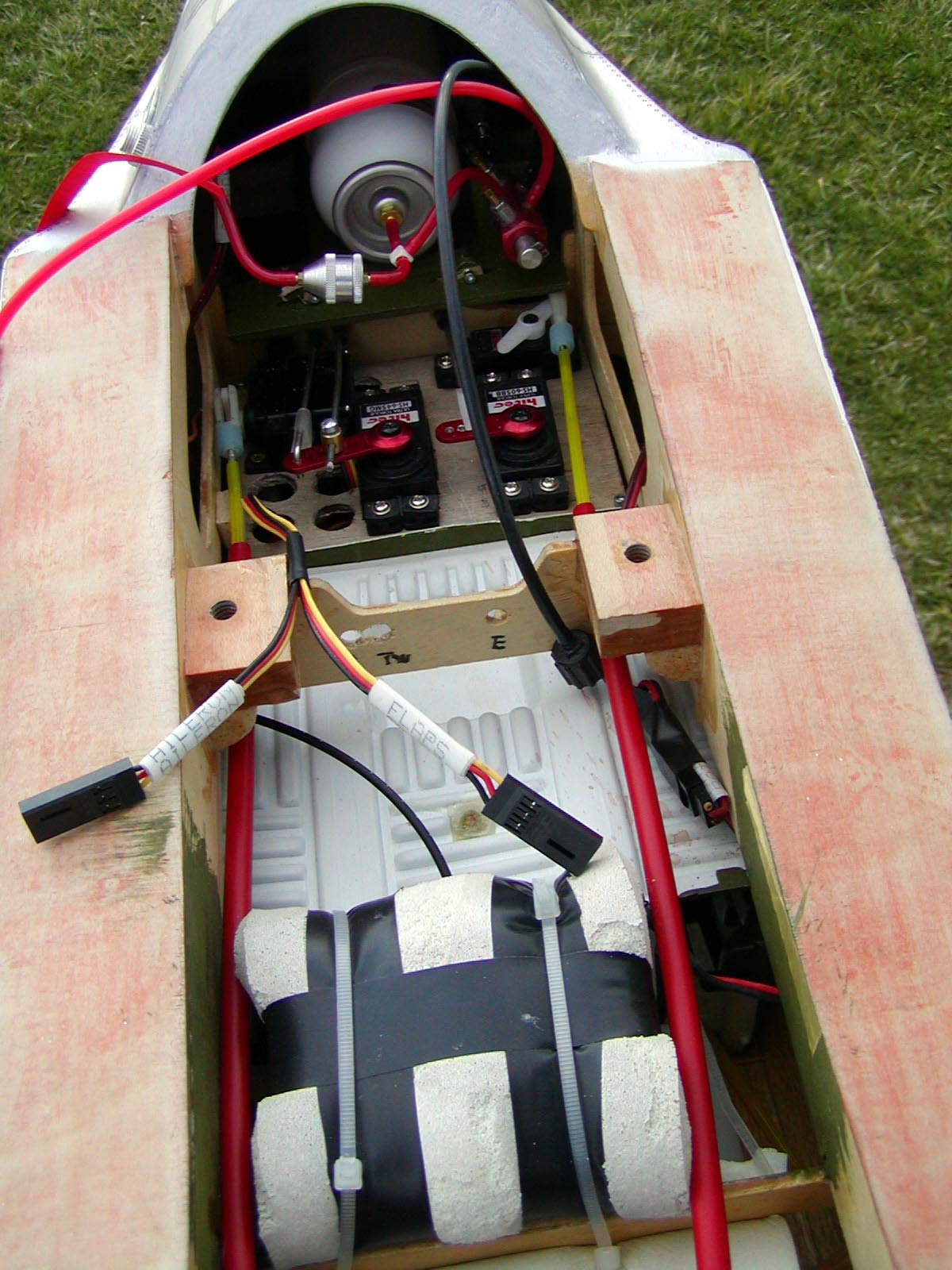

    1600 / 1024 / 640 - #2 Servo tray is behind cockpit

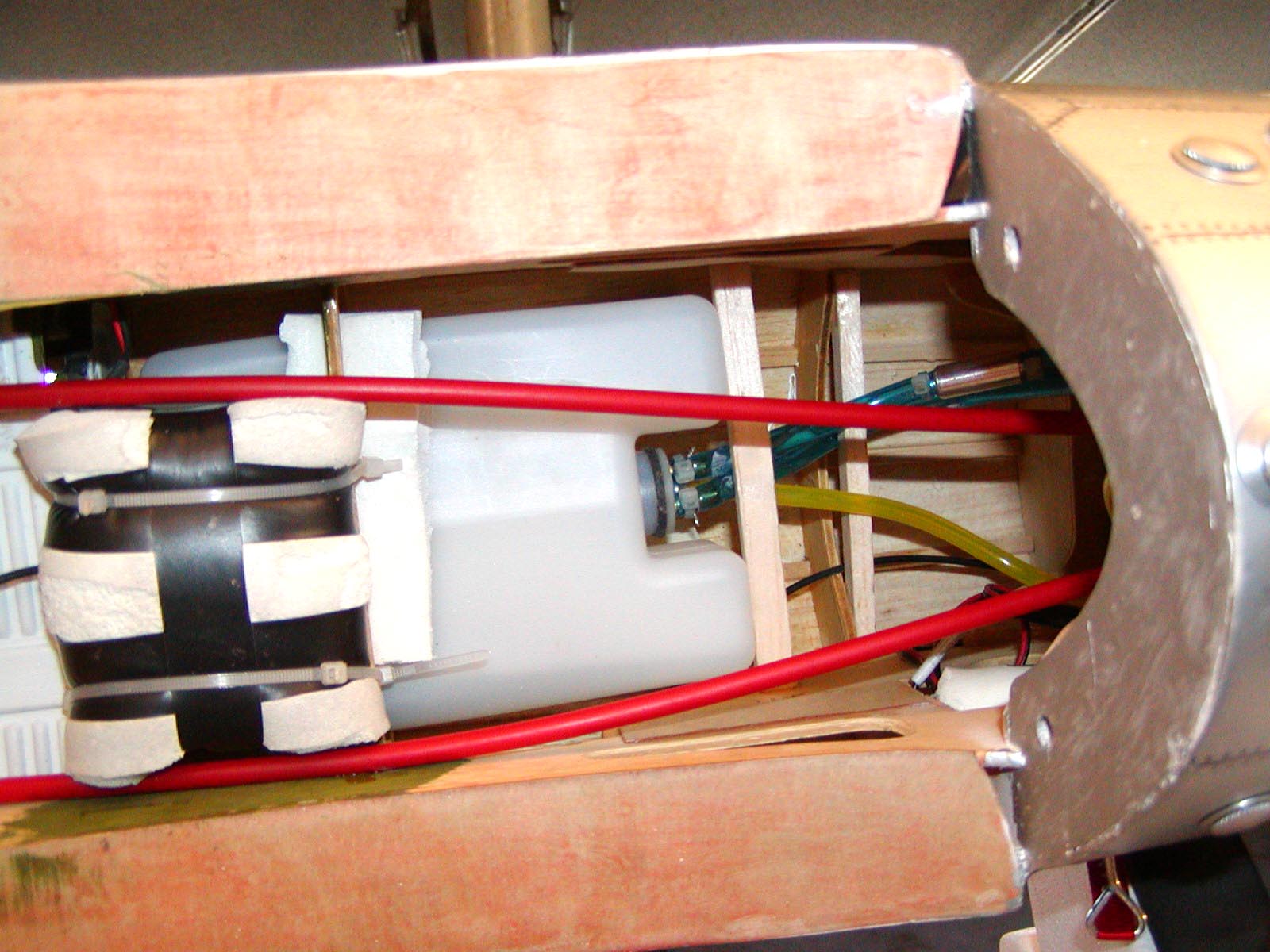

    1600 / 1024 / 640 - #2 16oz boat tank on the C.G.

    1600 / 1024 / 640 - #2 Firewall, fairly clean install.

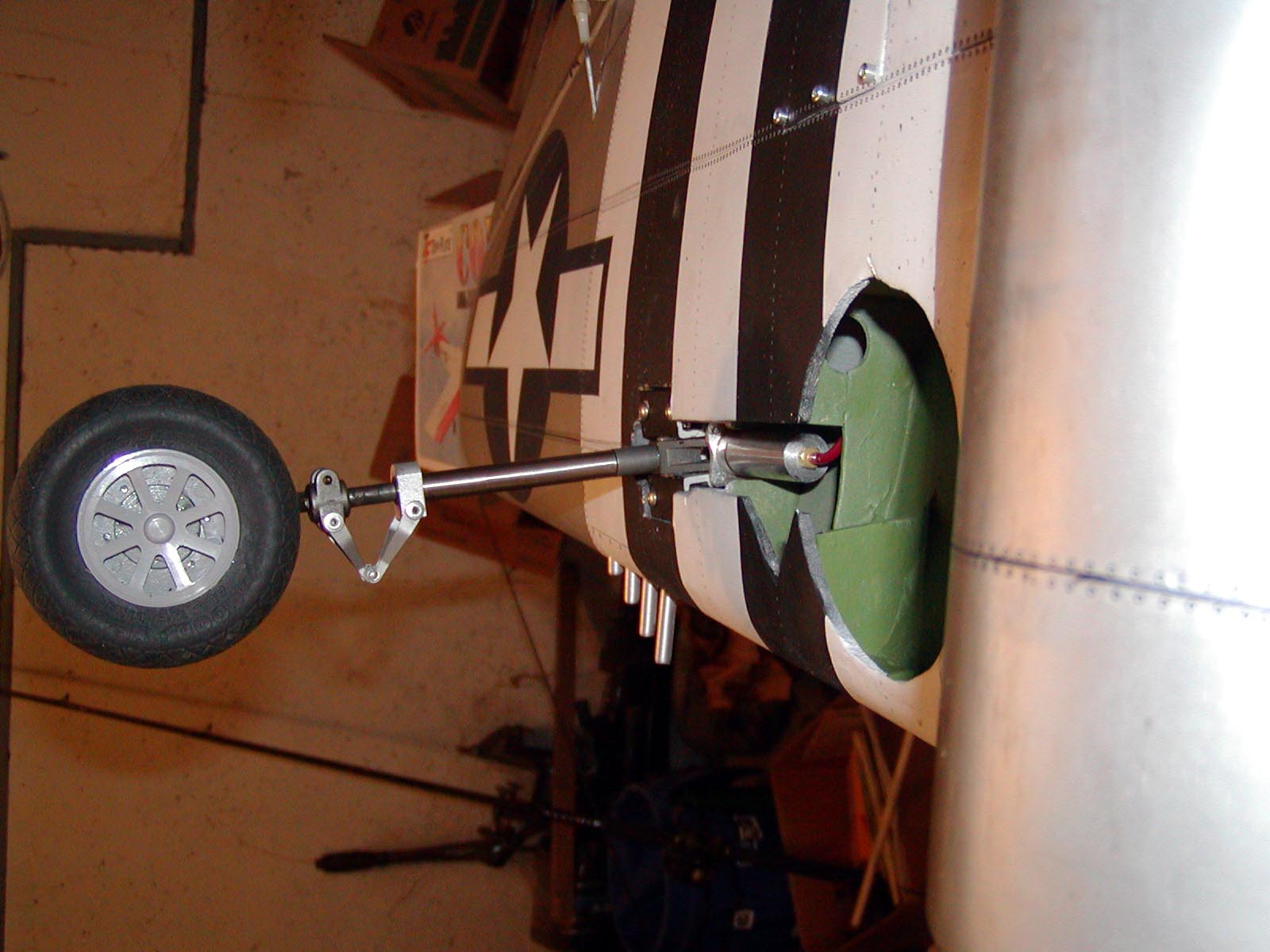

    1600 / 1024 / 640 - #3 Now angled forward.

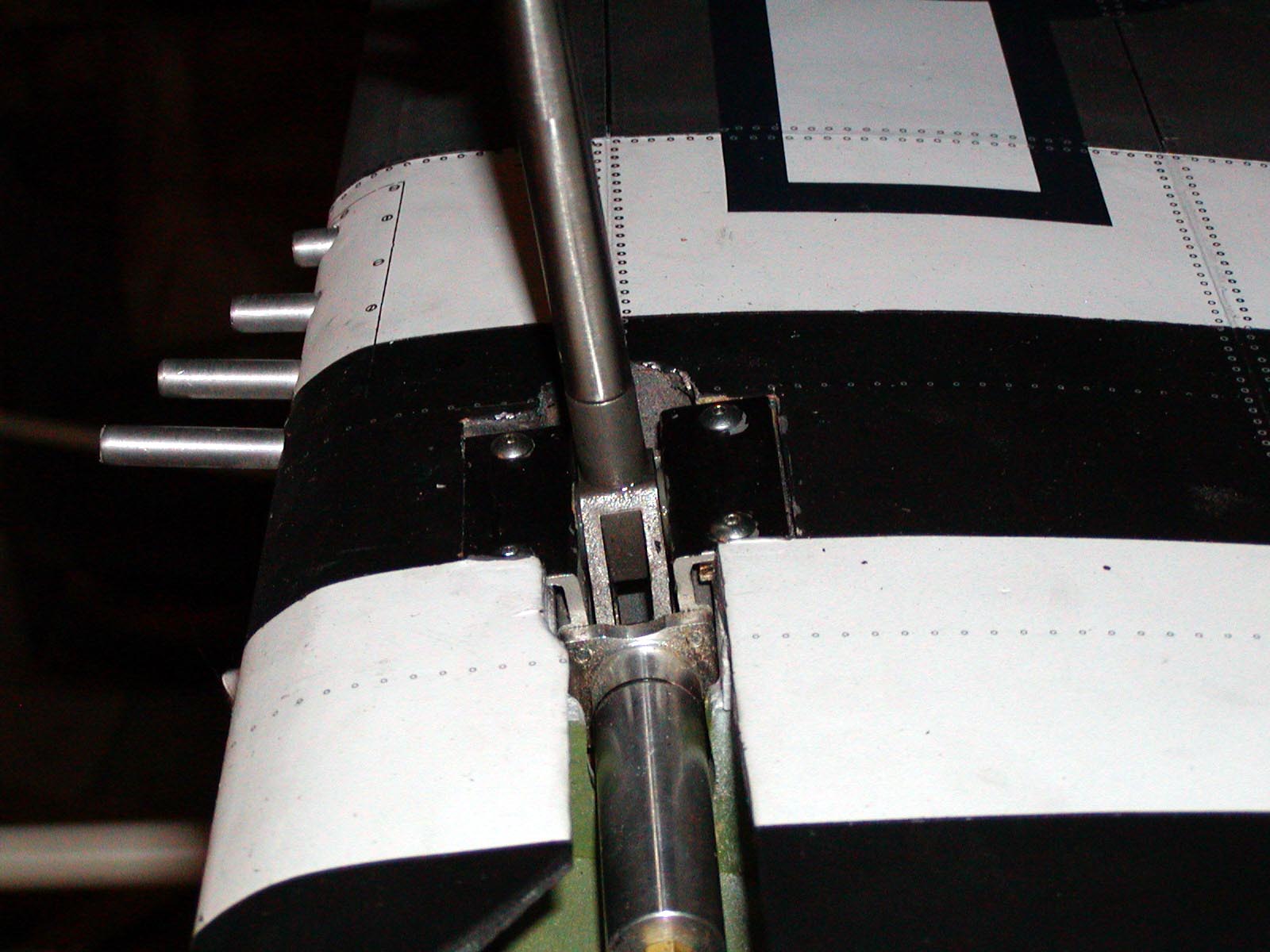

    1600 / 1024 / 640 - #3 Closeup of mounting rail.

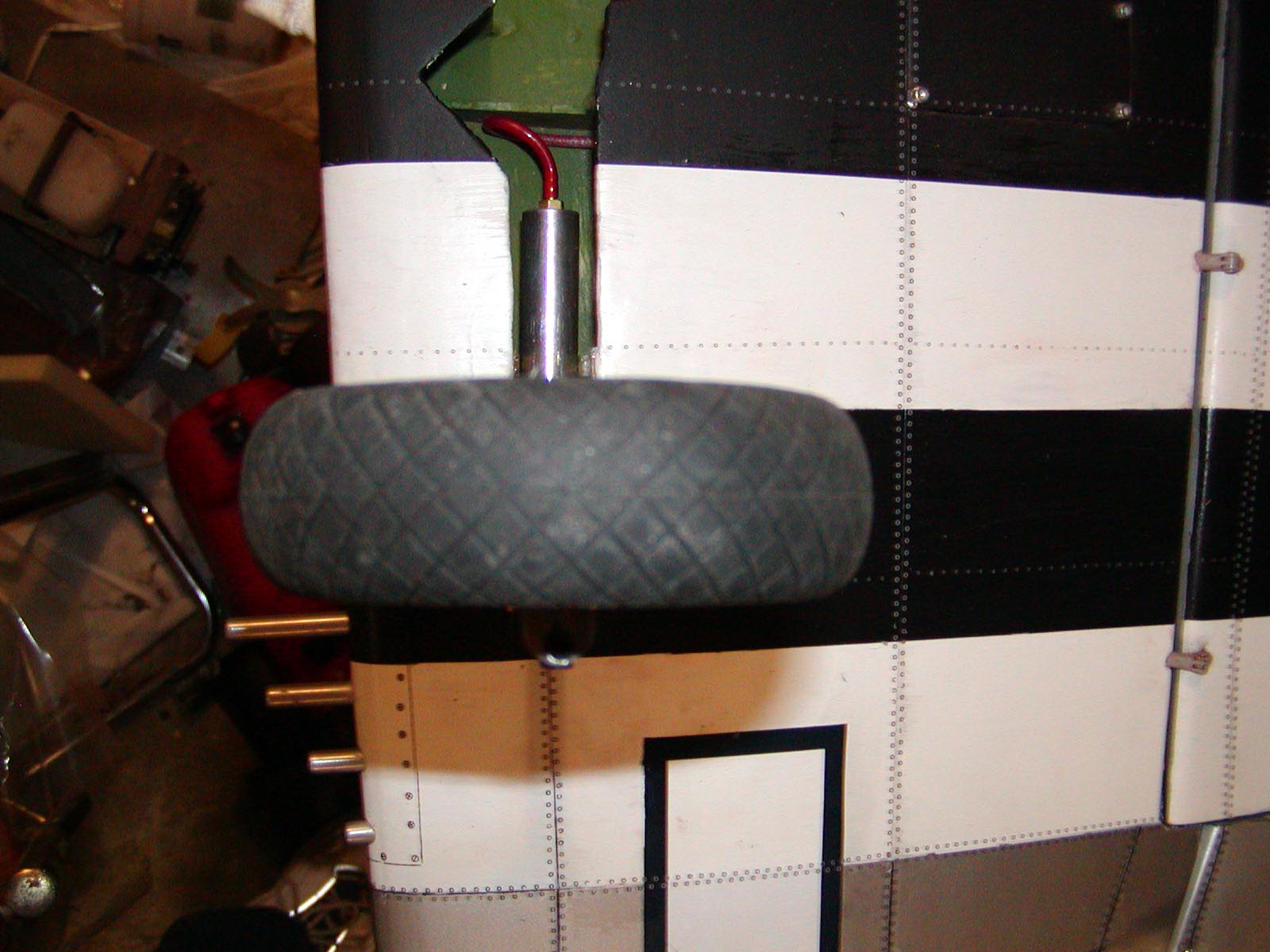

    1600 / 1024 / 640 - #3 Wheel now sticks out past LE.

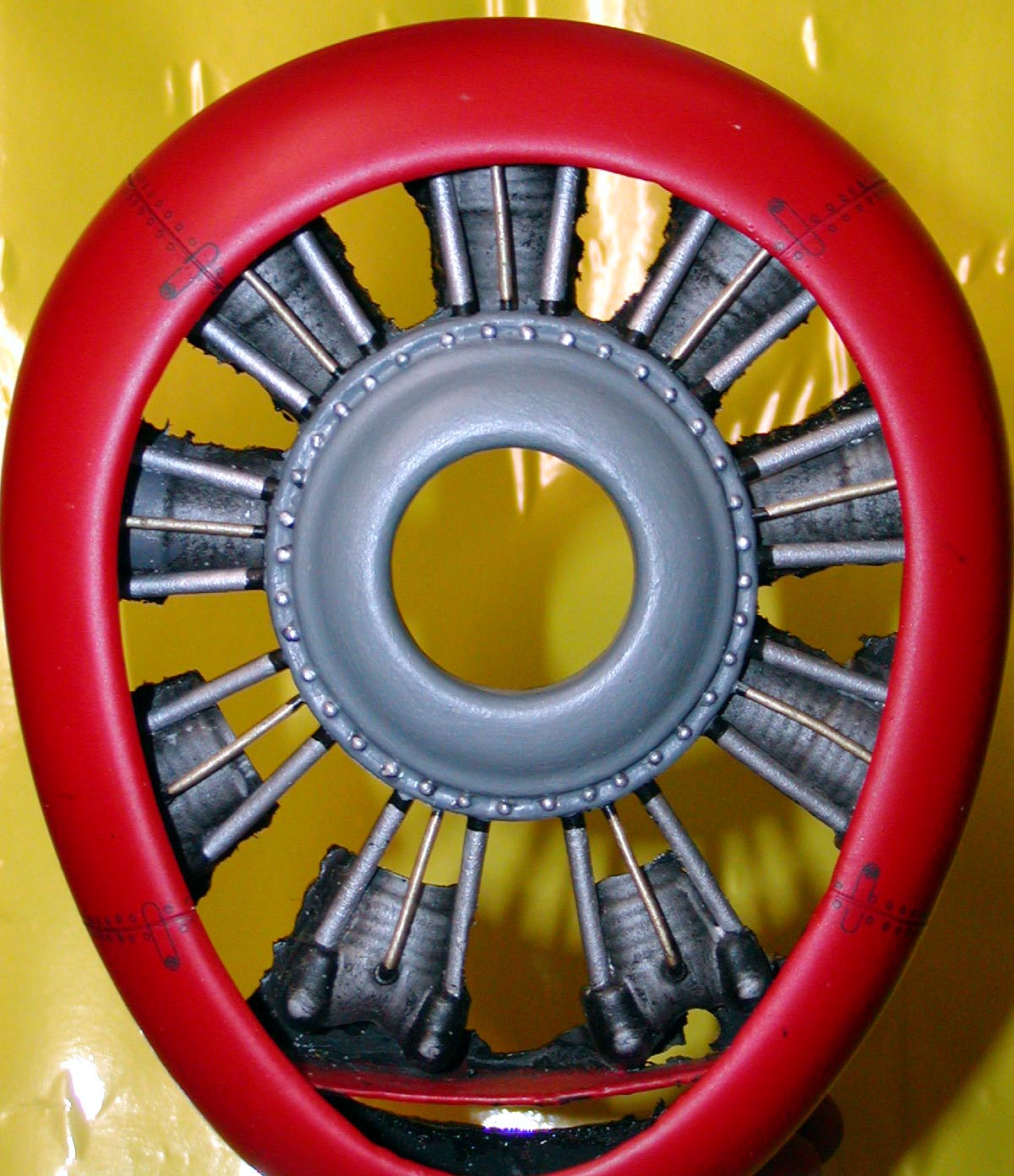

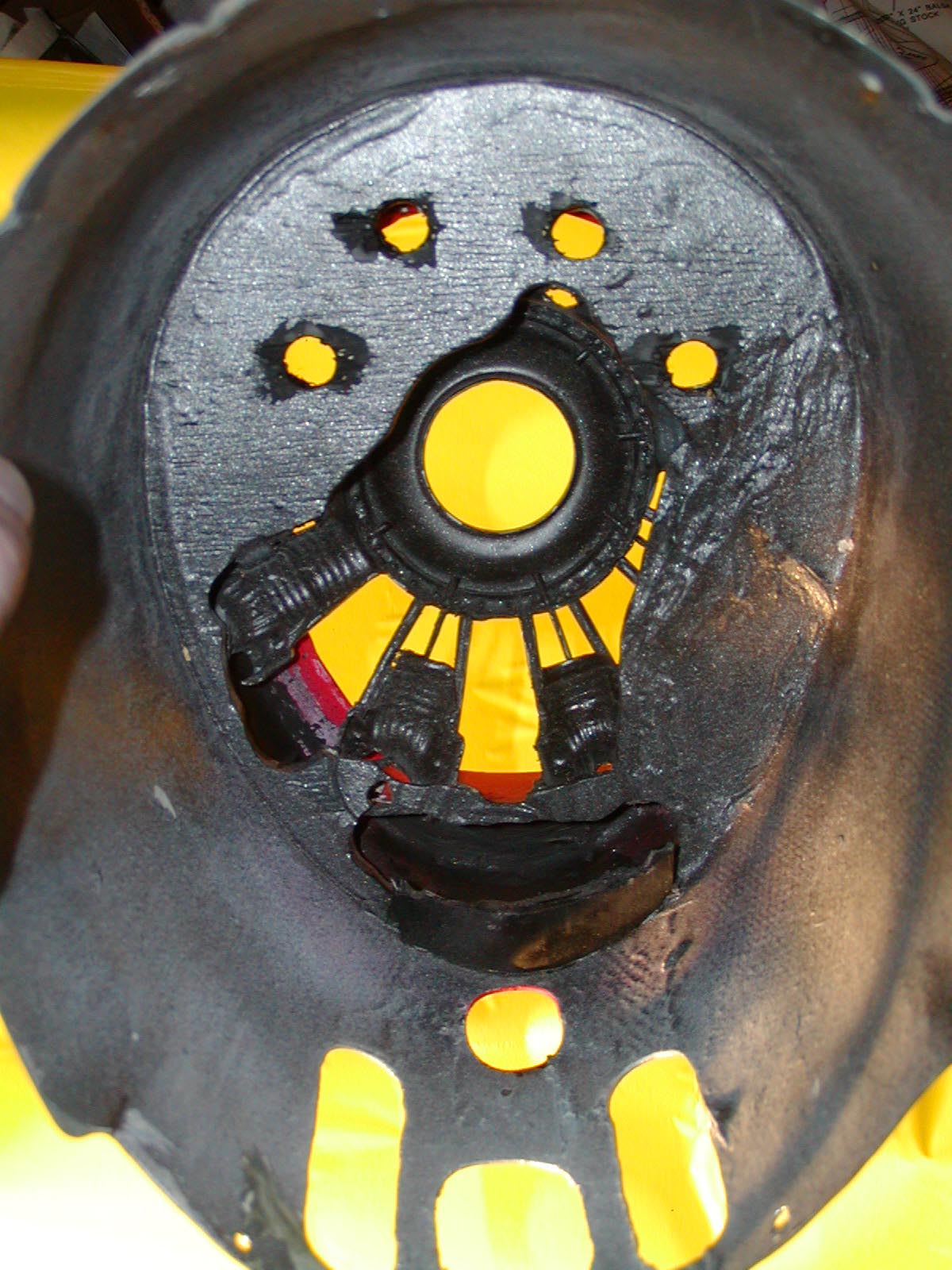

    1600 / 1024 / 640 - #4 Opened up more holes in cowl,

    1600 / 1024 / 640 - #4 because engine ran rich with it on.

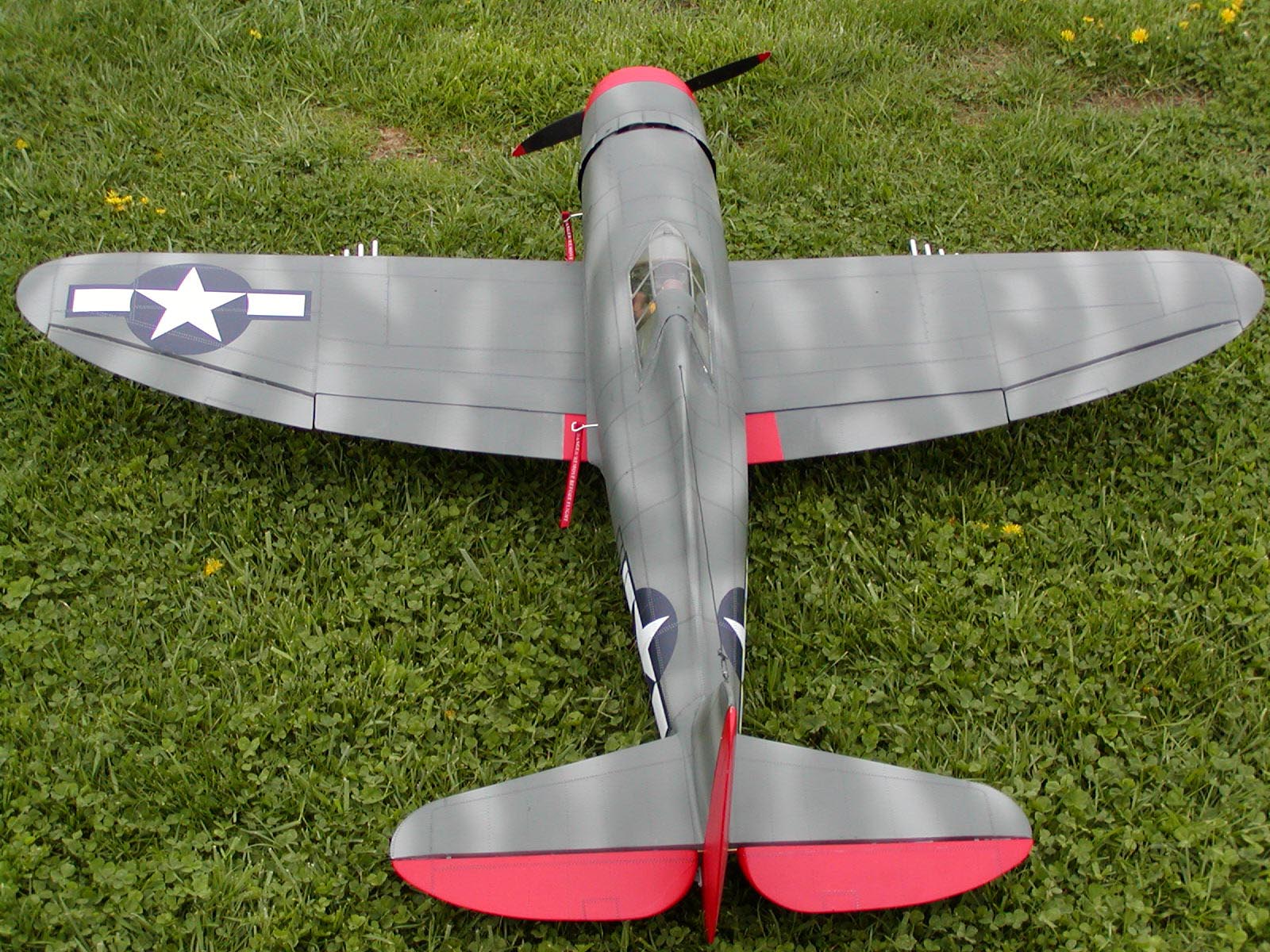

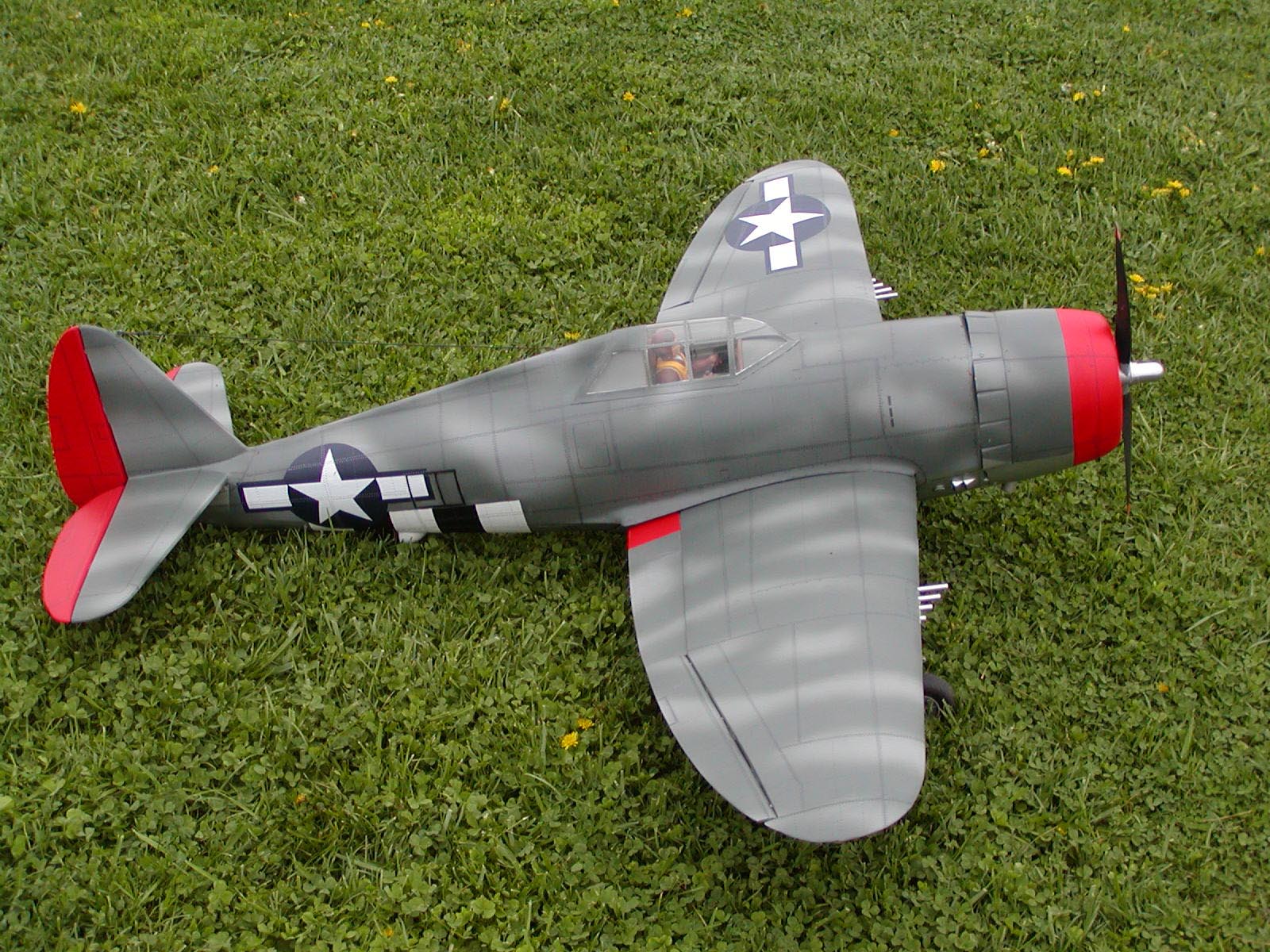

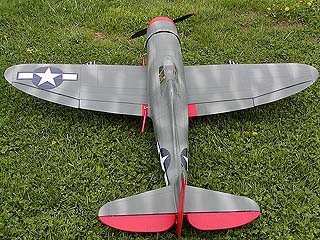

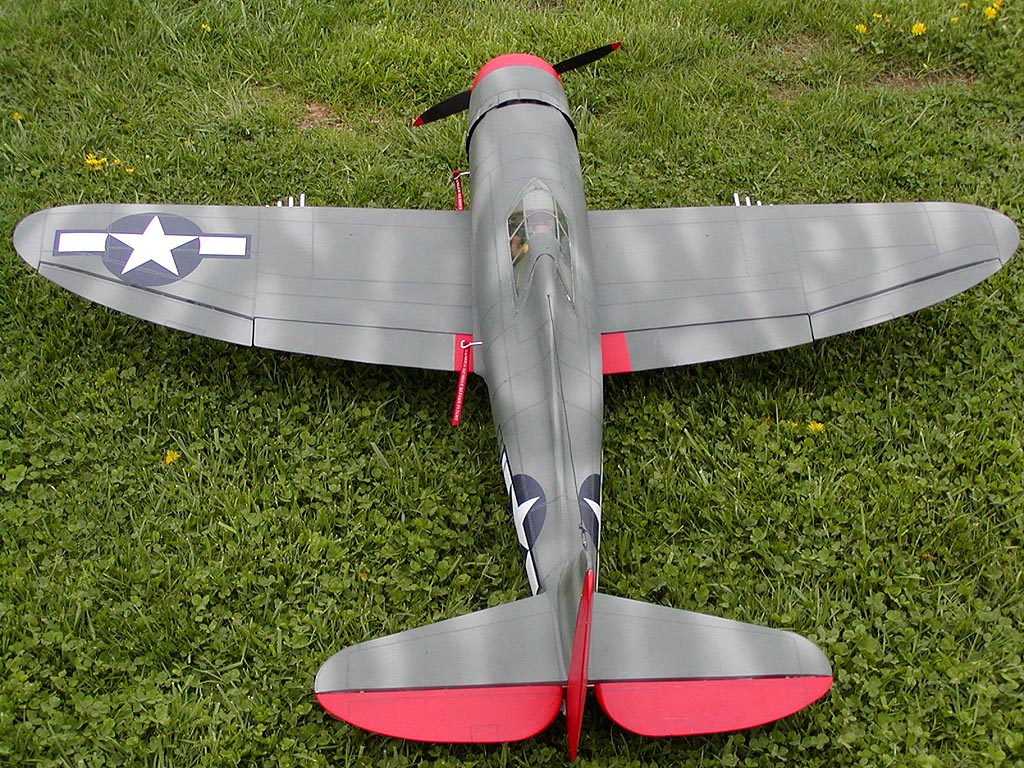

    1600 / 1024 / 640 - #5 Back view.

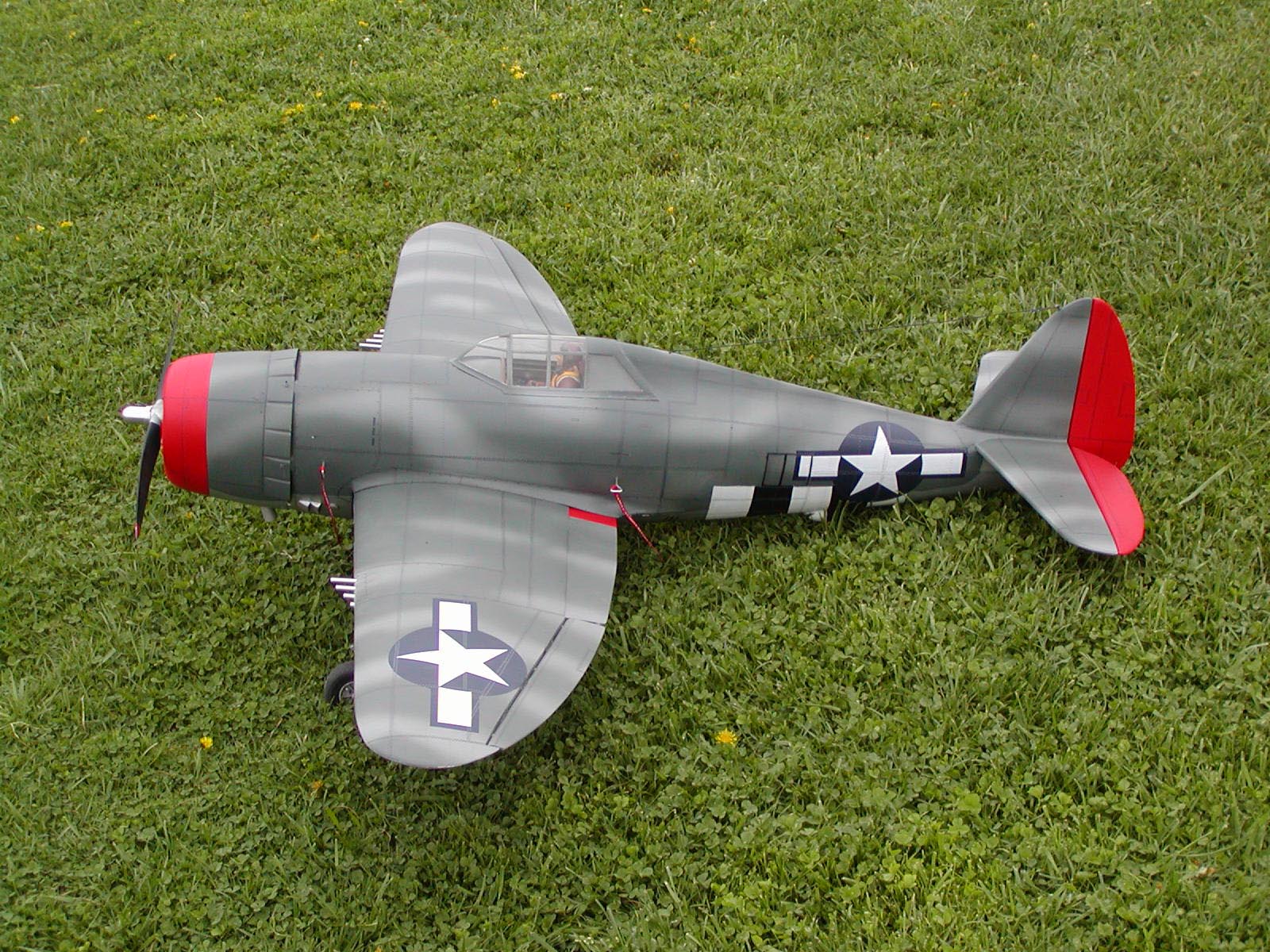

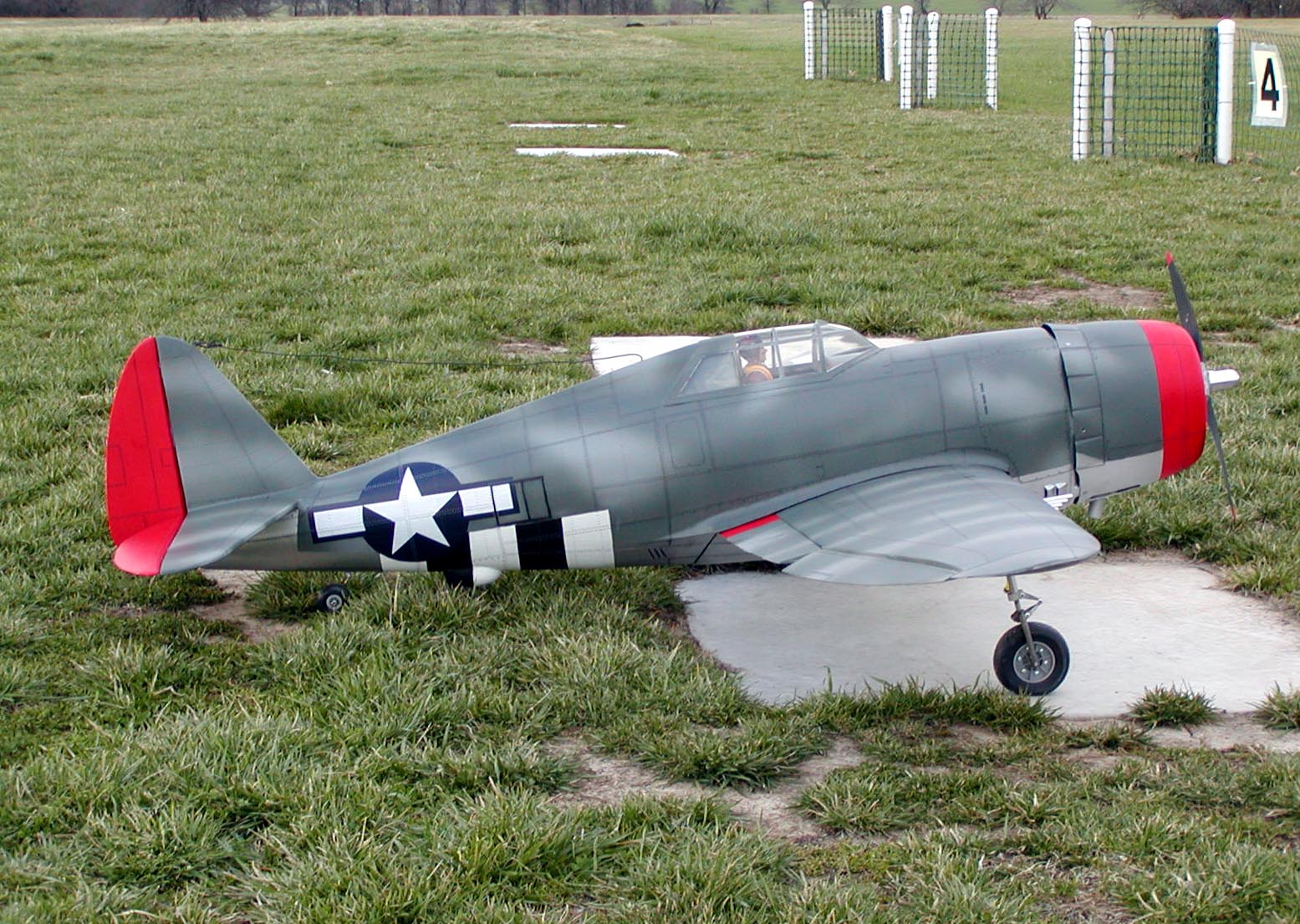

    1600 / 1024 / 640 - #5 Left side view.

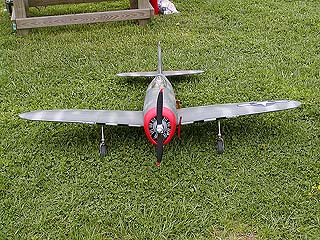

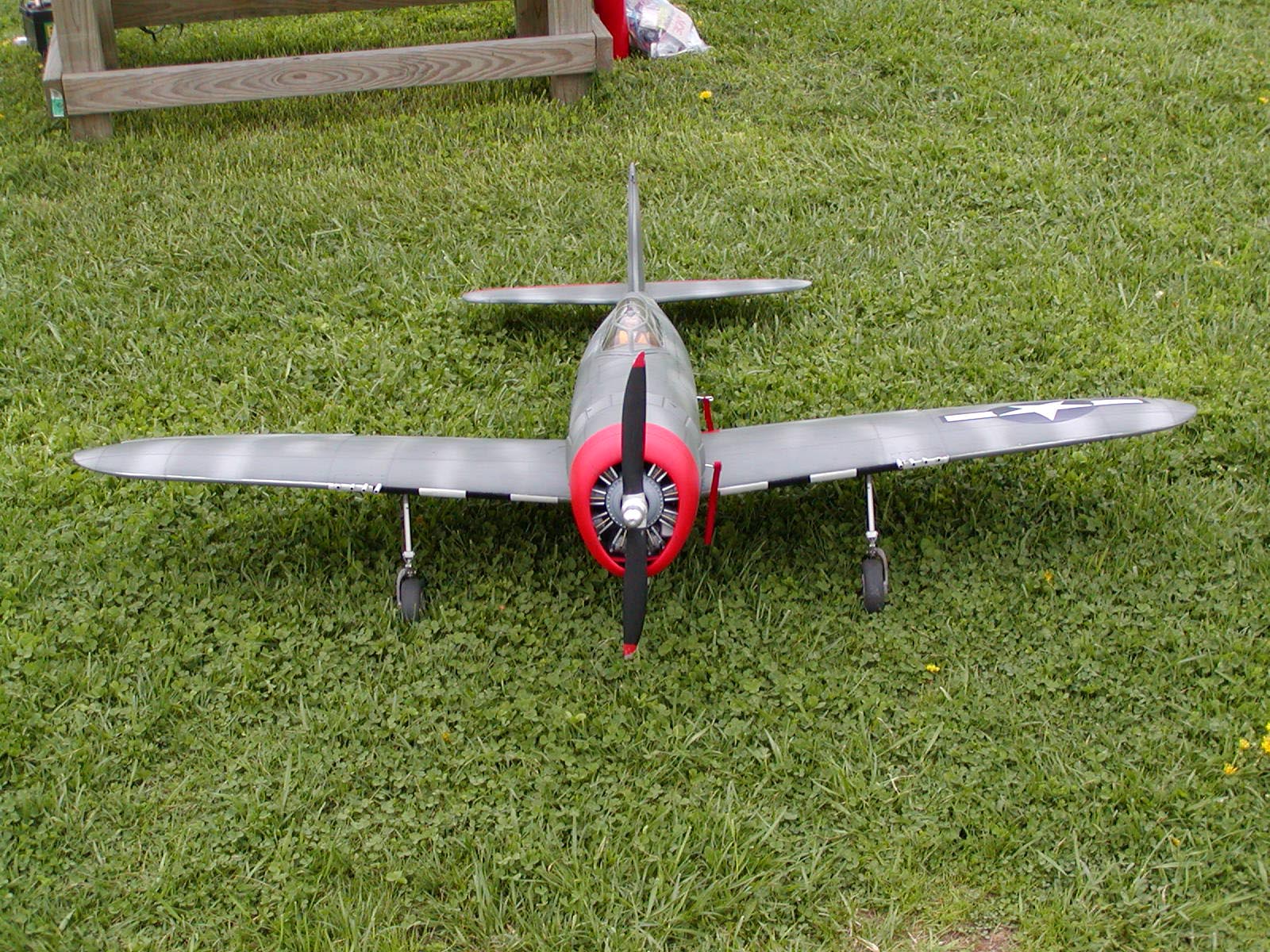

    1600 / 1024 / 640 - #5 Front view.
