*** Andy Steere's PREDATOR BIPLANE Assembly Images ***


These are pictures and such of an PREDATOR BIPLANE, during assembly. Here is the equipment I used:

DualSky XM2812CA-12 Brushless Motor, 1780kv, ~20grams, 9x4.7SF=7.3A@7.3V.
Castle Creations Thunderbird-9 9amp Brushless Speed controller.
Hextronics 620mah 20C 2-cell Lithium Polymer Batteries.
Berg 4L Micro Receiver
Futaba S3110 Micro Servo on the ailerons.
Hextronics HXT-500 Sub-Micro Servos on tail surfaces.


Click on the number below each image for a larger version of the picture (larger number, larger version of the picture)

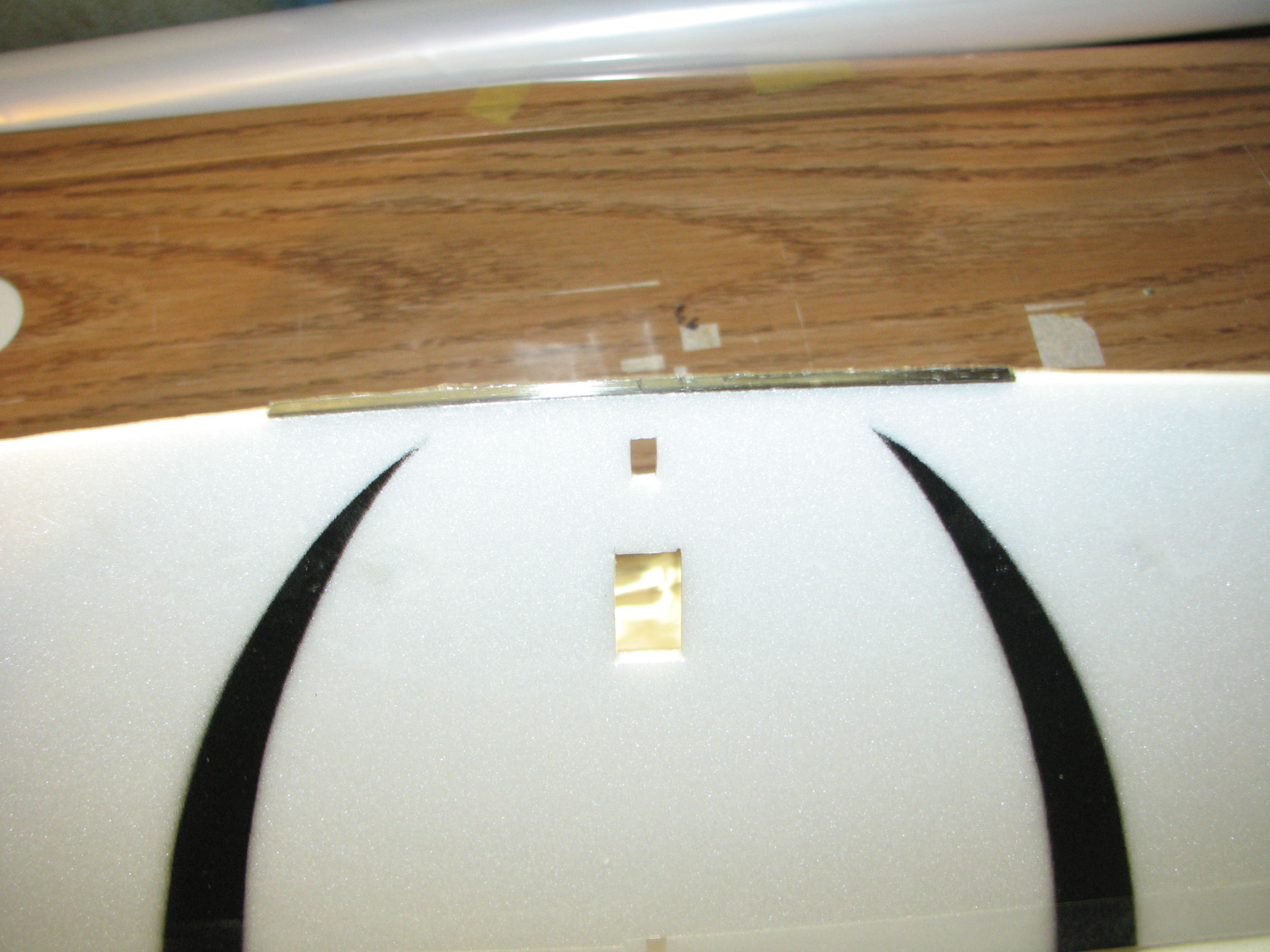

2816 / 1024 / 640 - LE carbon reinforcement

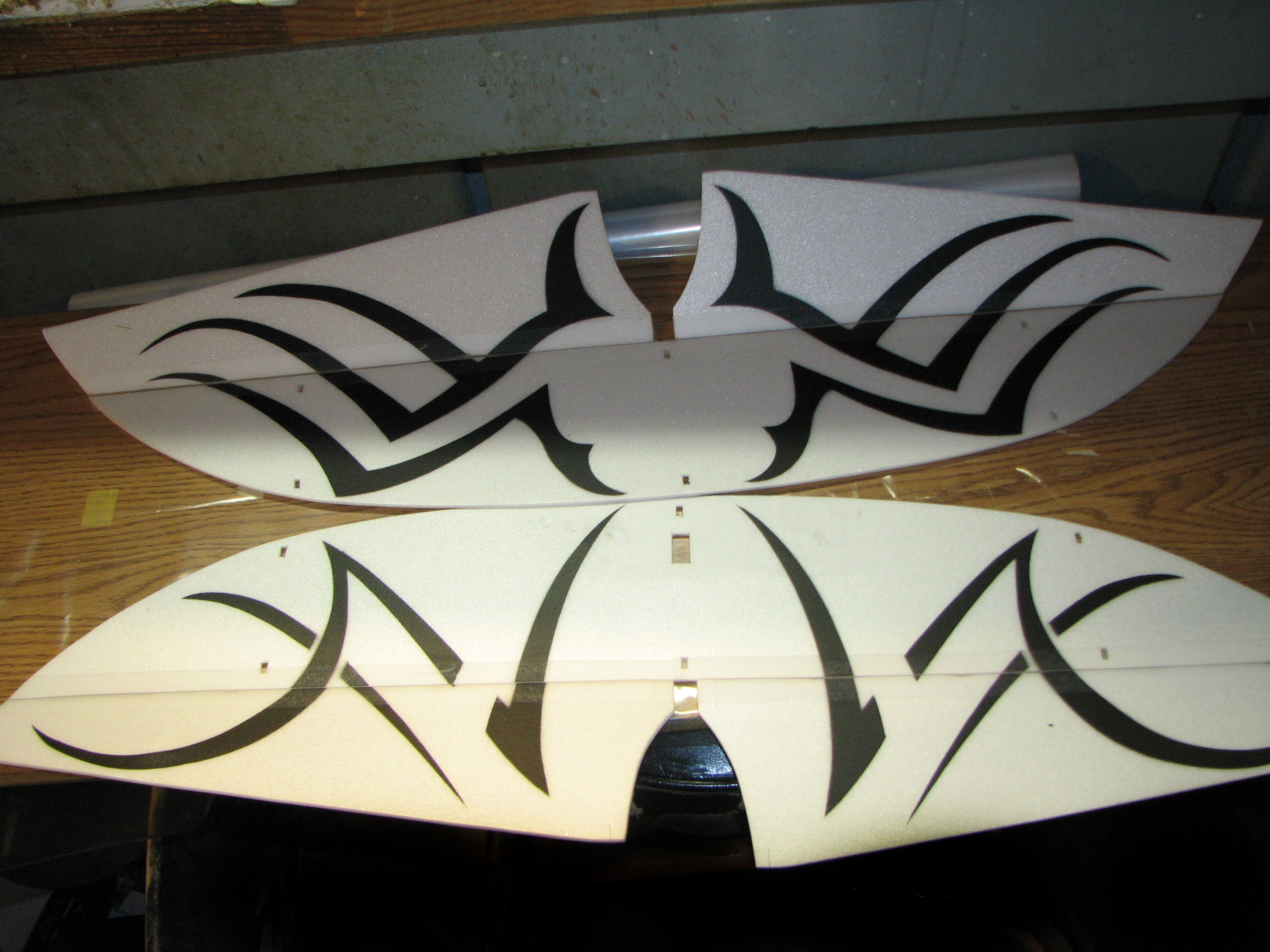

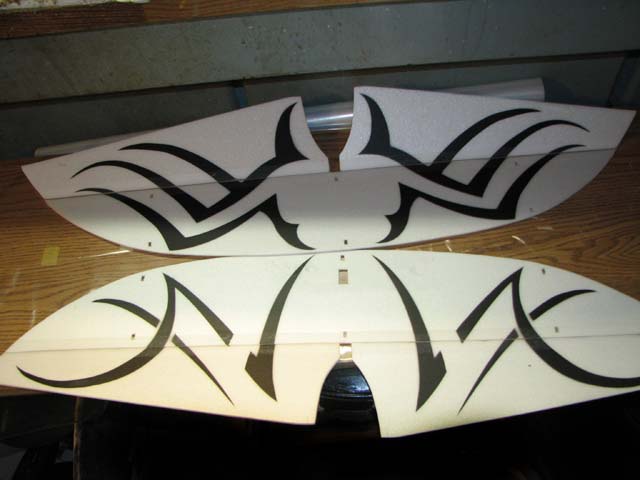

2816 / 1024 / 640 - printed side of wings

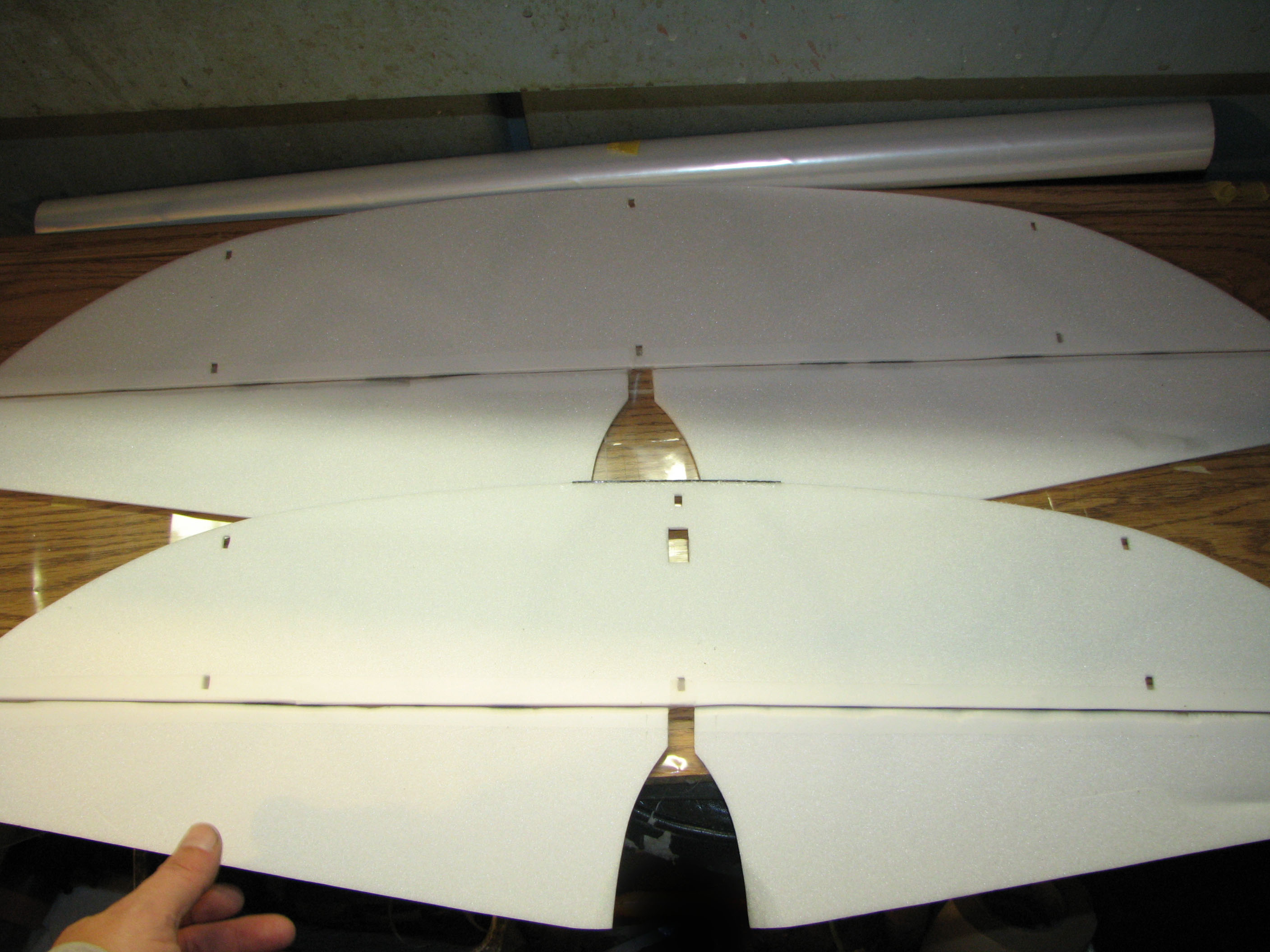

2816 / 1024 / 640 - blank side of wings

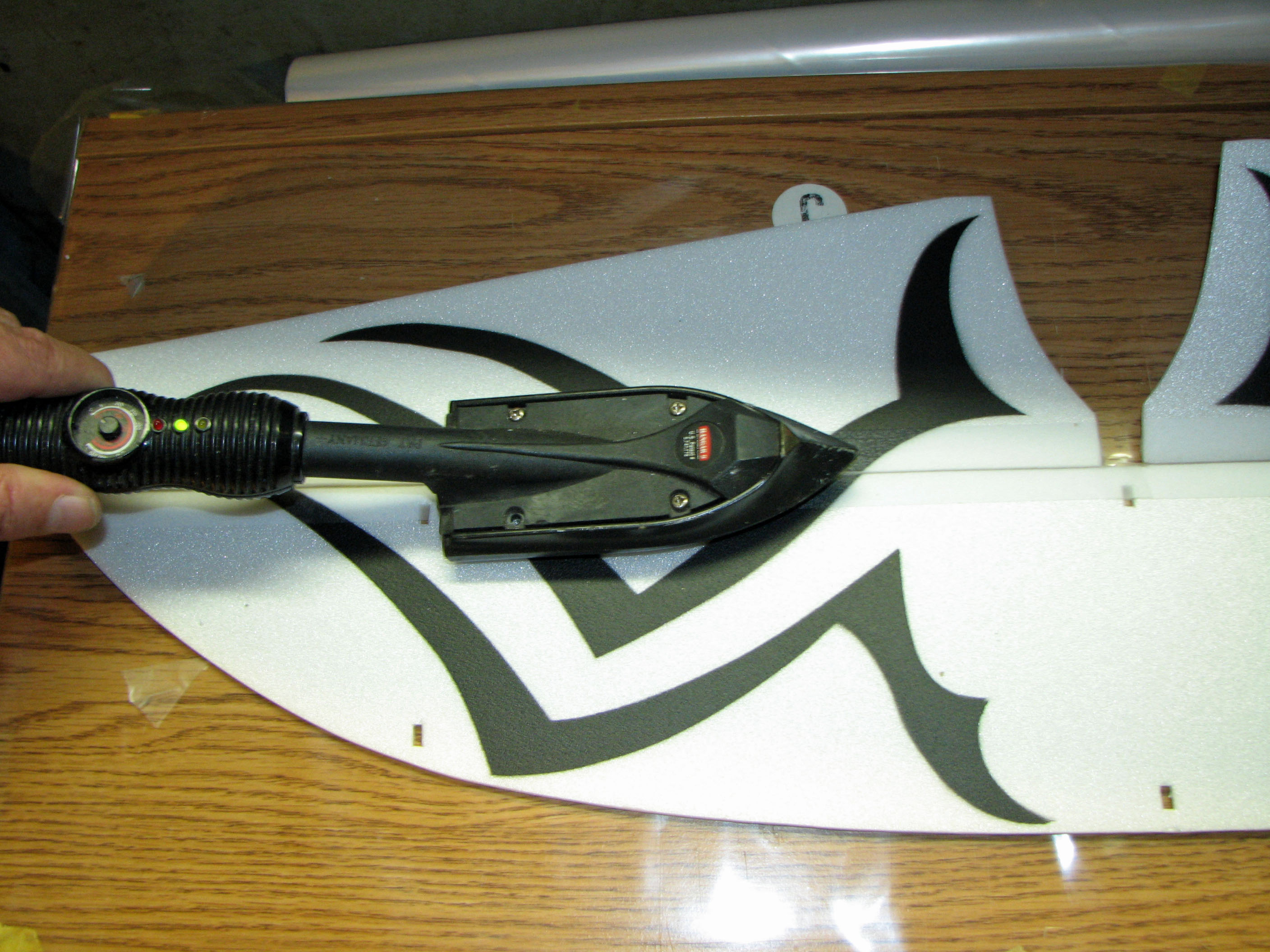

2816 / 1024 / 640 - heat helps Blendern

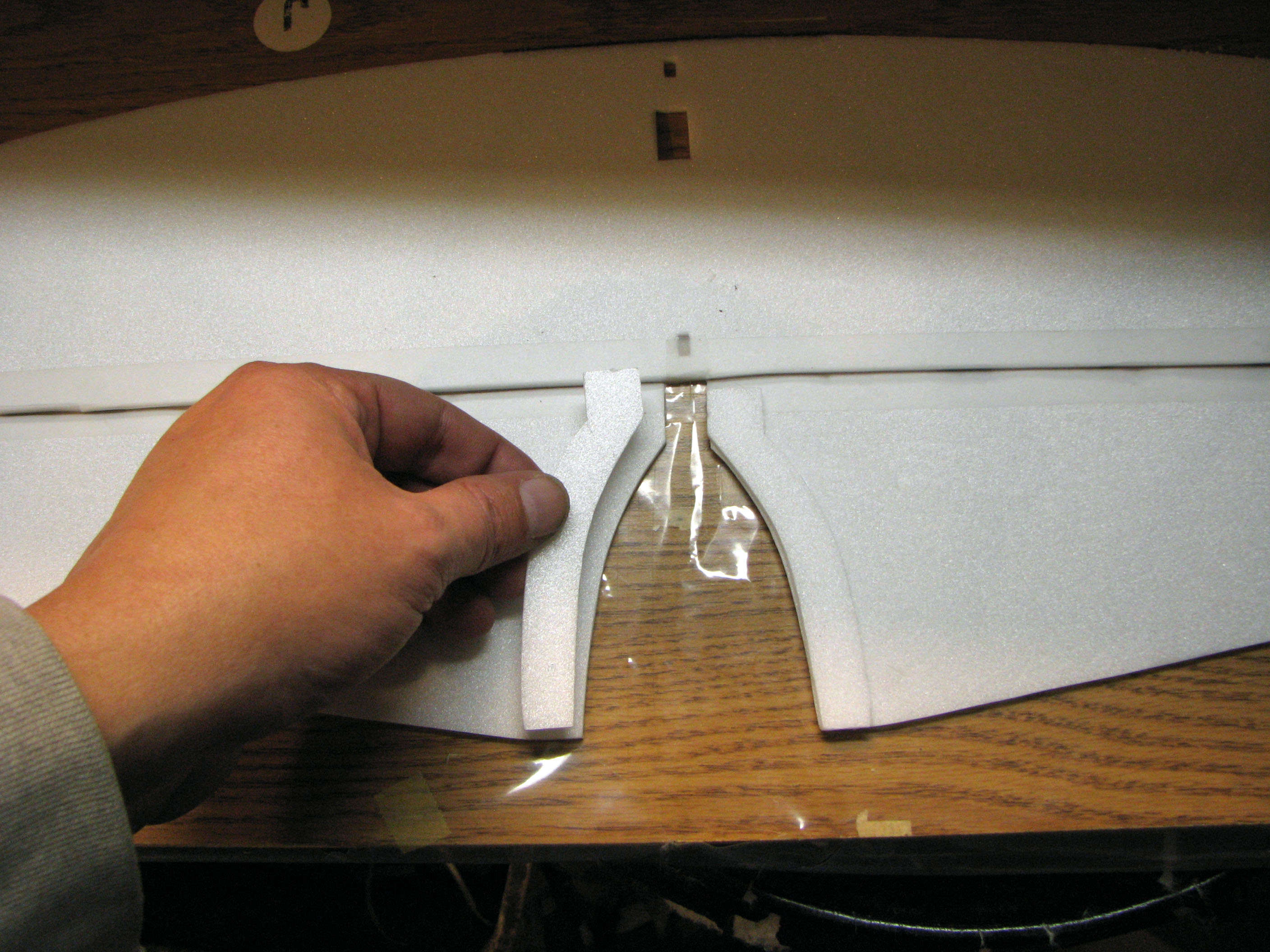

2816 / 1024 / 640 - Aileron reinforcement

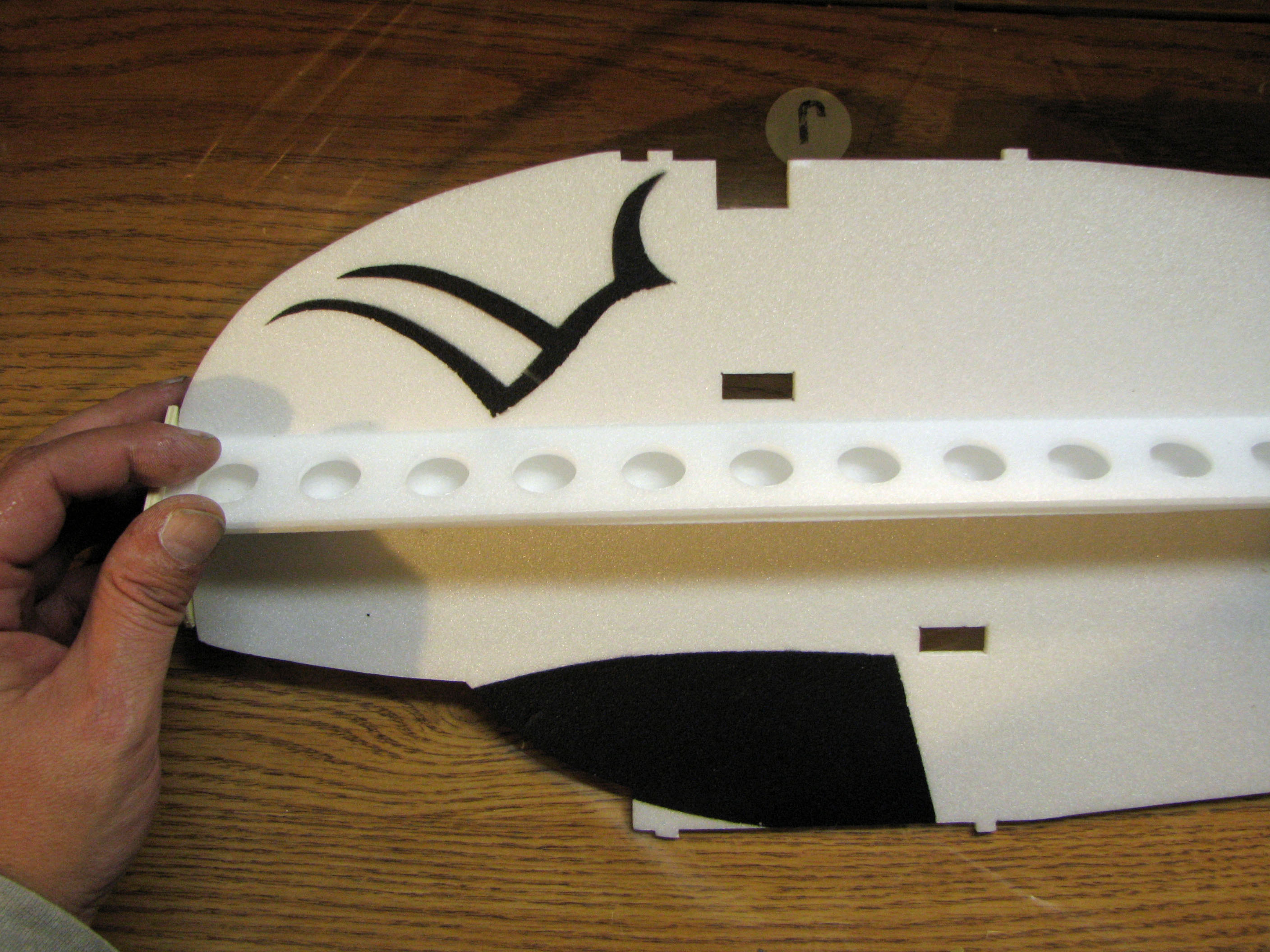

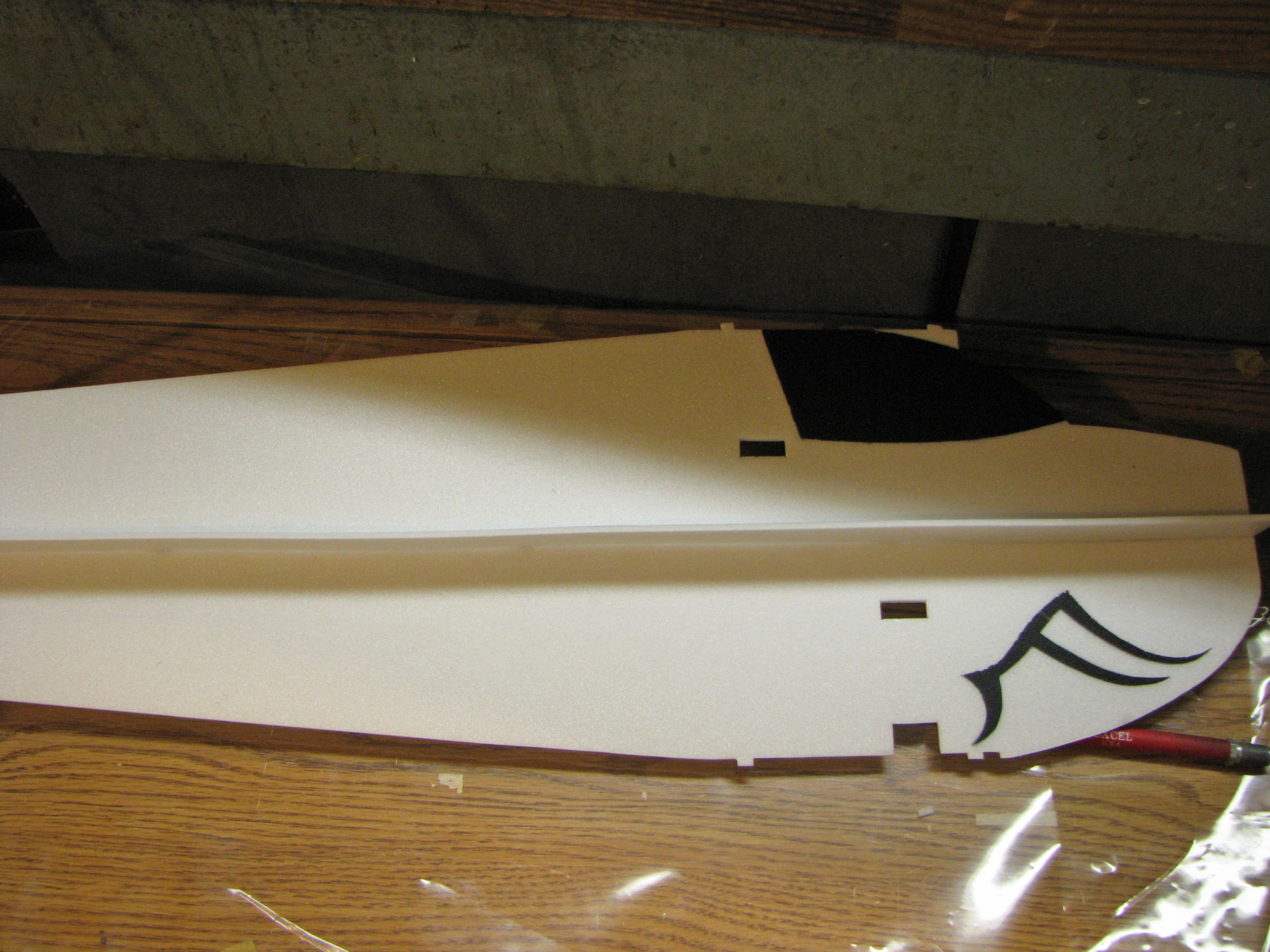

2816 / 1024 / 640 - start on fuselage.

2816 / 1024 / 640 - makes a nice stiff fuse

2816 / 1024 / 640 - weighted while glue dries.

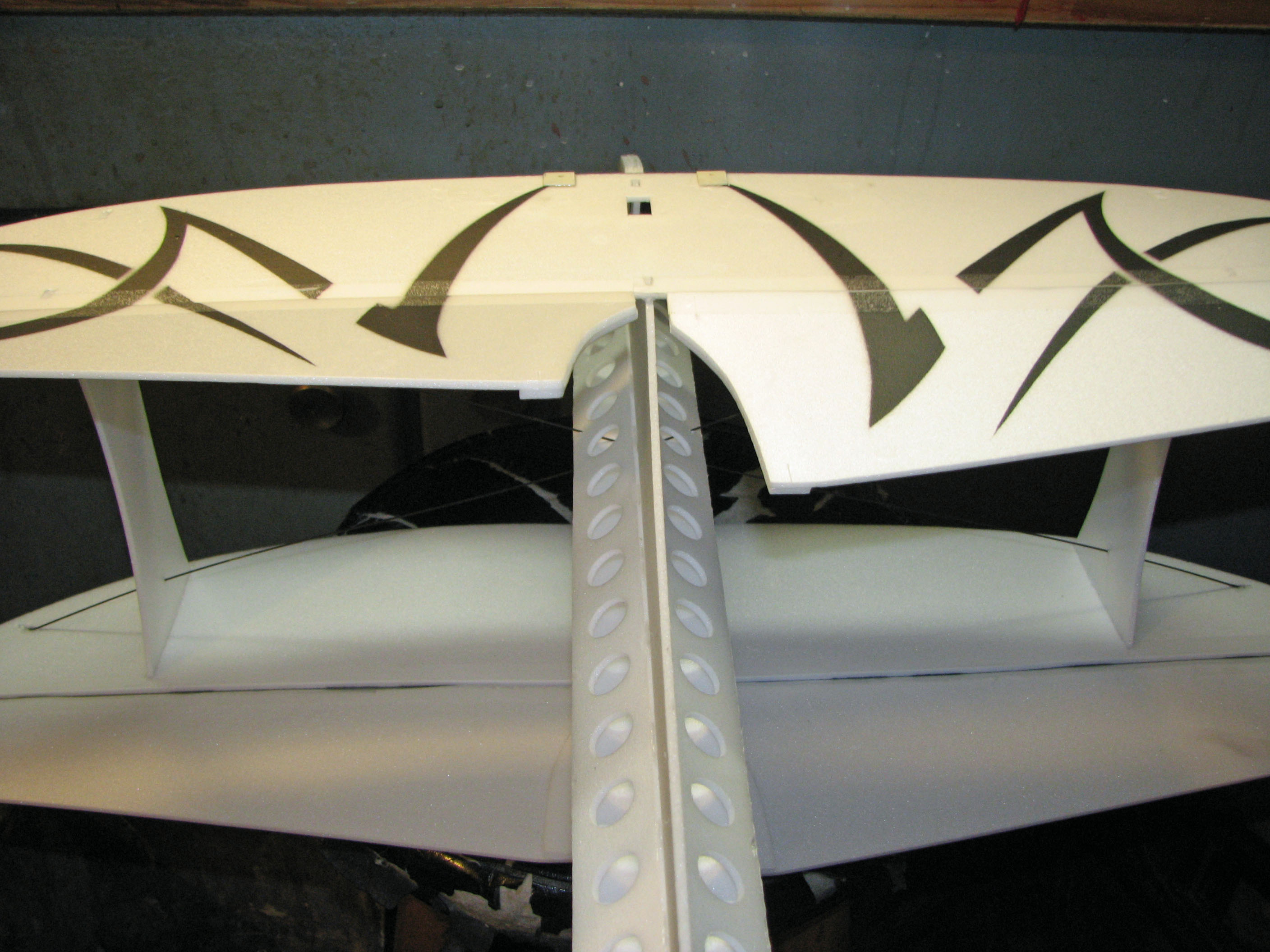

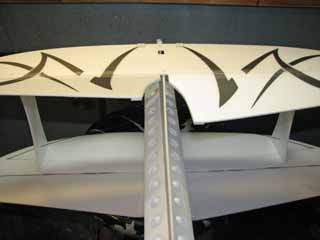

2816 / 1024 / 640 - Ready to install equip.

Click here to return to the main PREDATOR page.
