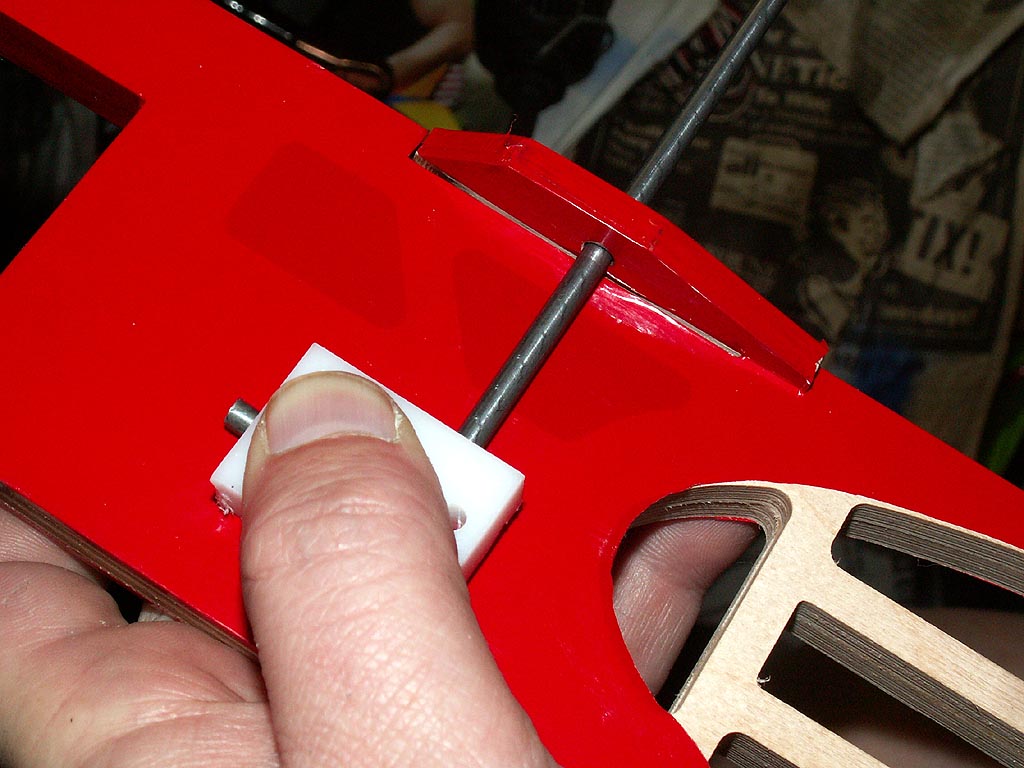

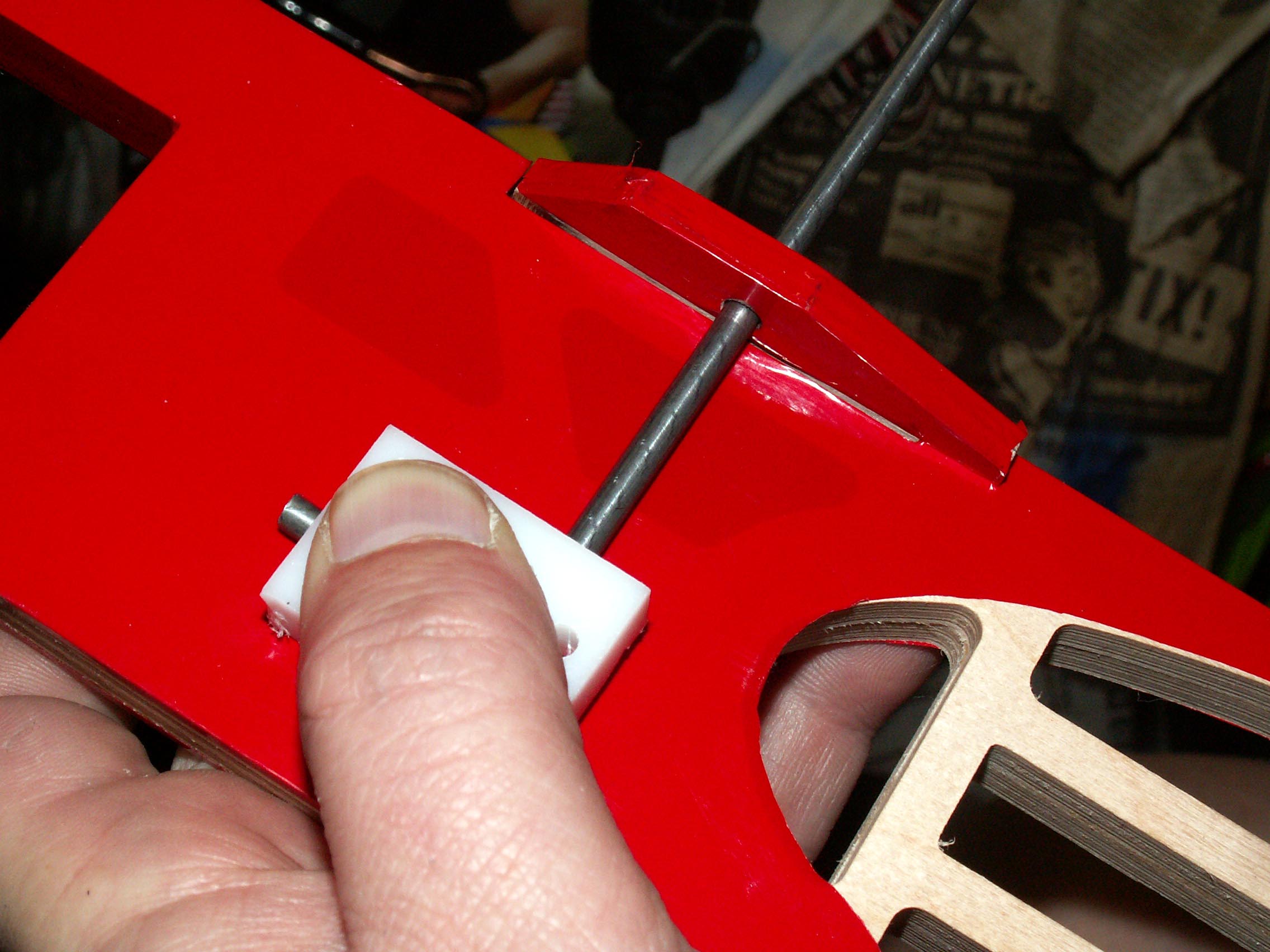

2272 / 1024 / 640 - Unique landing gear mounting.

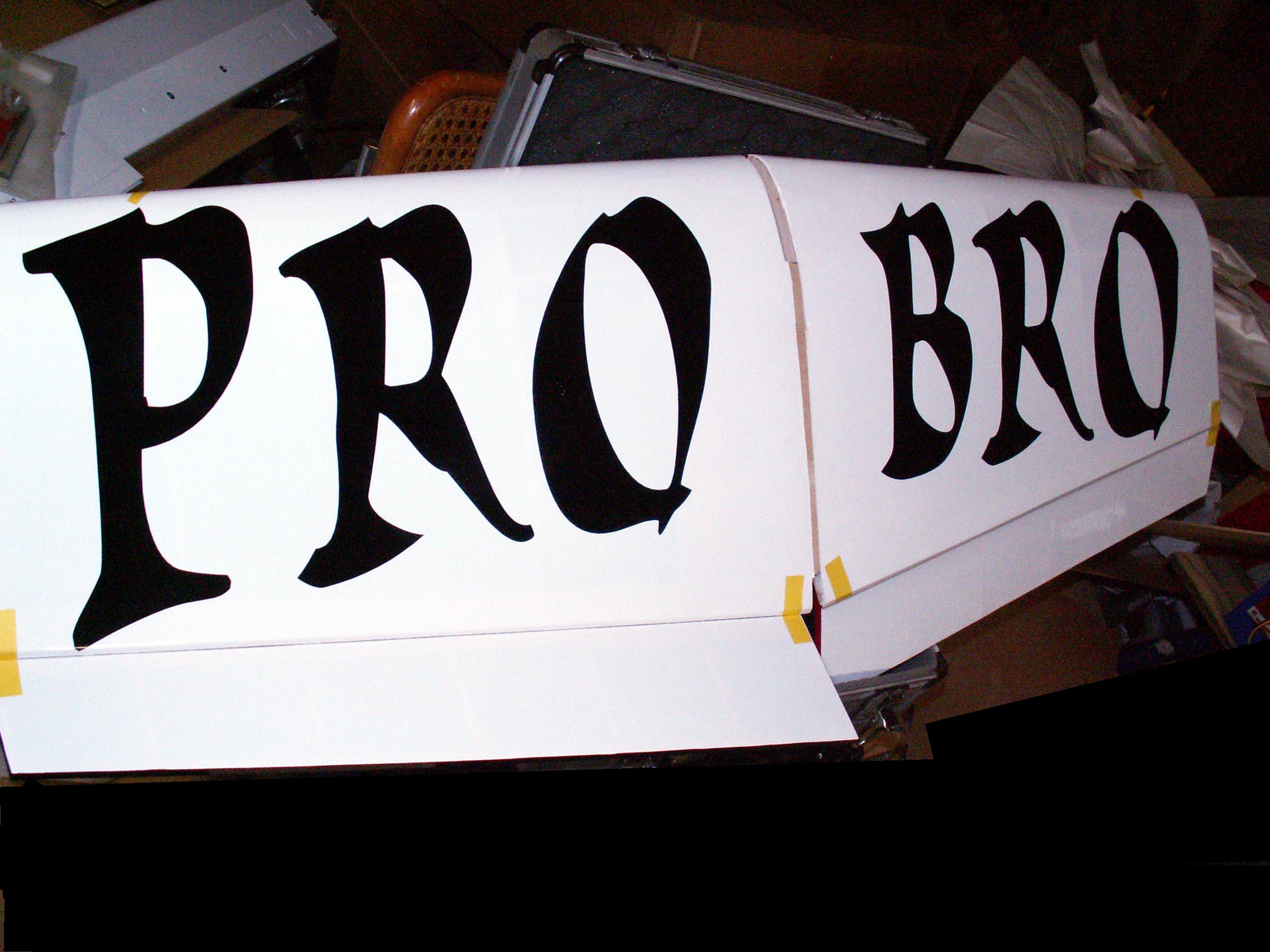

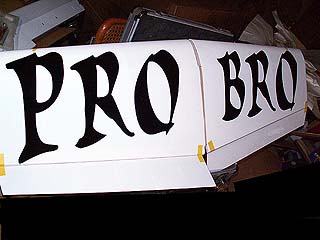

2272 / 1024 / 640 - Black Pro Bro vinyl on bottom, of course.

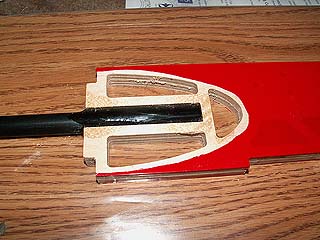

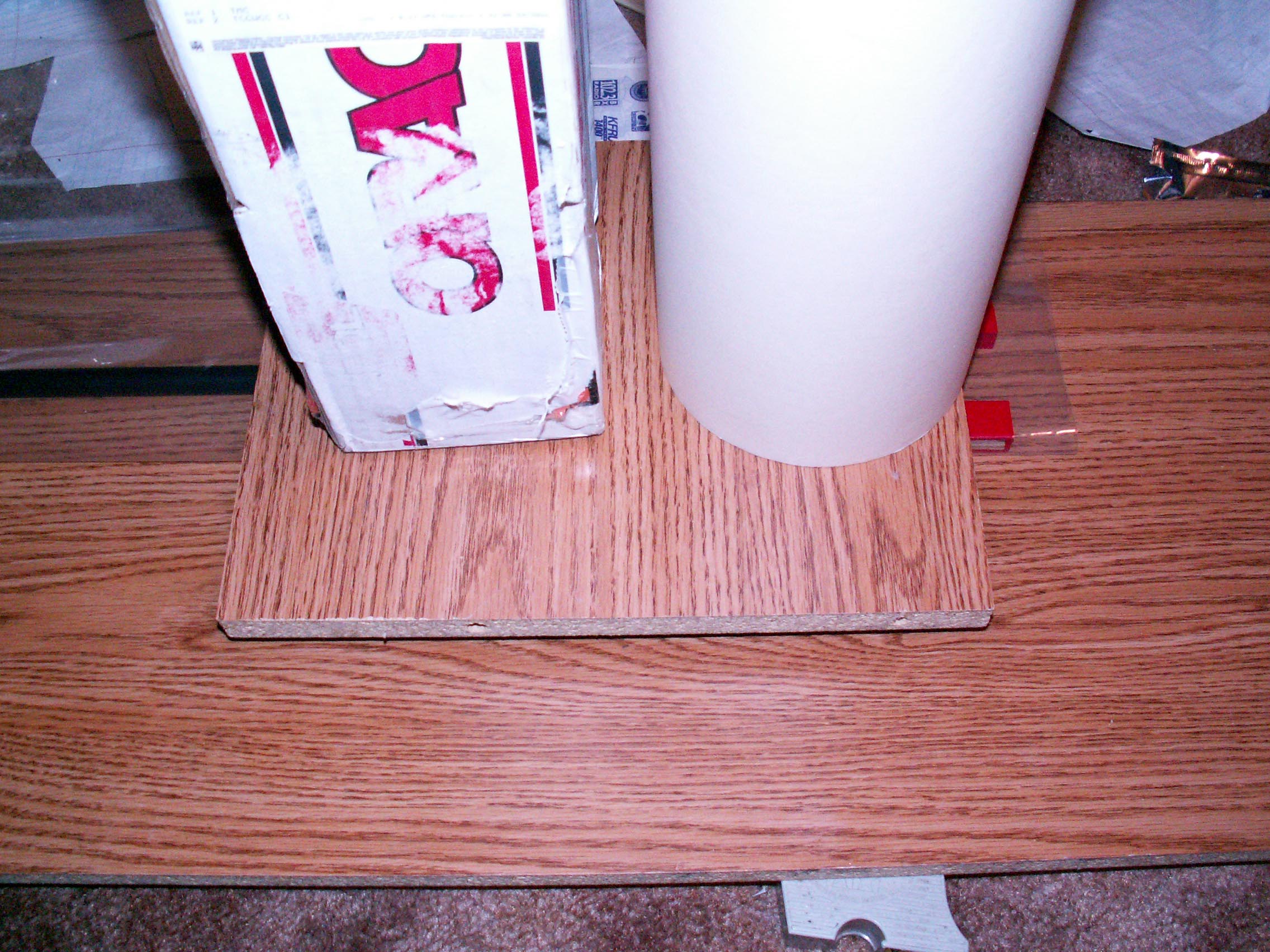

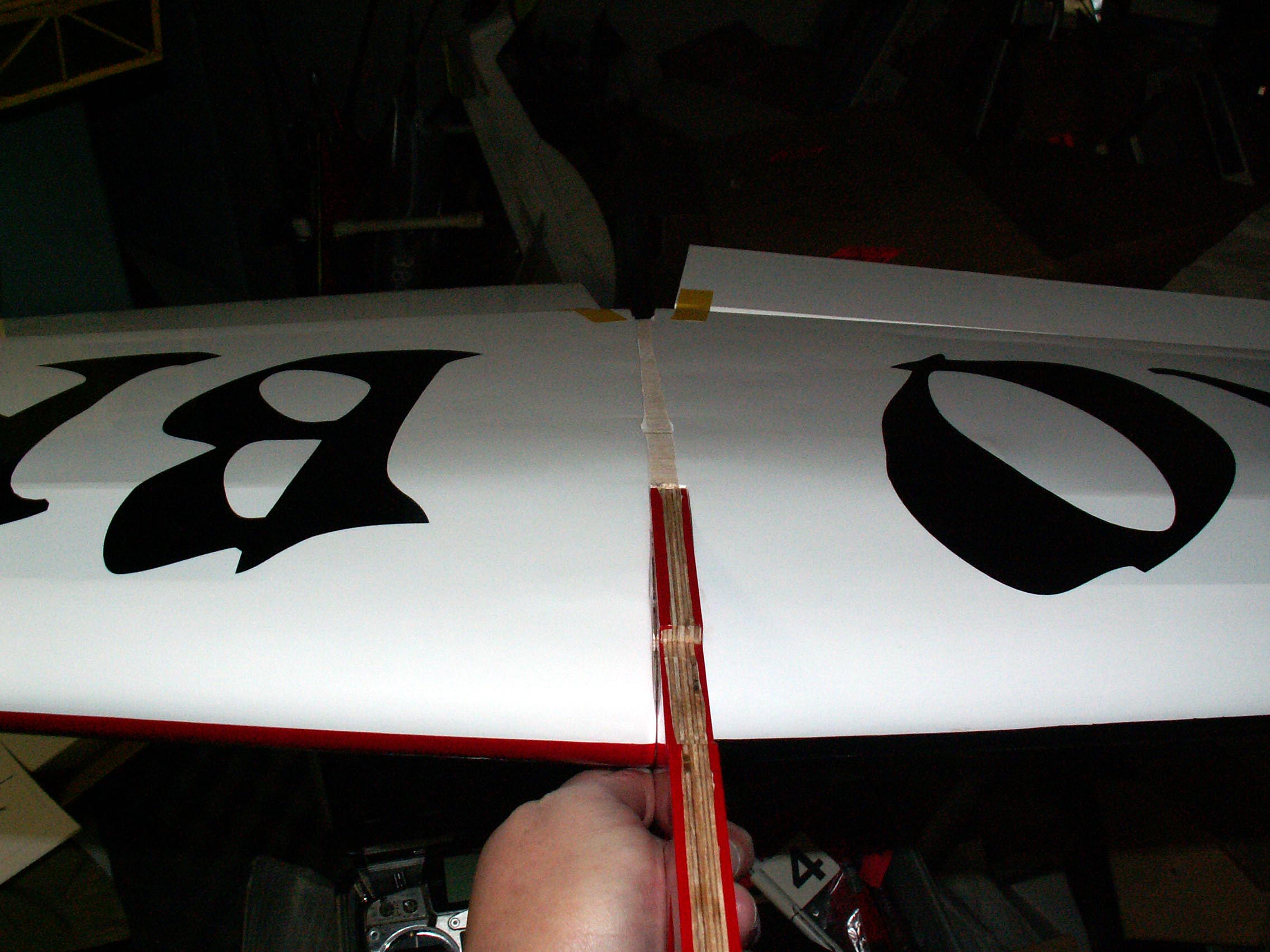

2272 / 1024 / 640 - Epoxied and weighed down tube/mount to keep it flat.

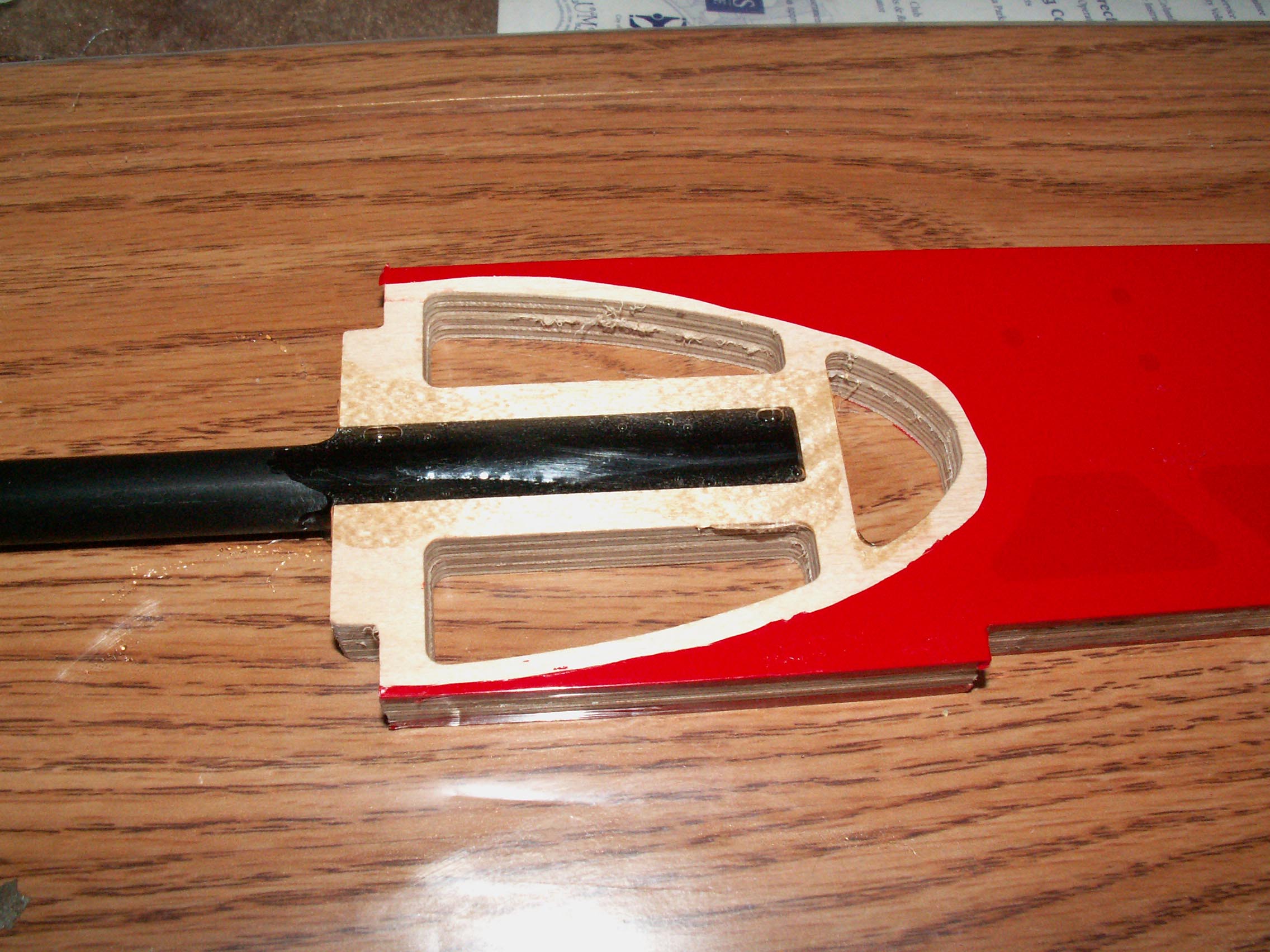

2272 / 1024 / 640 - Removed some covering to give the epoxy a better bite.

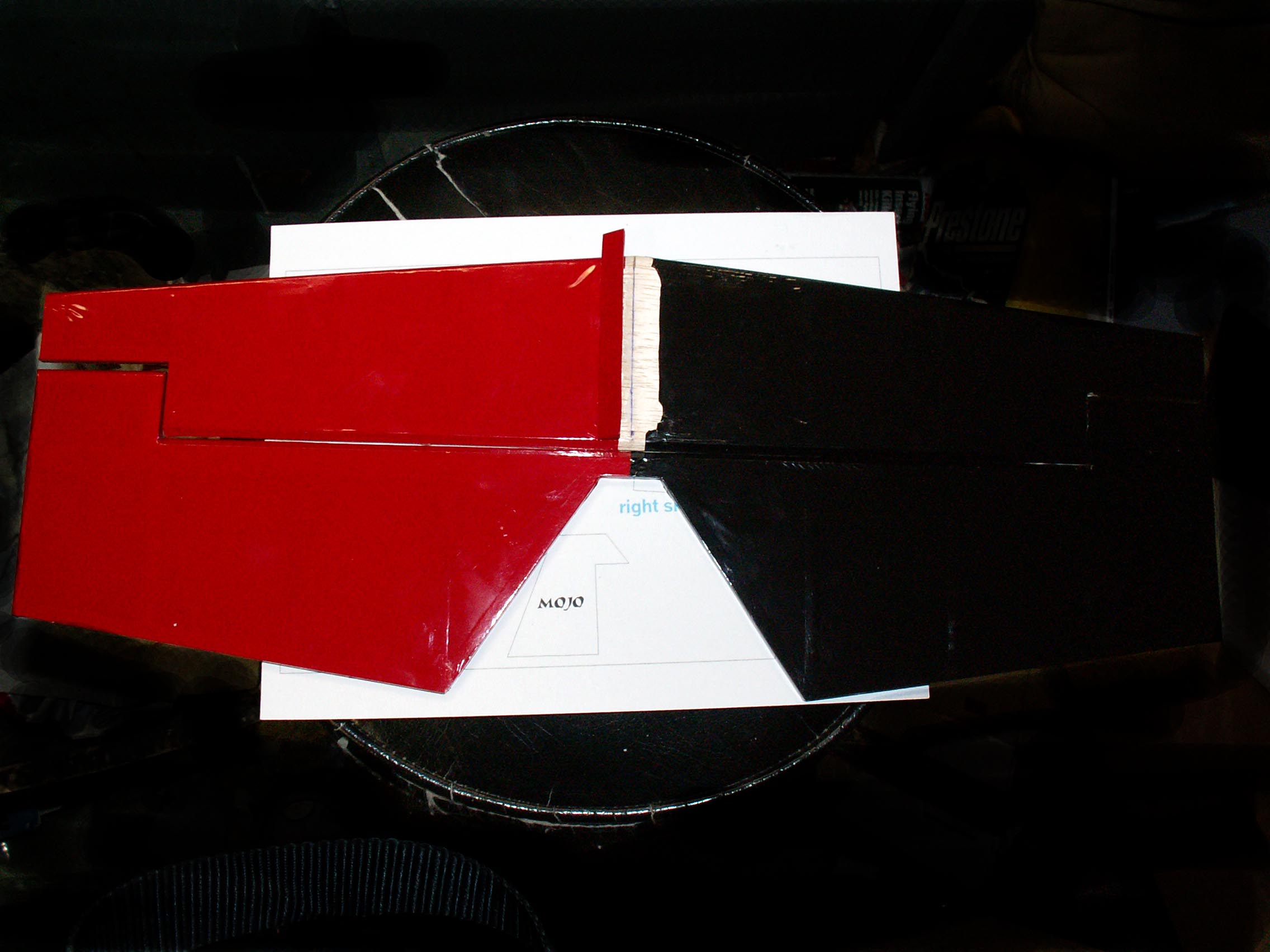

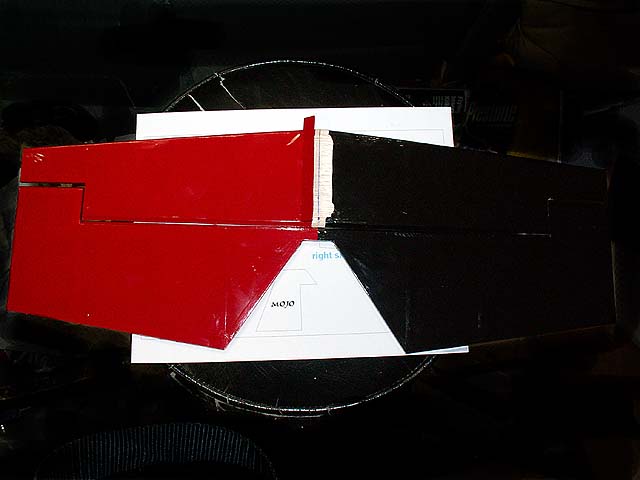

2272 / 1024 / 640 - Test fit everything dry.
2272 / 1024 / 640 -

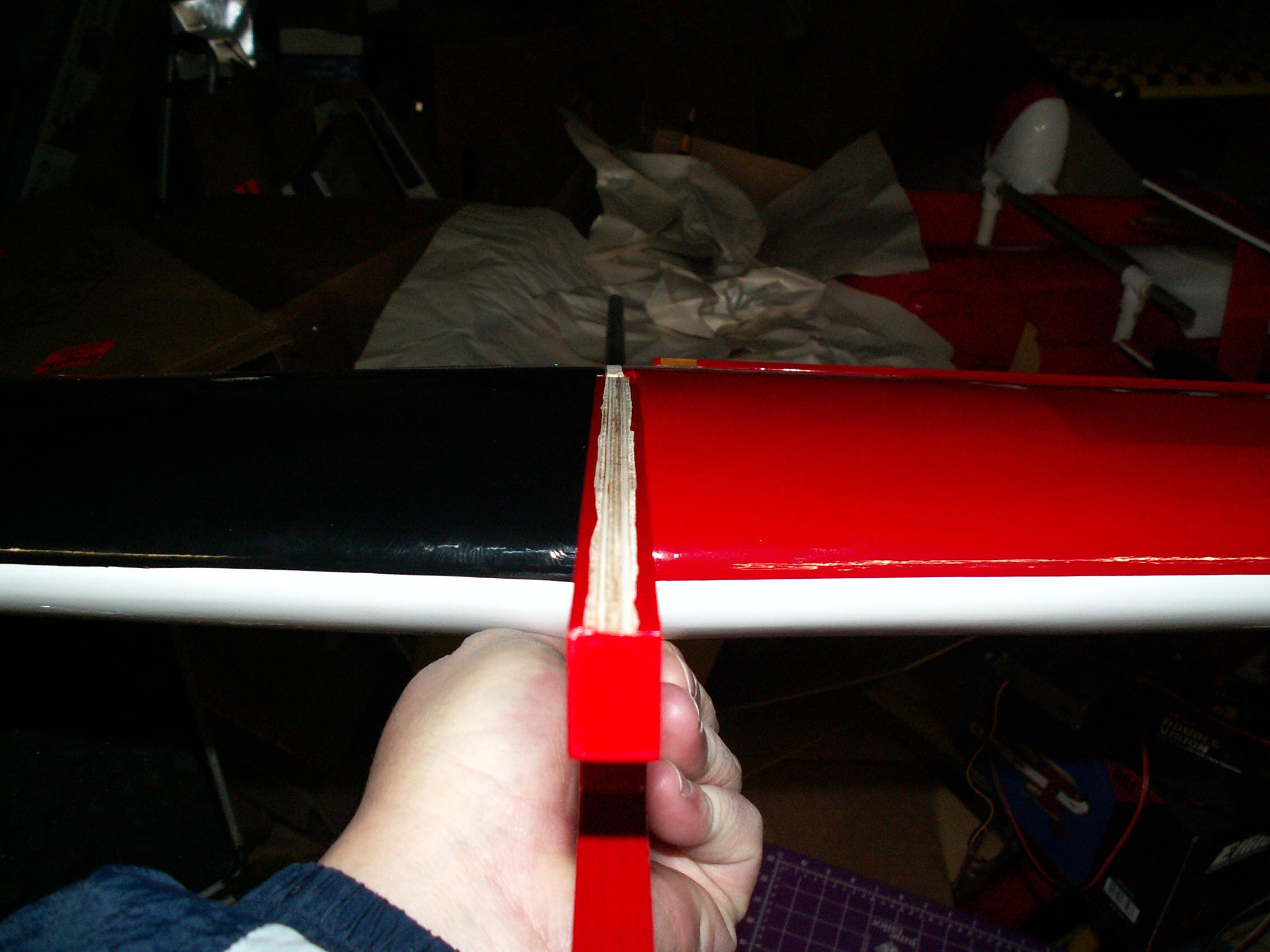

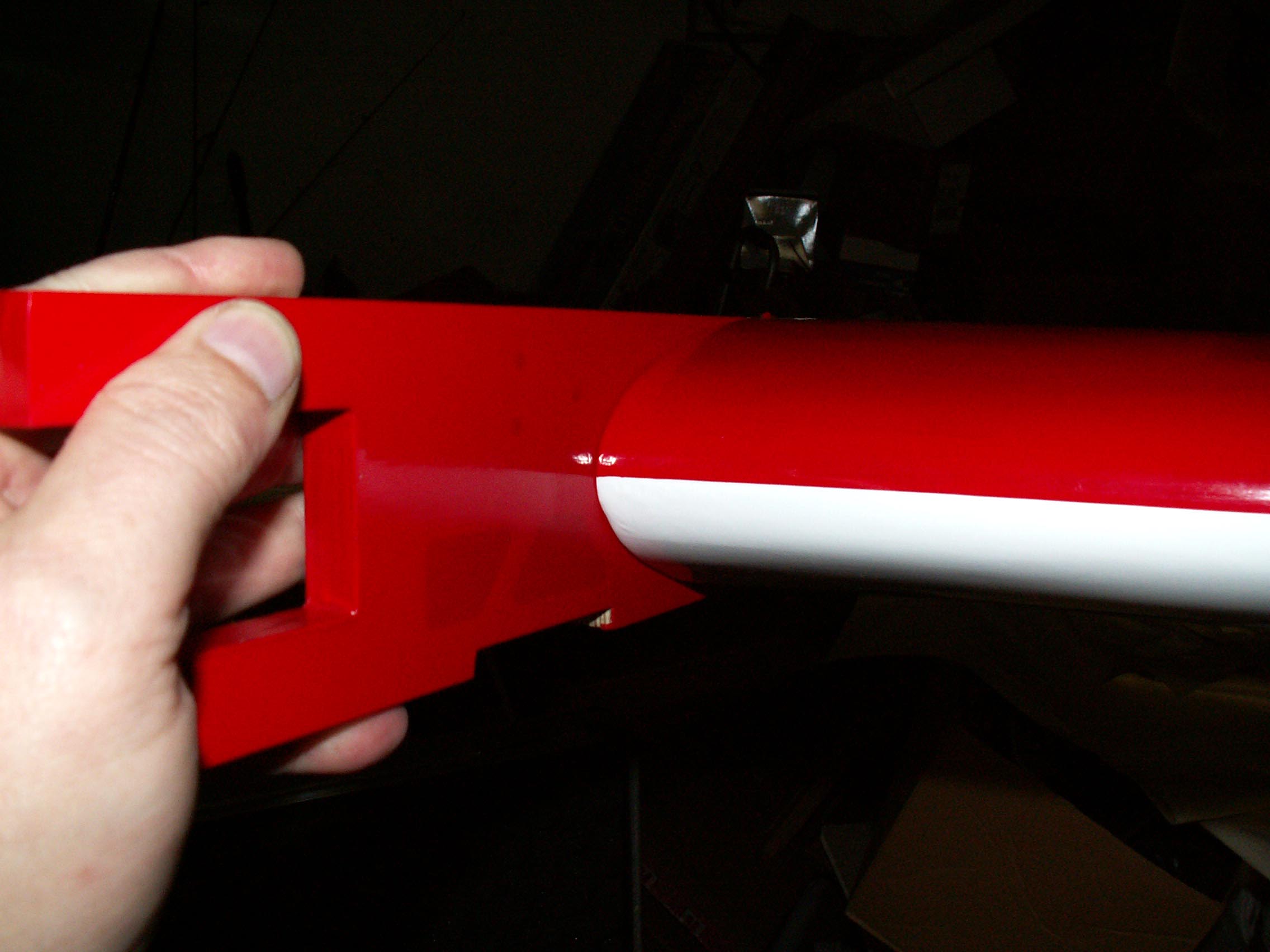

2272 / 1024 / 640 - Very good fit.
2272 / 1024 / 640 - Stab needs an "S" like the wing.

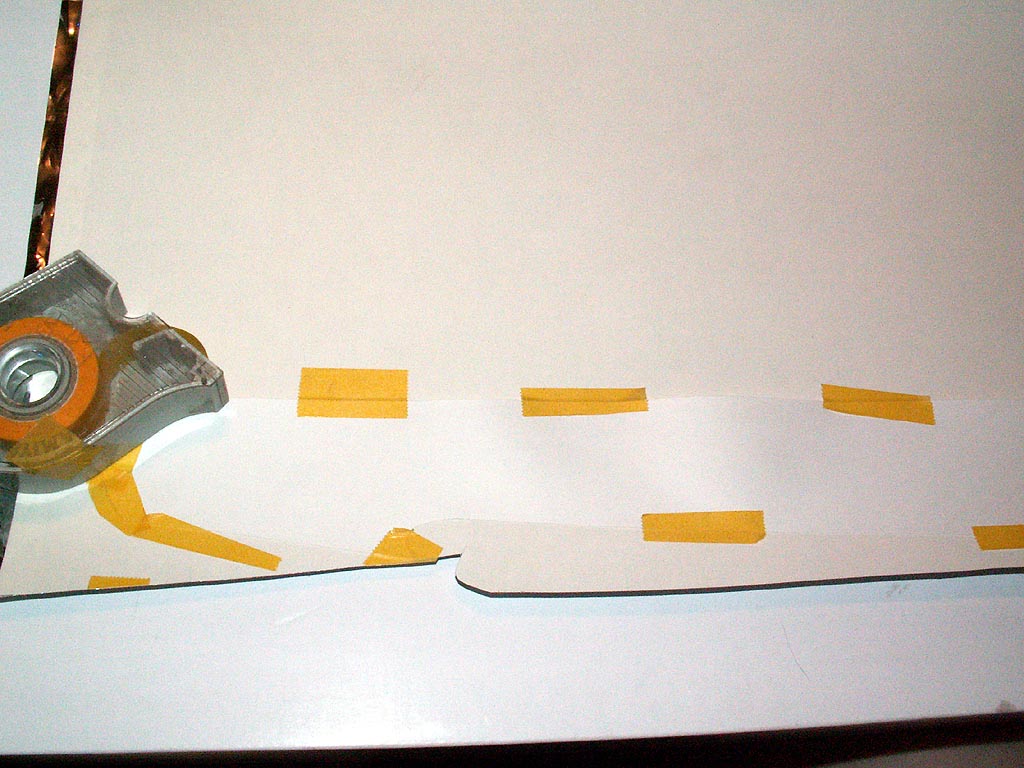

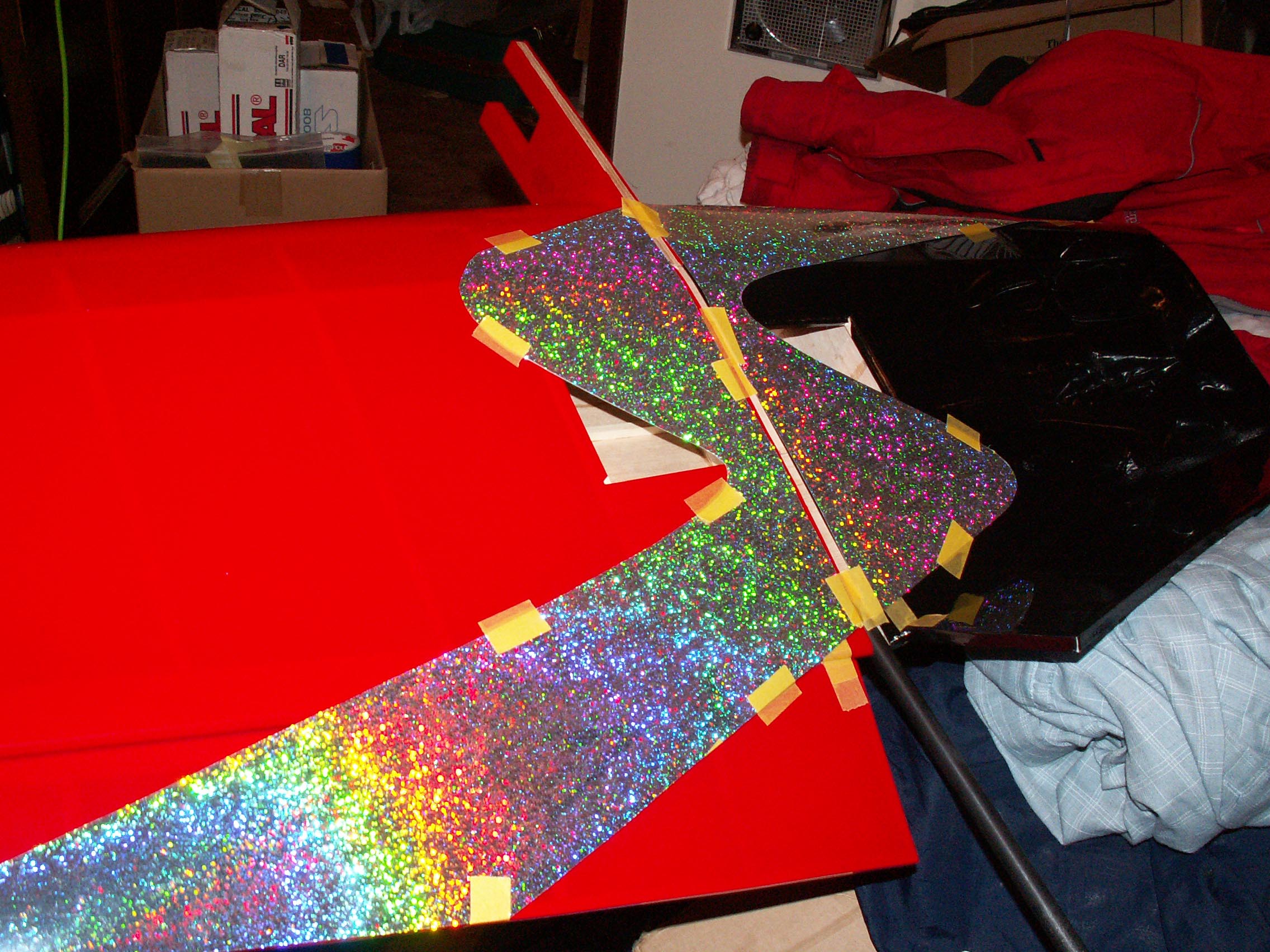

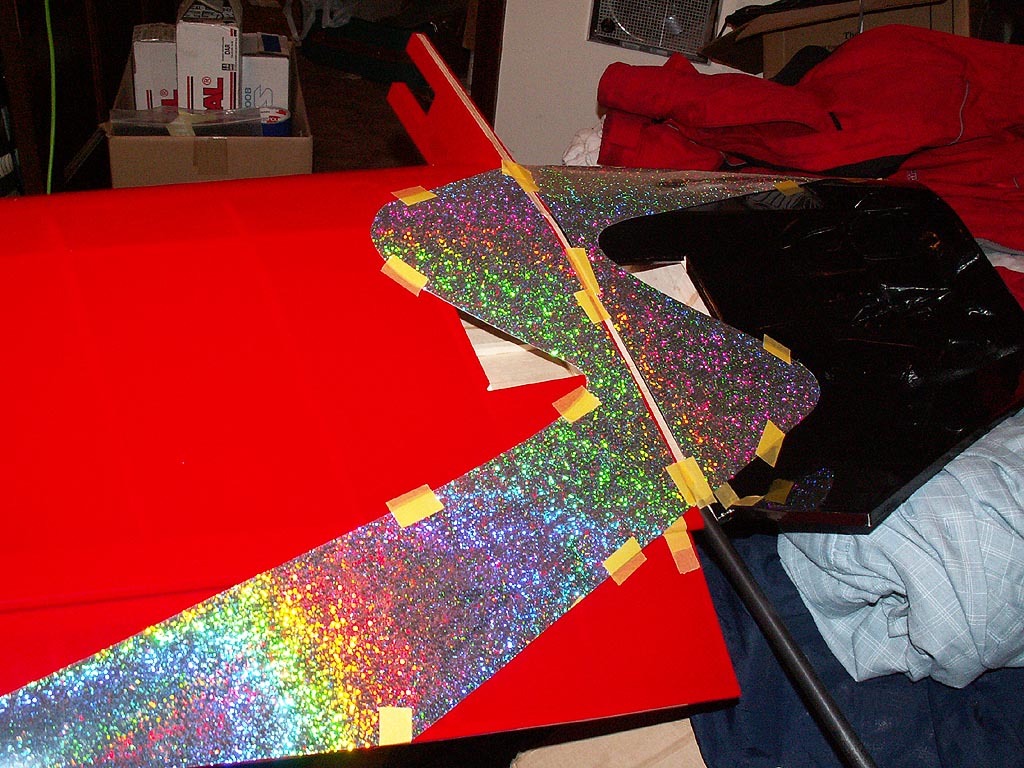

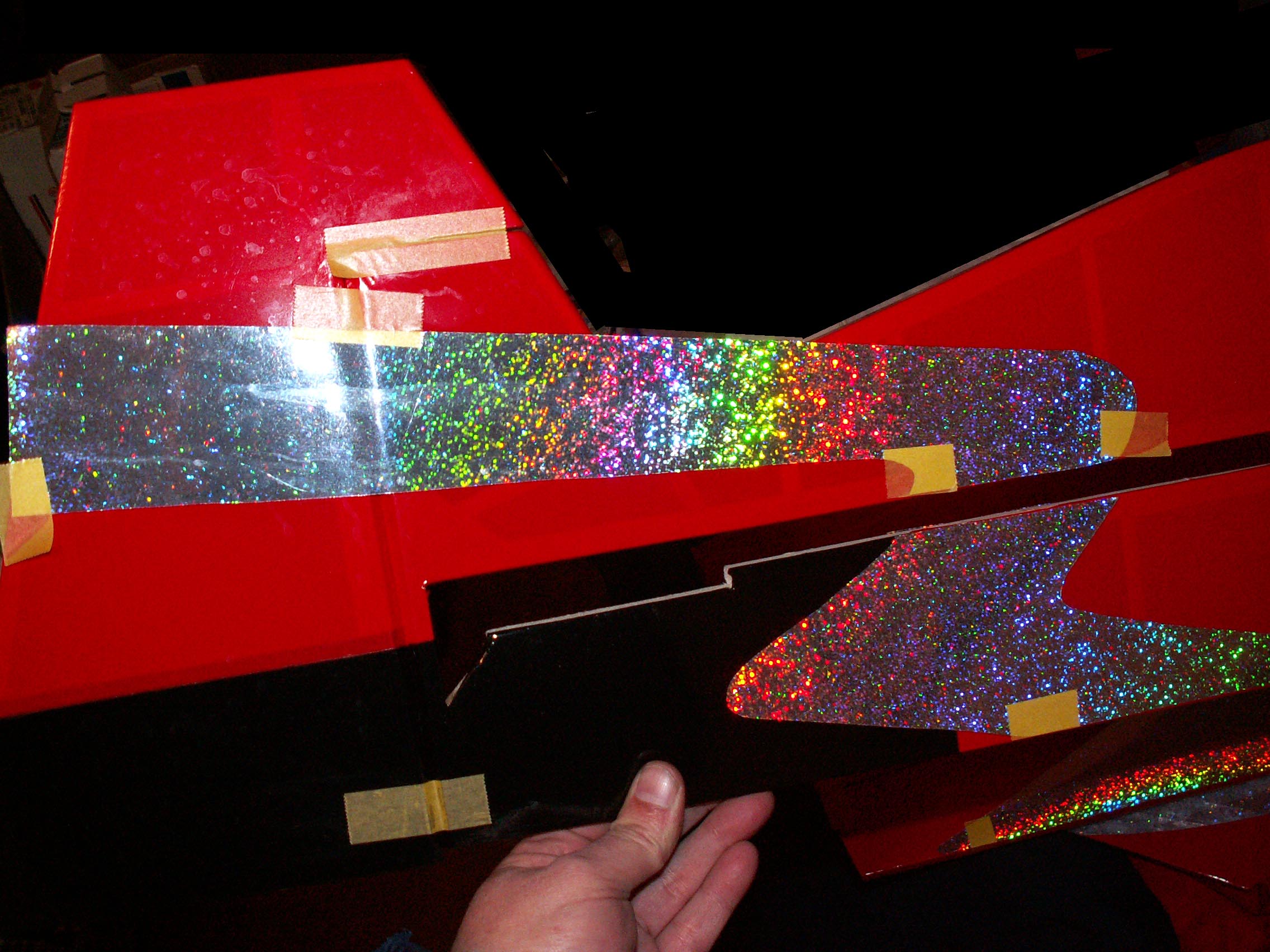

2272 / 1024 / 640 - Trimmed included vinyl from its backing paper, taped it to the new vinyl.

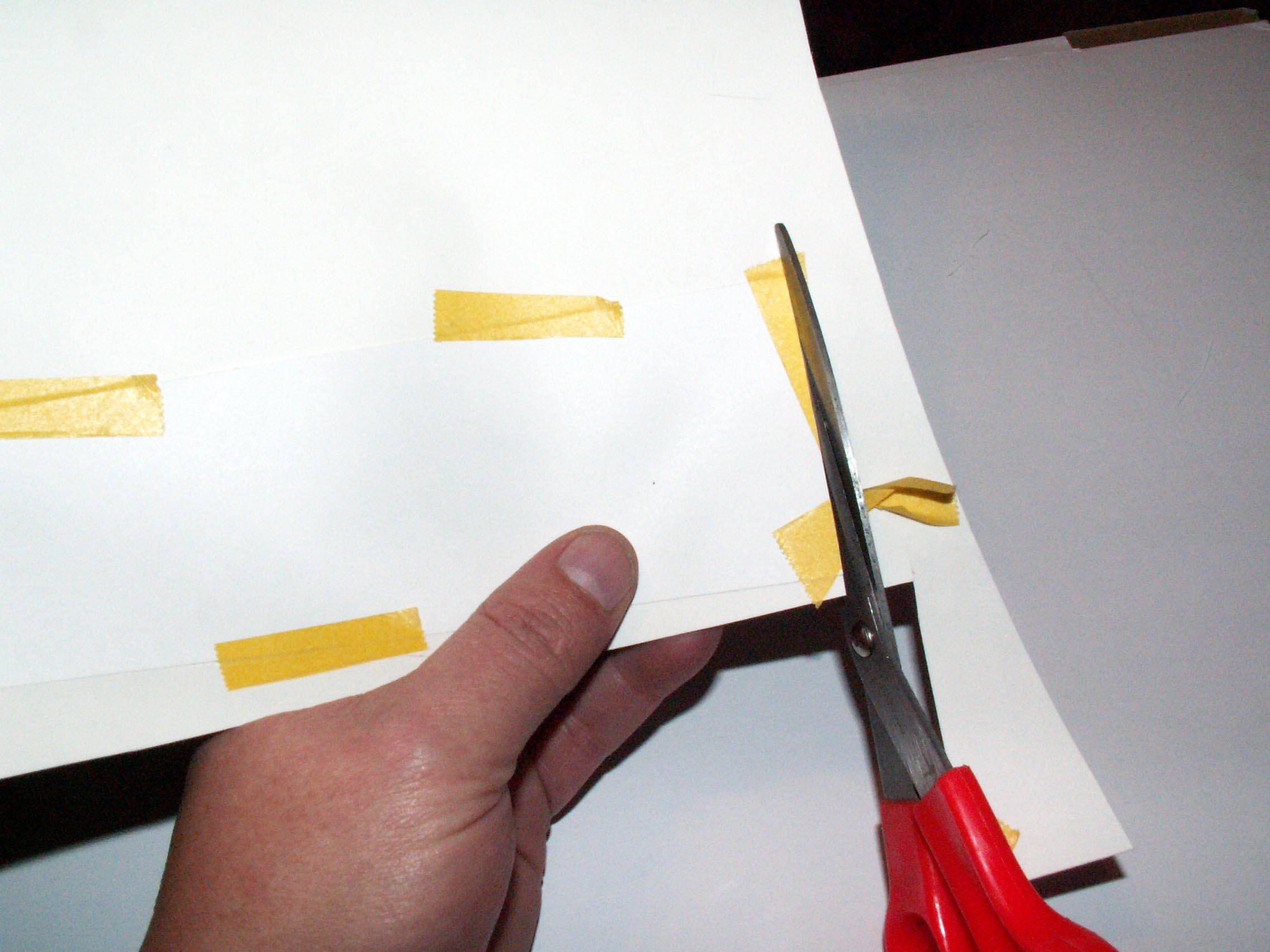

2272 / 1024 / 640 - Cut around it, retaping as needed to hold it.

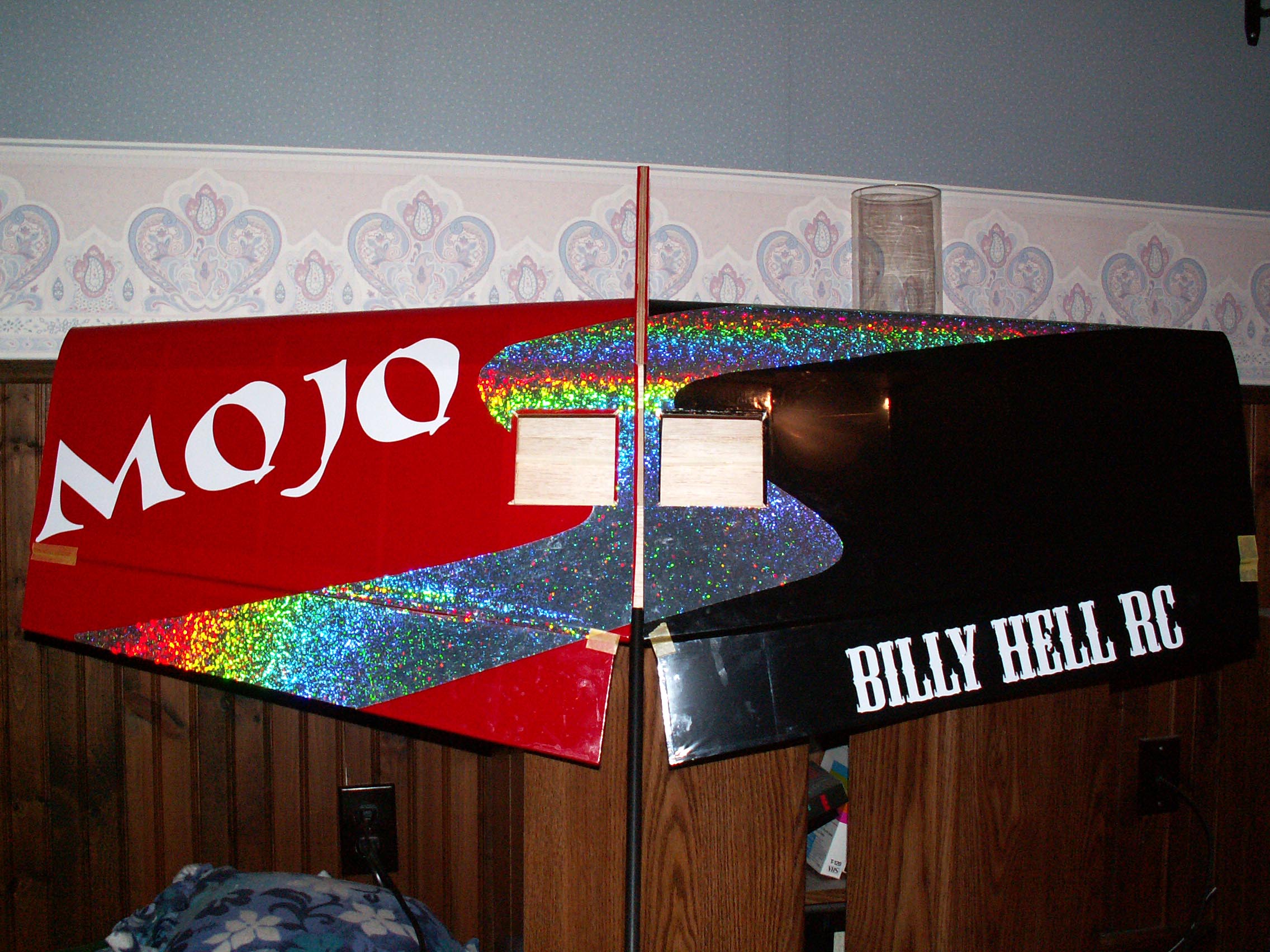

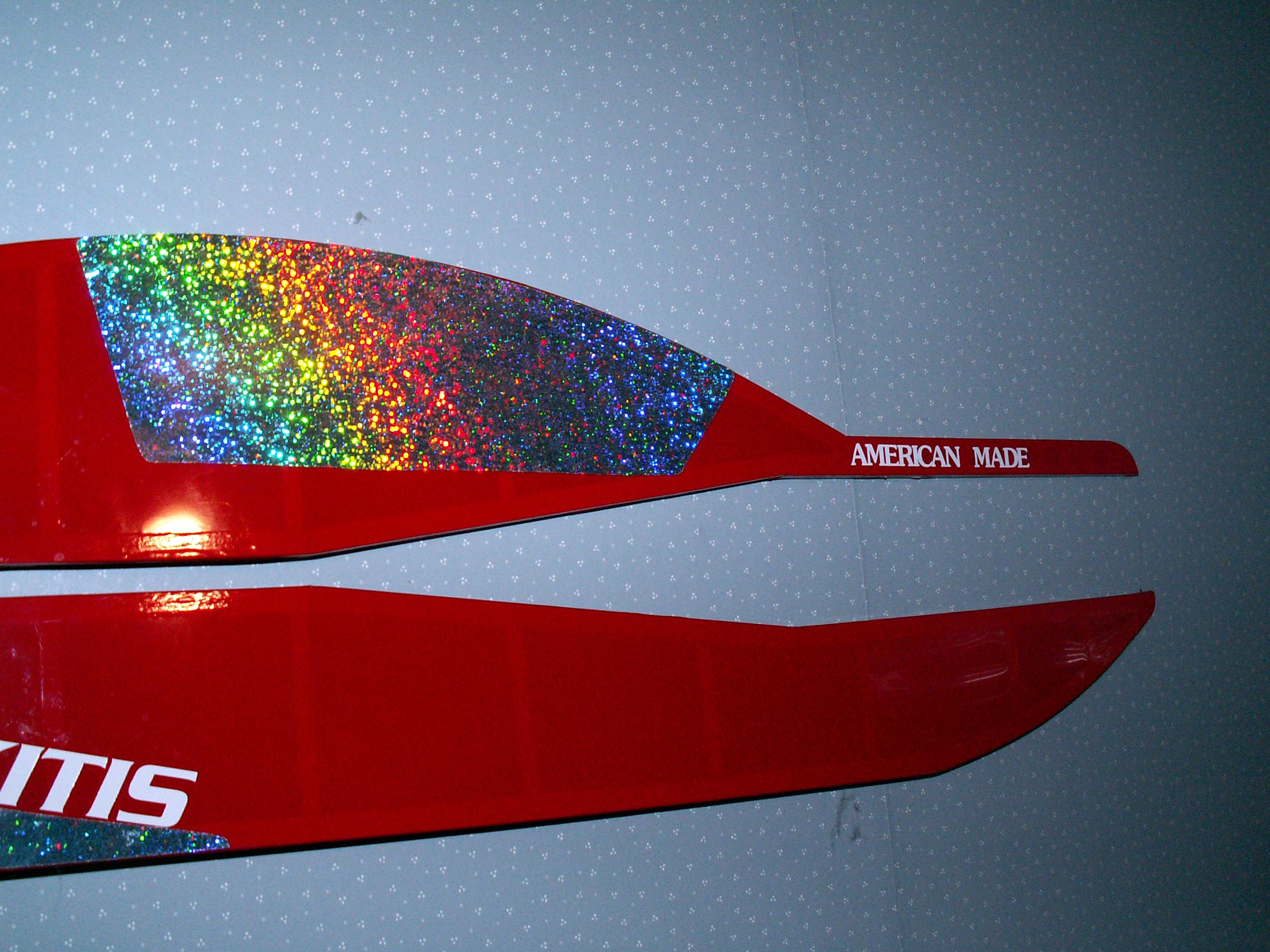

2272 / 1024 / 640 - Test fit on wing
2272 / 1024 / 640 - Installed!

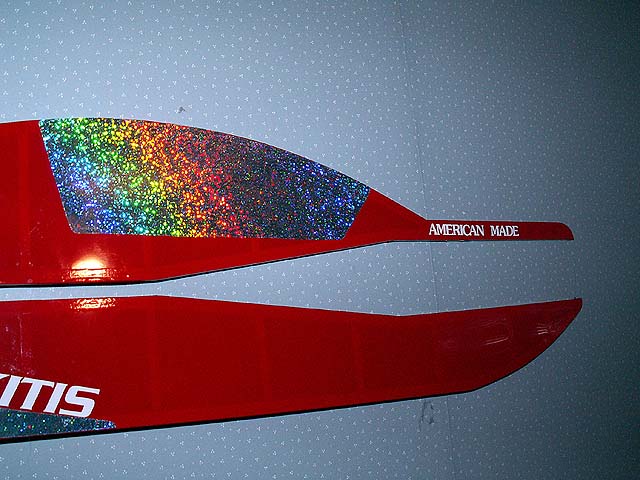

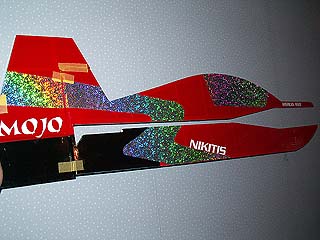

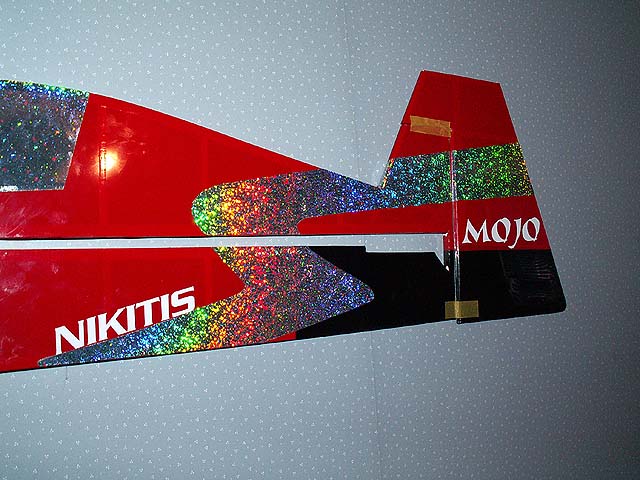

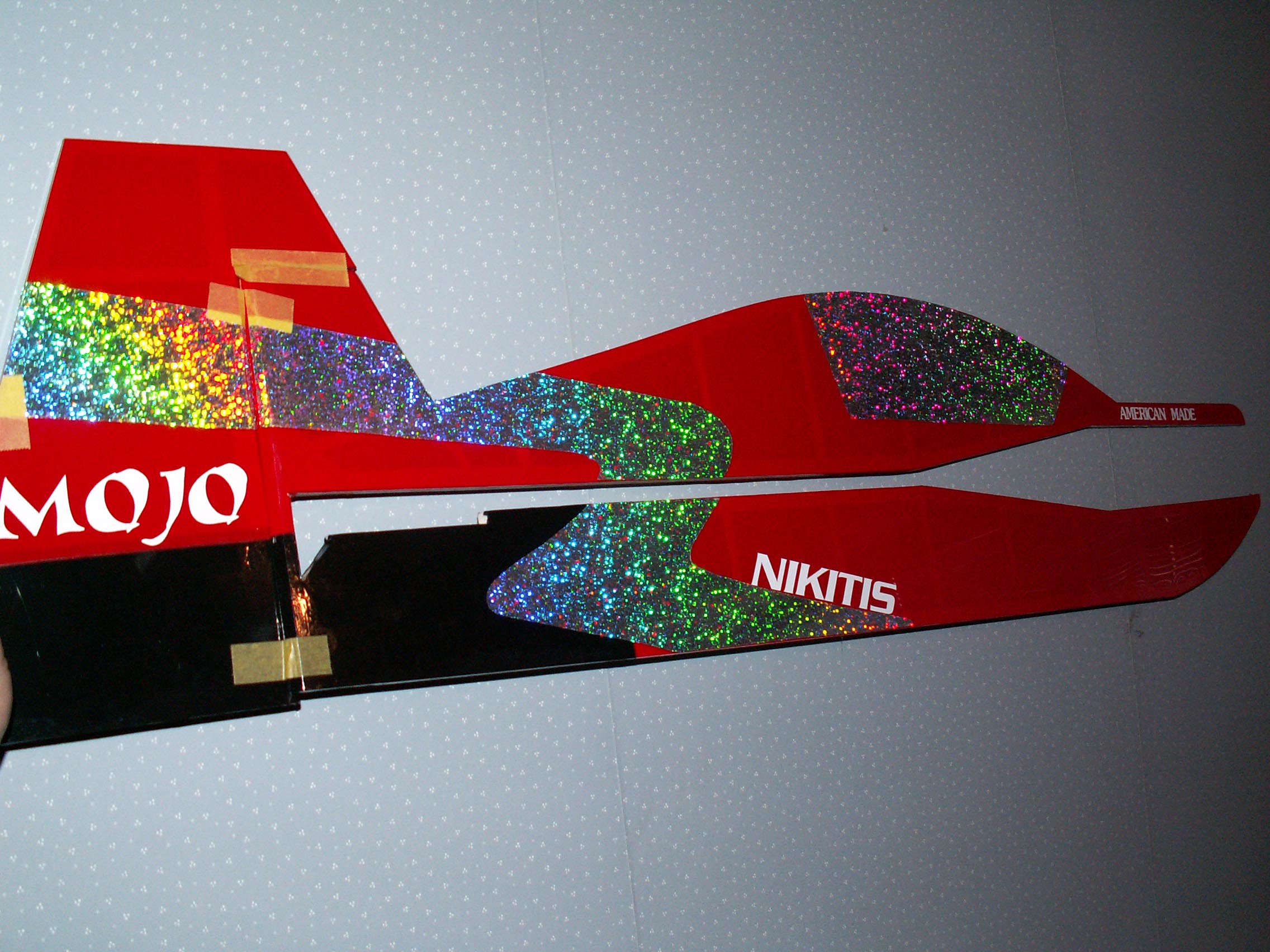

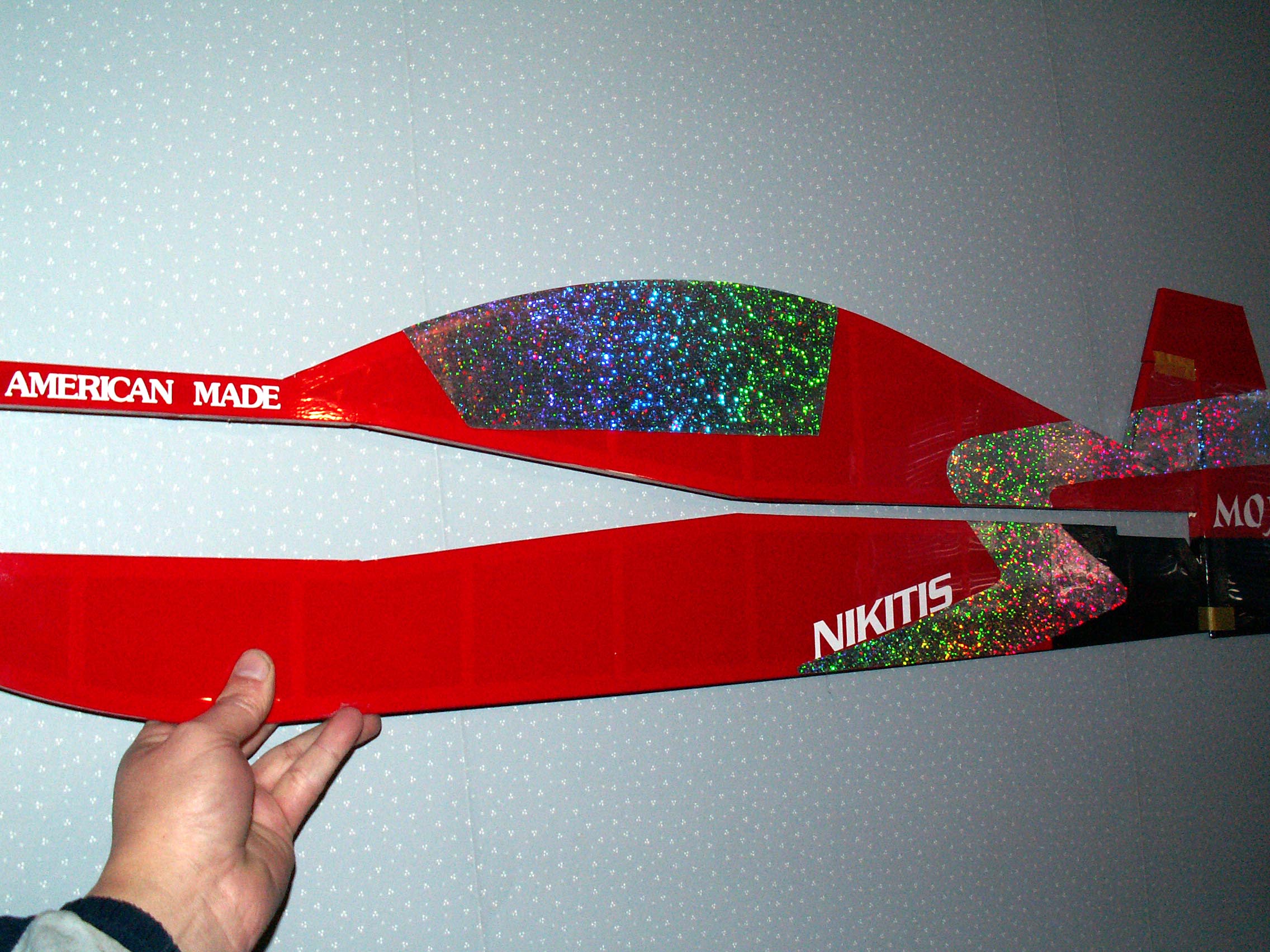

2272 / 1024 / 640 - Same method to apply fuse vinyl.

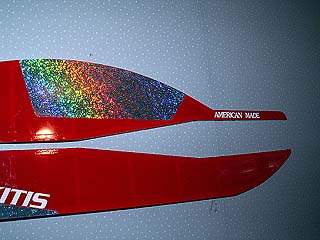

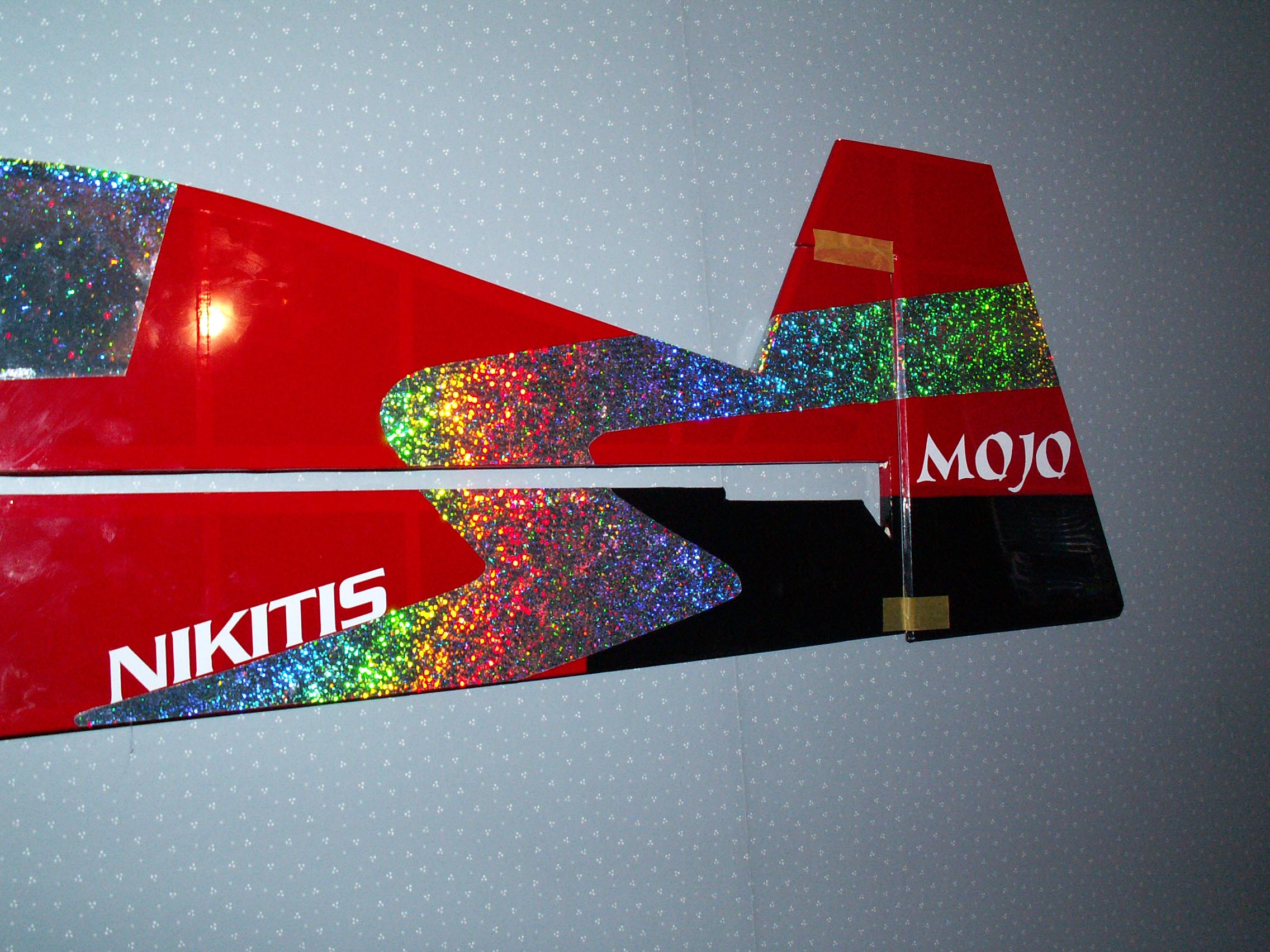

2272 / 1024 / 640 - Used all the white lettering that came with kit.
2272 / 1024 / 640 -
2272 / 1024 / 640 -
2272 / 1024 / 640 -

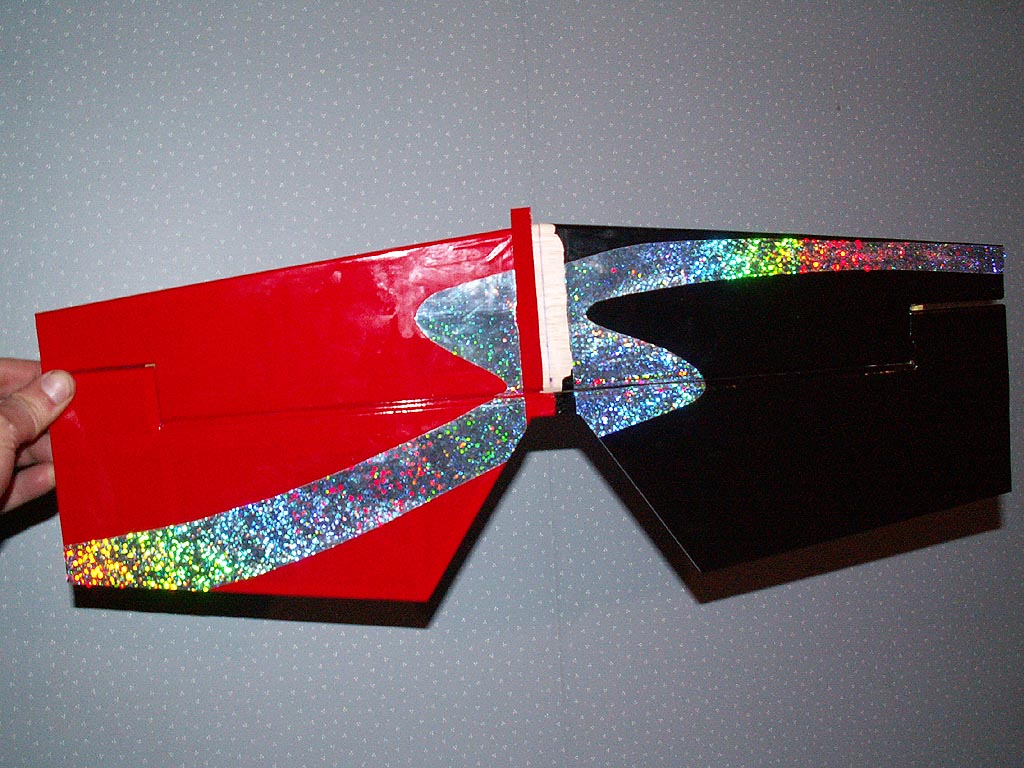

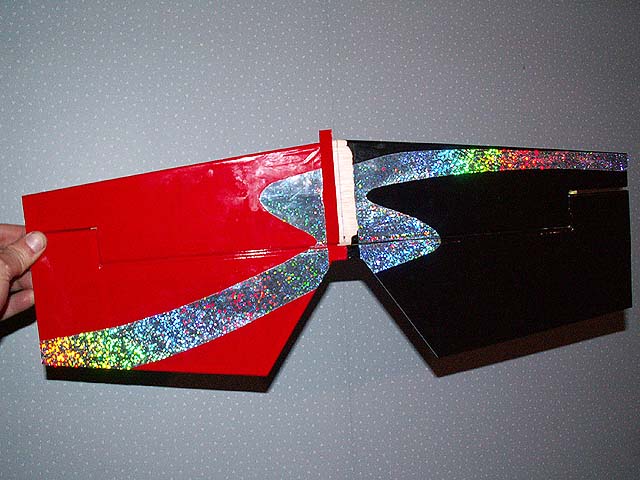

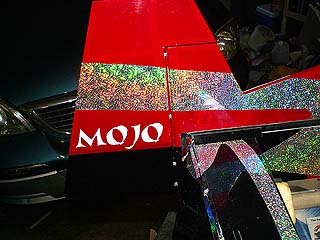

2272 / 1024 / 640 - Installed an "S" on Stab.

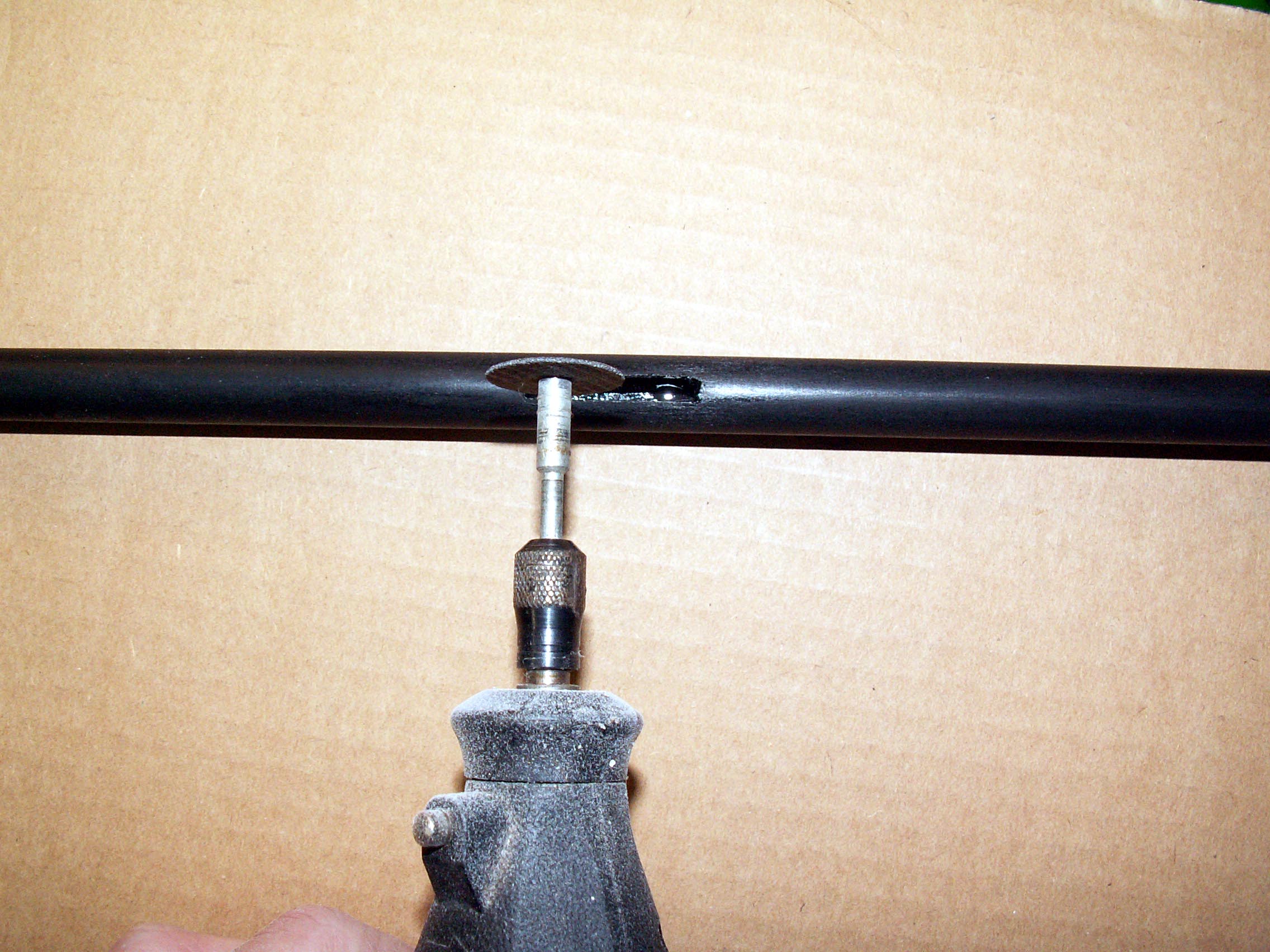

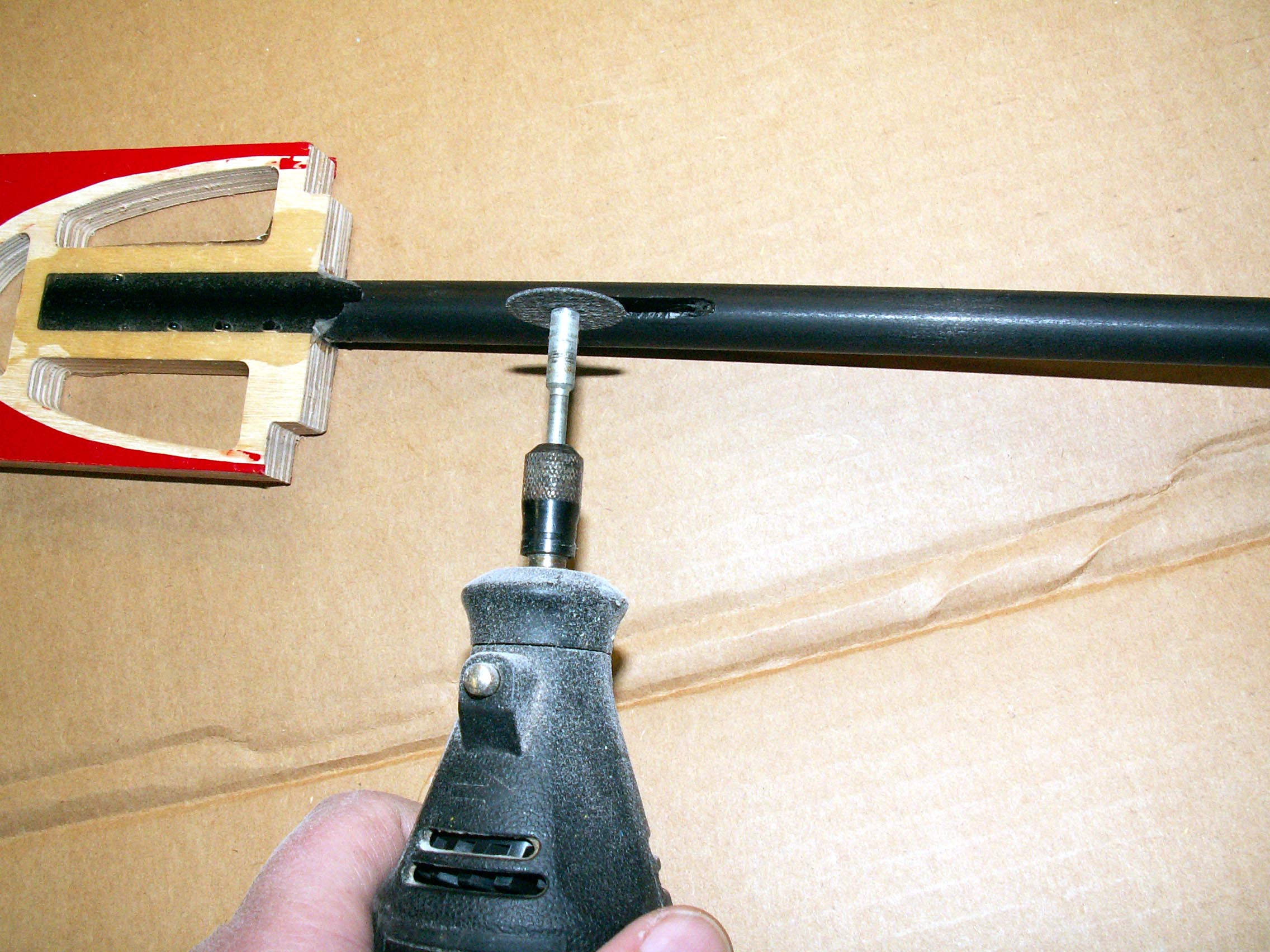

2272 / 1024 / 640 - Cutting front slot.

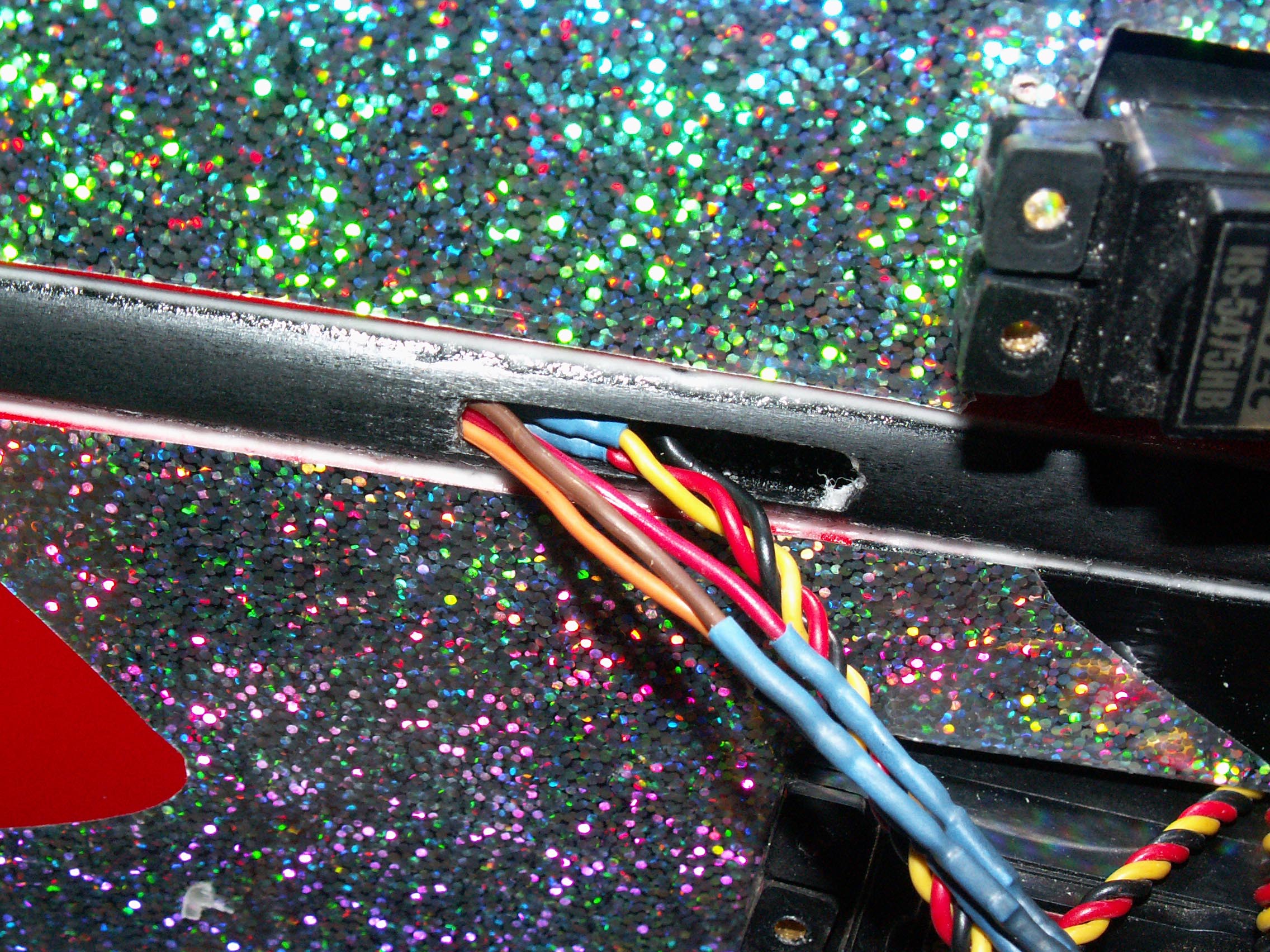

2272 / 1024 / 640 - Hides tail servo wires.

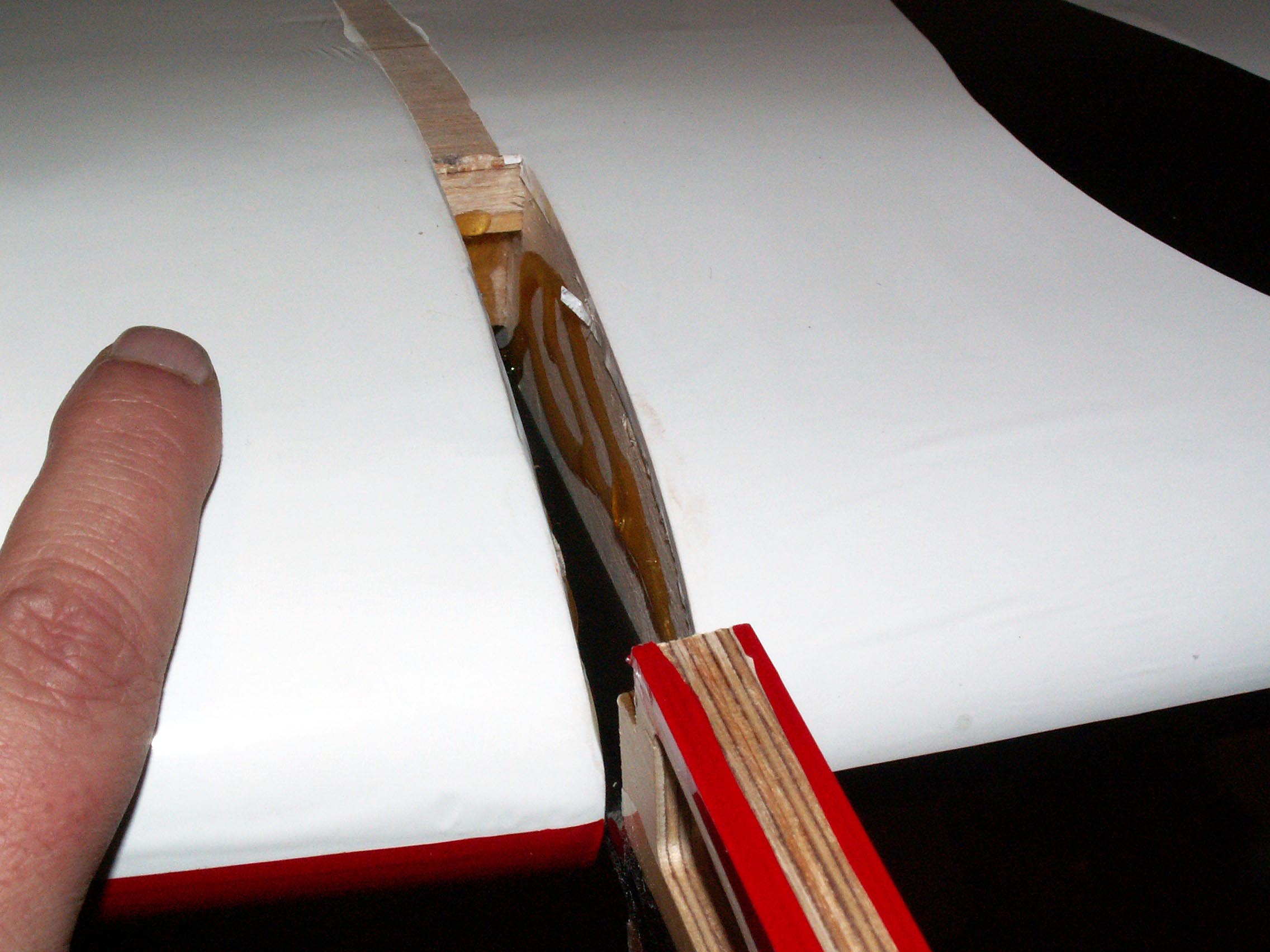

2272 / 1024 / 640 - Gorilla Glue in leading edge.
2272 / 1024 / 640 - Slide mount into wing.

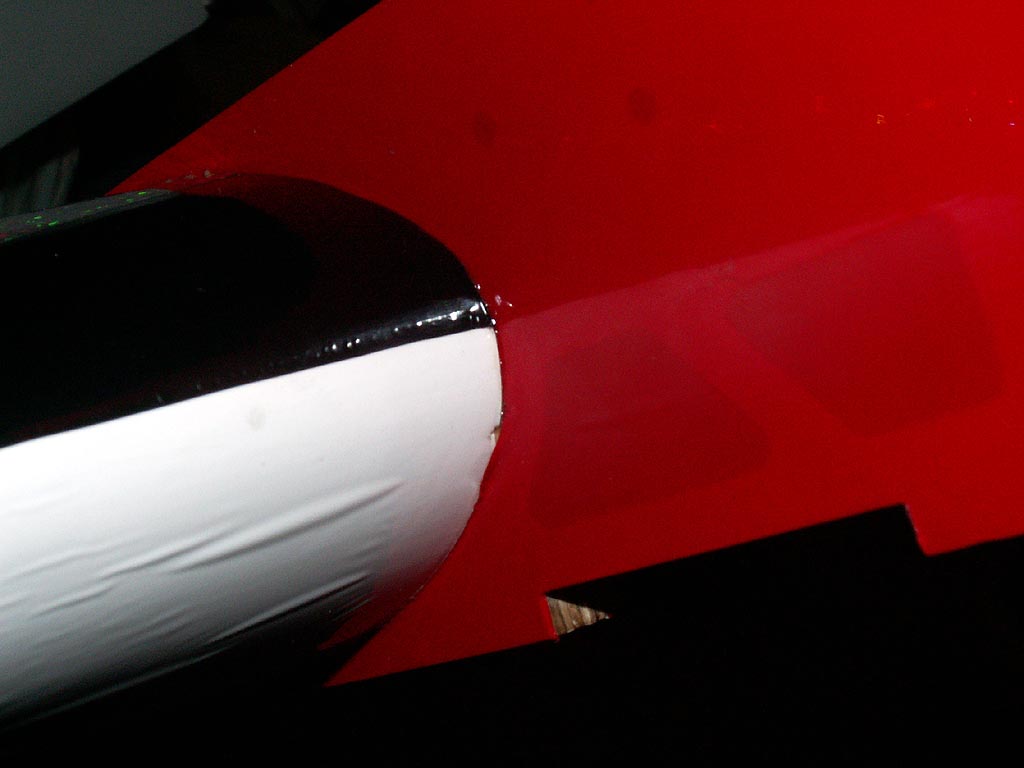

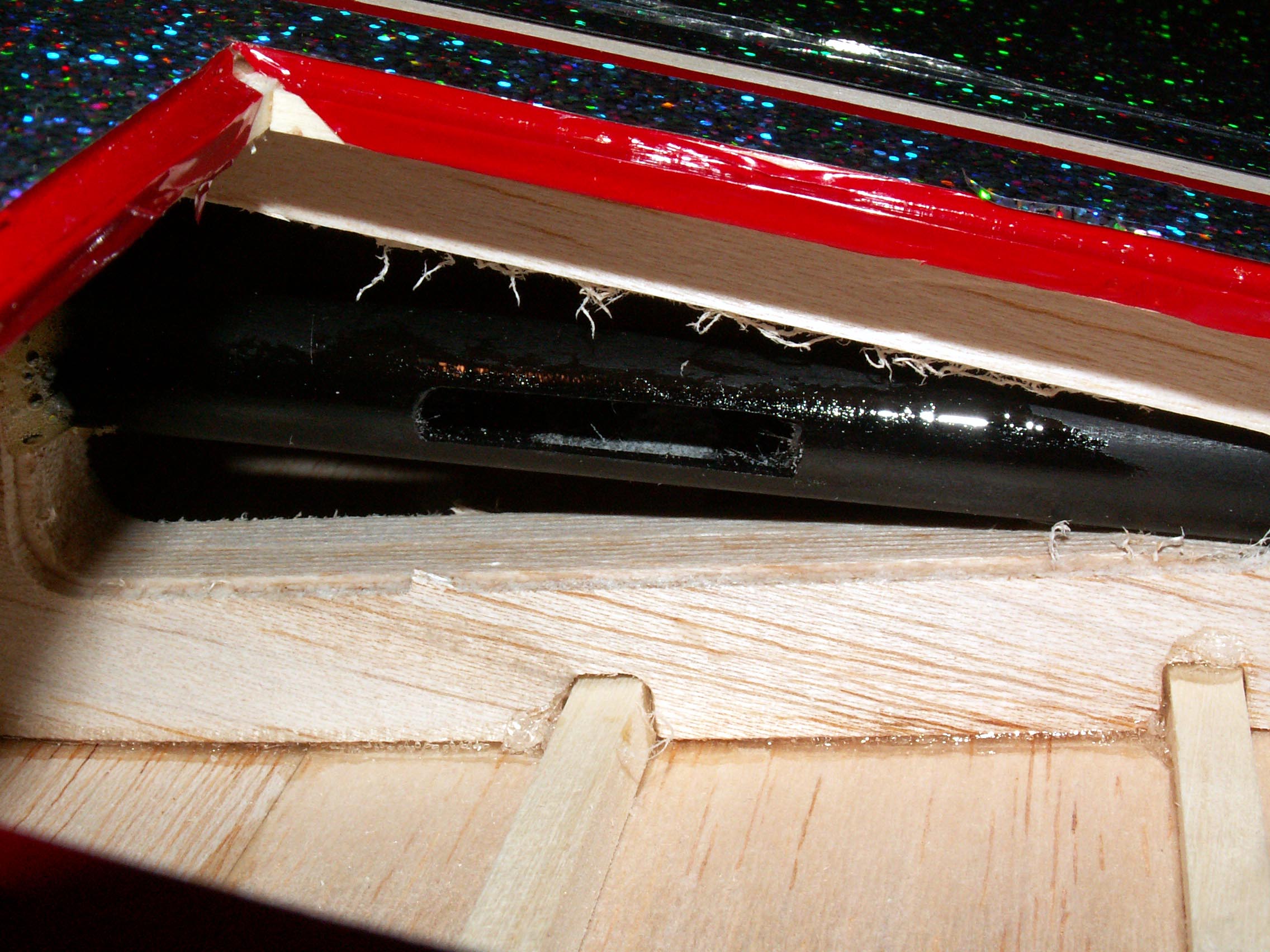

2272 / 1024 / 640 - Slot comes out perfectly.

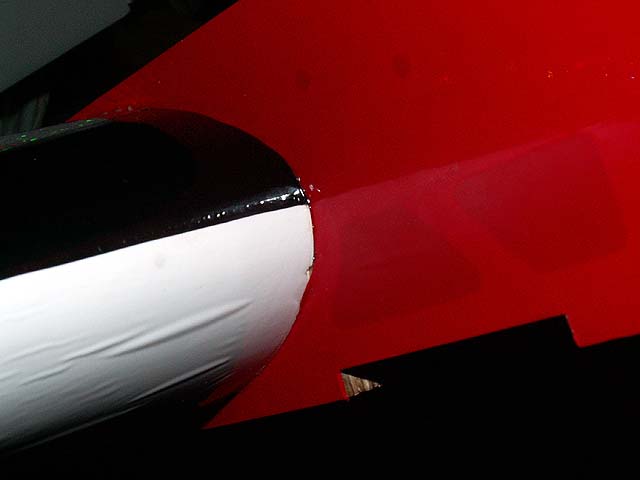

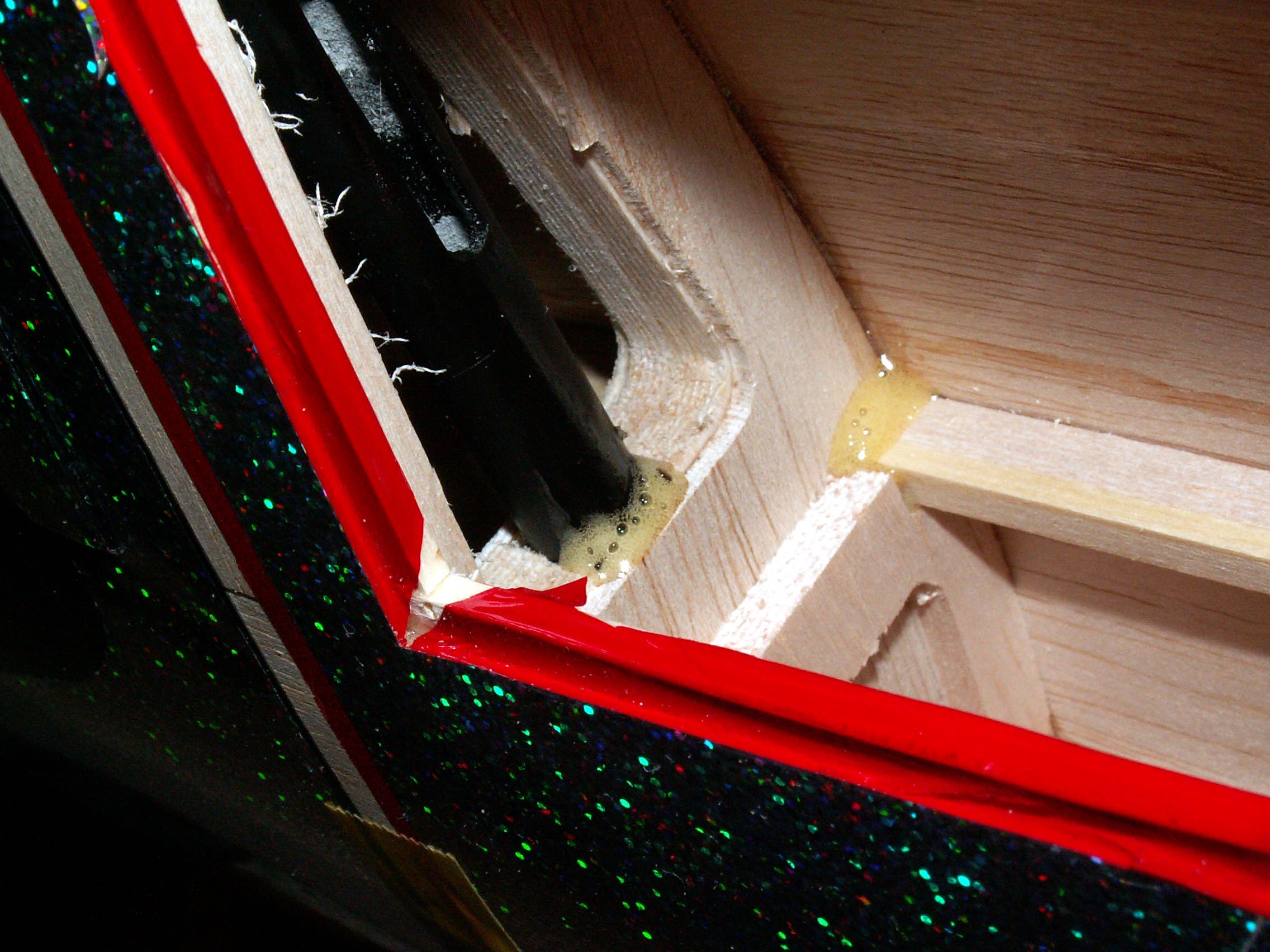

2272 / 1024 / 640 - Gotta love how GG expands.

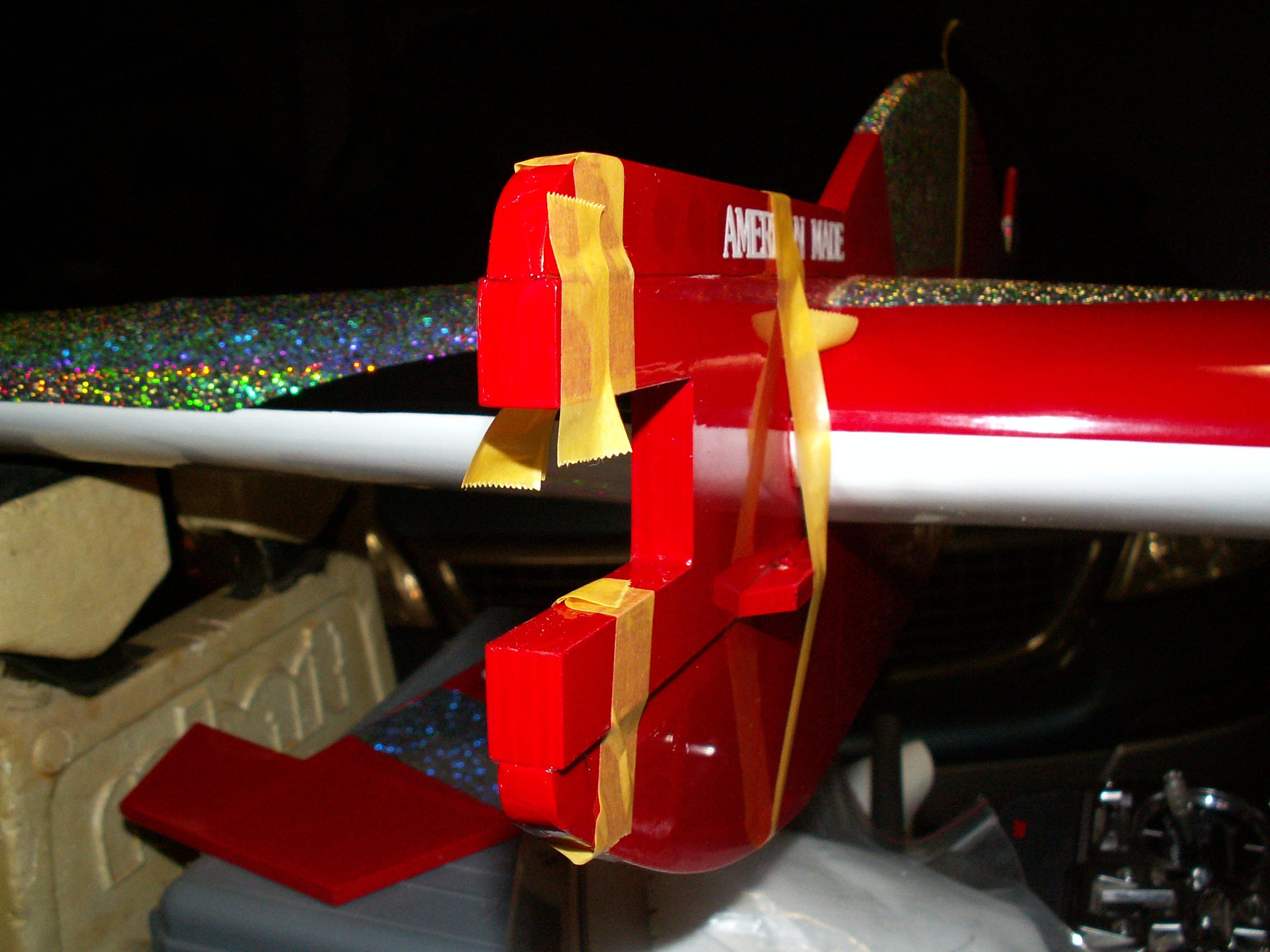

2272 / 1024 / 640 - Epoxy for fuse. Tape to hold.
2272 / 1024 / 640 -

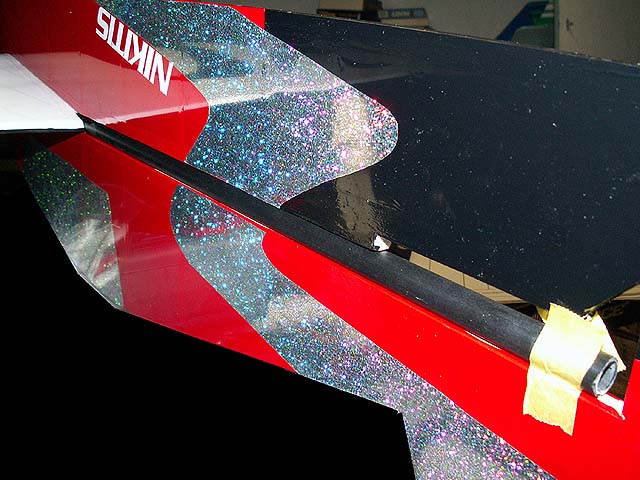

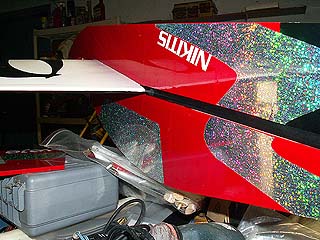

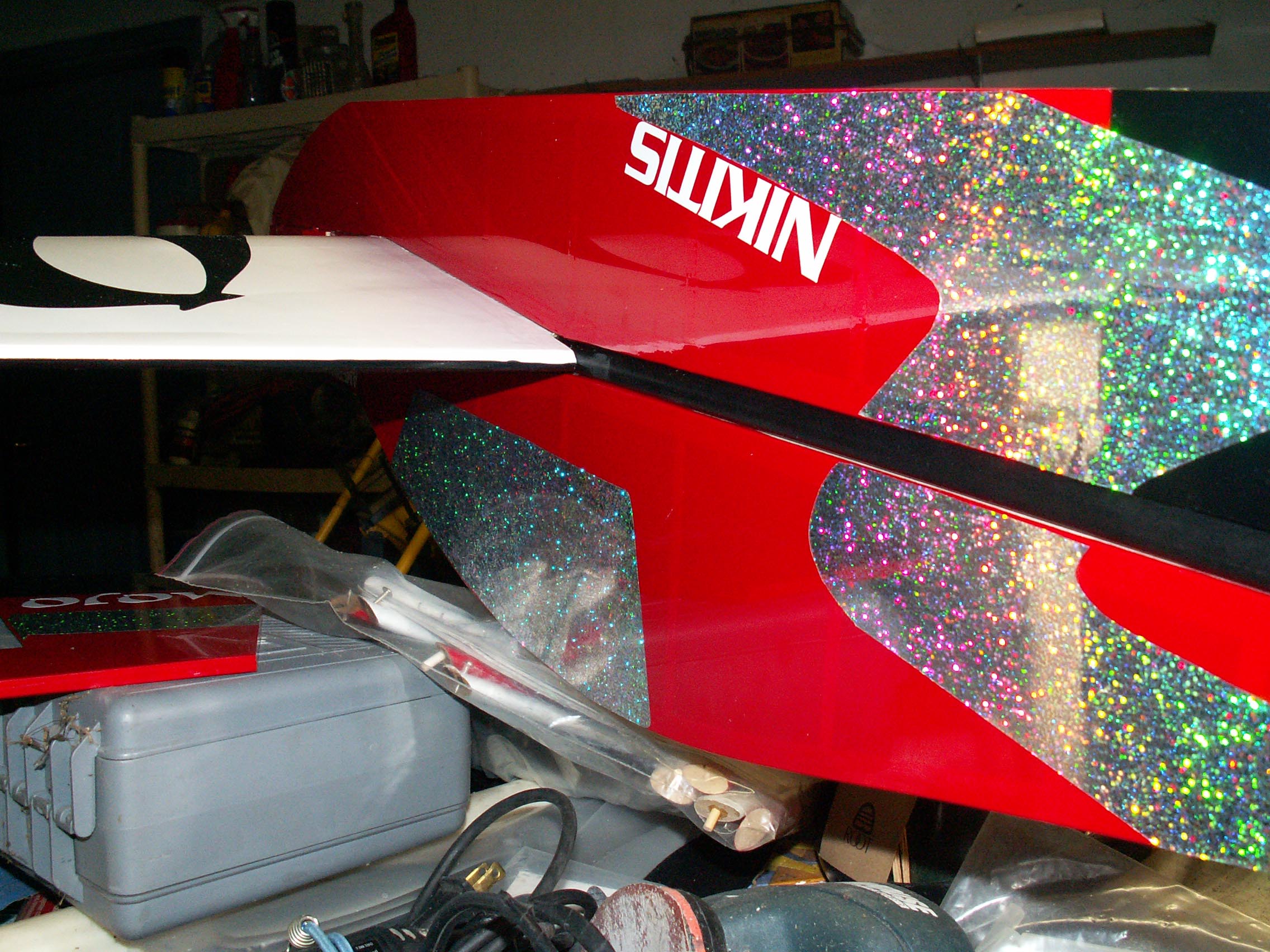

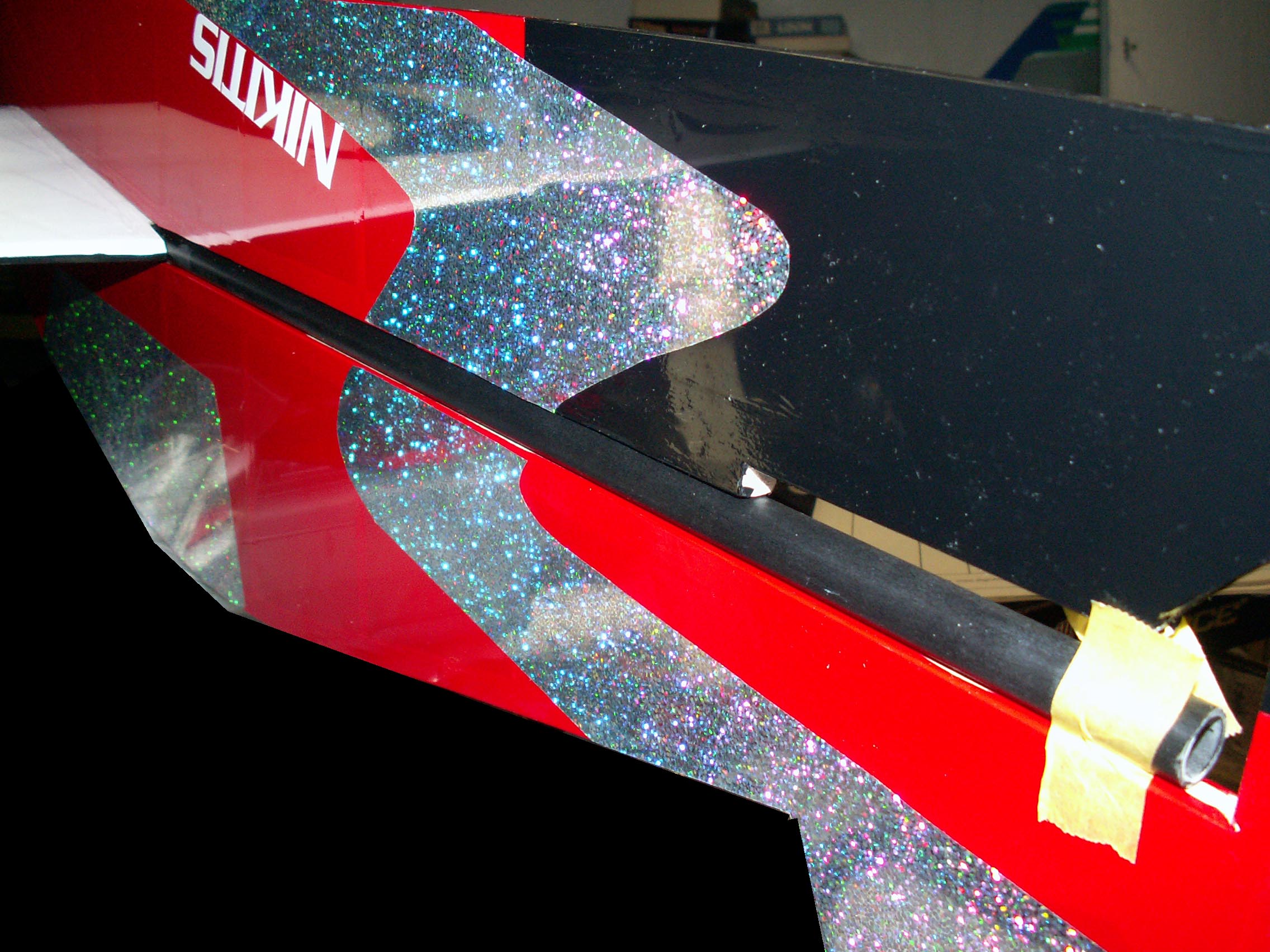

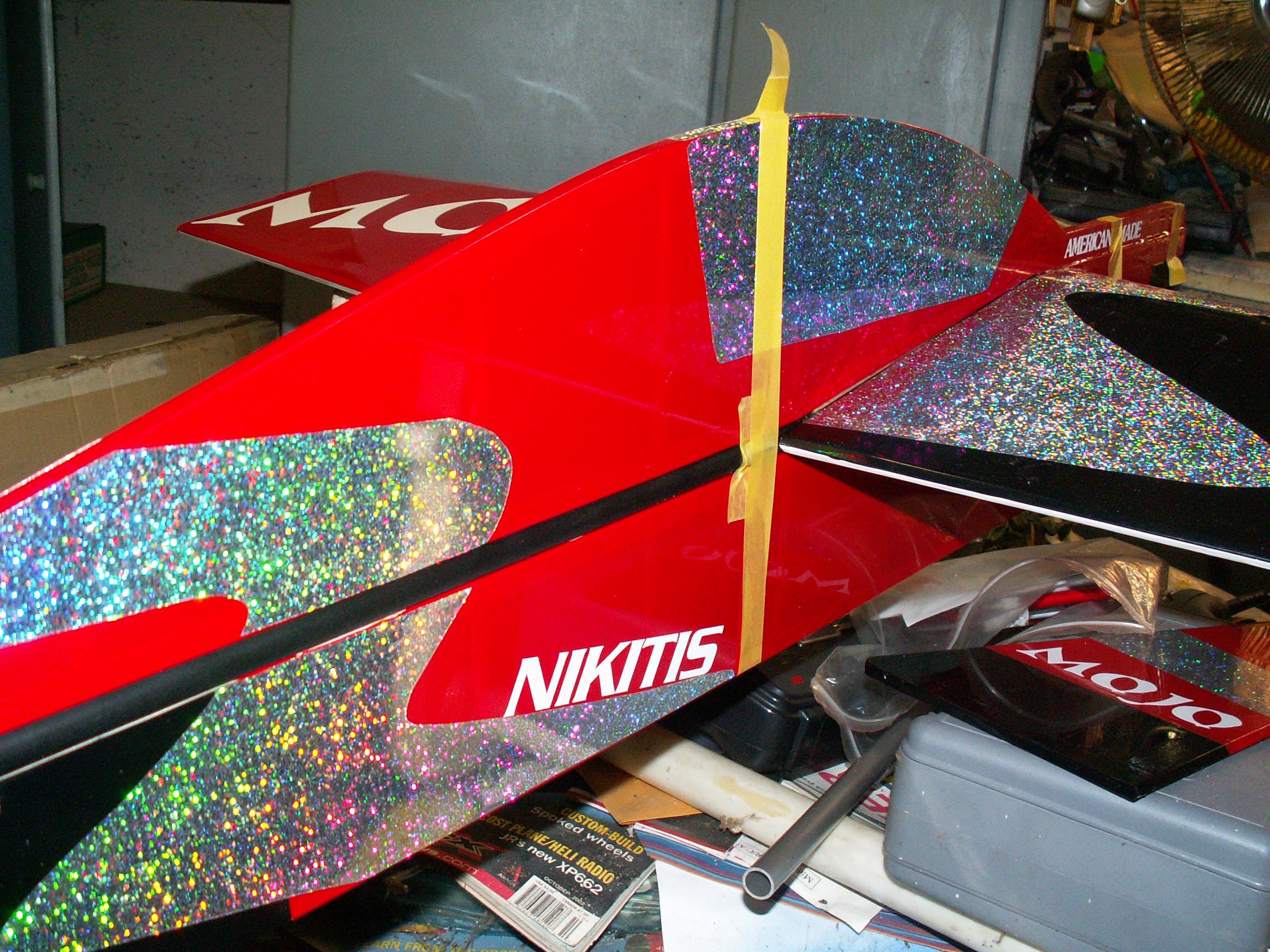

2272 / 1024 / 640 - Tack glued tube to fuse.
2272 / 1024 / 640 -

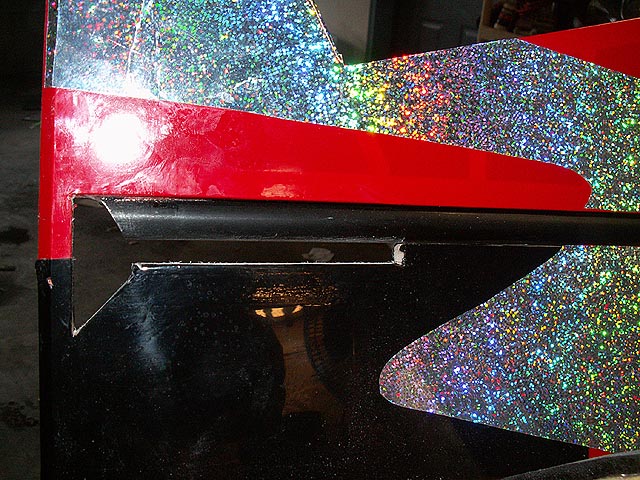

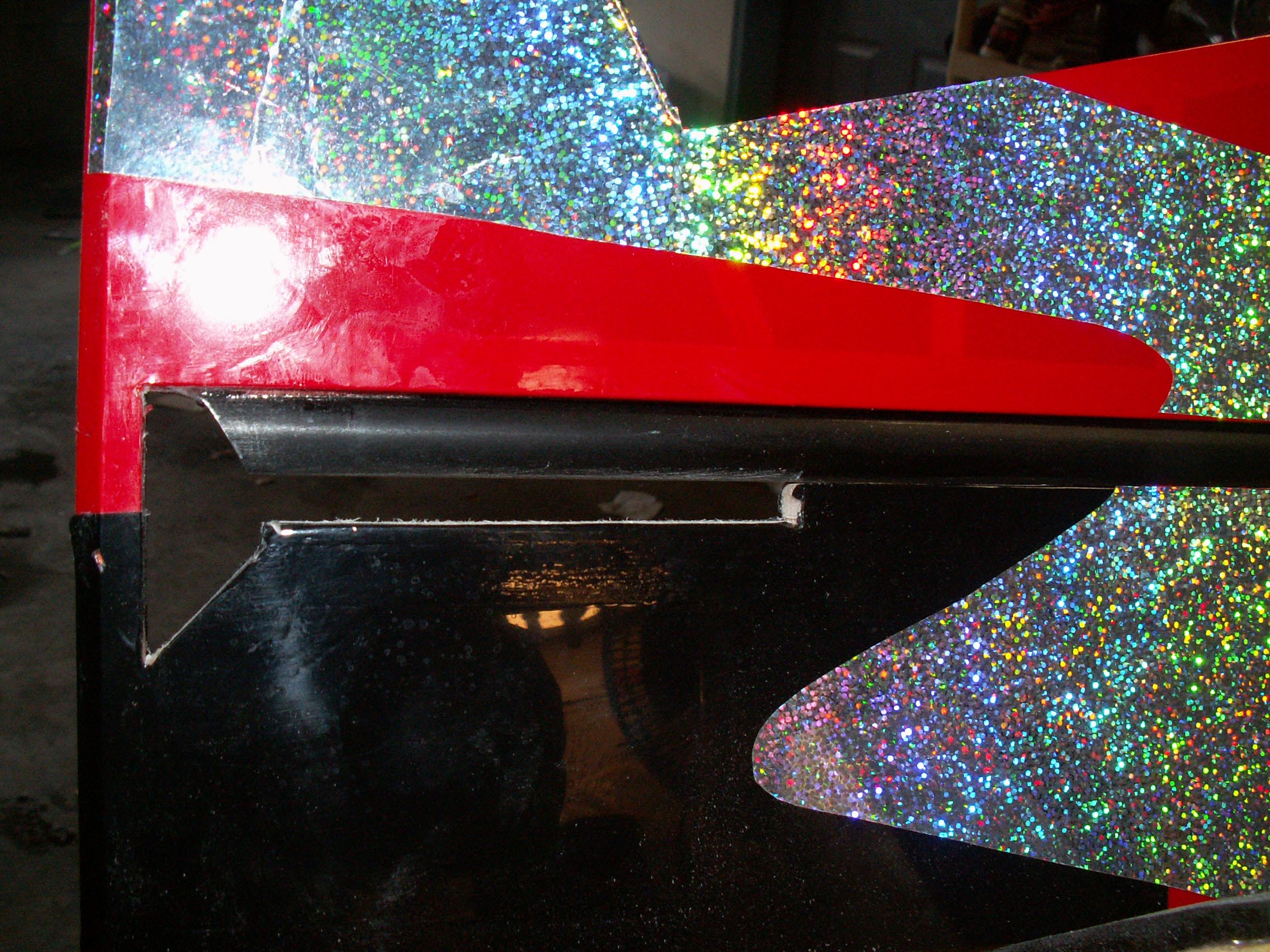

2272 / 1024 / 640 - Cut tube to clear elevator.

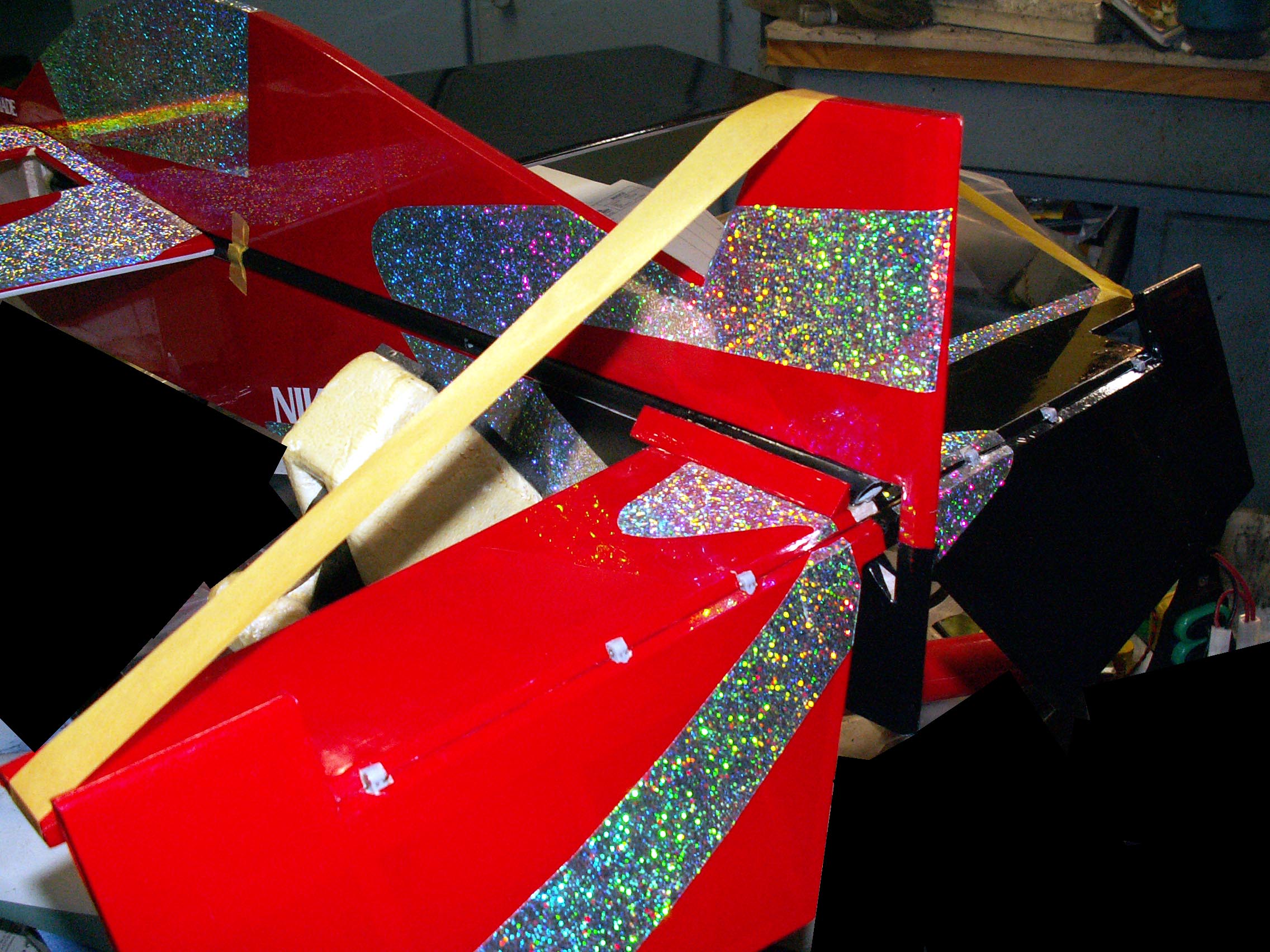

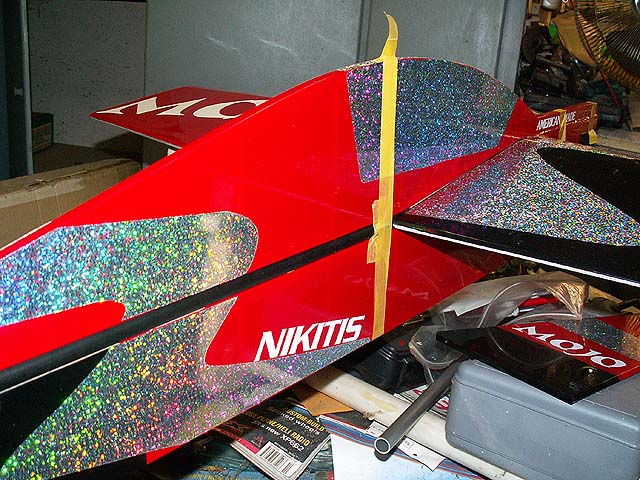

2272 / 1024 / 640 - Epoxy stab, tape to hold square.

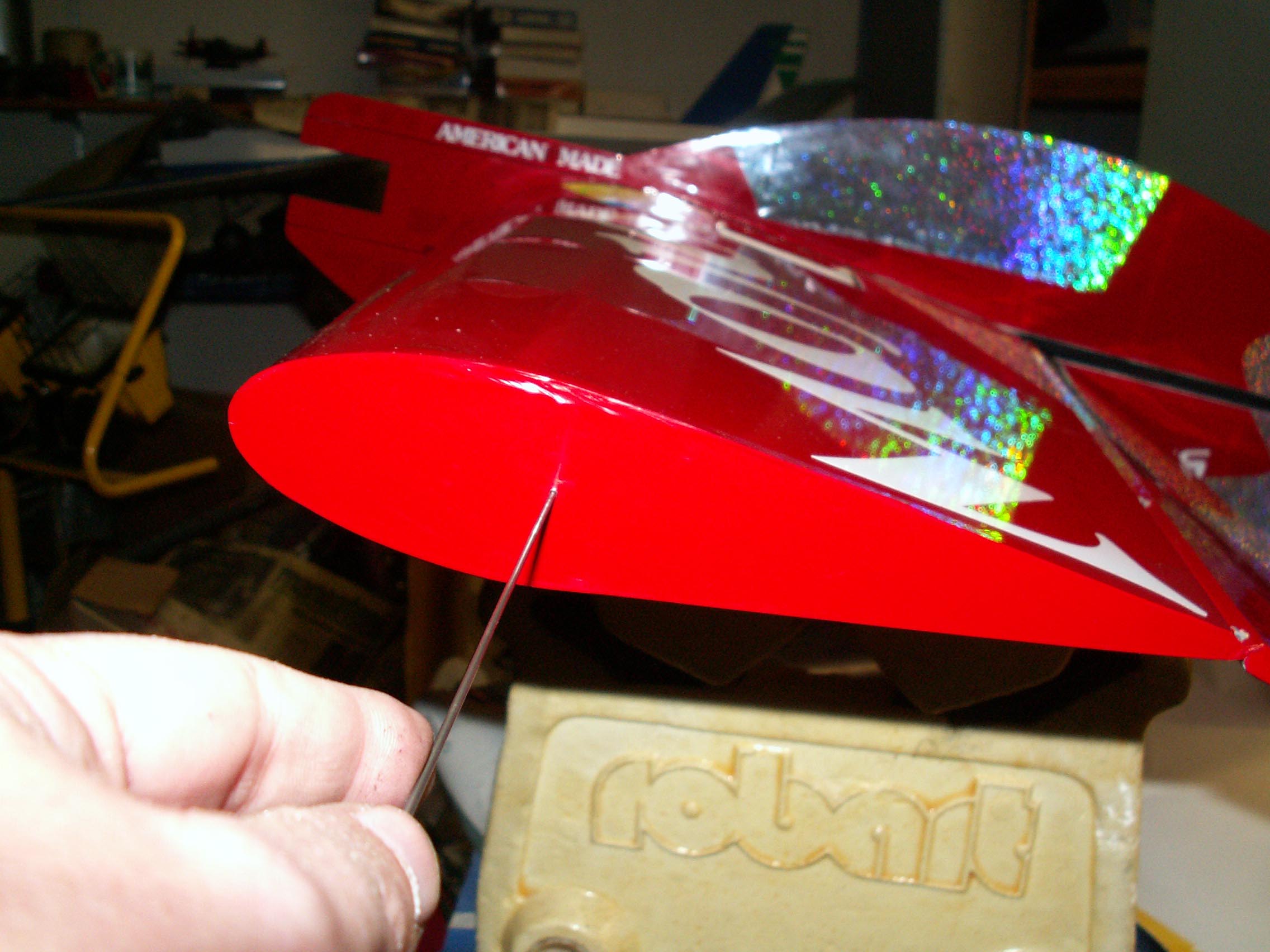

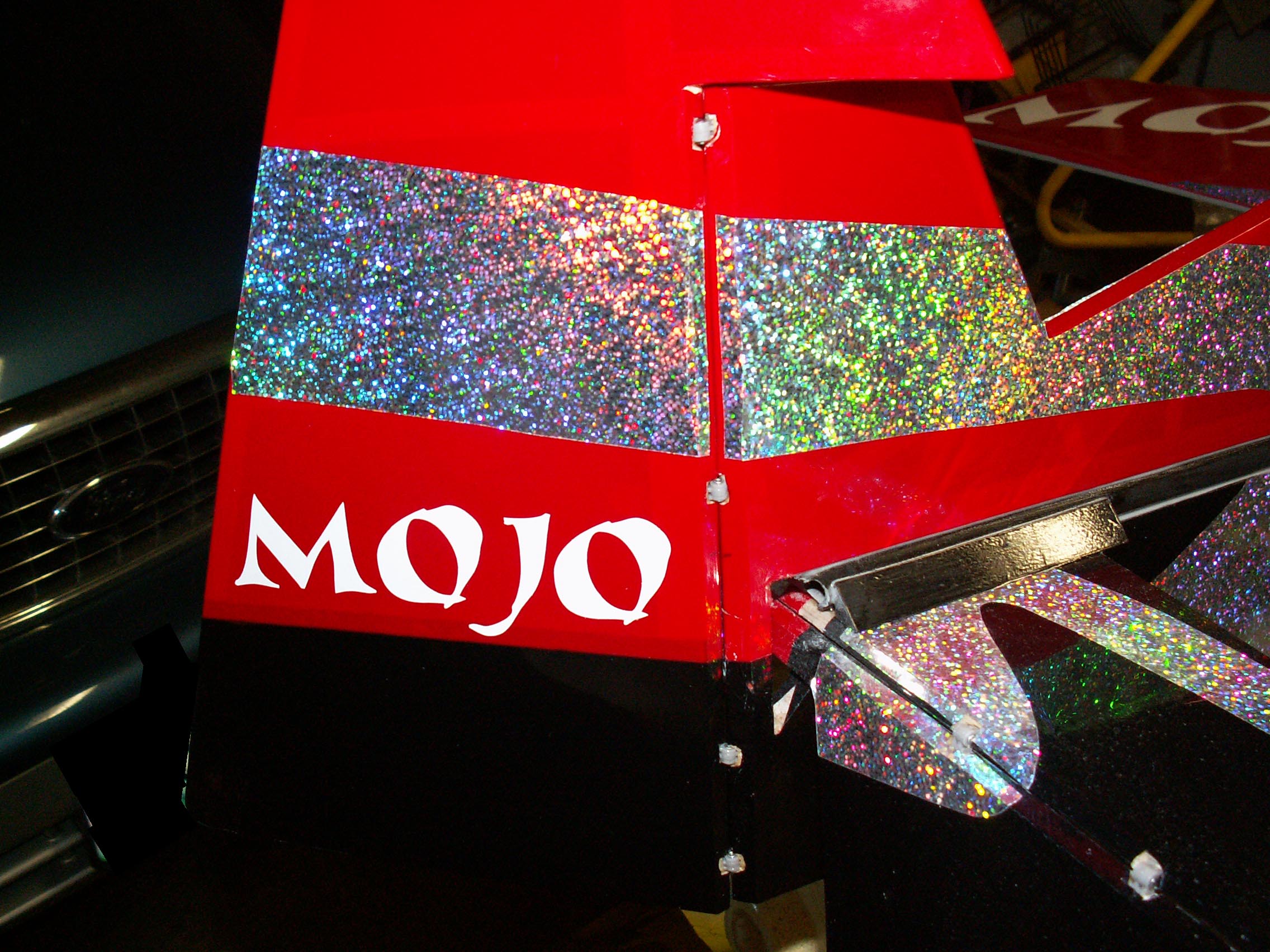

2272 / 1024 / 640 - Robart hinge points all around.

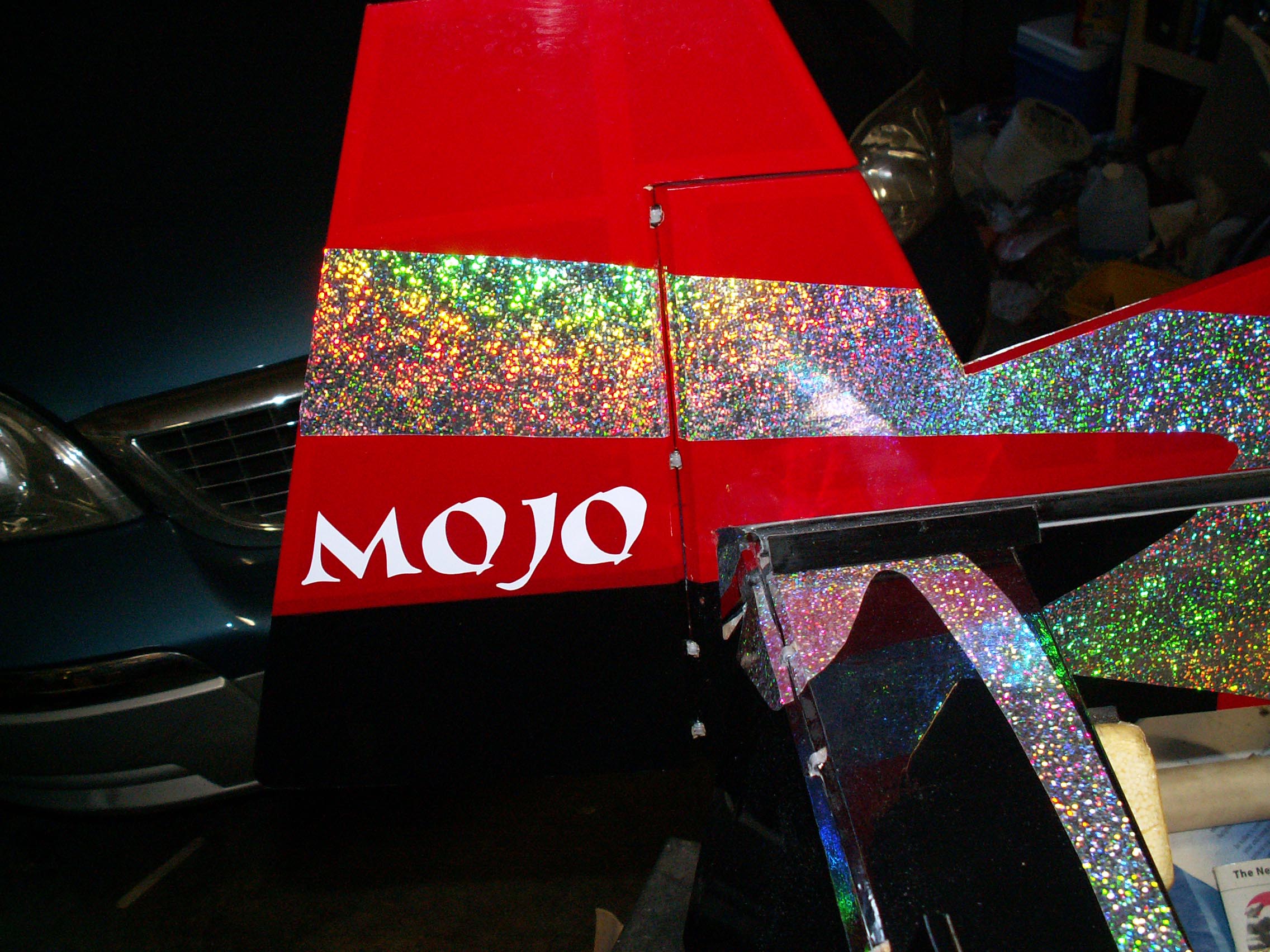

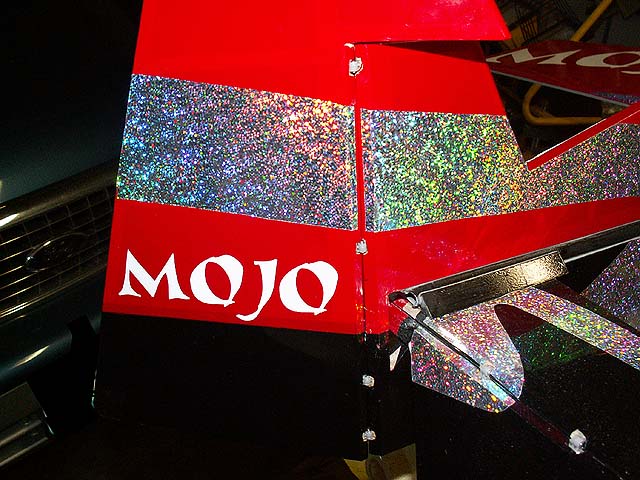

2272 / 1024 / 640 - Rudder hinged.
2272 / 1024 / 640 -

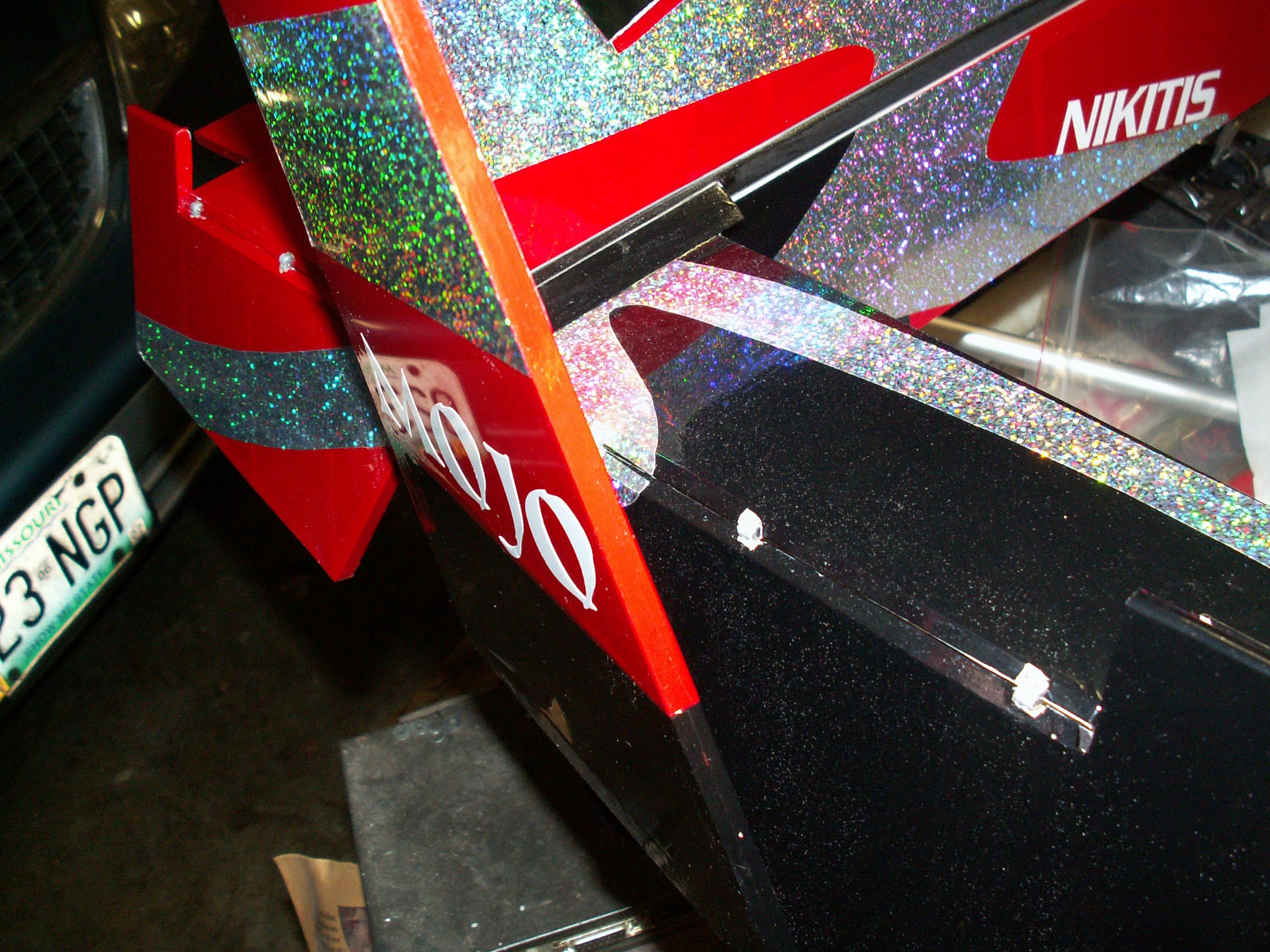

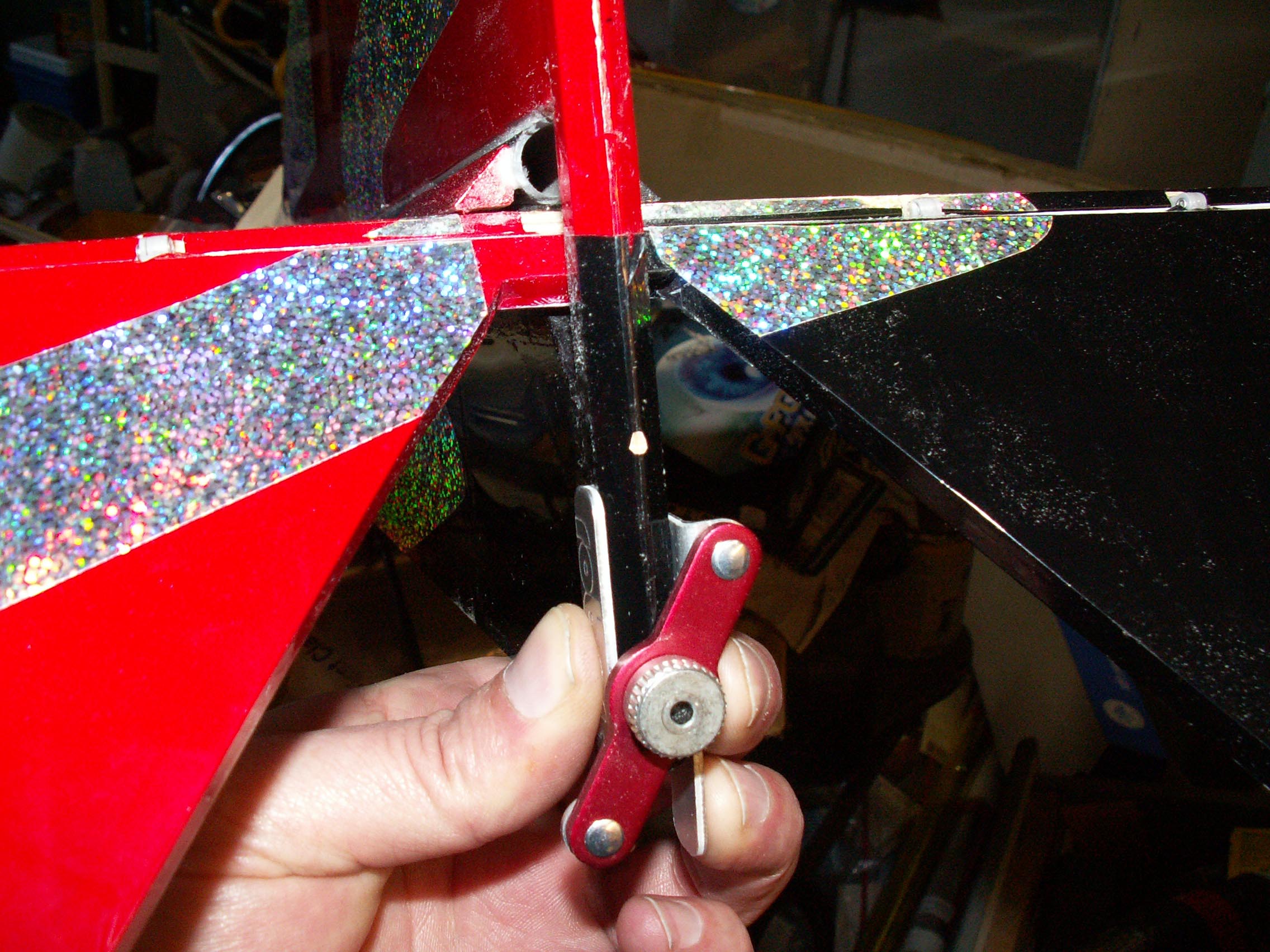

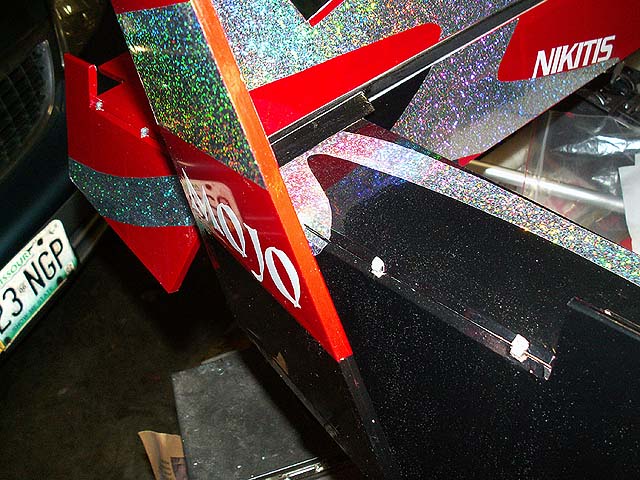

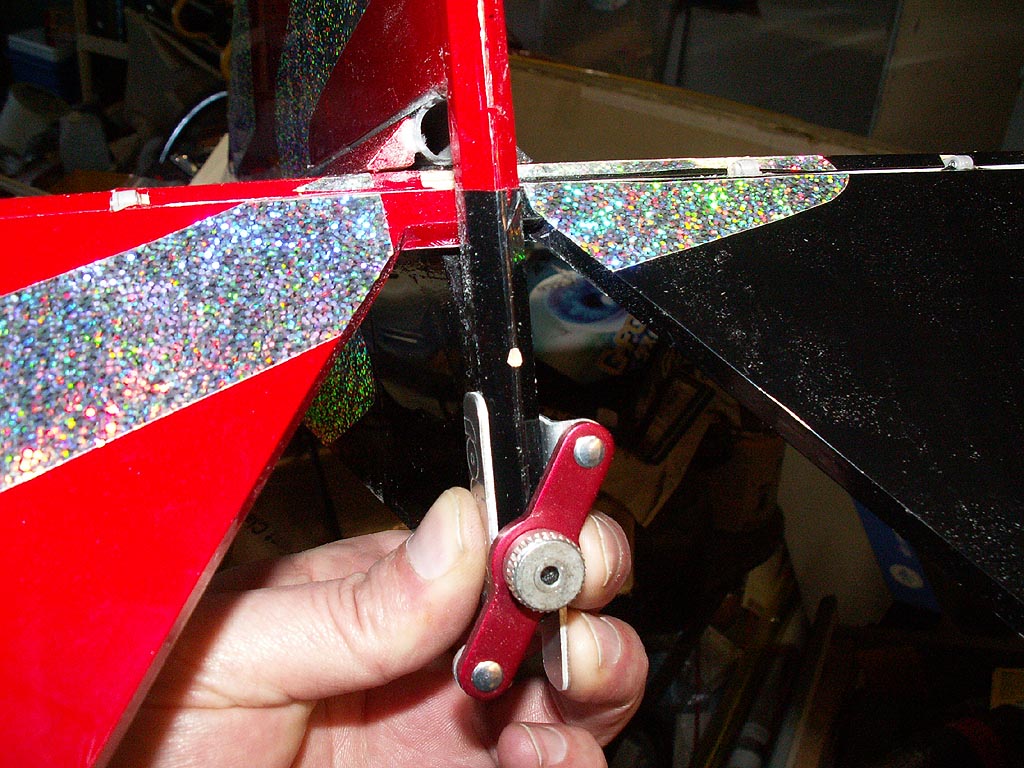

2272 / 1024 / 640 - 90 degree bind-free movement.

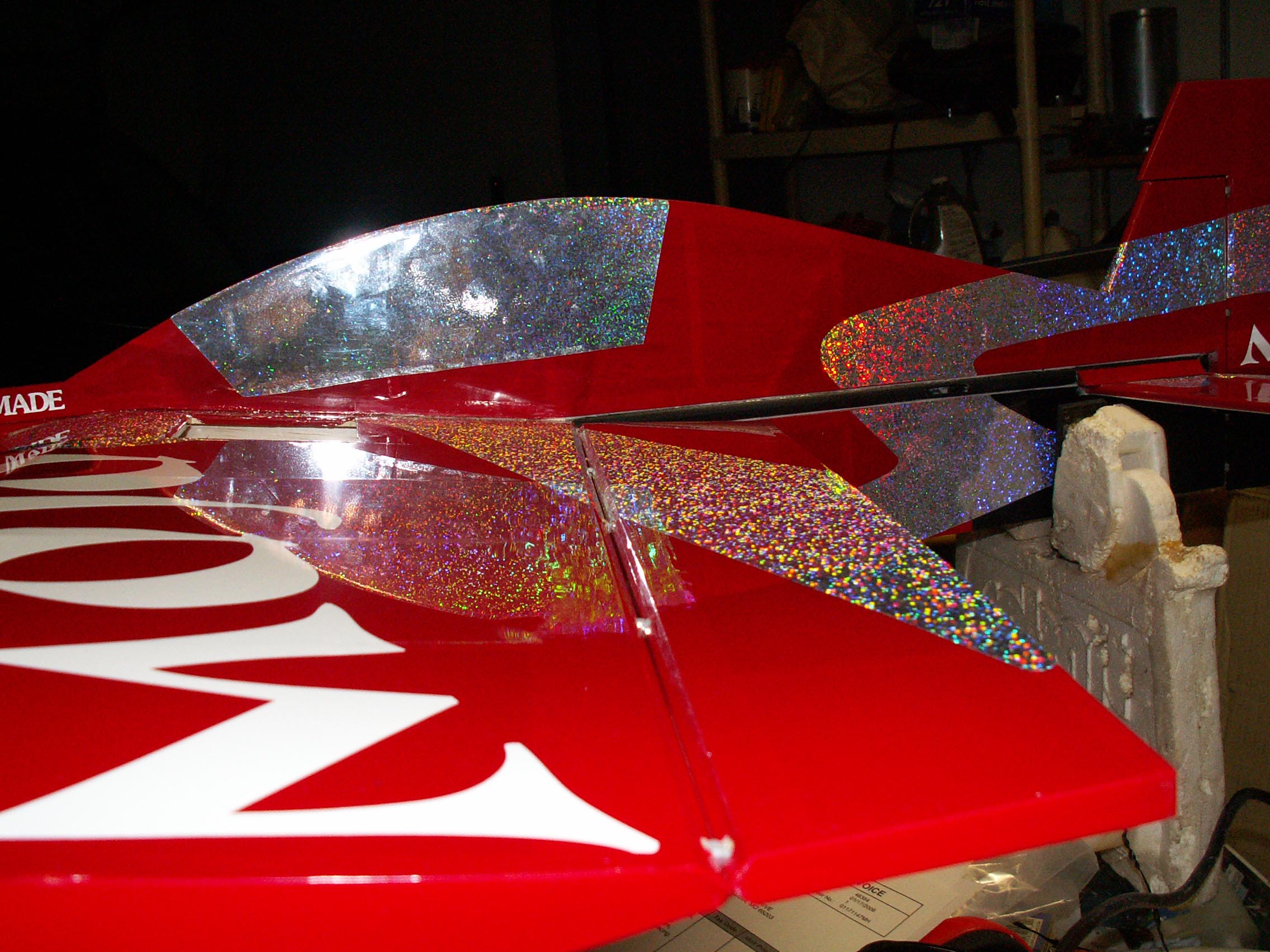

2272 / 1024 / 640 - Hinge the ailerons.

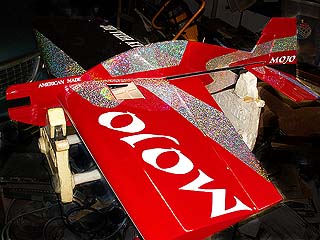

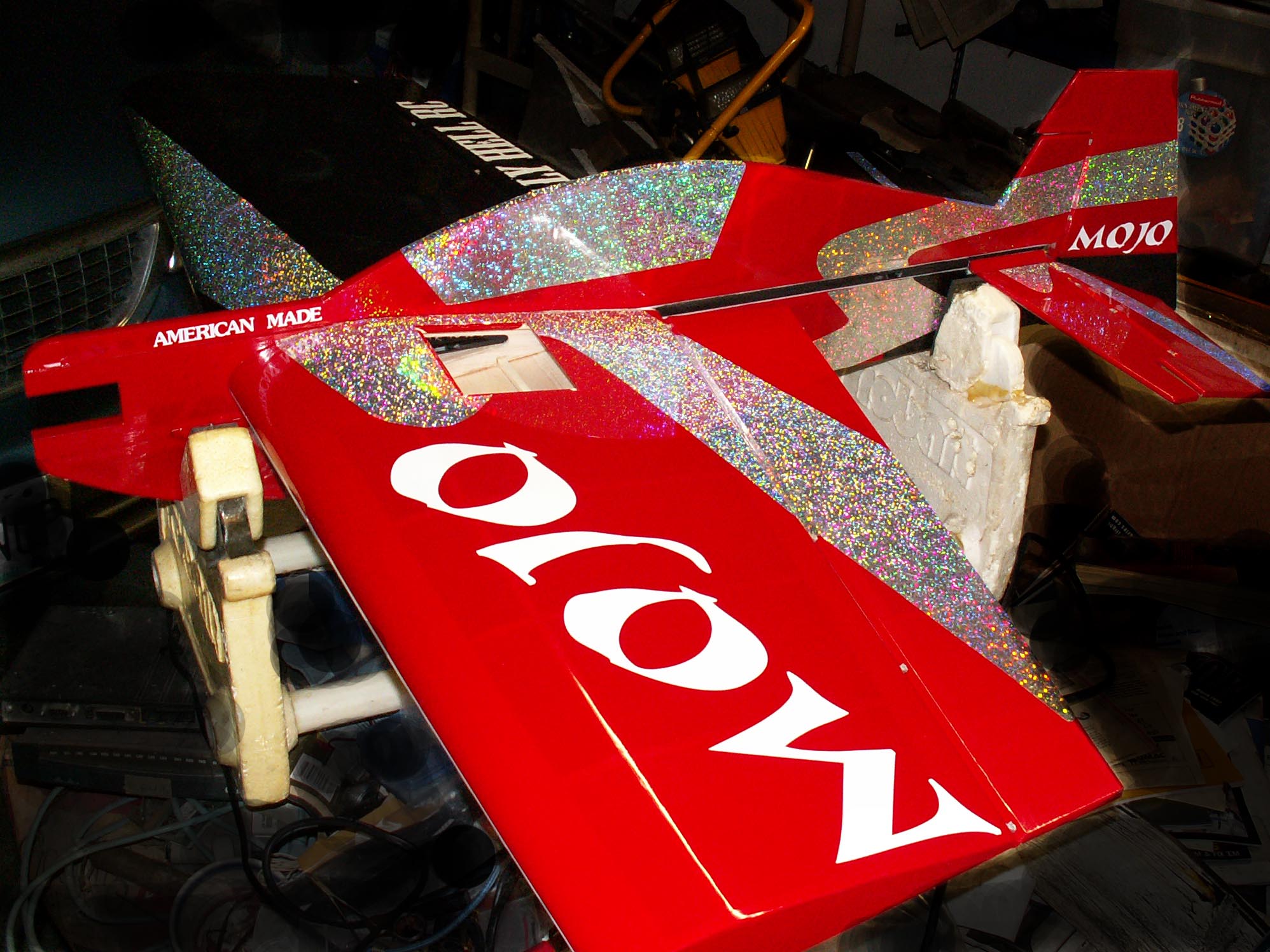

2272 / 1024 / 640 - Airframe complete!

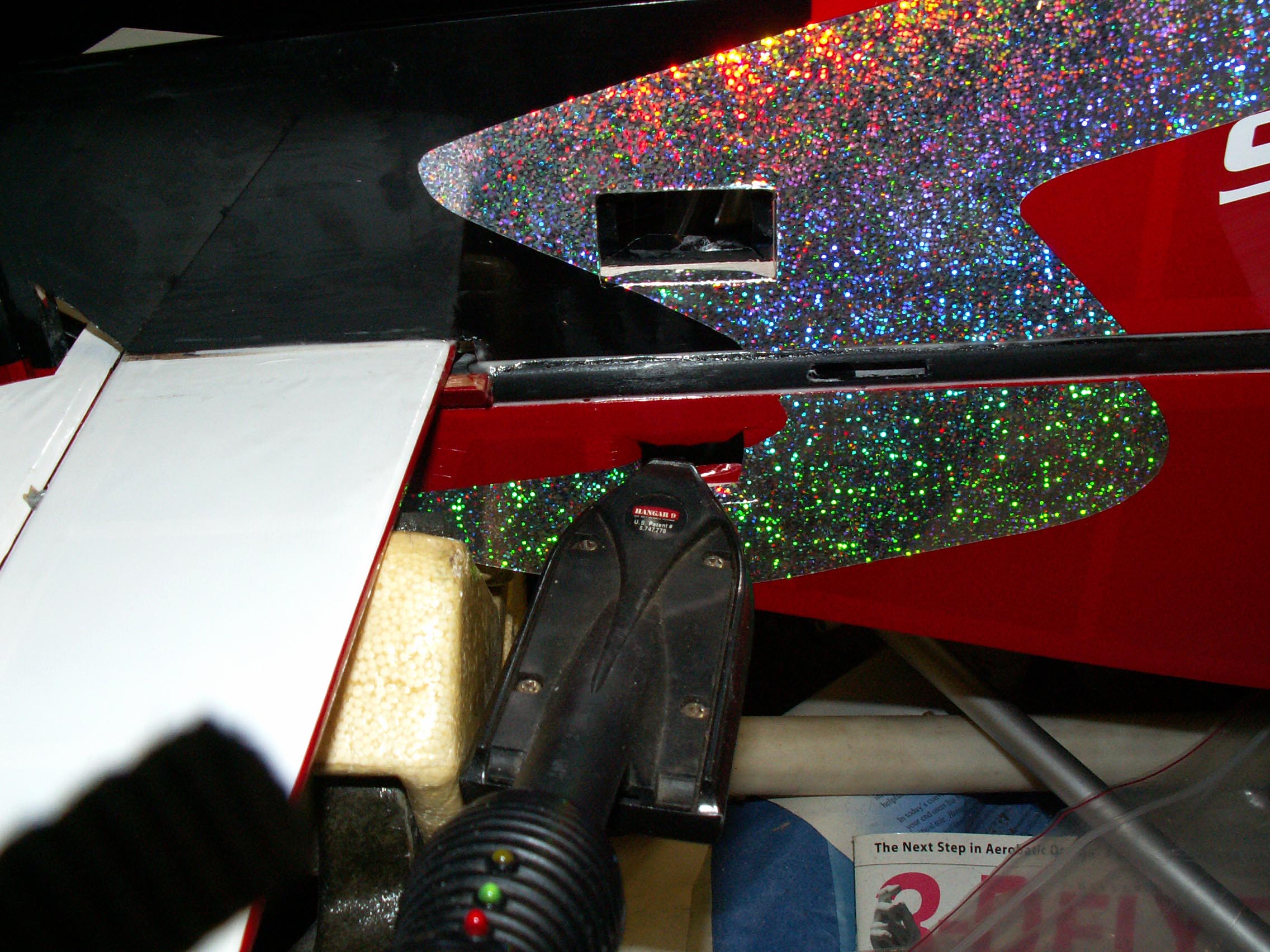

2272 / 1024 / 640 - Open holes for tail servos.

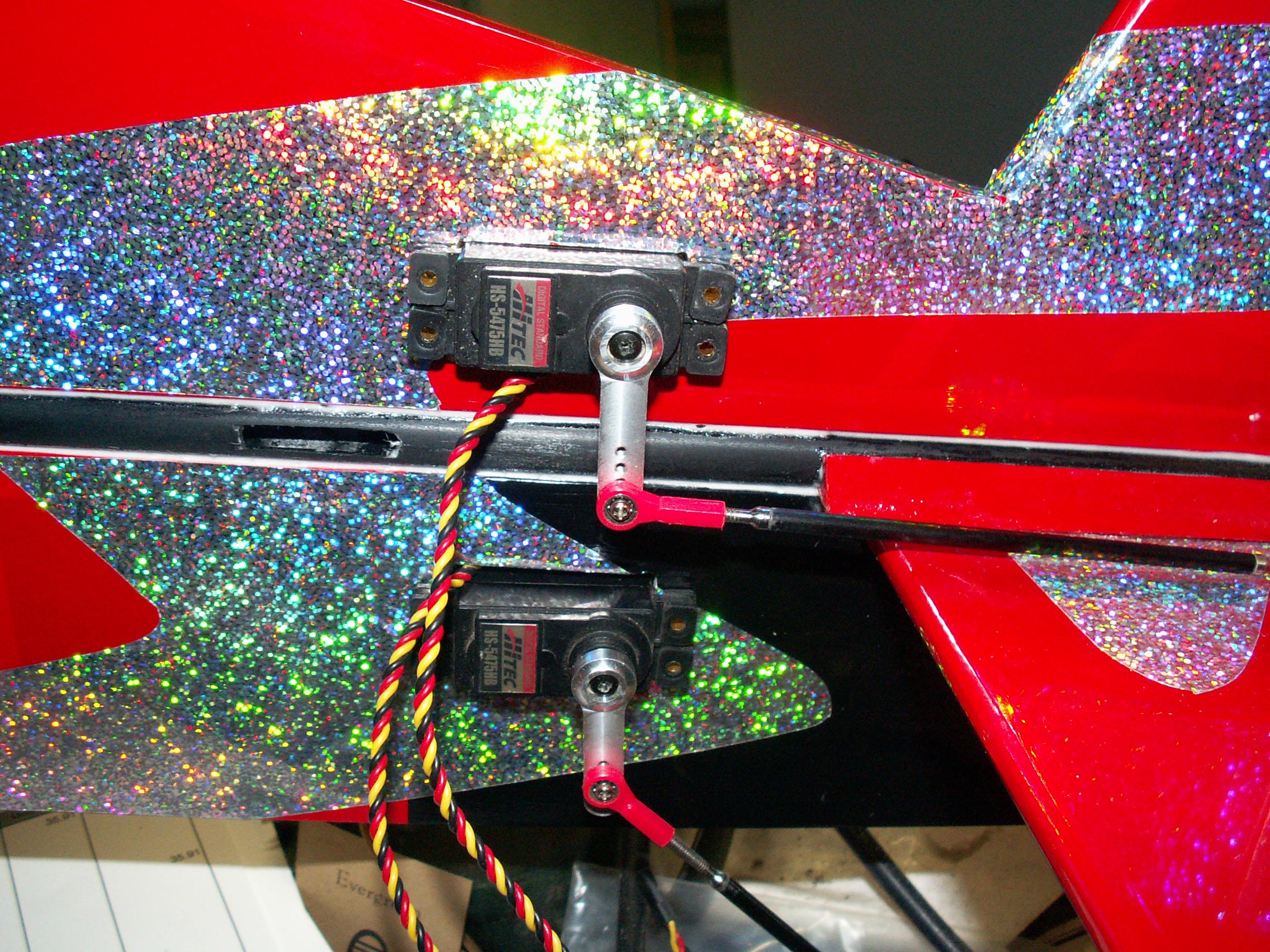

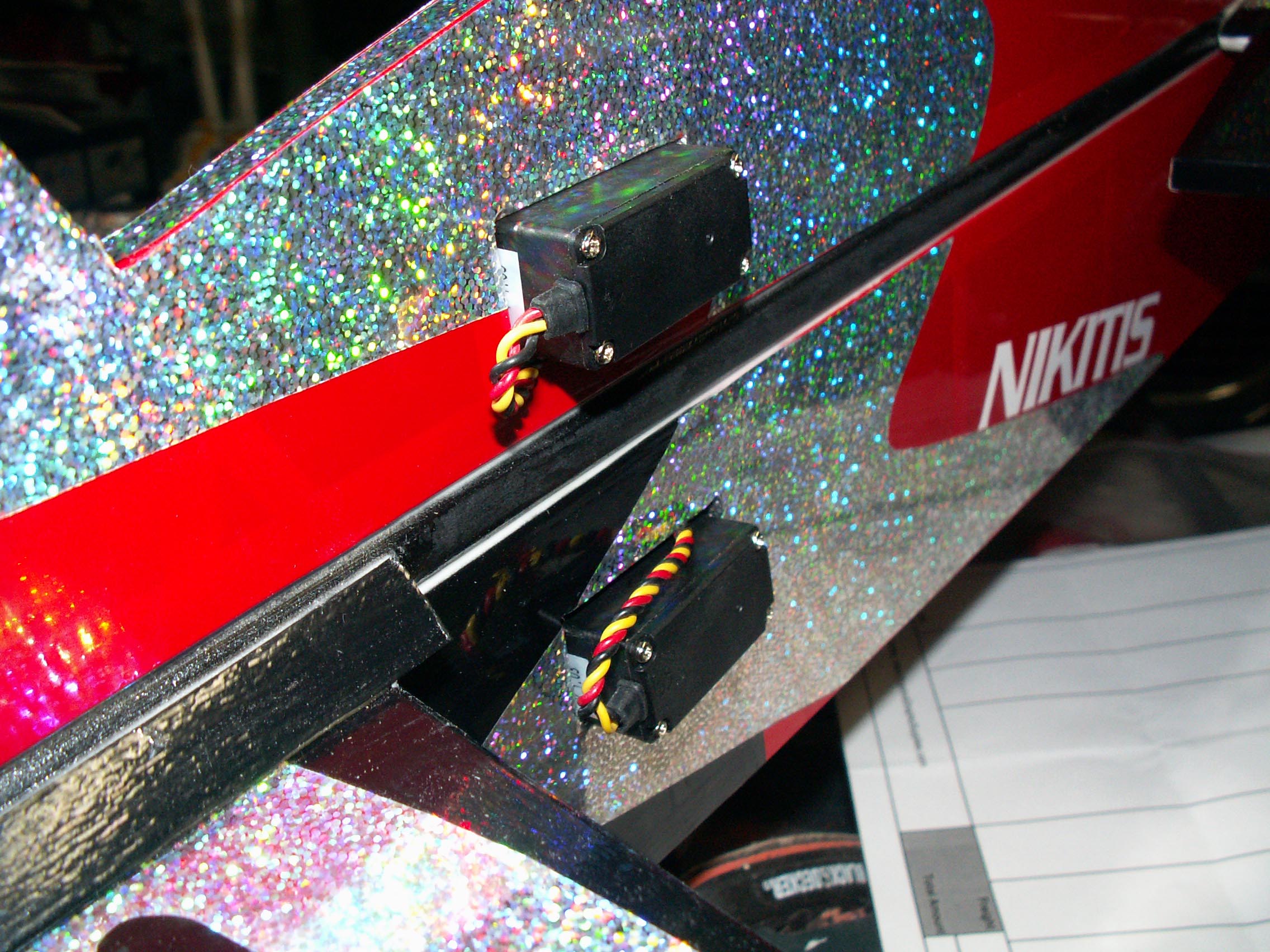

2272 / 1024 / 640 - Install tail servos.
2272 / 1024 / 640 - Slime side. :-)

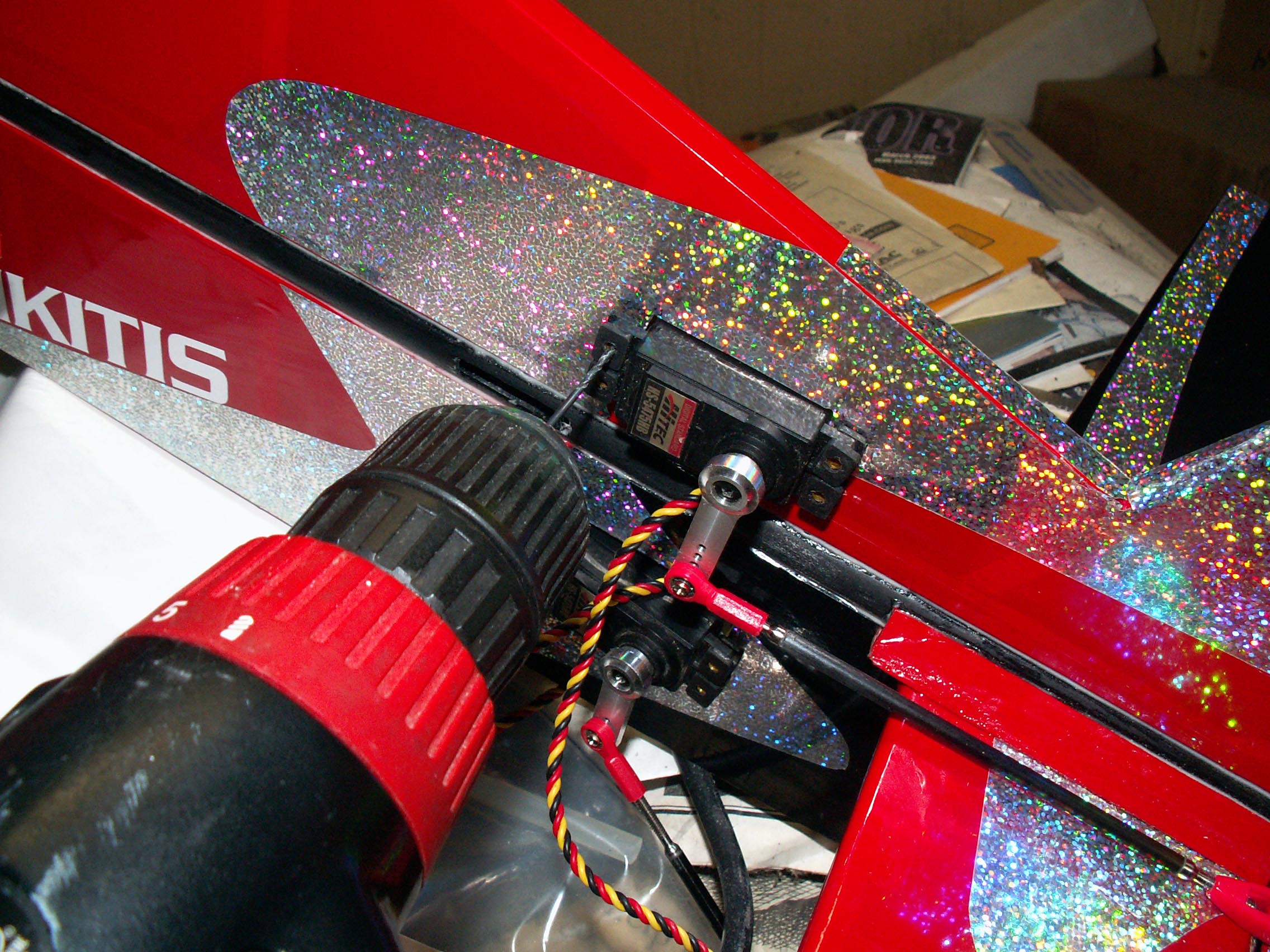

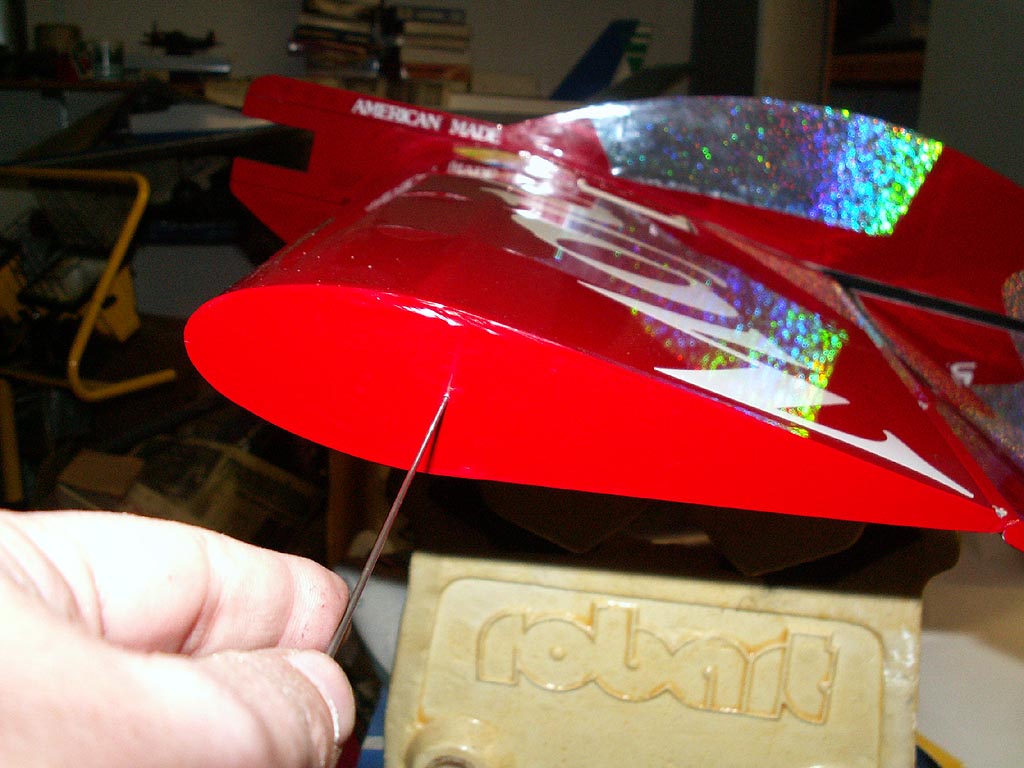

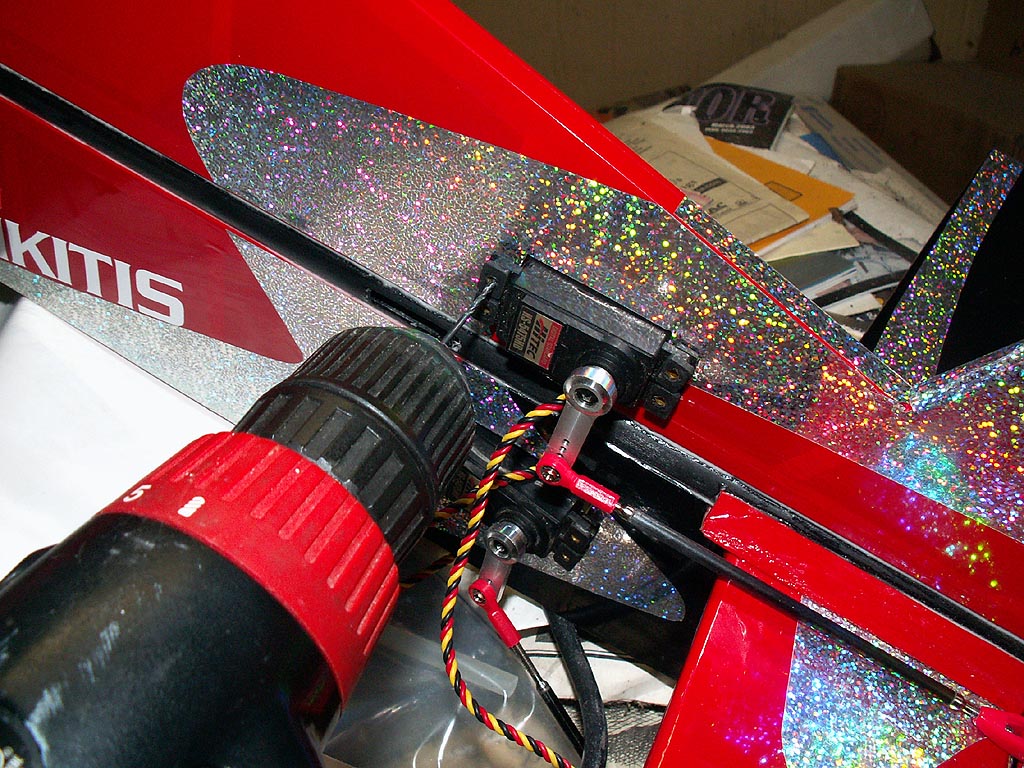

2272 / 1024 / 640 - Drill pilot-holes for screws.
2272 / 1024 / 640 - Reused expensive hardware, again. Overkill, but already on hand.
2272 / 1024 / 640 - Swany-style servo extensions.

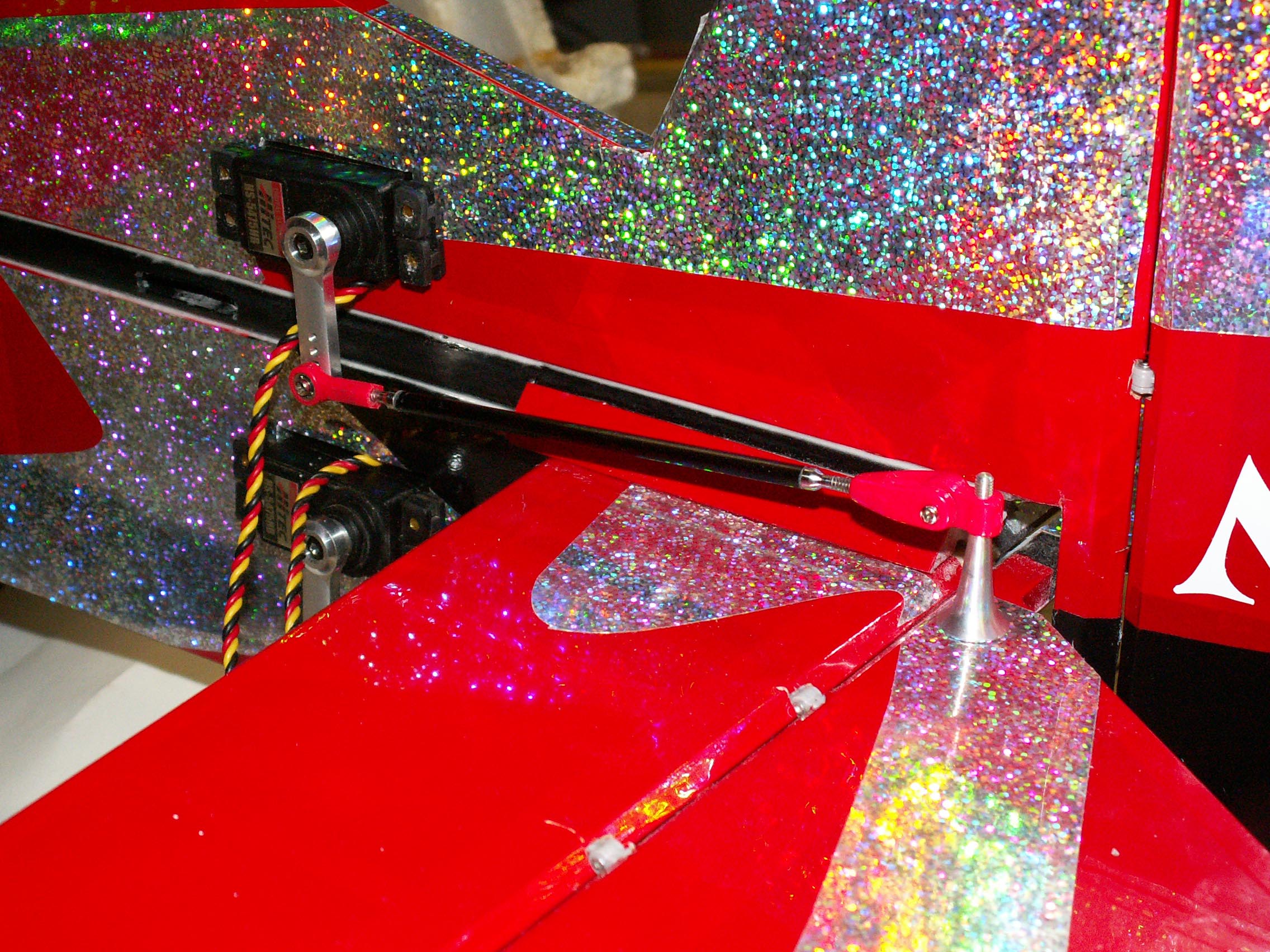

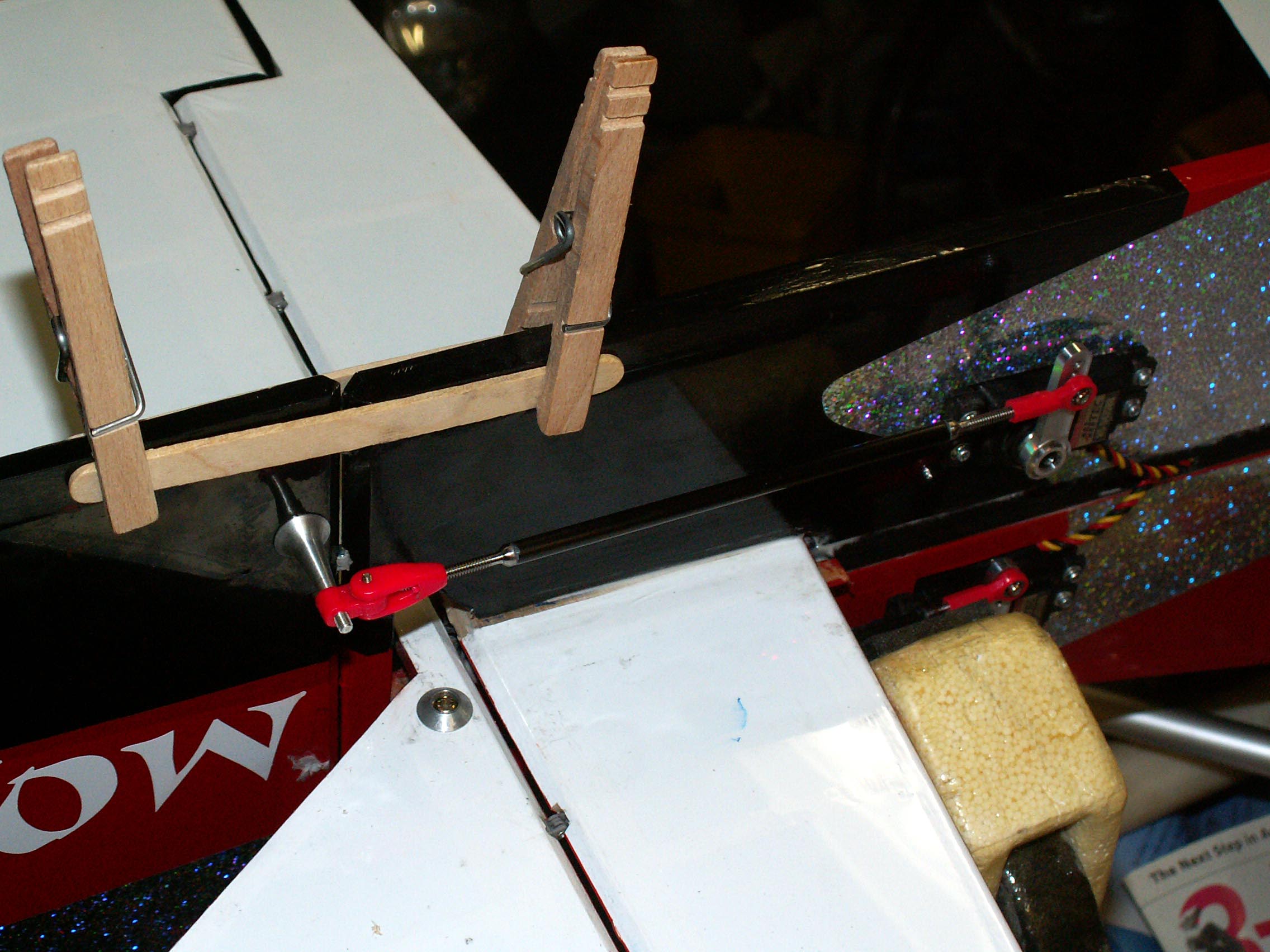

2272 / 1024 / 640 - Setup linkage for rudder.

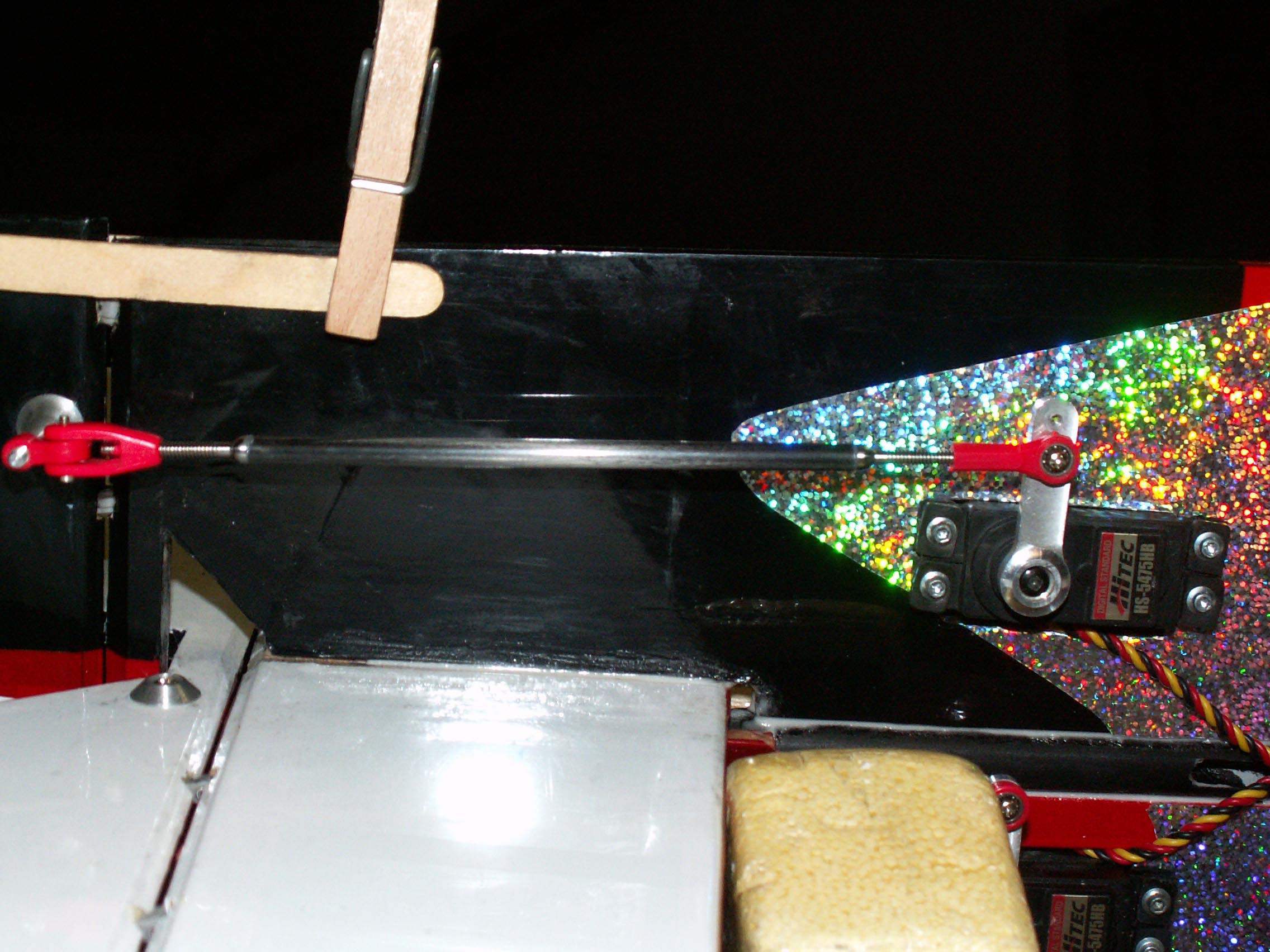

2272 / 1024 / 640 - CF rods with titanium ends.

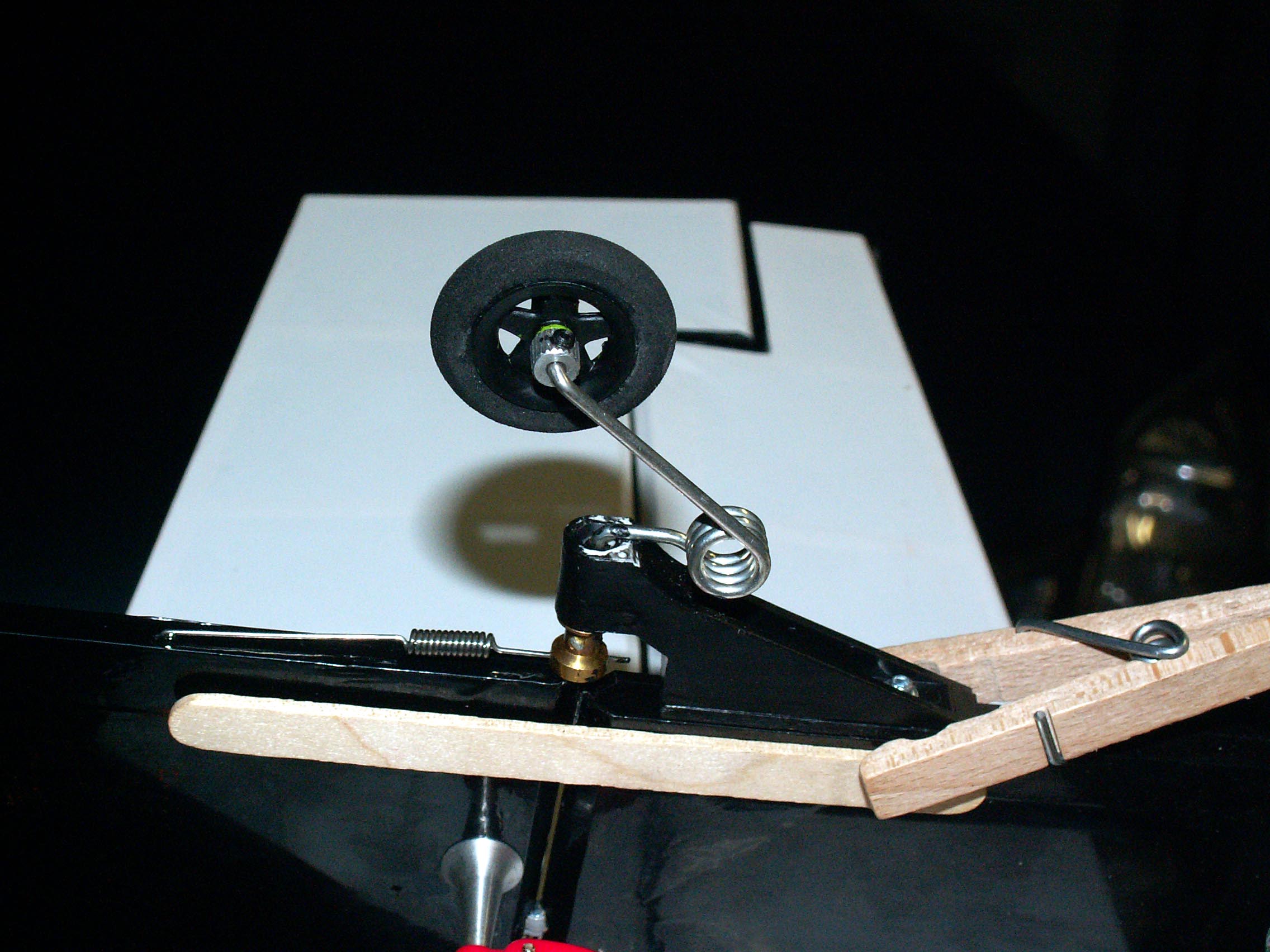

2272 / 1024 / 640 - Sullivan tailwheel, painted black.

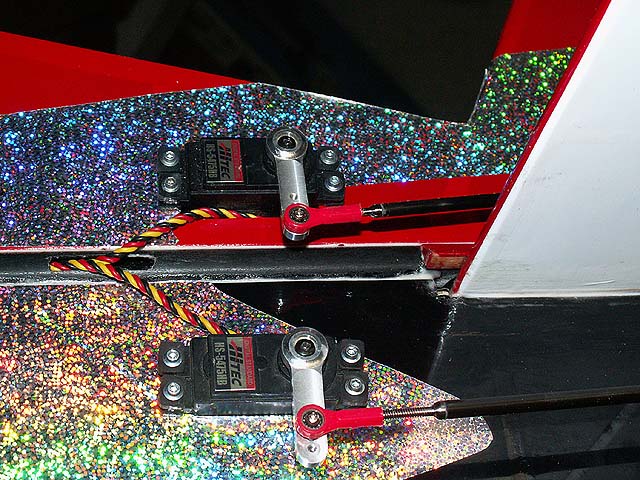

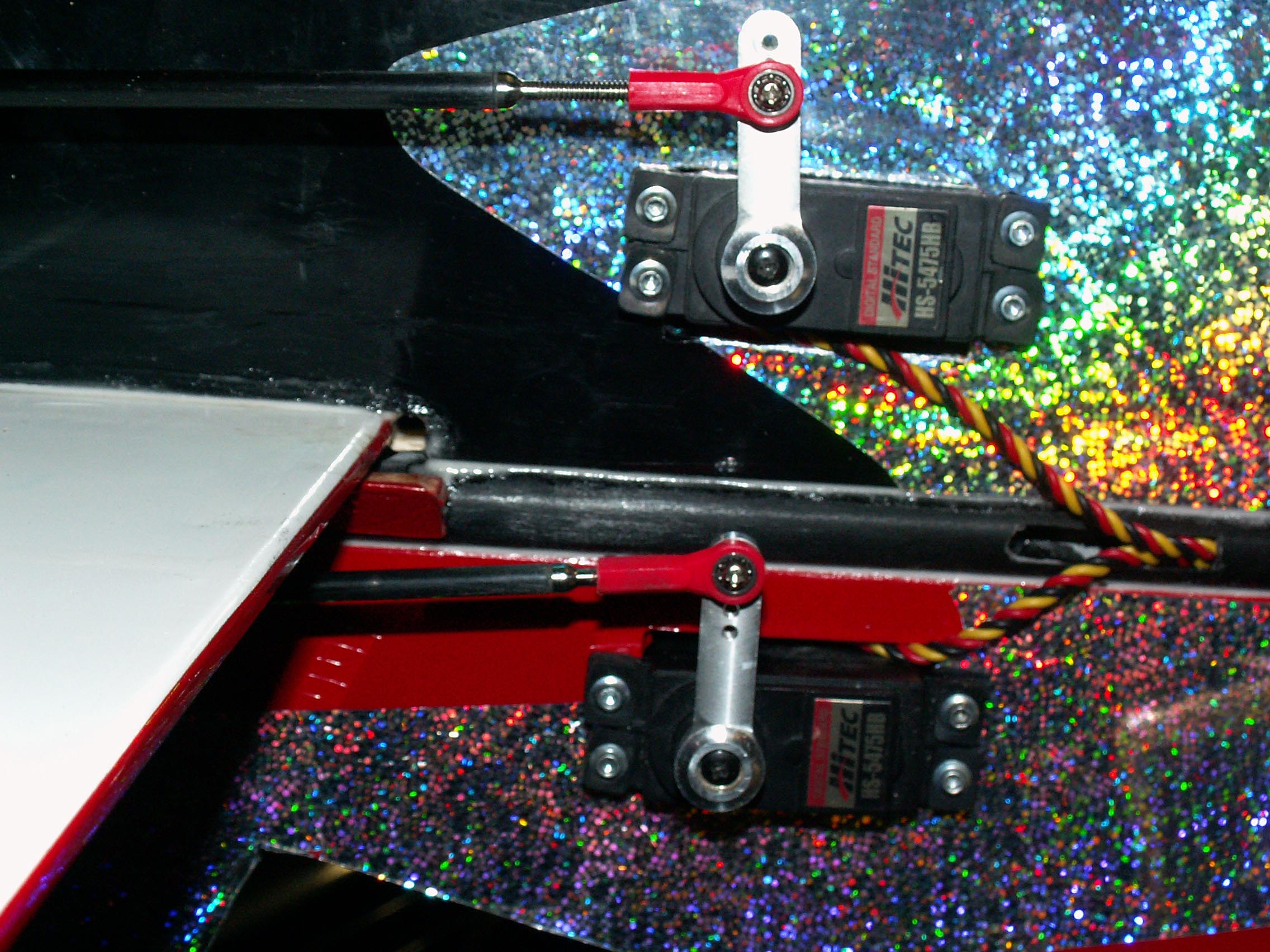

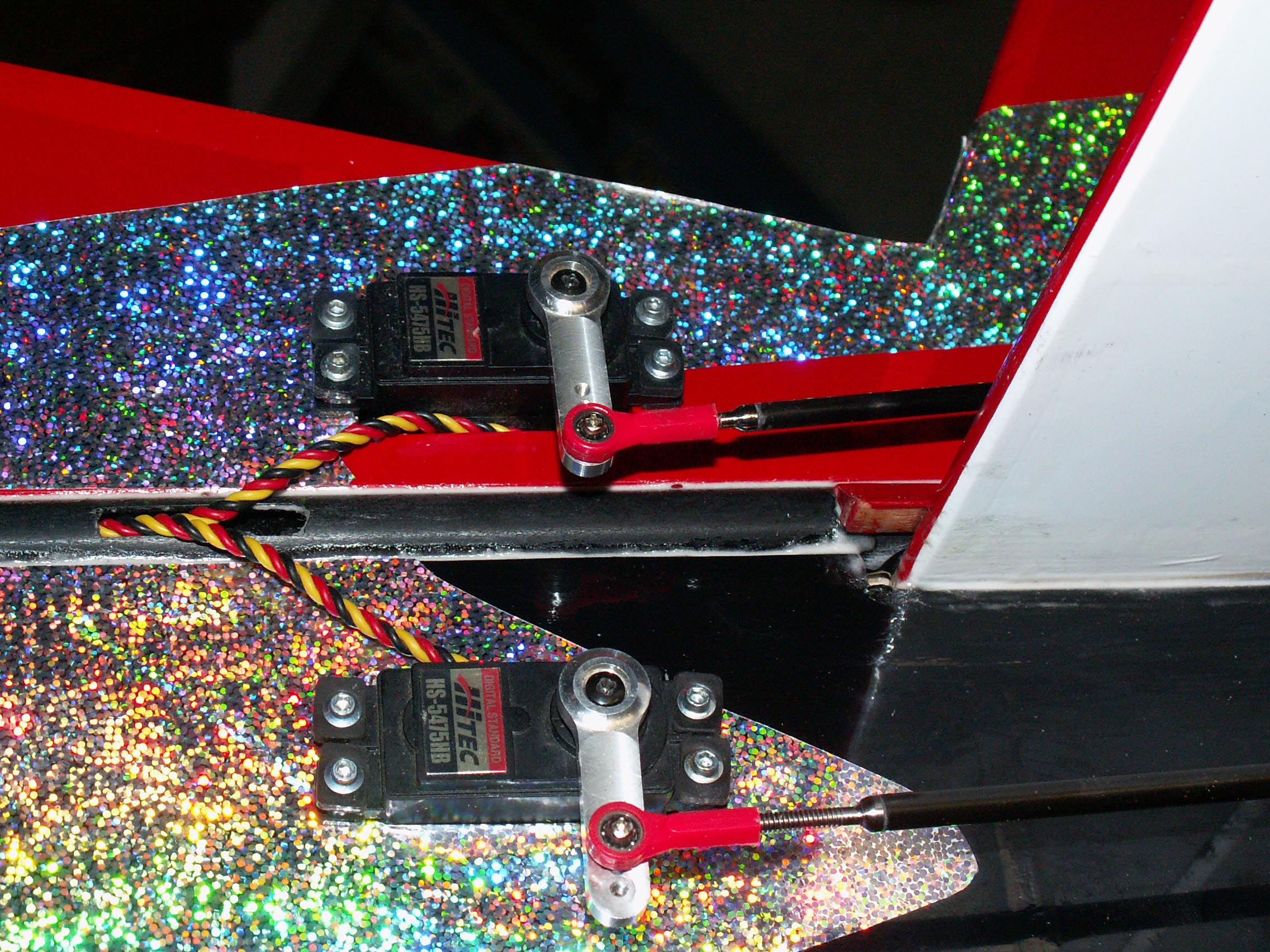

2272 / 1024 / 640 - Tail servos done.
2272 / 1024 / 640 -
2272 / 1024 / 640 - Installed RX next.
2272 / 1024 / 640 - I used Paul's method for running antenna... worked very well.
2272 / 1024 / 640 -

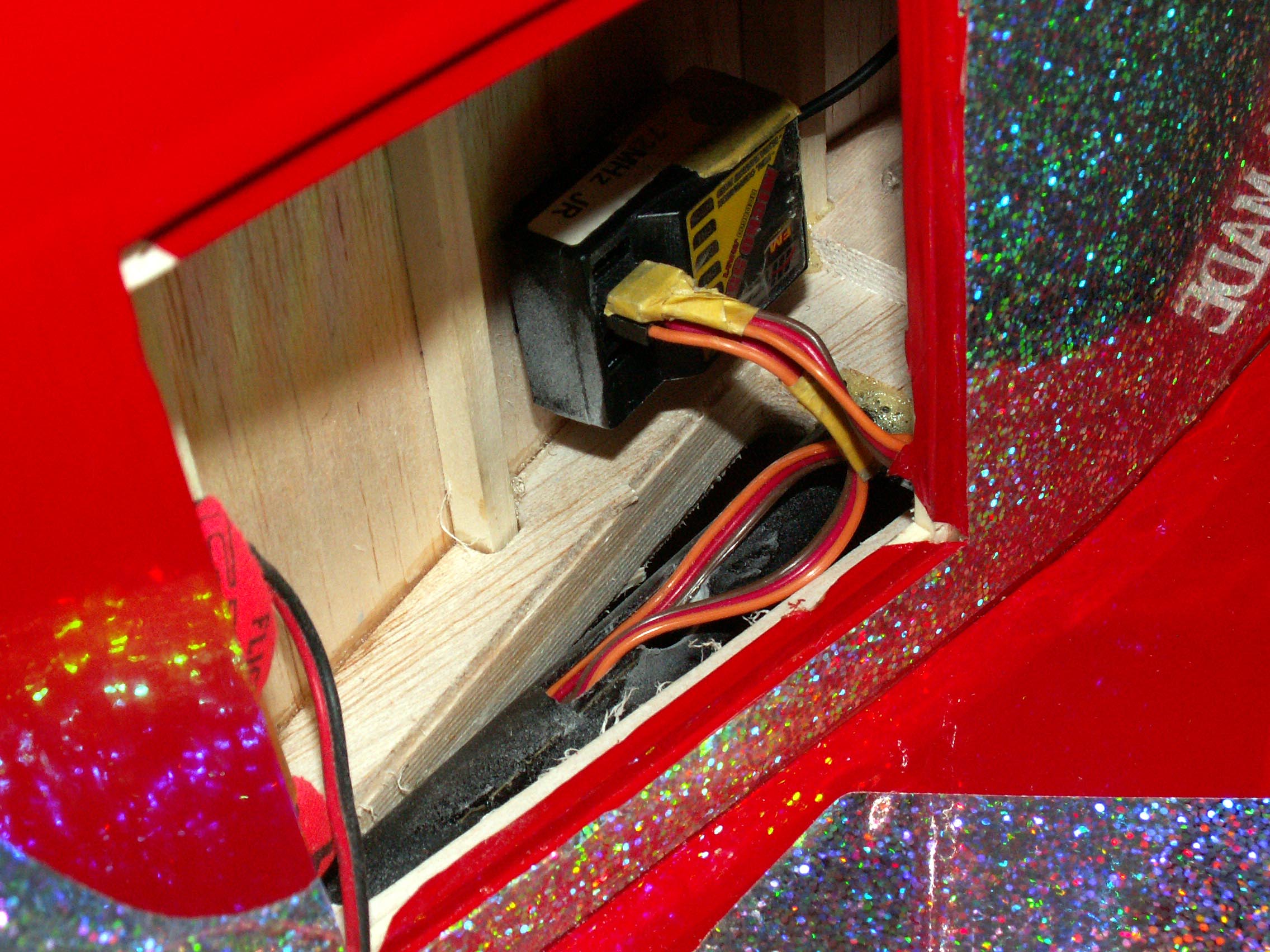

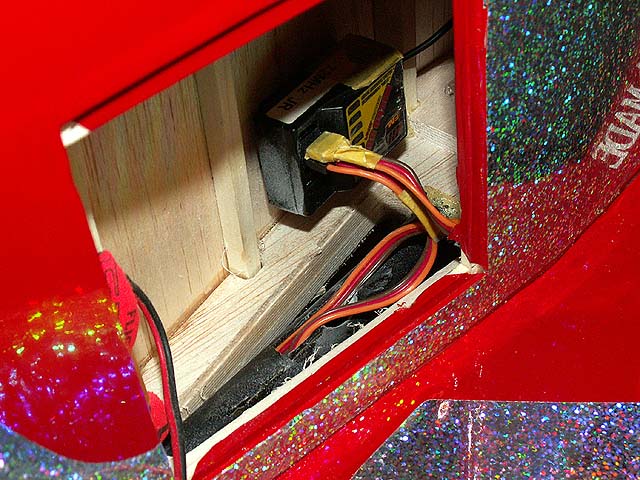

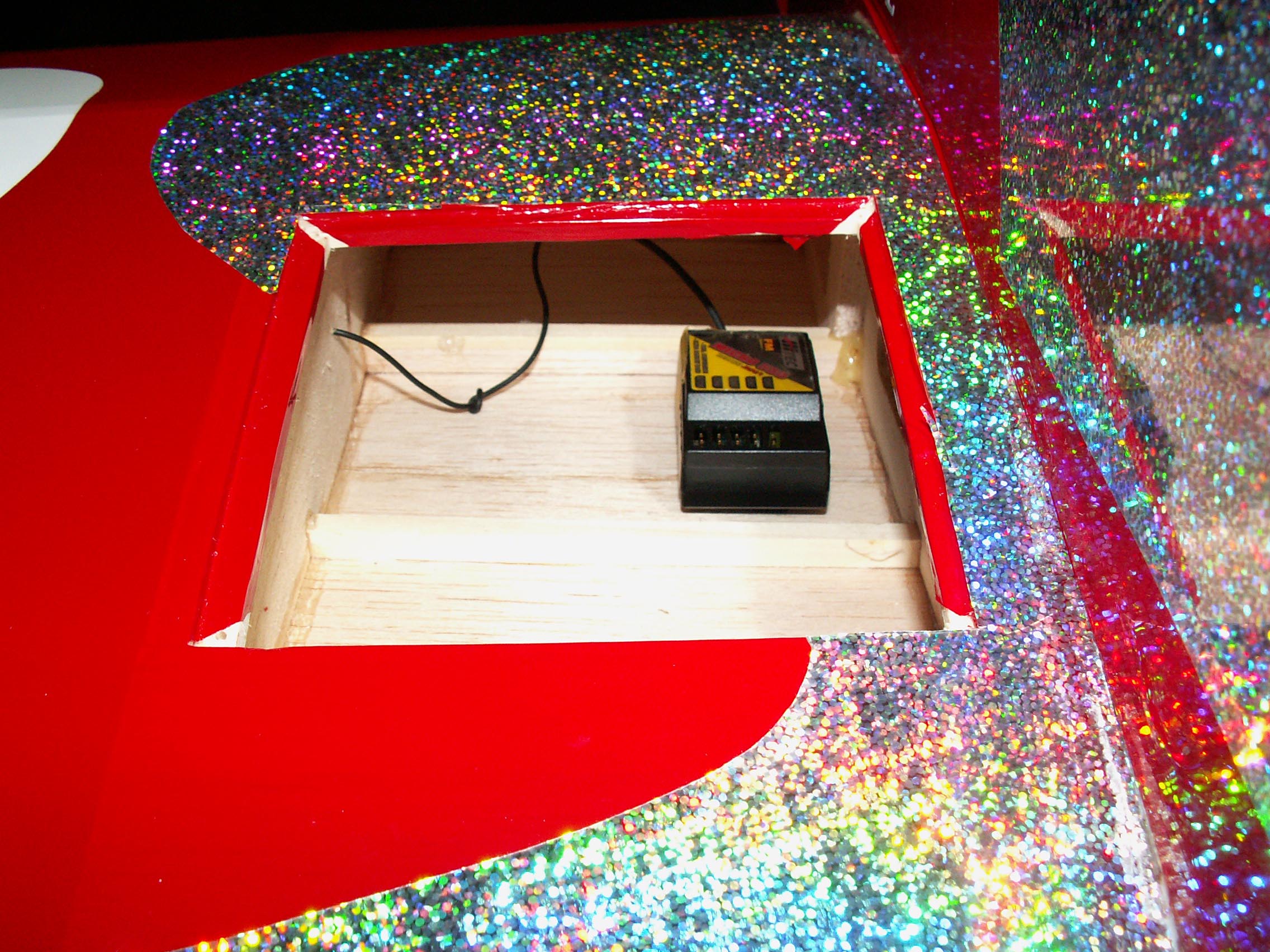

2272 / 1024 / 640 - RX attached with velcro. I'll fill the bay with foam later.
