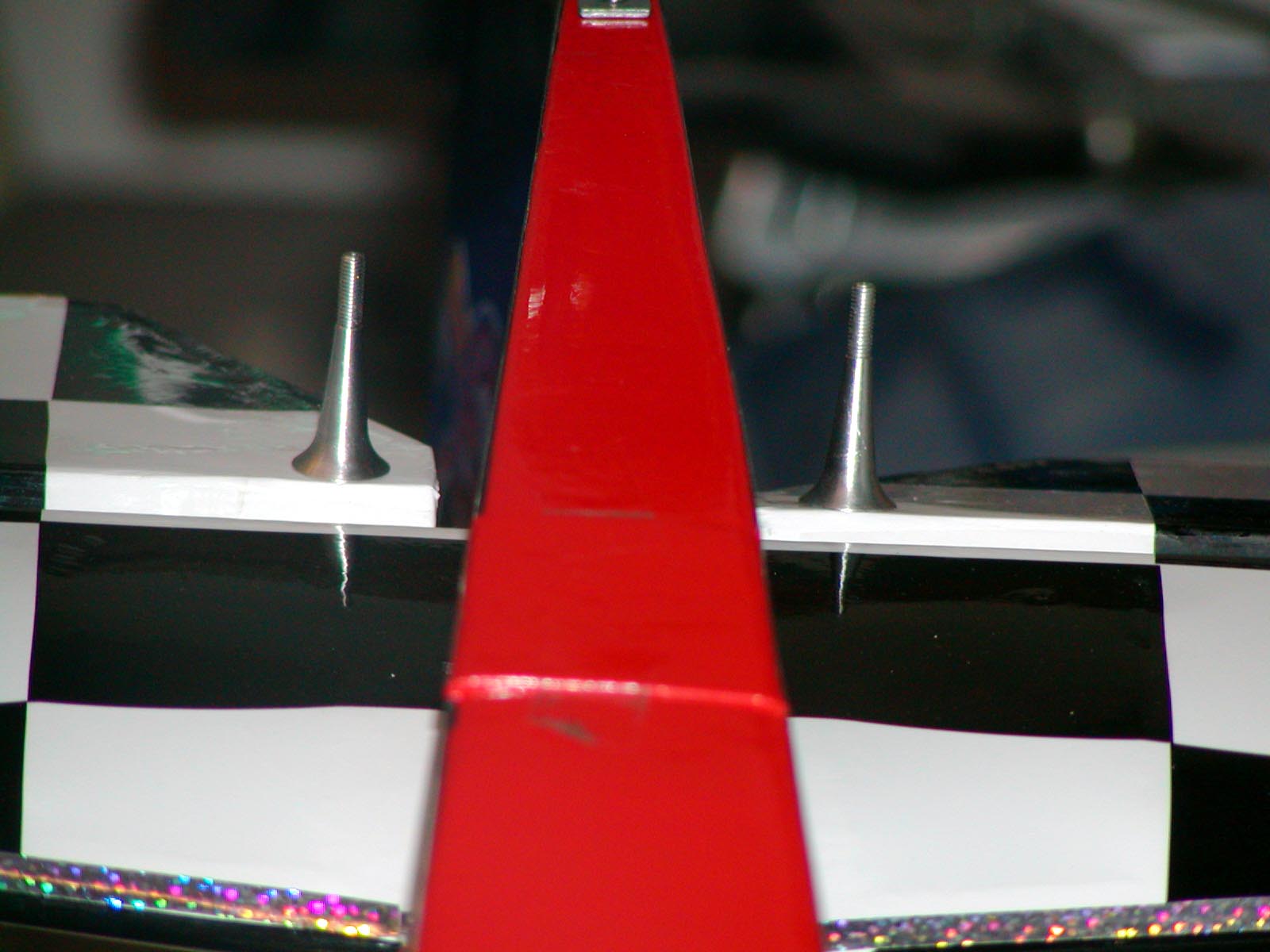

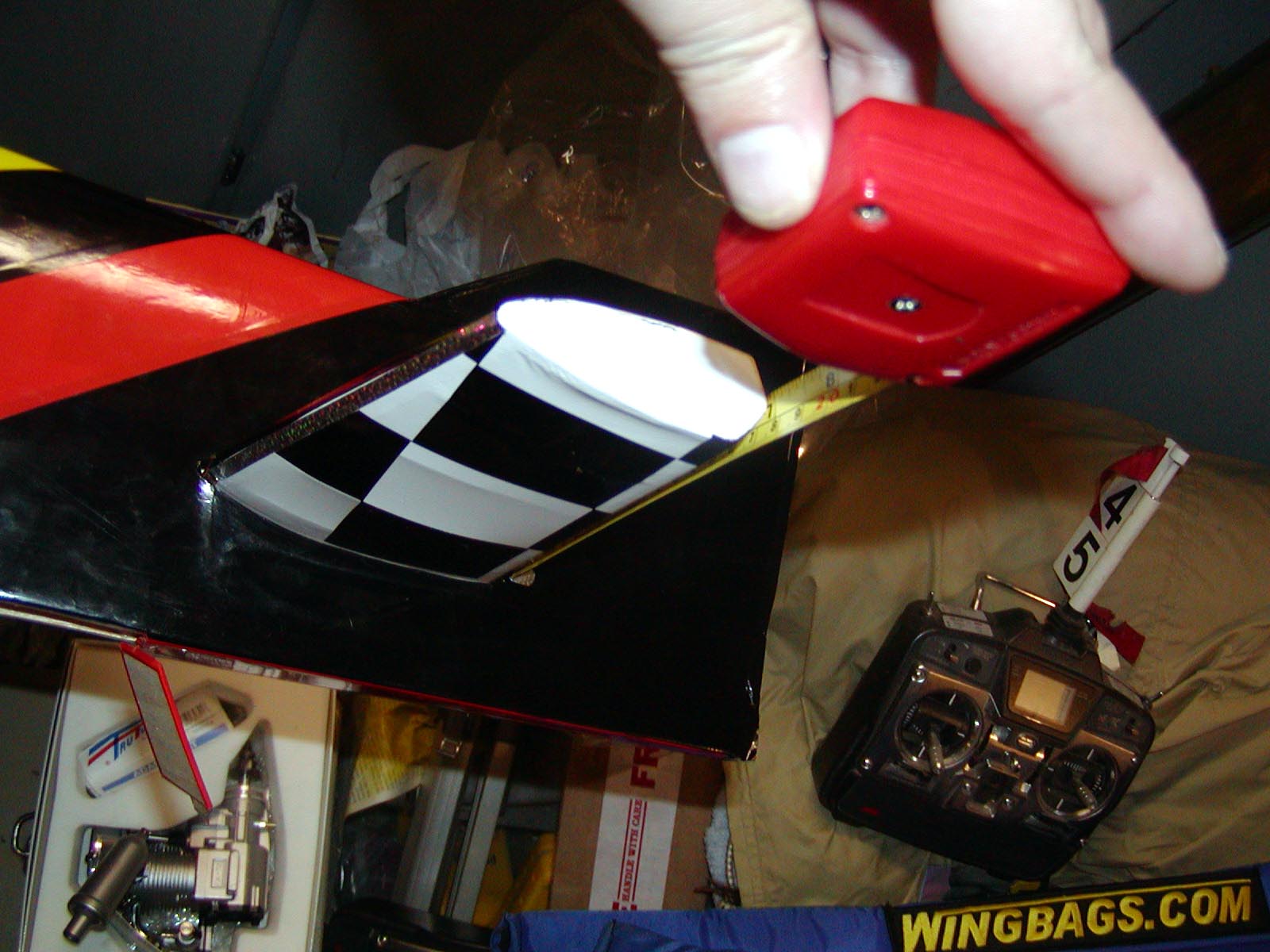

1600 / 1024 / 640 - Measure for stab alignment.

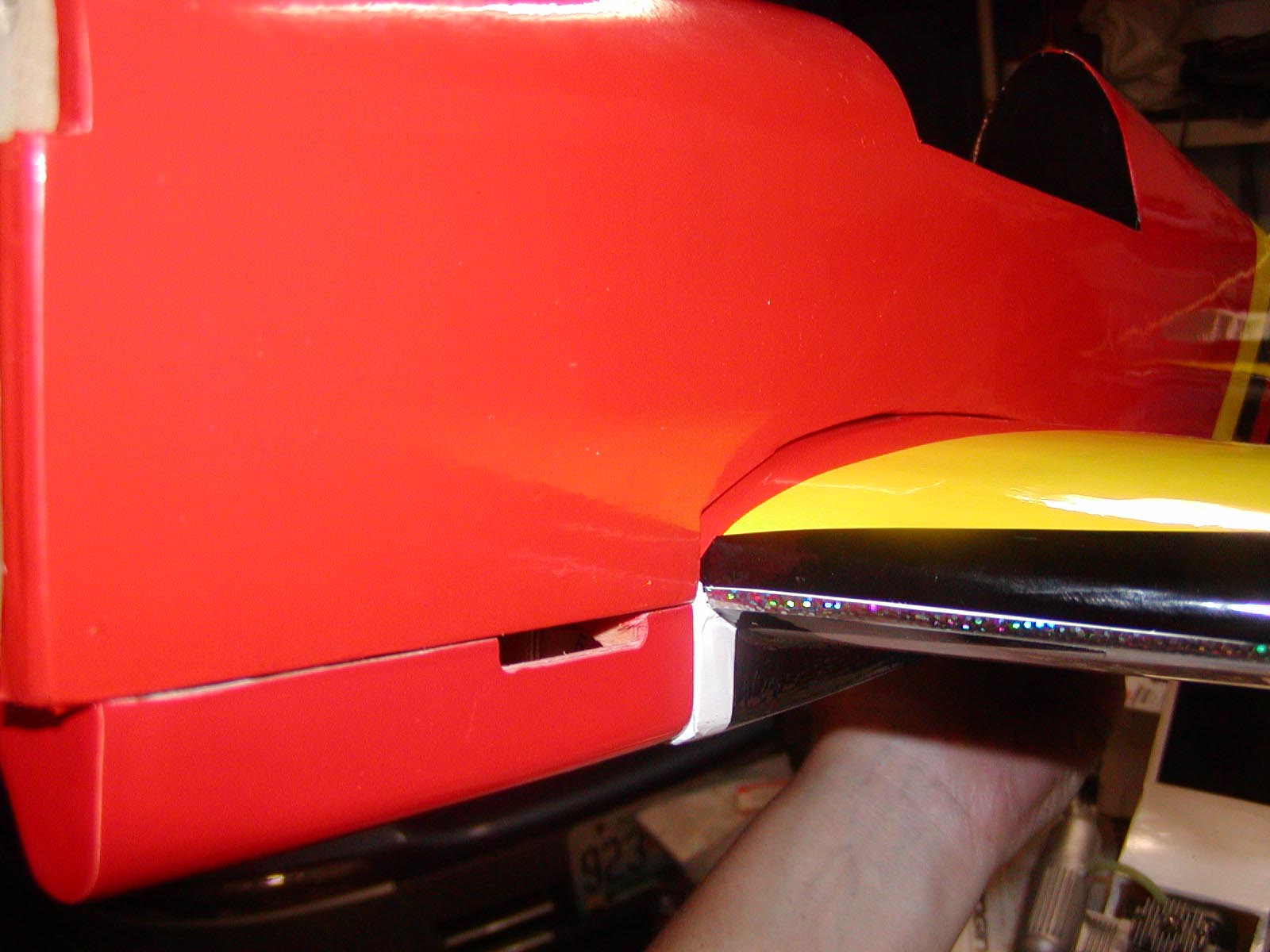

1600 / 1024 / 640 - Wing fits ok, but with some gap.

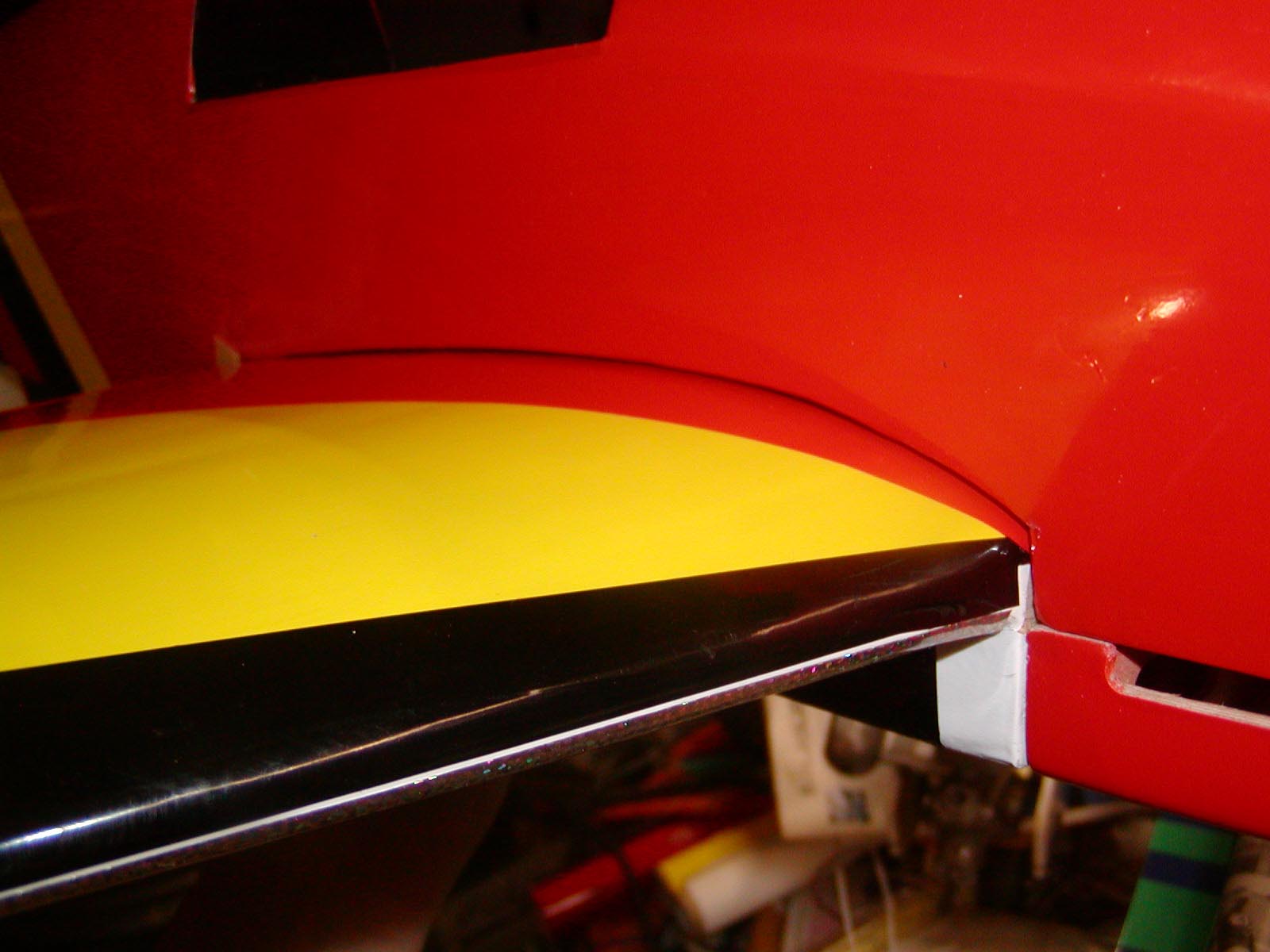

1600 / 1024 / 640 - Right side.

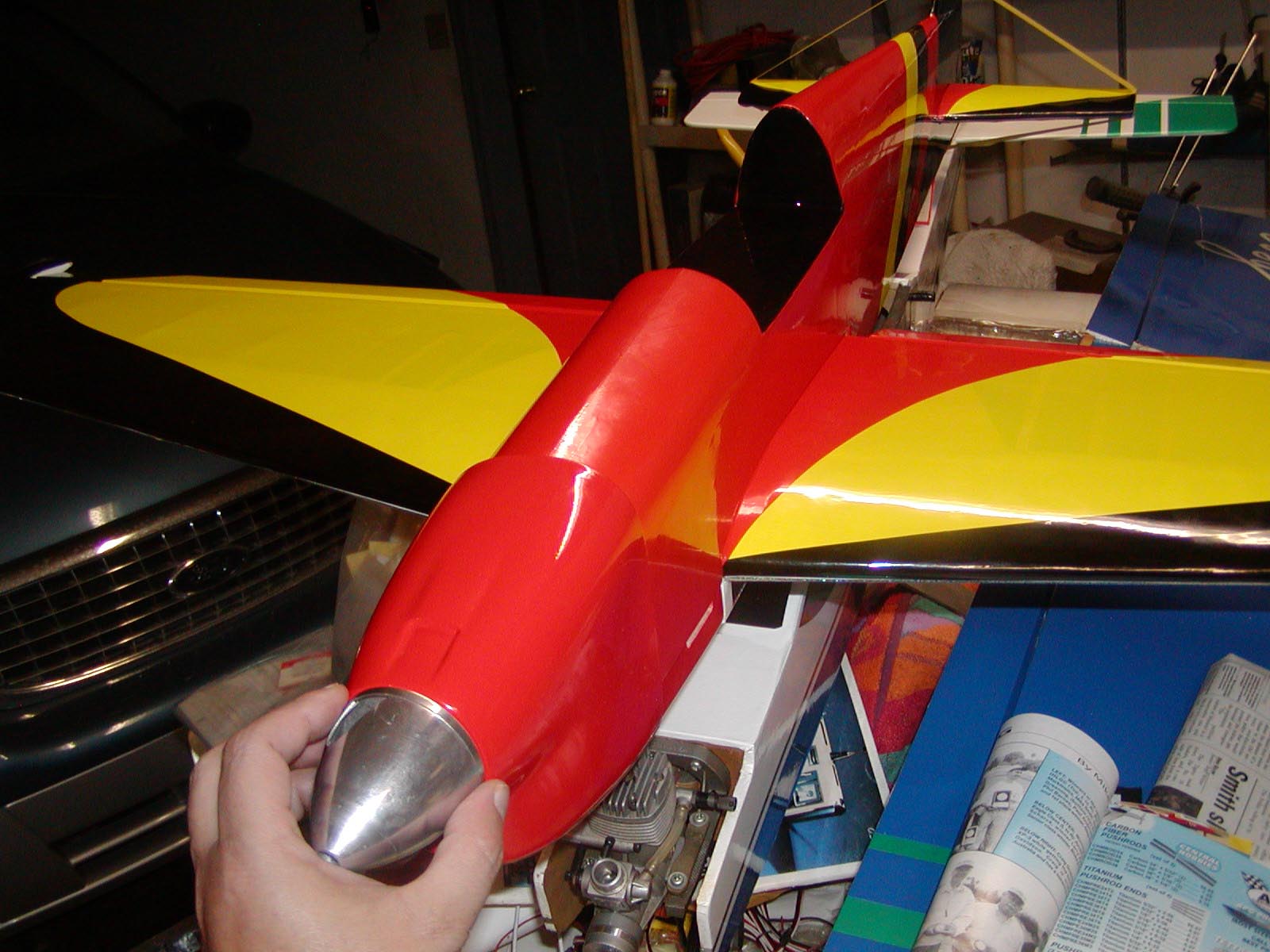

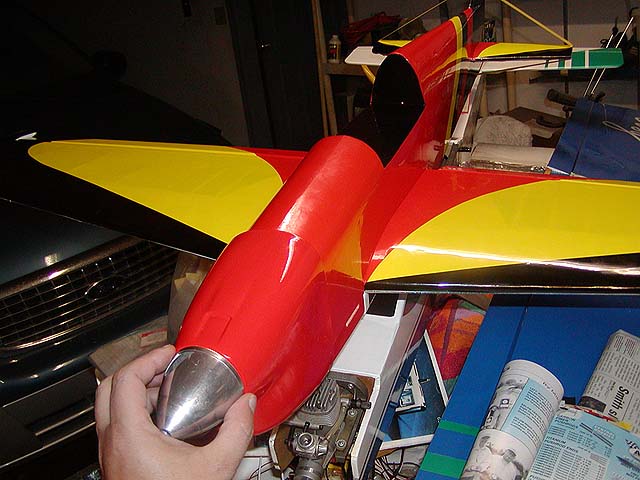

1600 / 1024 / 640 - Sizing for spinner (2.25" shown)
1600 / 1024 / 640 - I had to build up stab glue area...

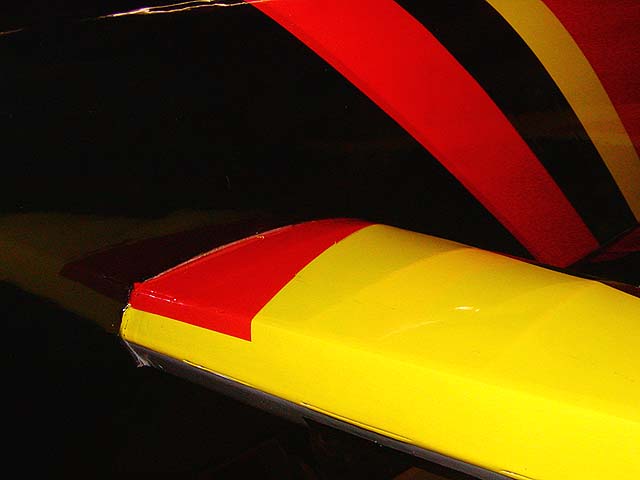

1600 / 1024 / 640 - to get it to fit right.

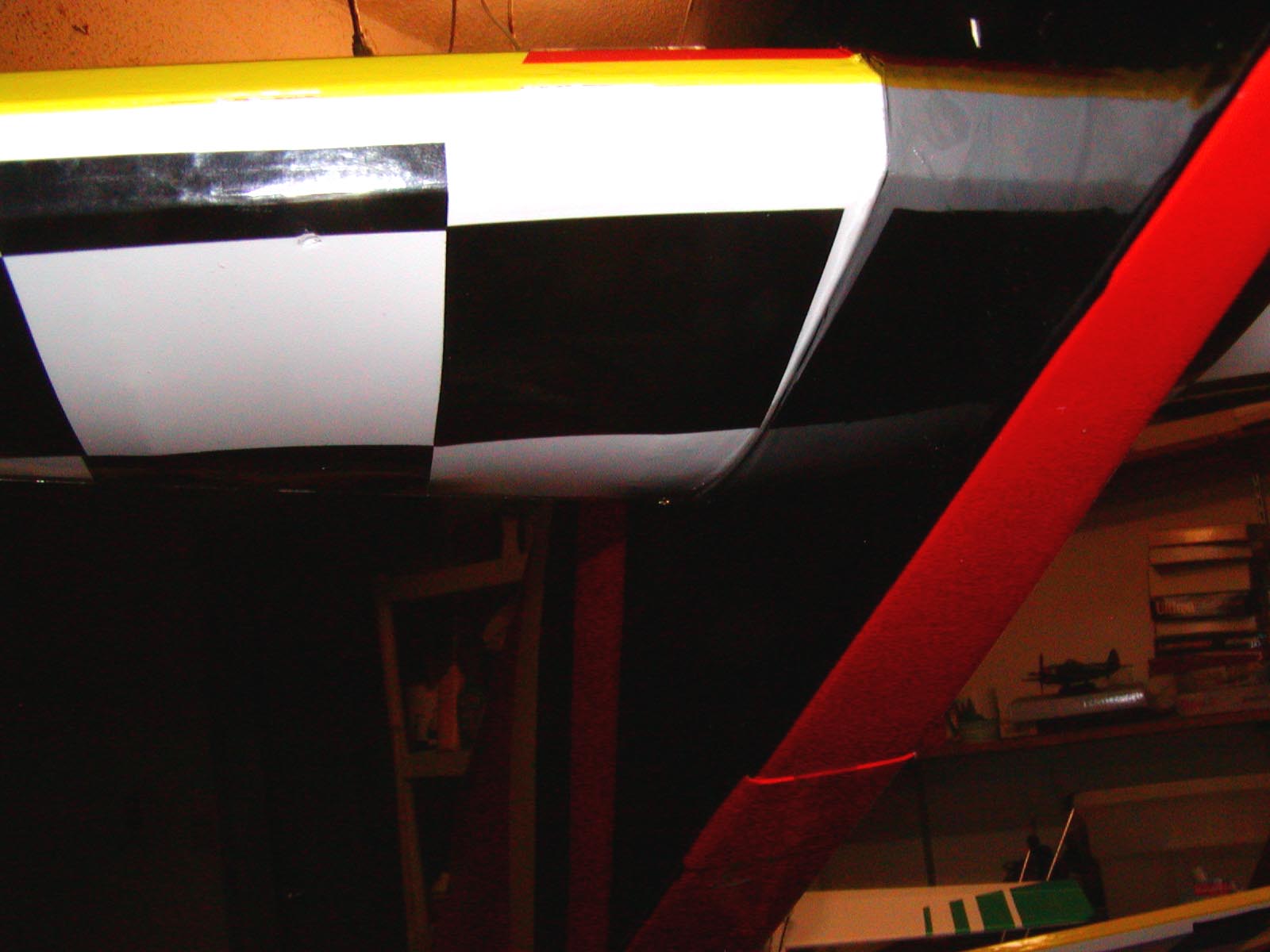

1600 / 1024 / 640 - Plenty strong now.

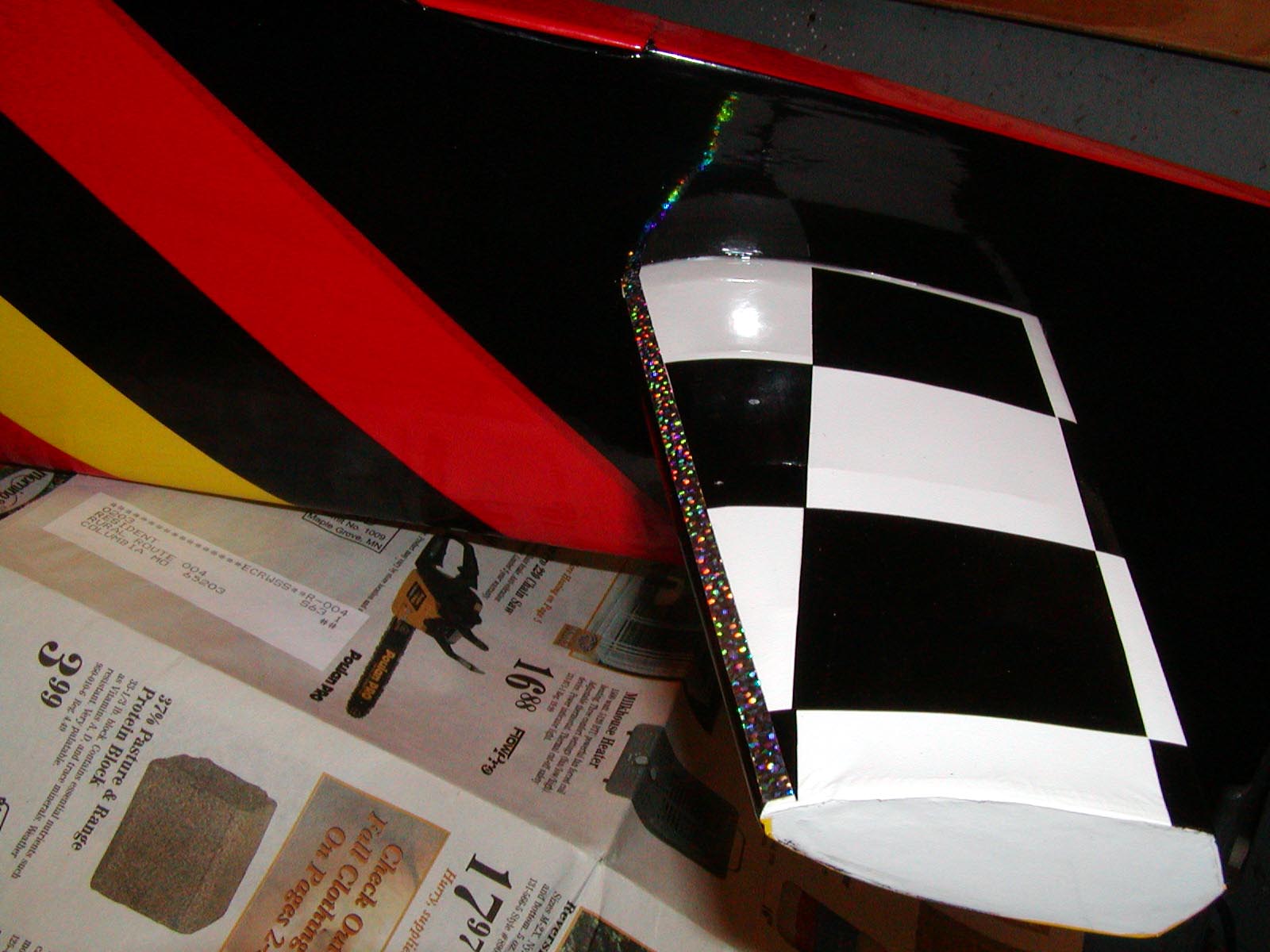

1600 / 1024 / 640 -

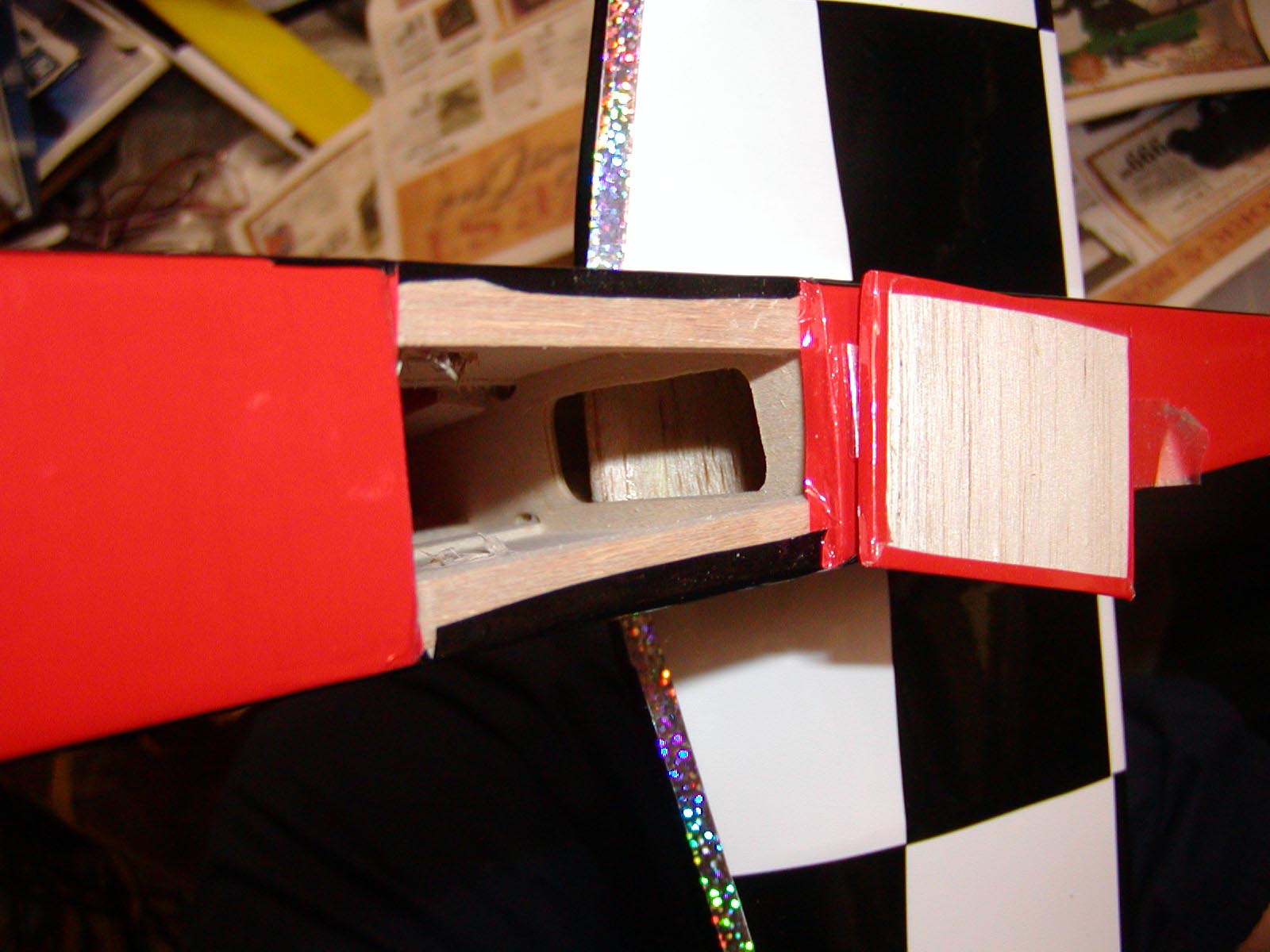

1600 / 1024 / 640 - Some access from hatch.

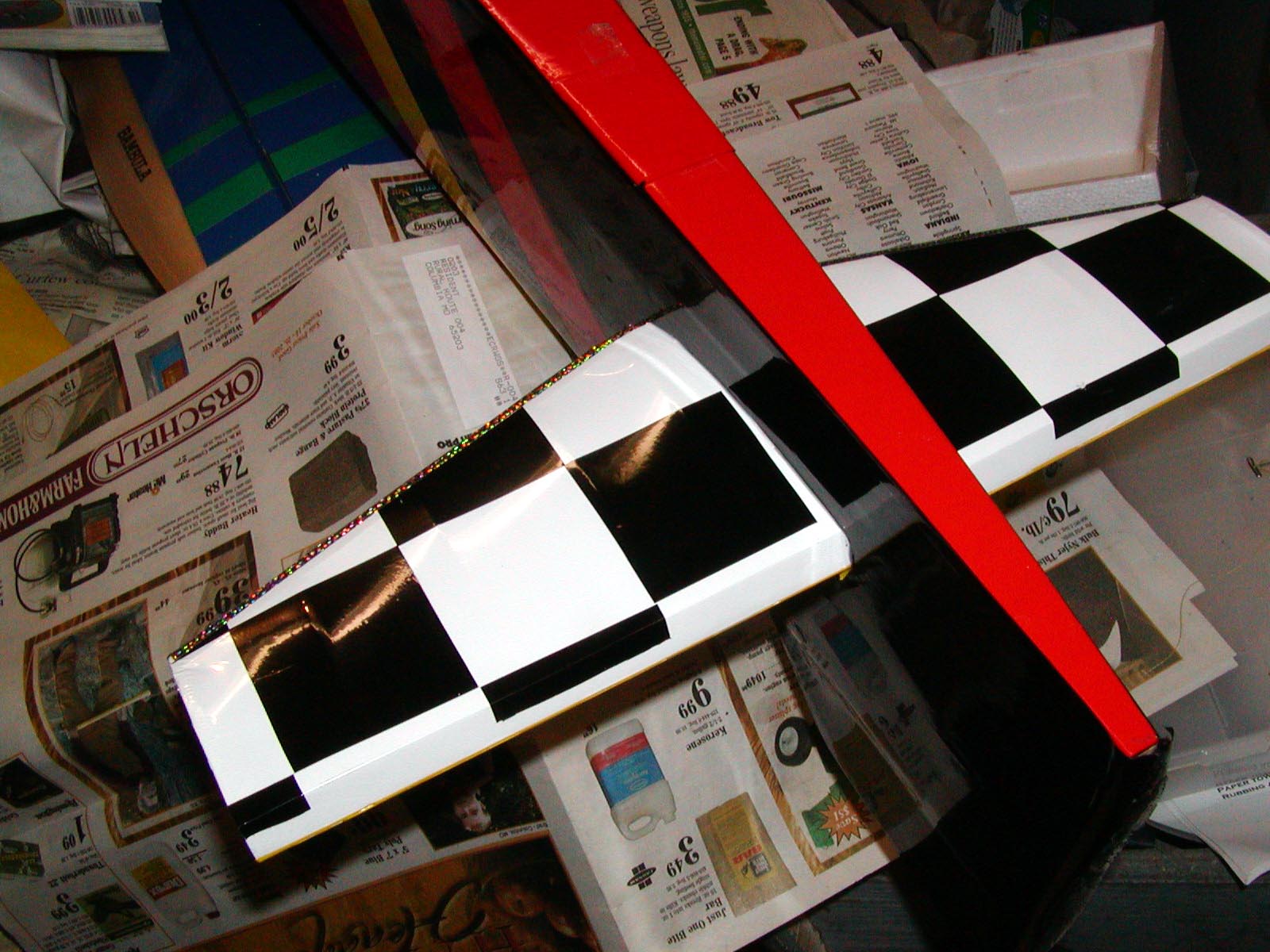

1600 / 1024 / 640 - Stab completed, holo trim added.

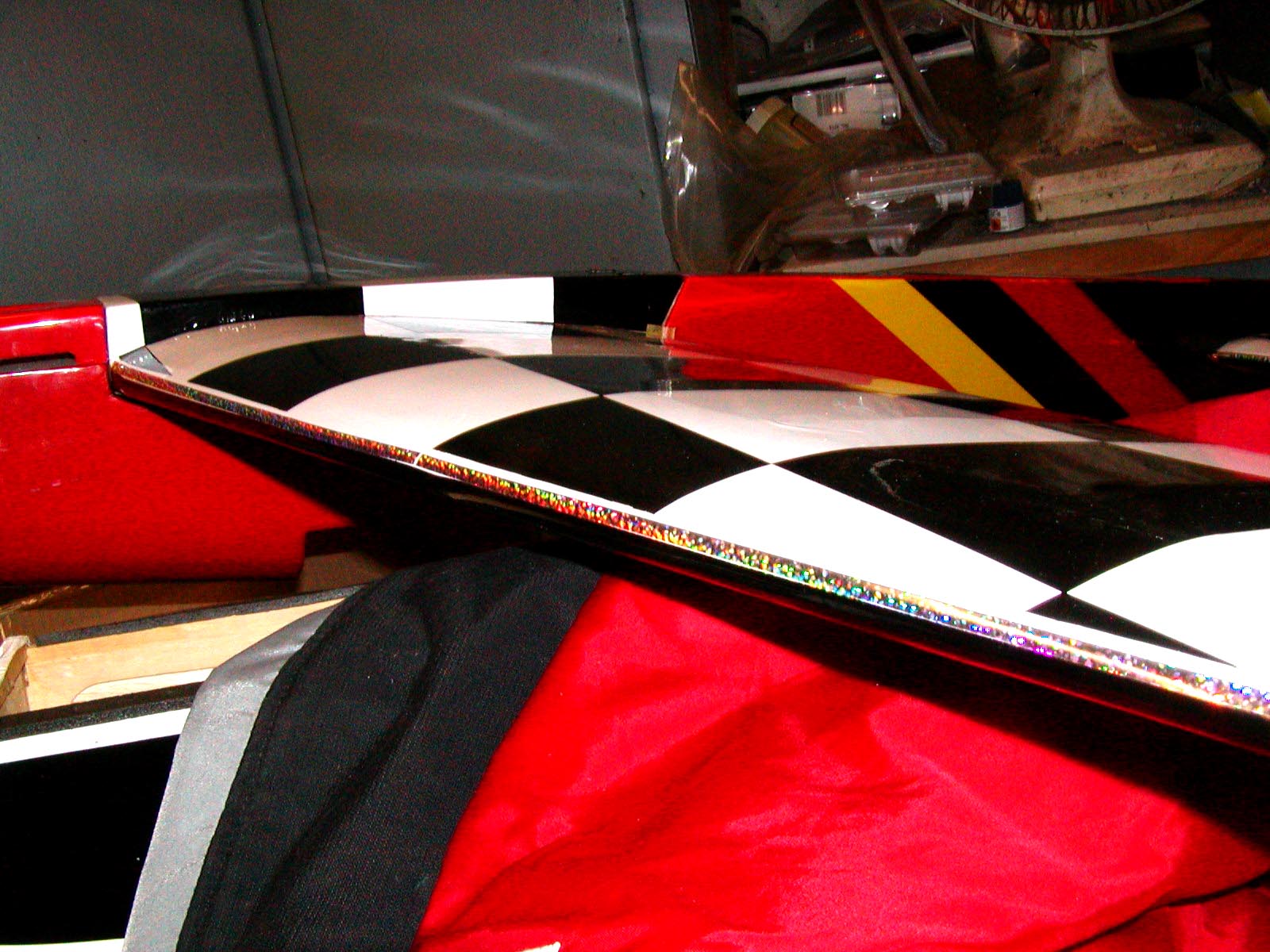

1600 / 1024 / 640 - Should flash good in the sun.

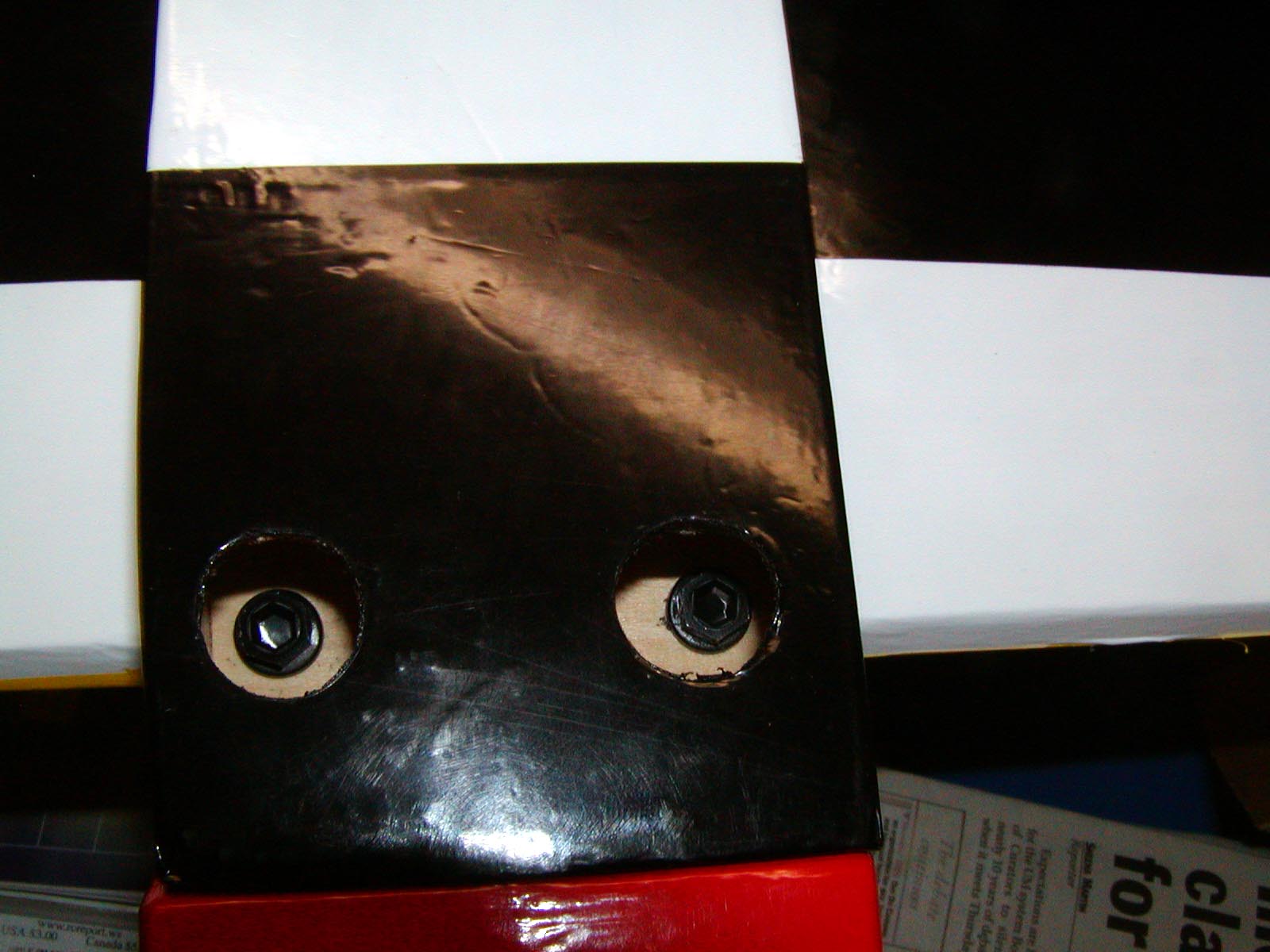

1600 / 1024 / 640 - Replaced bolts with 10-32 nylon.

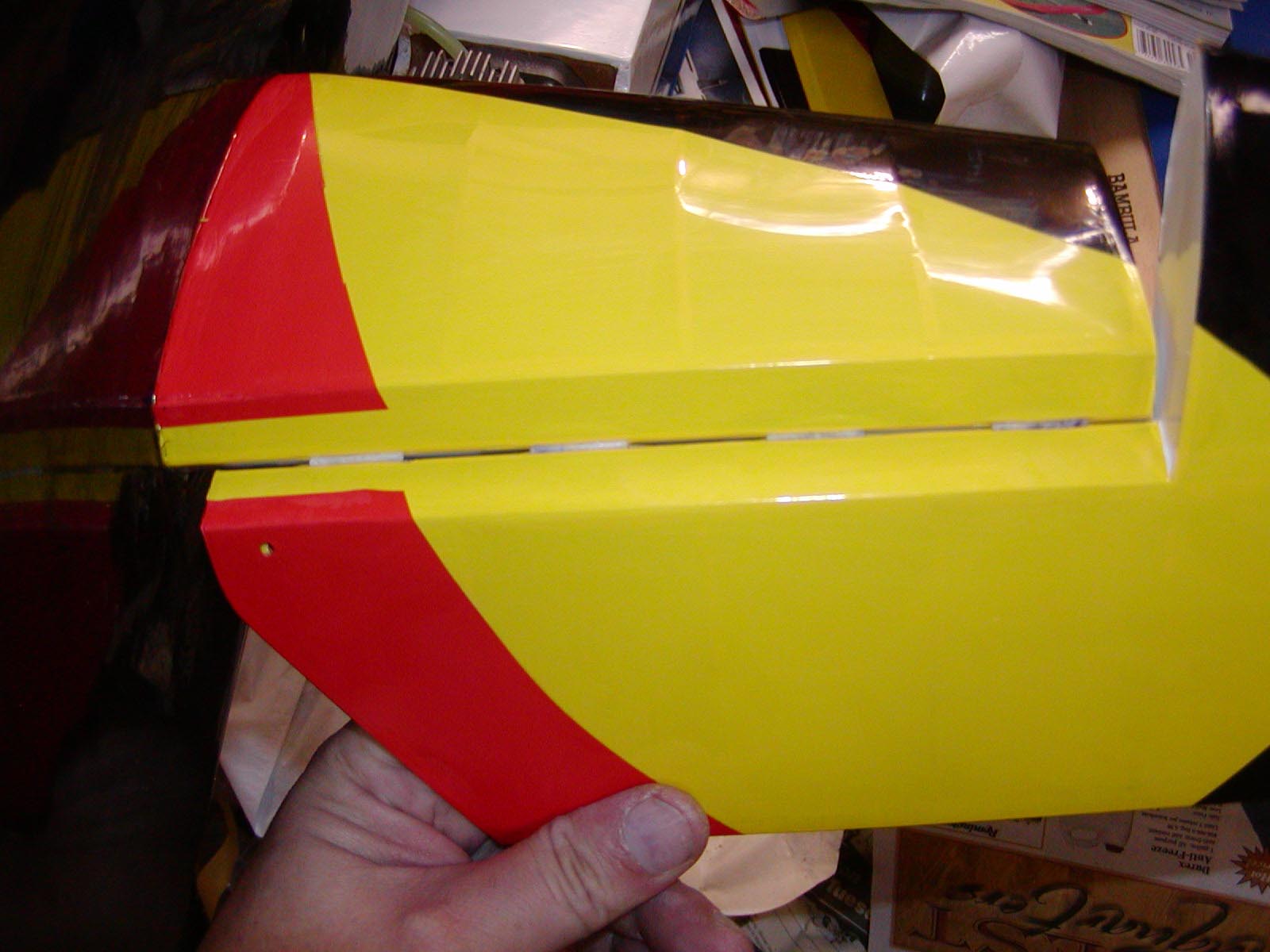

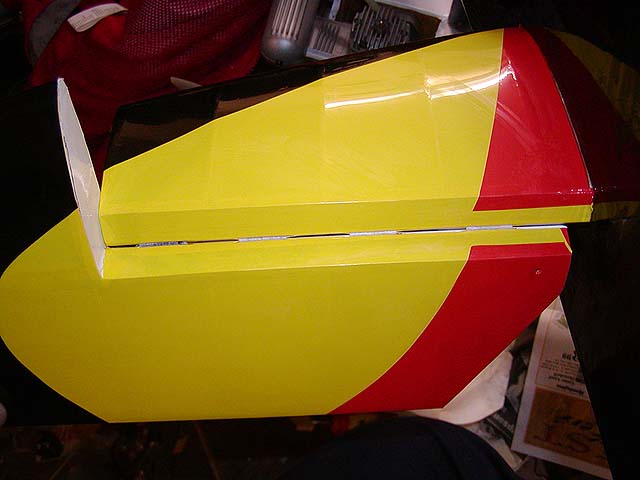

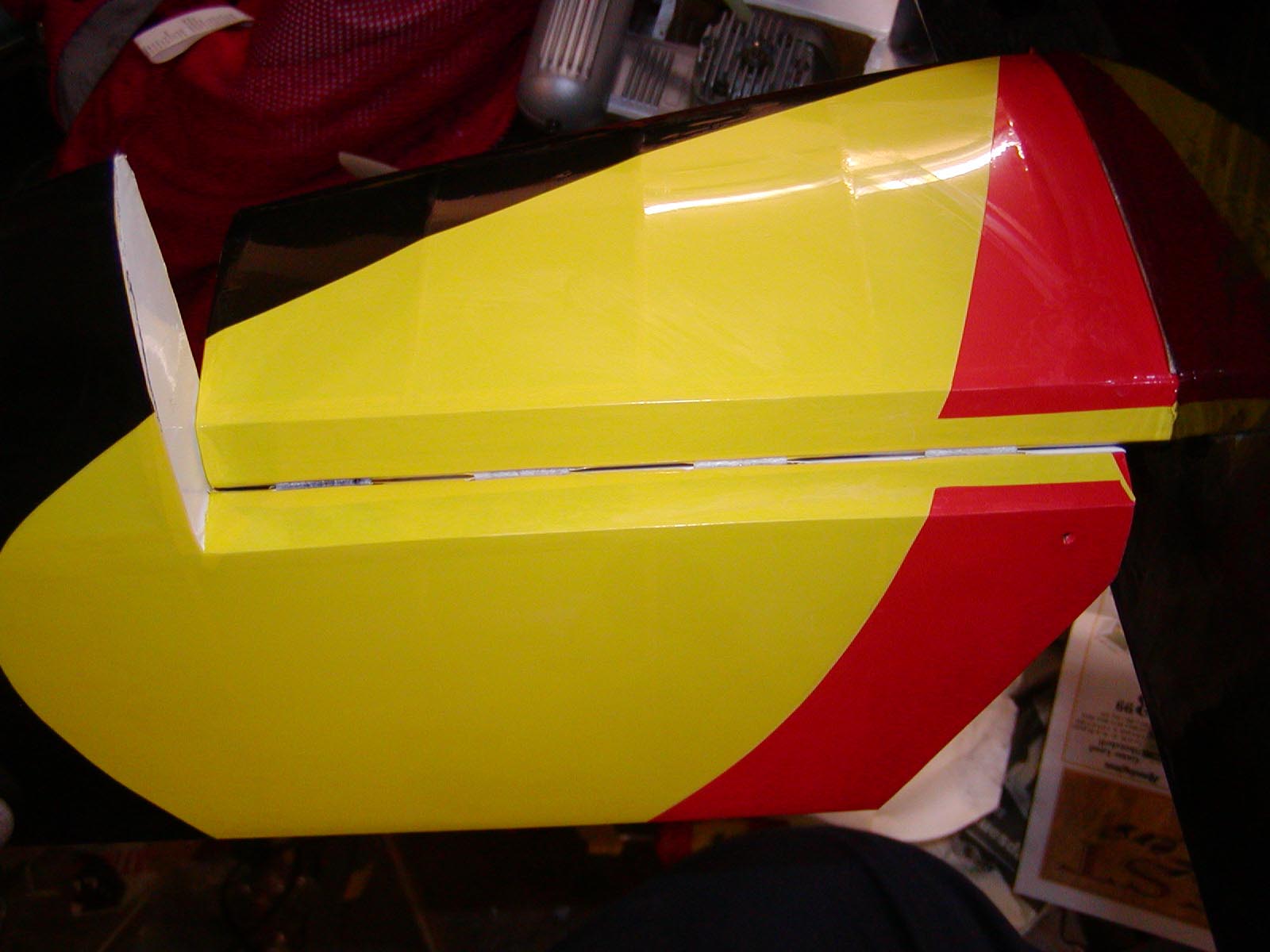

1600 / 1024 / 640 - Used the included CA hinges on Elev.
1600 / 1024 / 640 - Not much wood for point hinges.

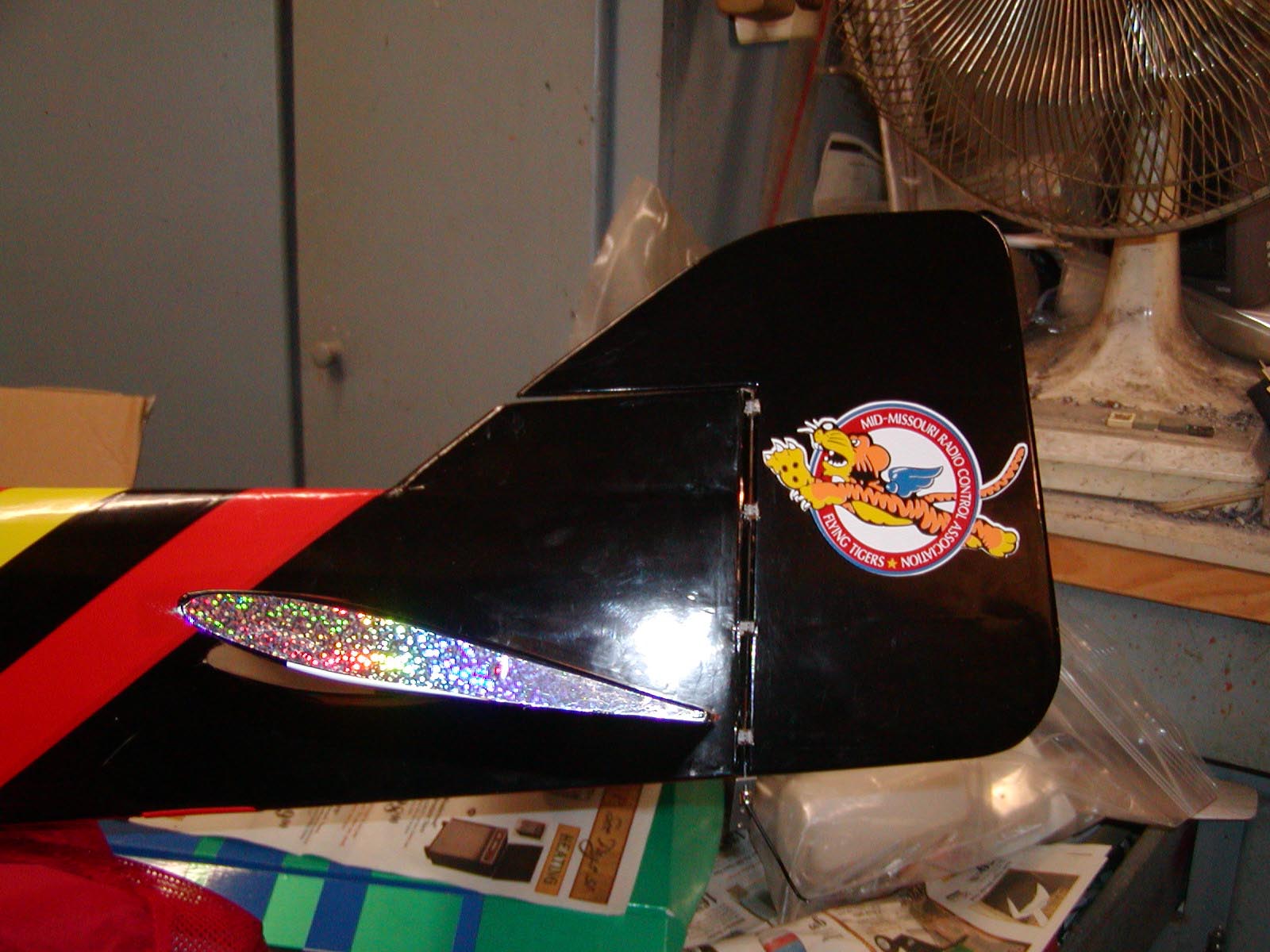

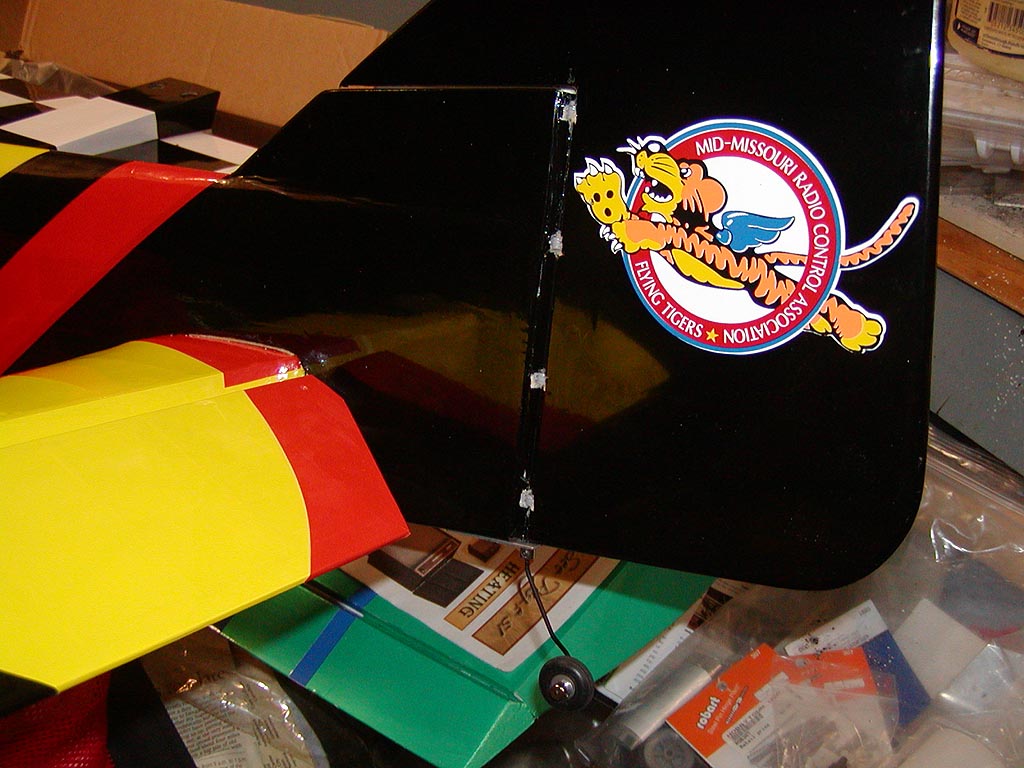

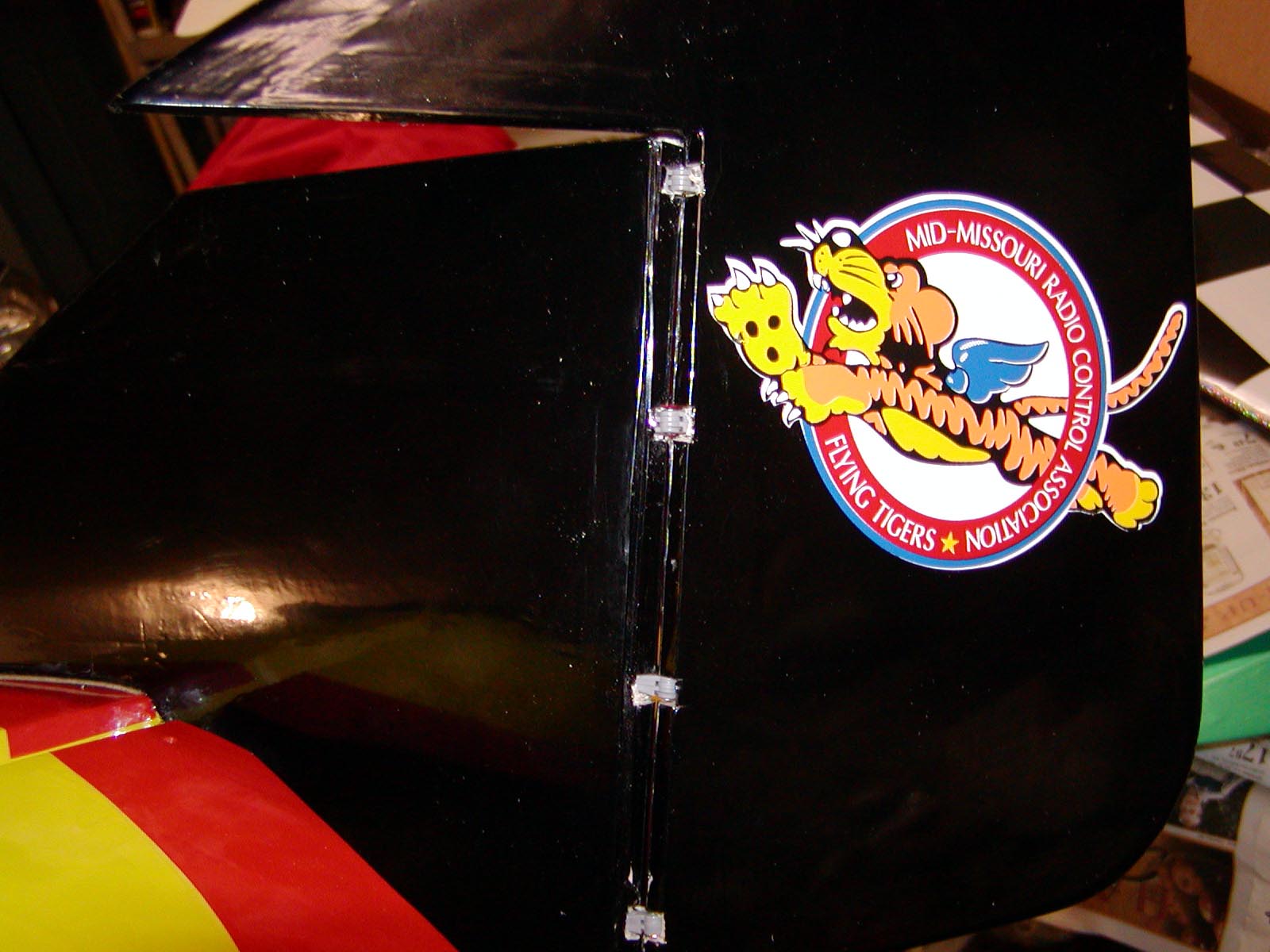

1600 / 1024 / 640 - Club decal and holo trim added.
1600 / 1024 / 640 - Robart hinges and Gorilla Glue (wow!).
1600 / 1024 / 640 - Added triangle piece for double-bevel.

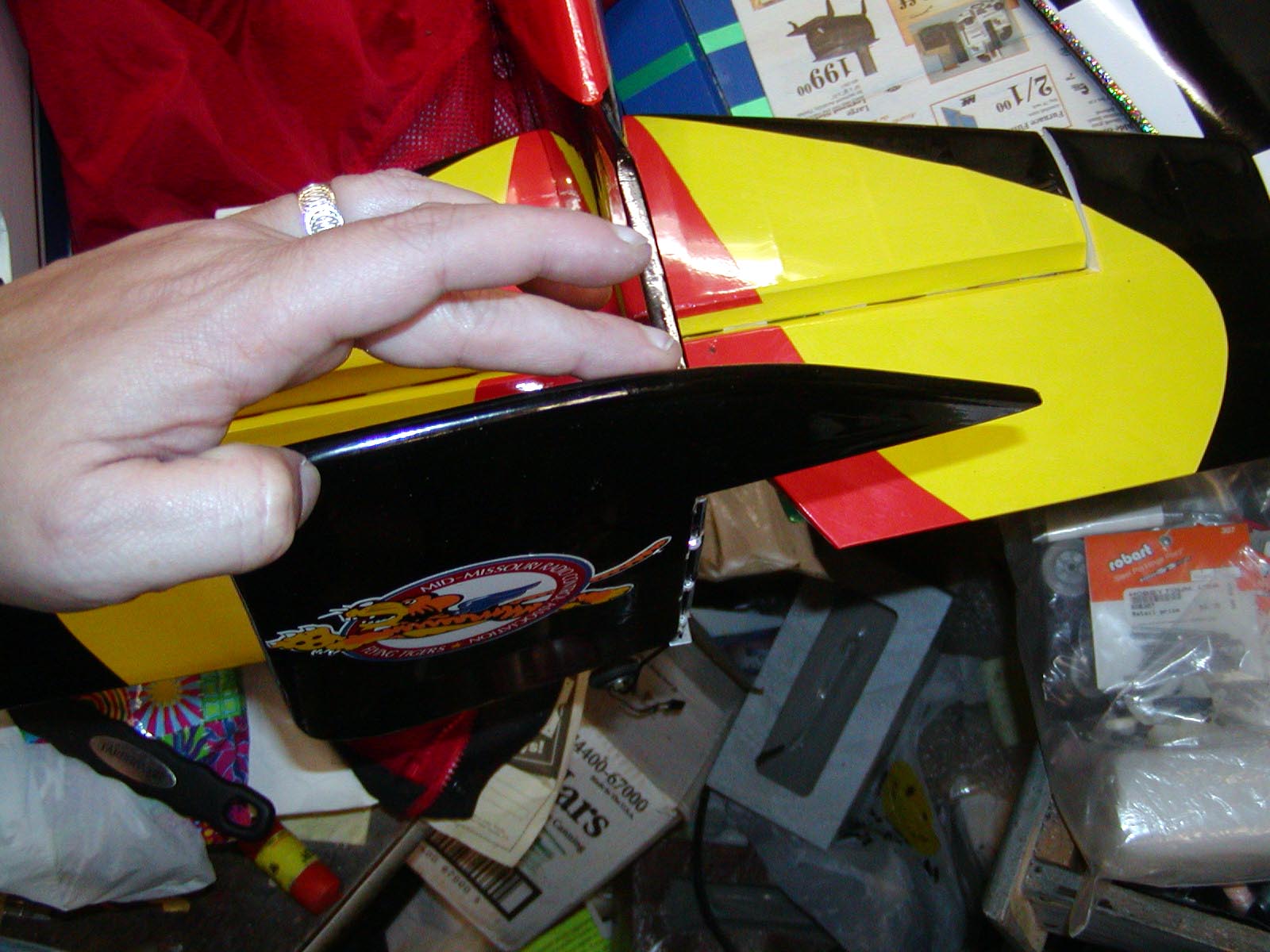

1600 / 1024 / 640 - Enough throw!!! Almost 90deg.

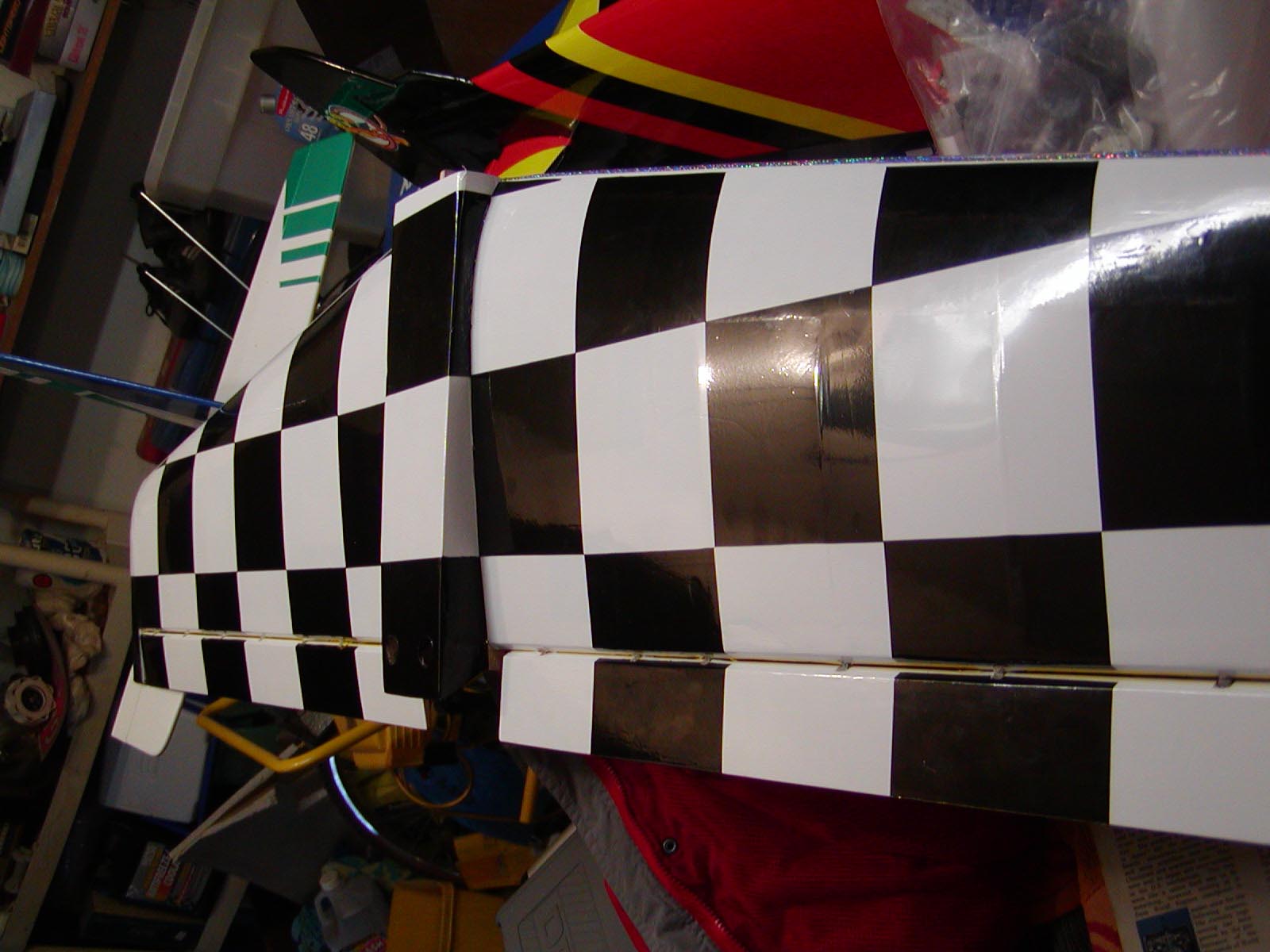

1600 / 1024 / 640 - Gorilla glue and hinge points for wing.

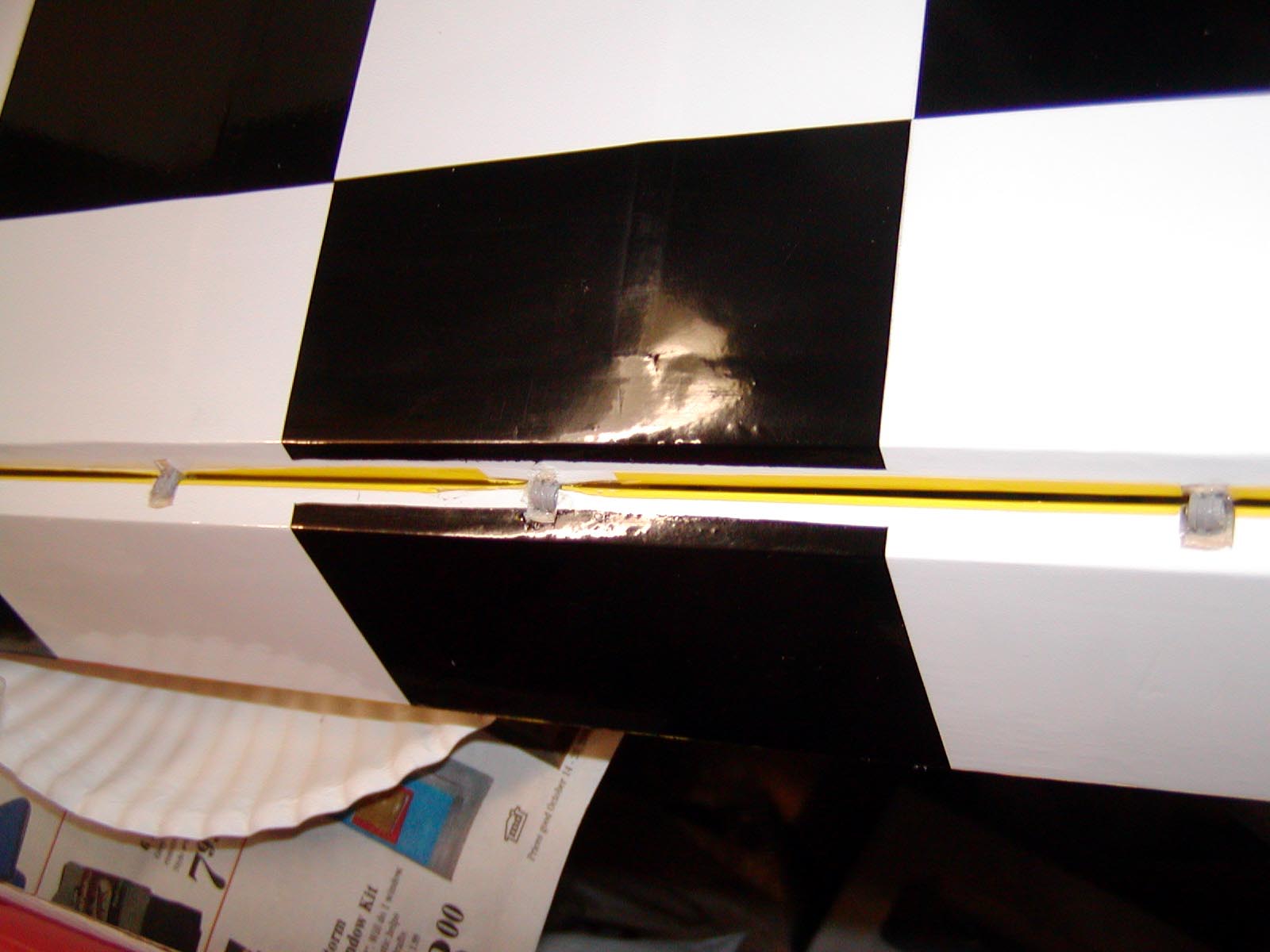

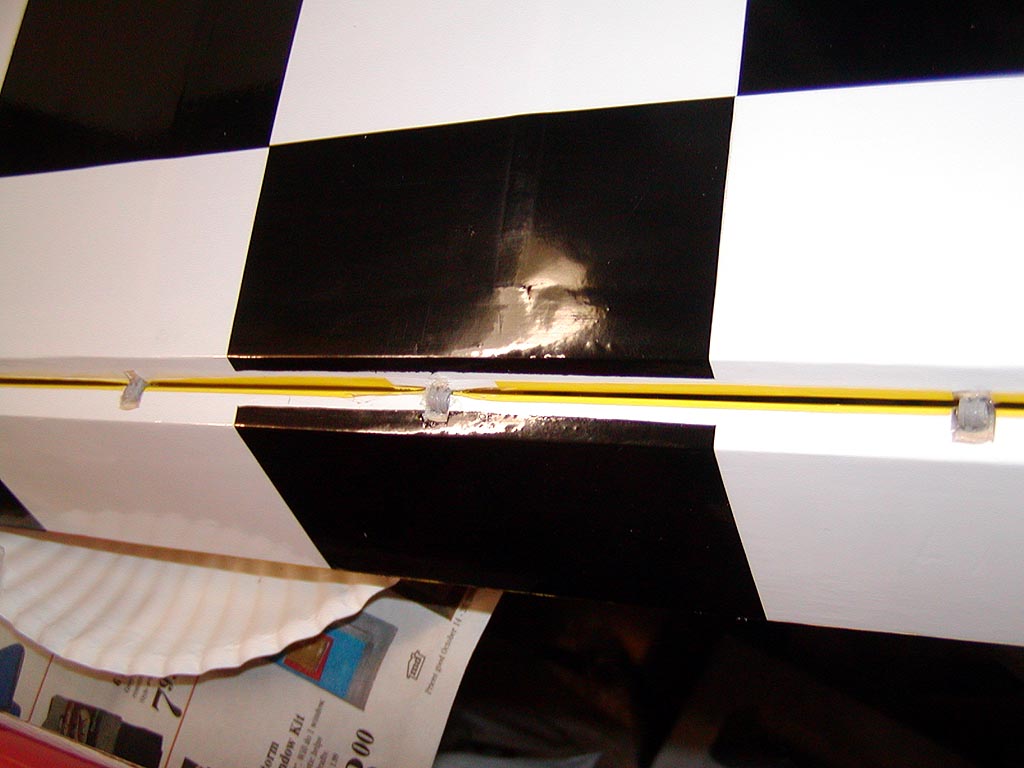

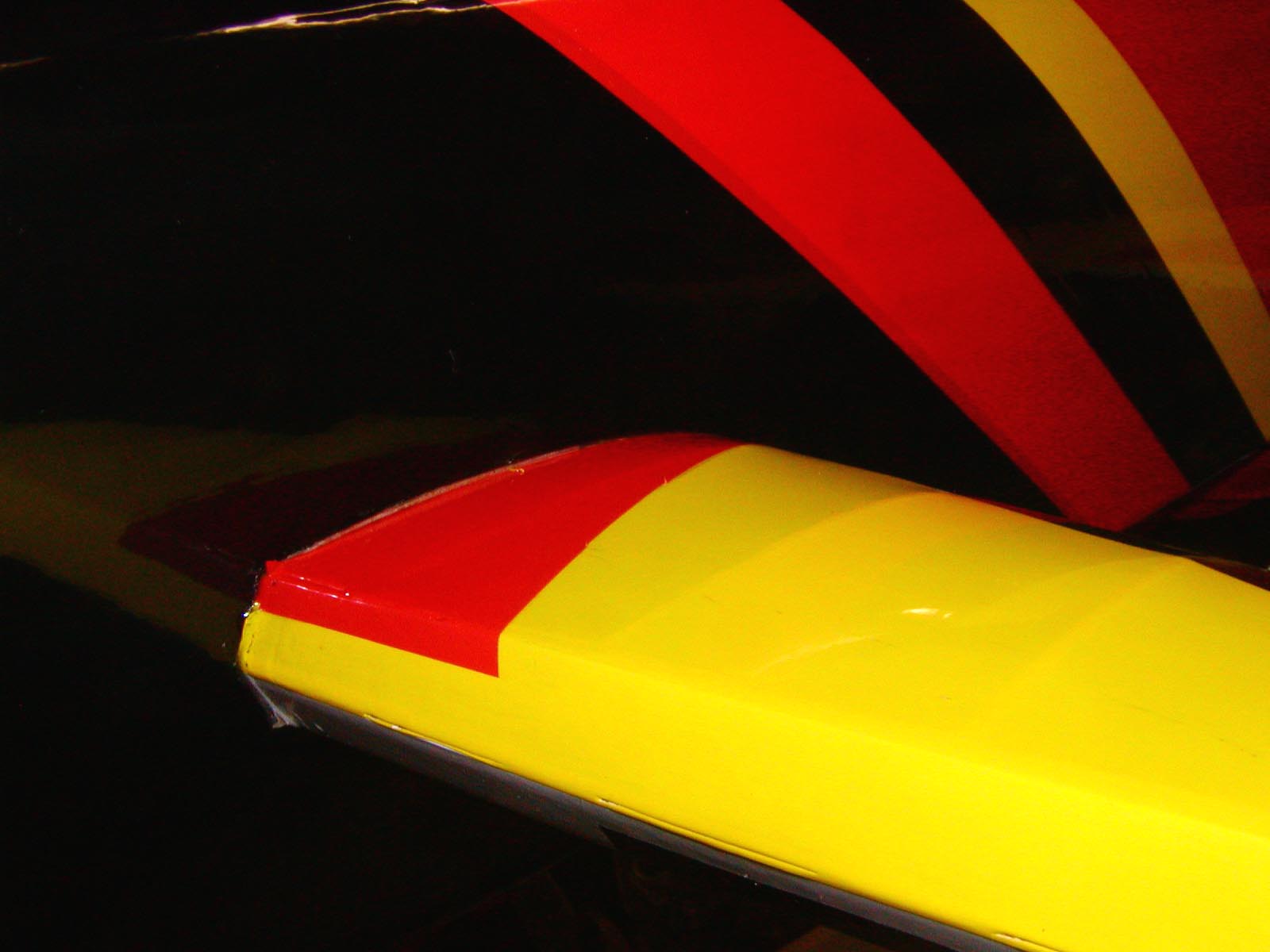

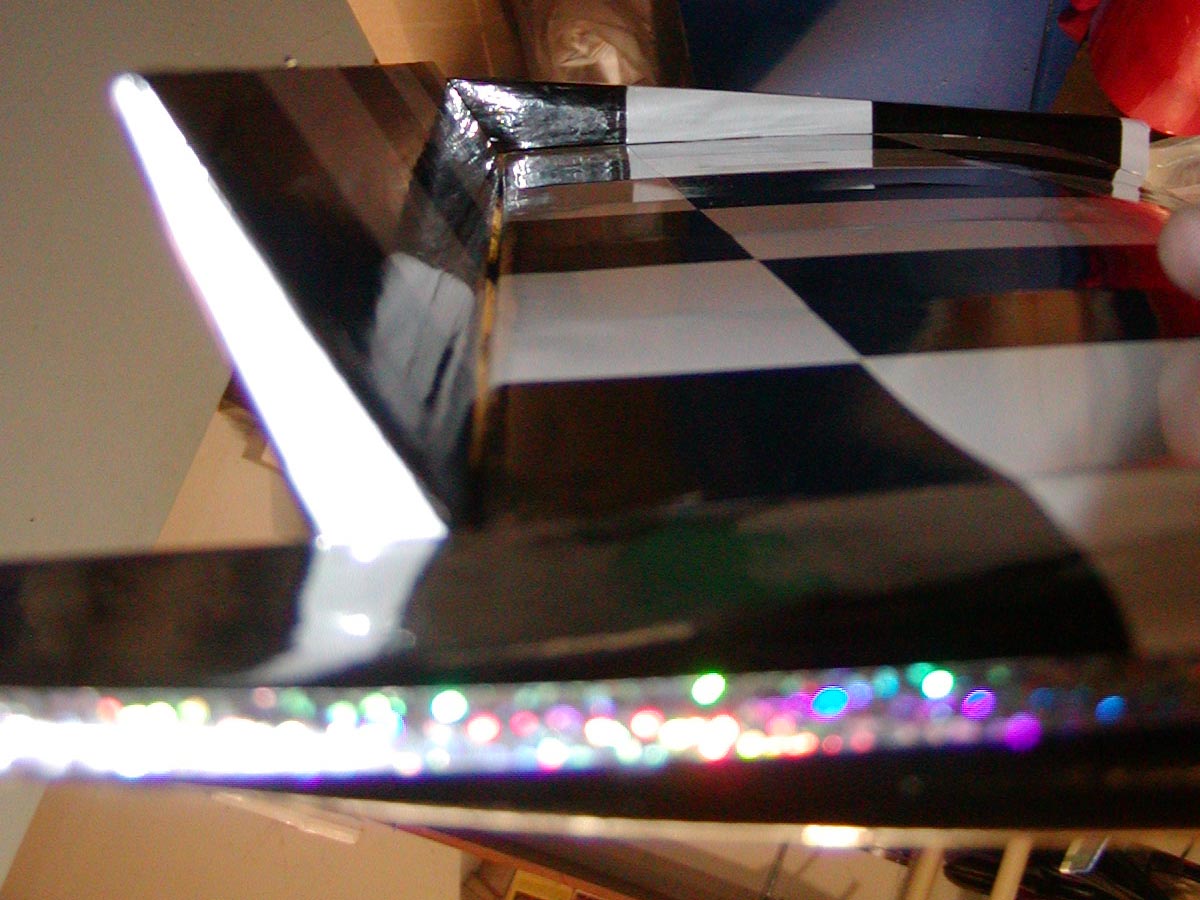

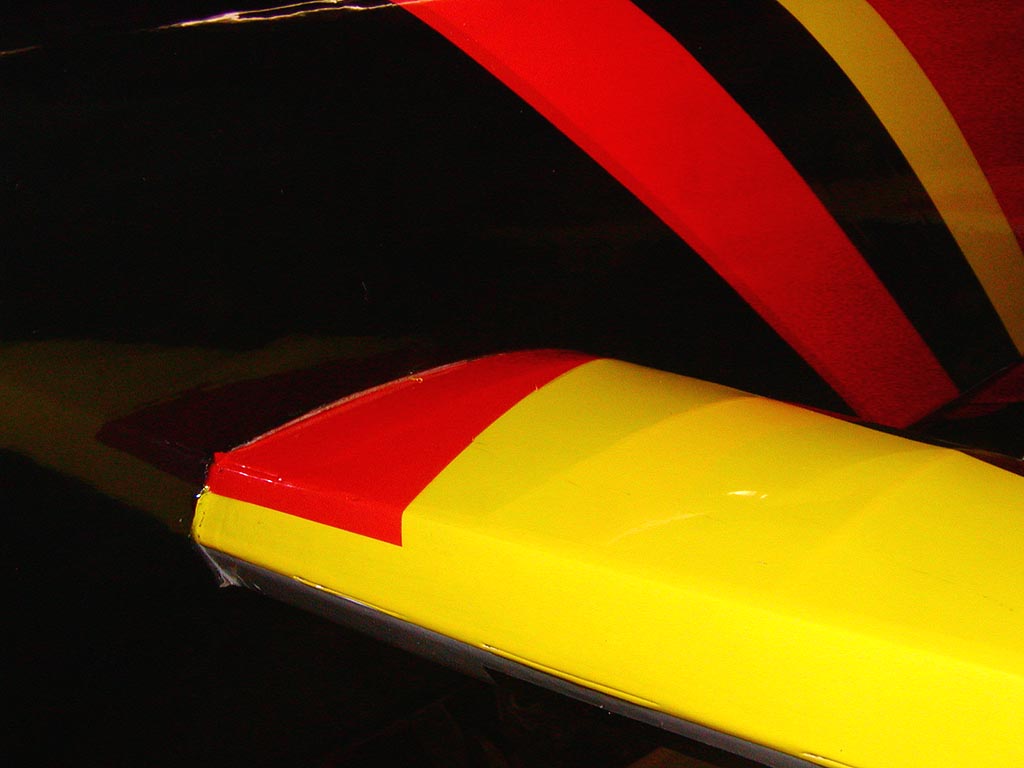

1600 / 1024 / 640 - All gaps sealed with clear Monokote
1600 / 1024 / 640 - Aileron throw. Plenty!

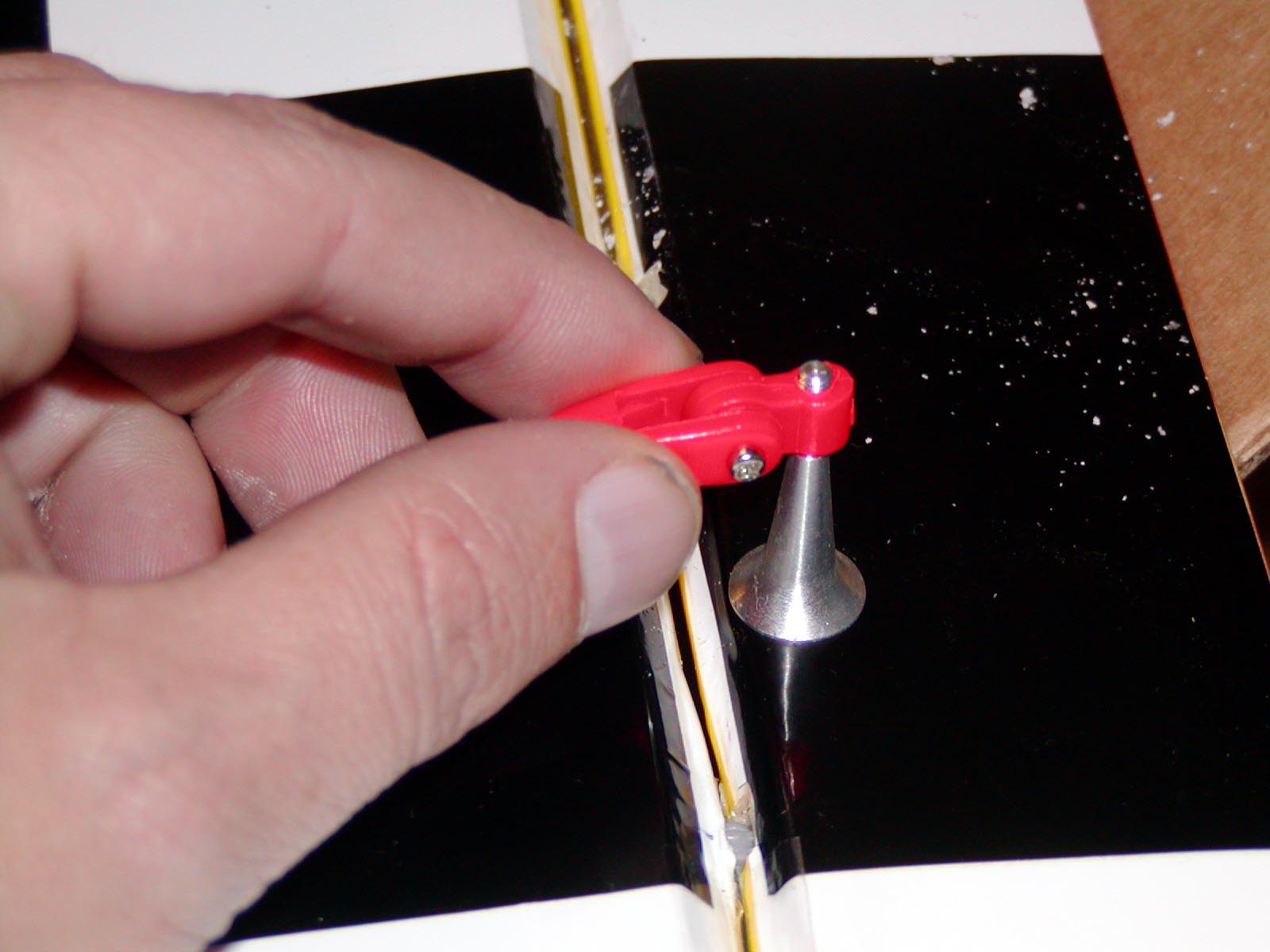

1600 / 1024 / 640 - Used all MK ball-bearing hardware.

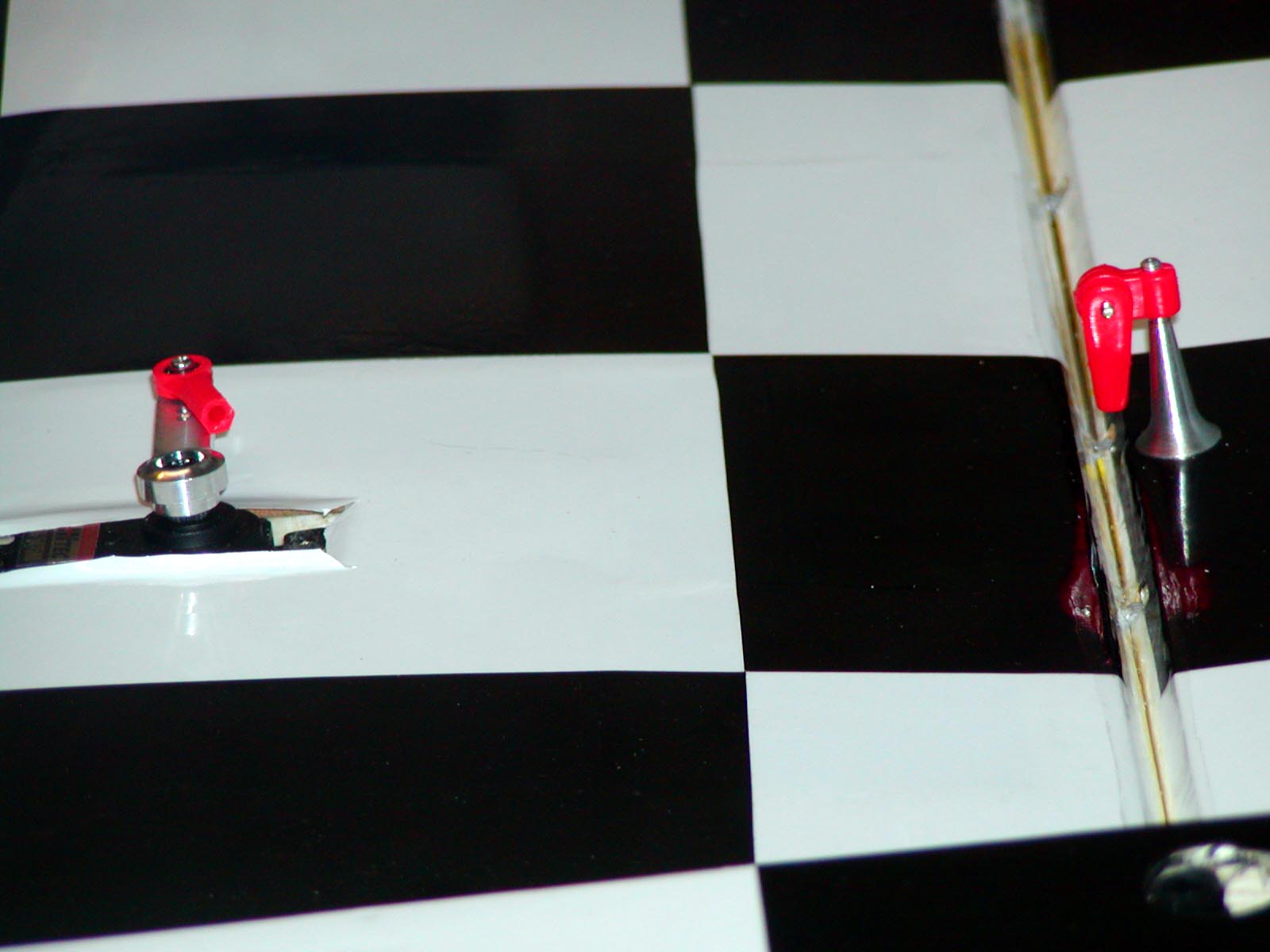

1600 / 1024 / 640 - Aileron servo and horn.

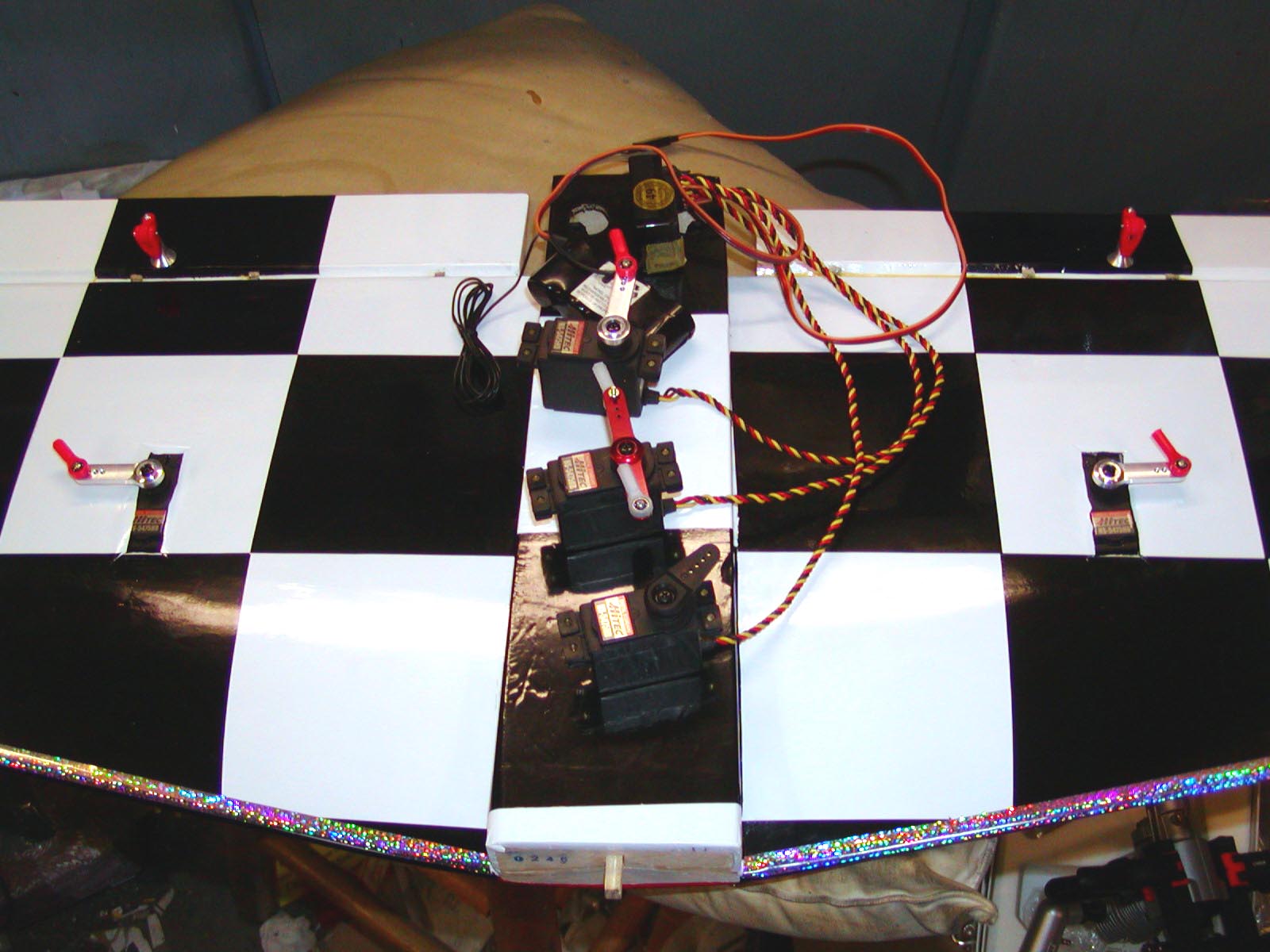

1600 / 1024 / 640 - Time to test all radio gear.

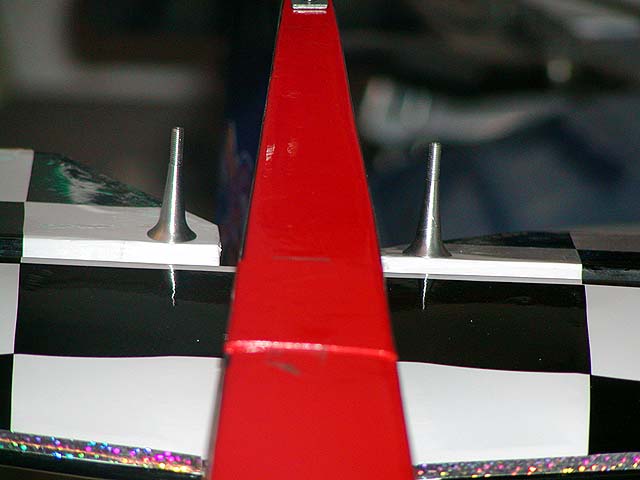

1600 / 1024 / 640 - MK Horns (medium) all around.

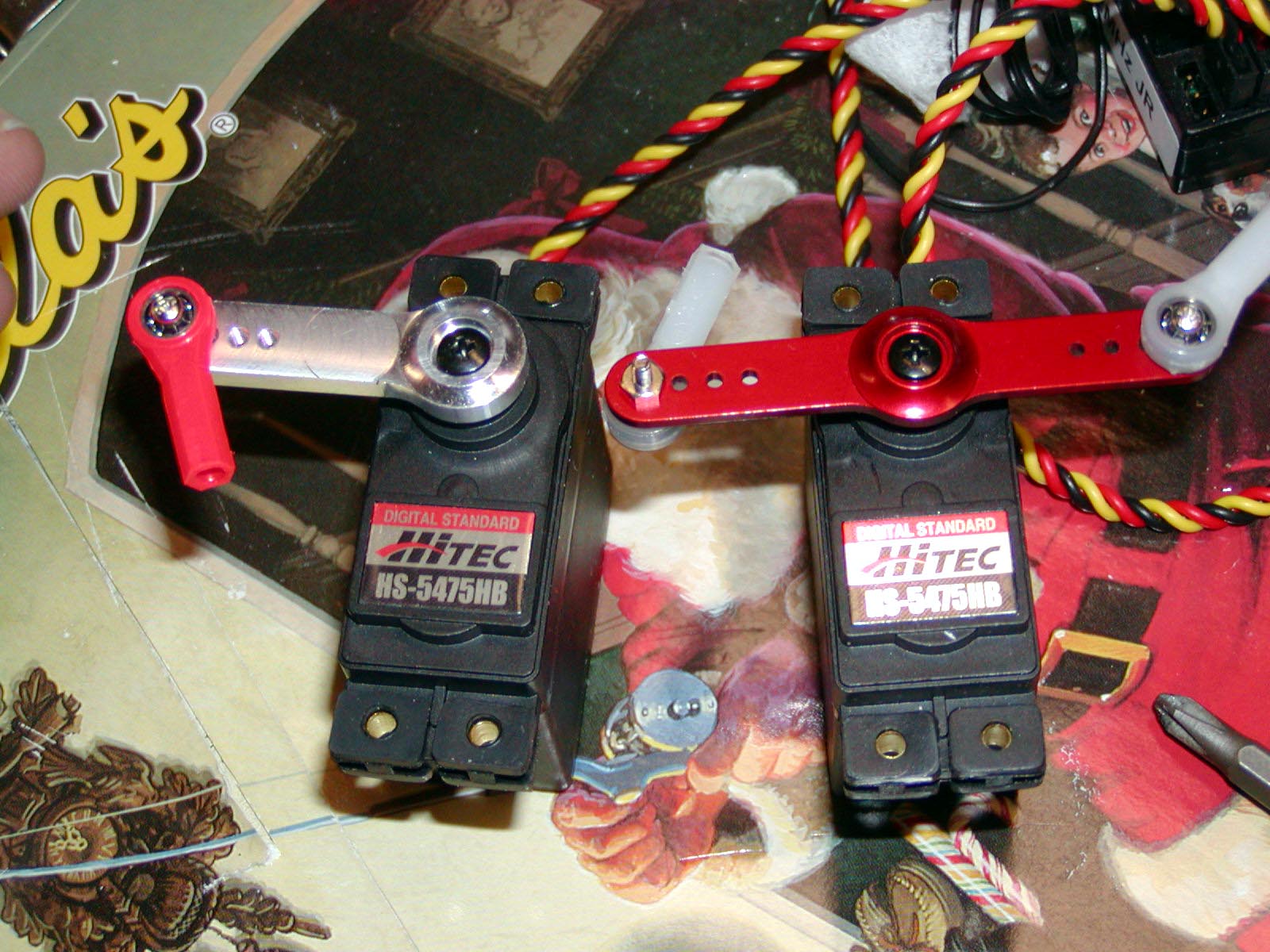

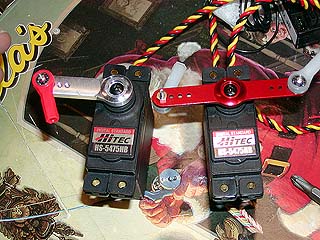

1600 / 1024 / 640 - Rudder and Pull-Pull elevator.
1600 / 1024 / 640 - Single rear-mounted rudder servo.

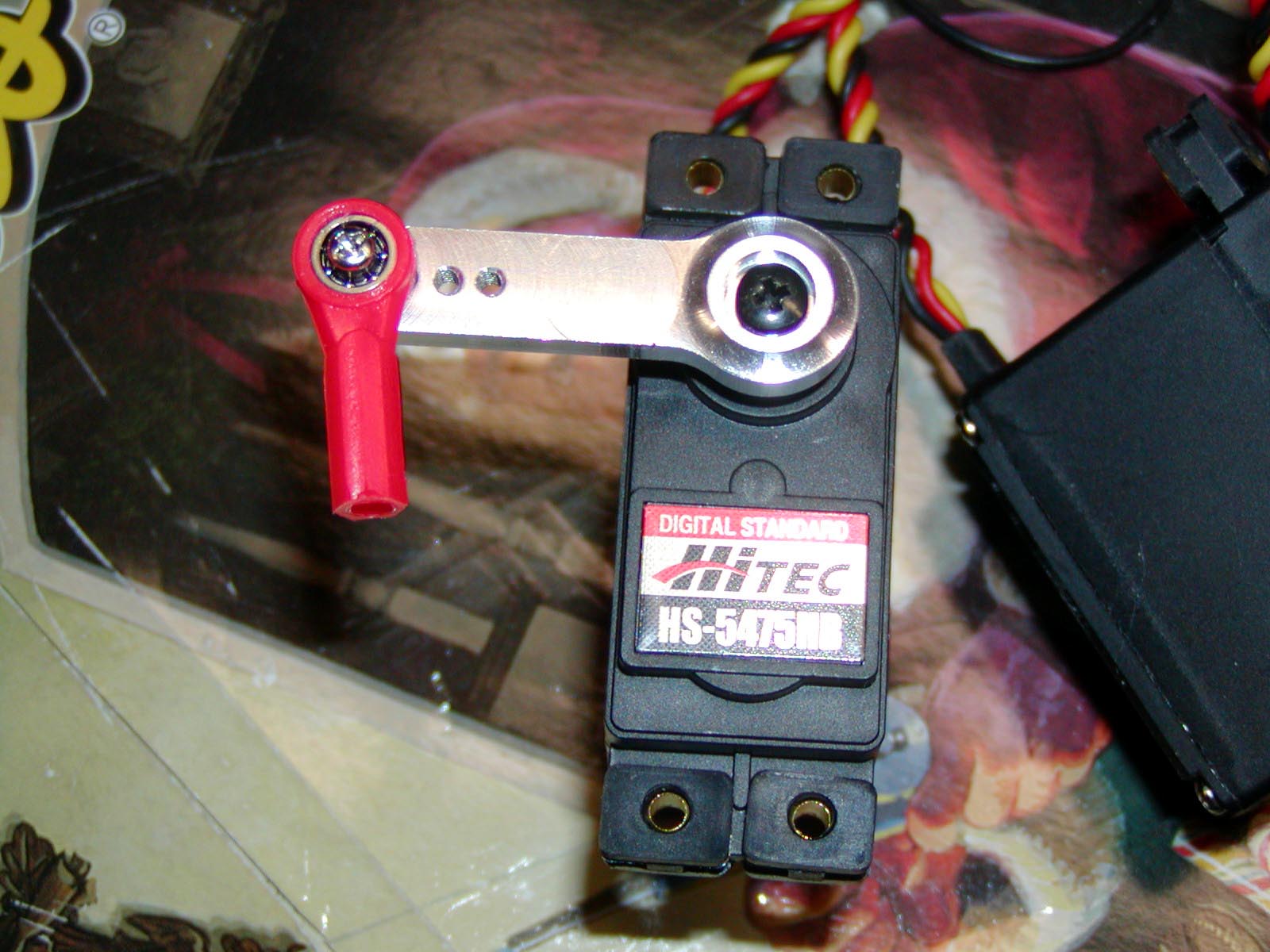

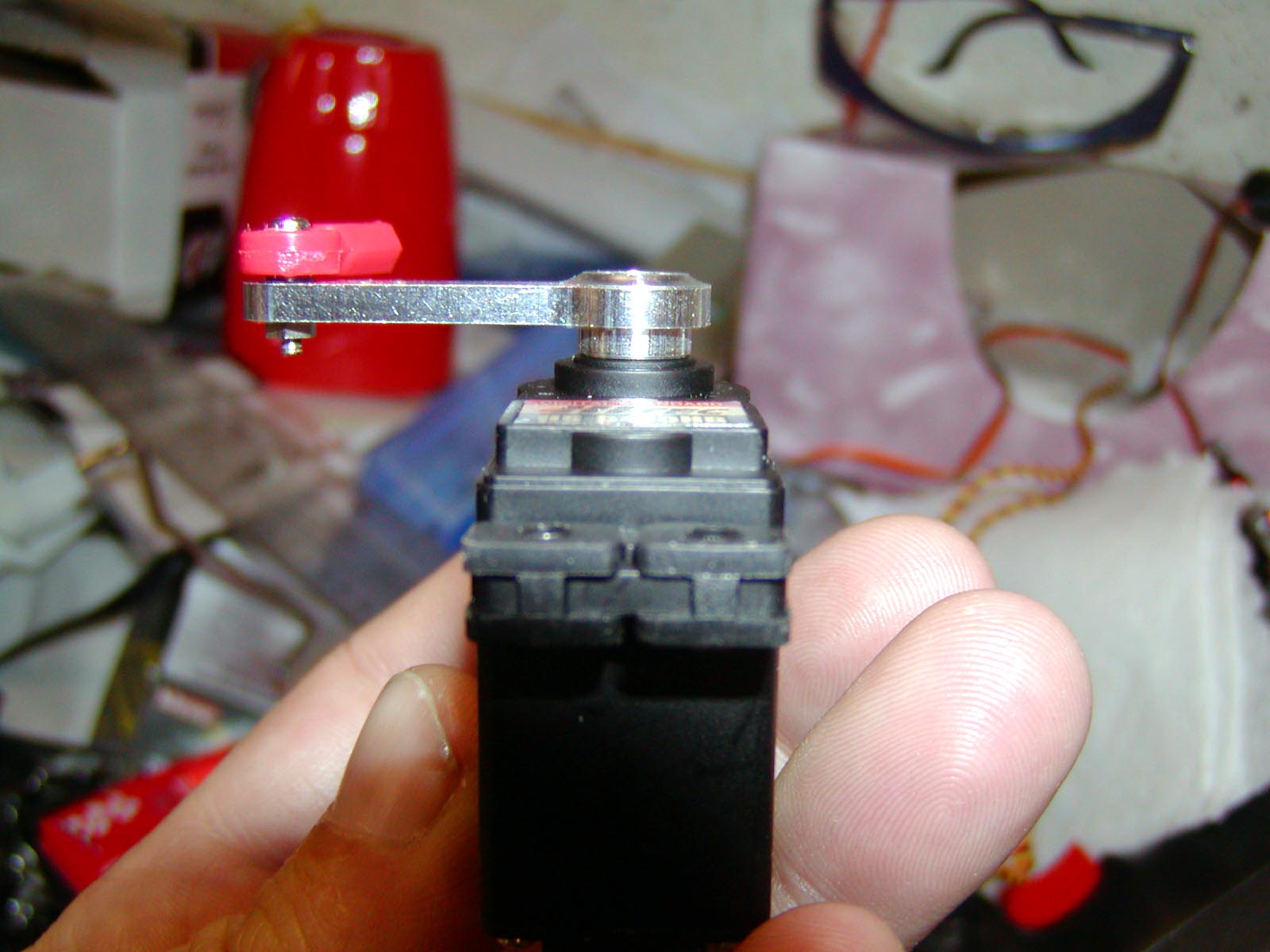

1600 / 1024 / 640 - Century Heli servo arms... nice!

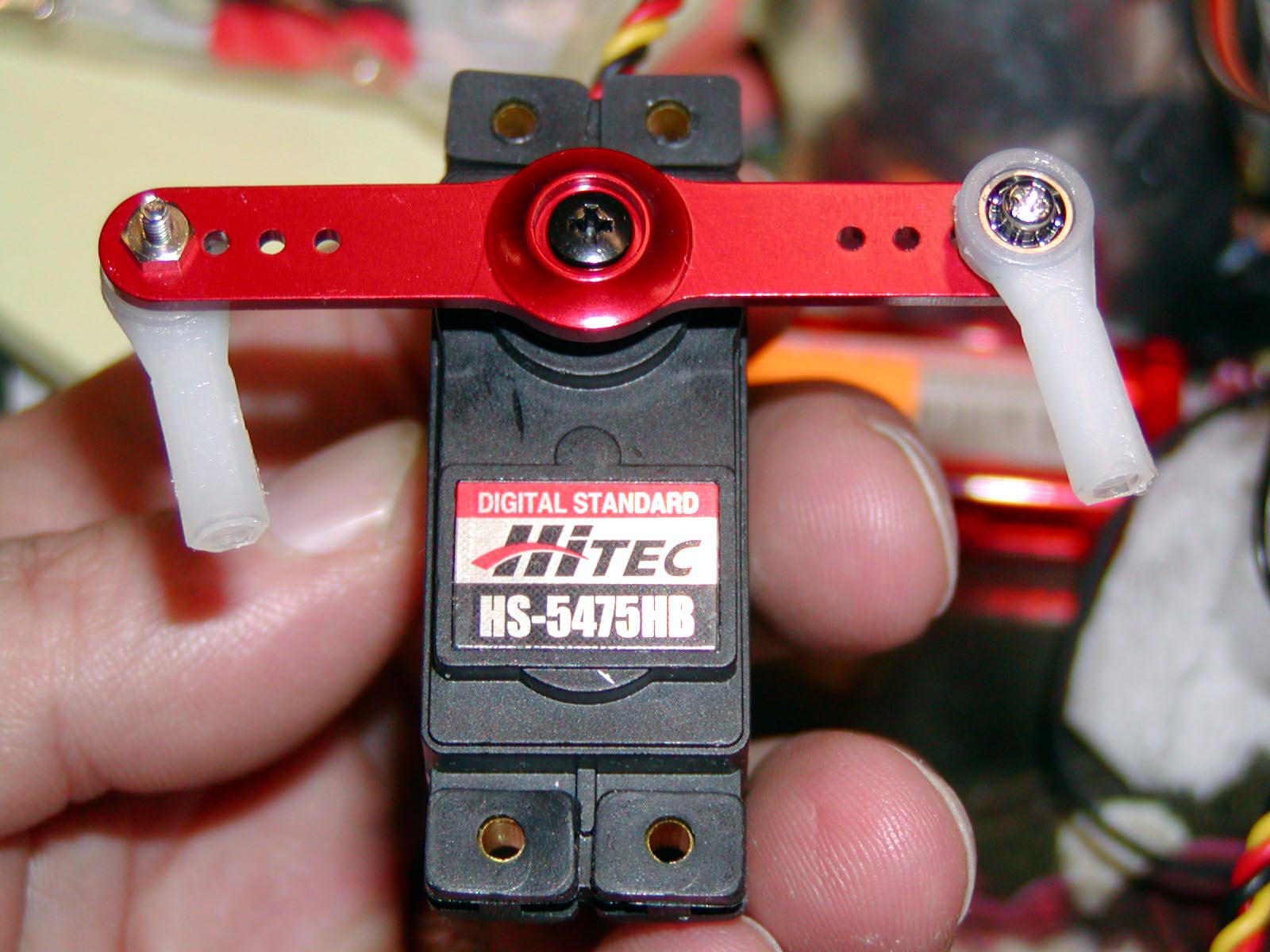

1600 / 1024 / 640 - Elevator servo. Digitals all around.

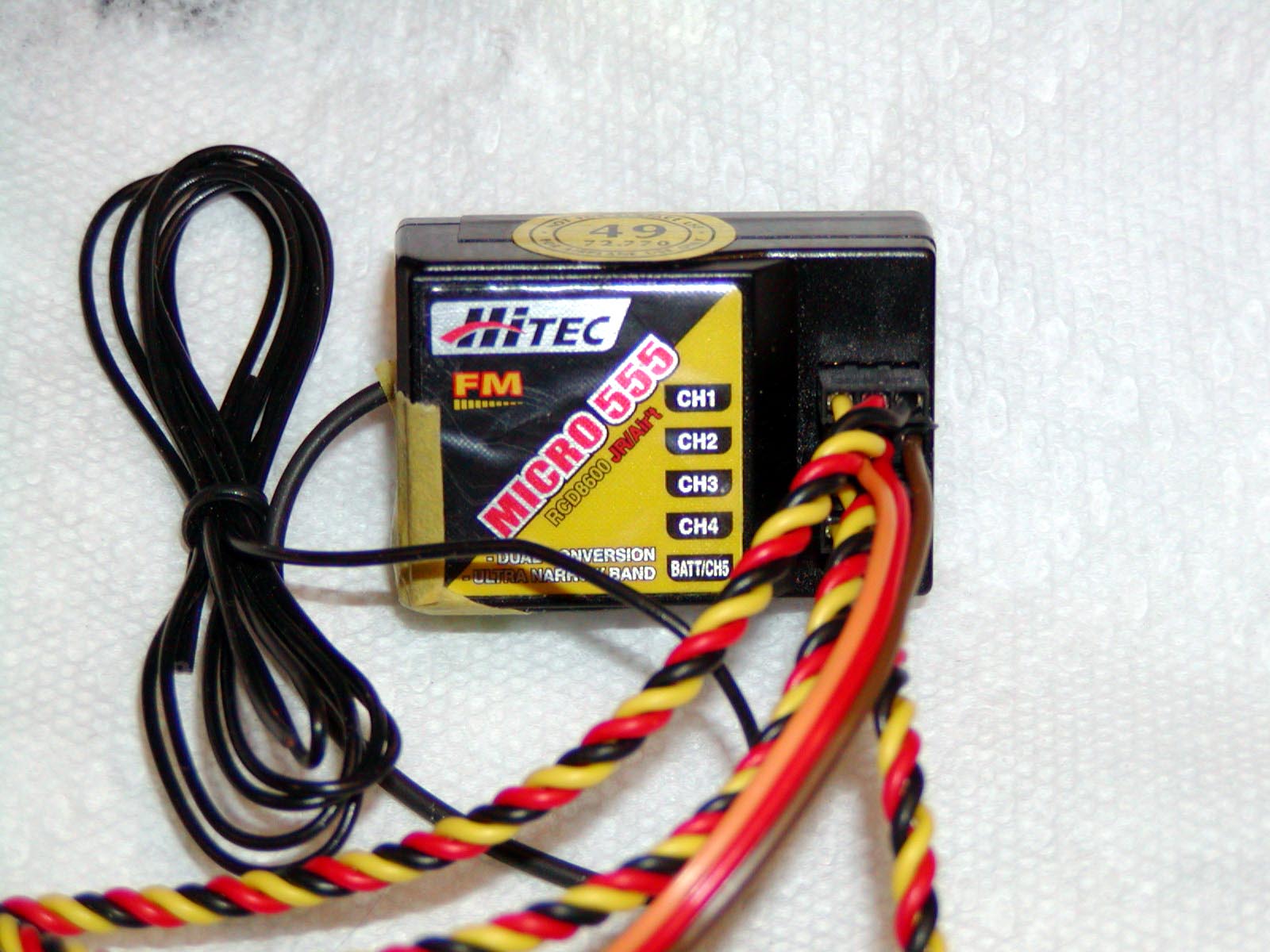

1600 / 1024 / 640 - Hitec 555 Mini RX to save weight.

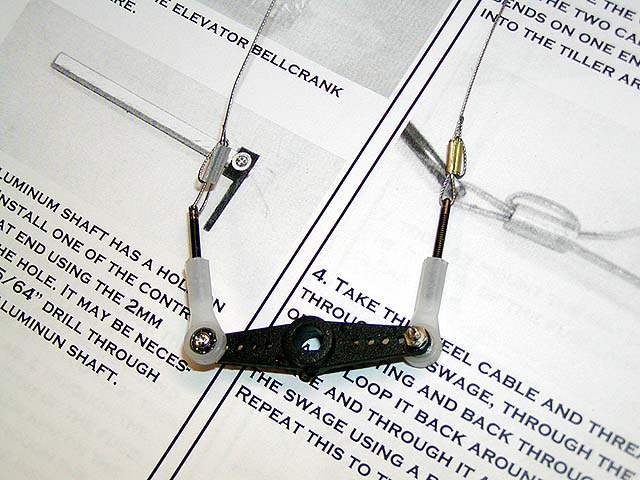

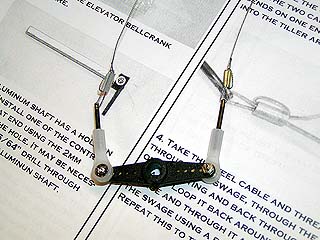

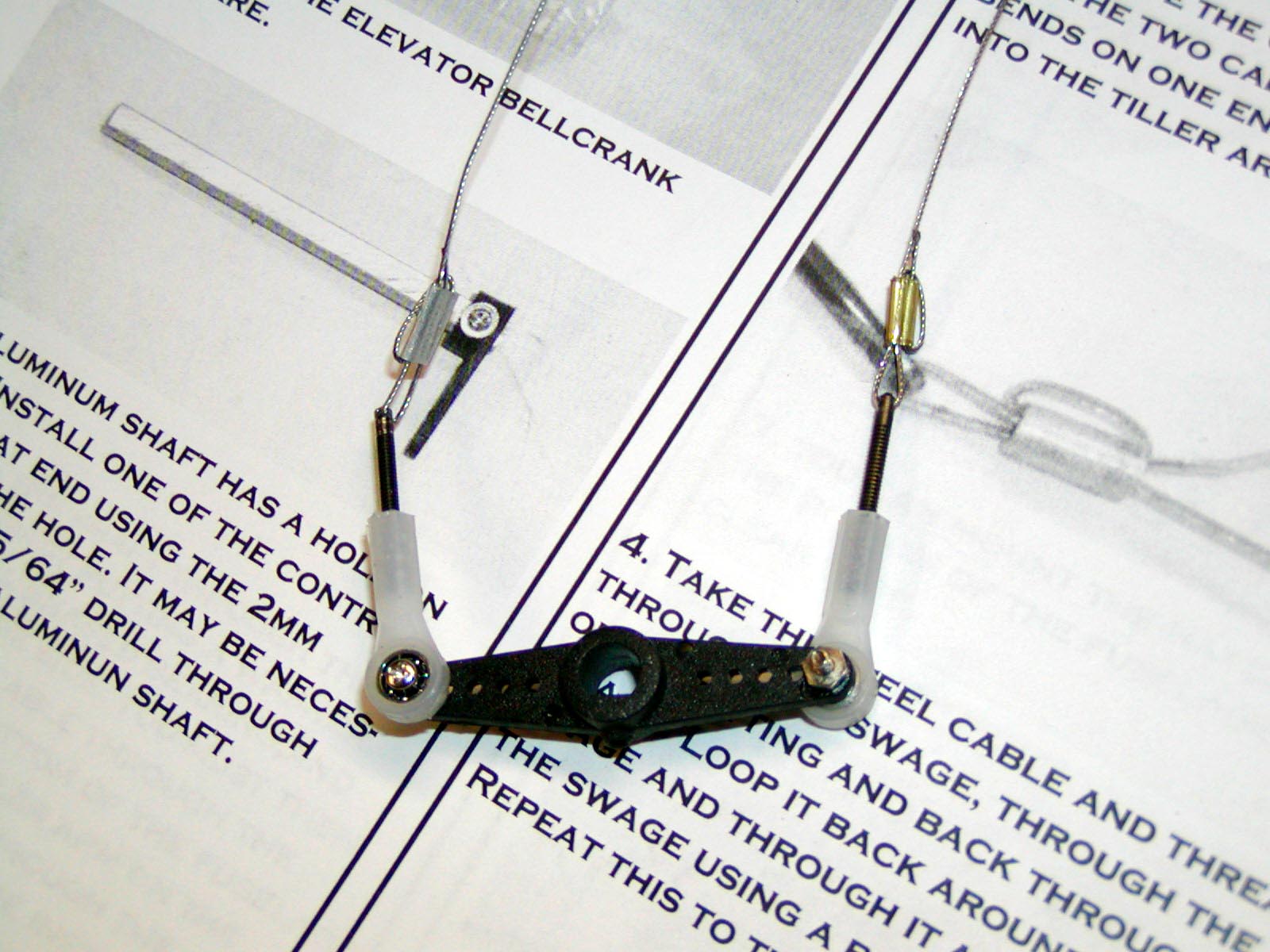

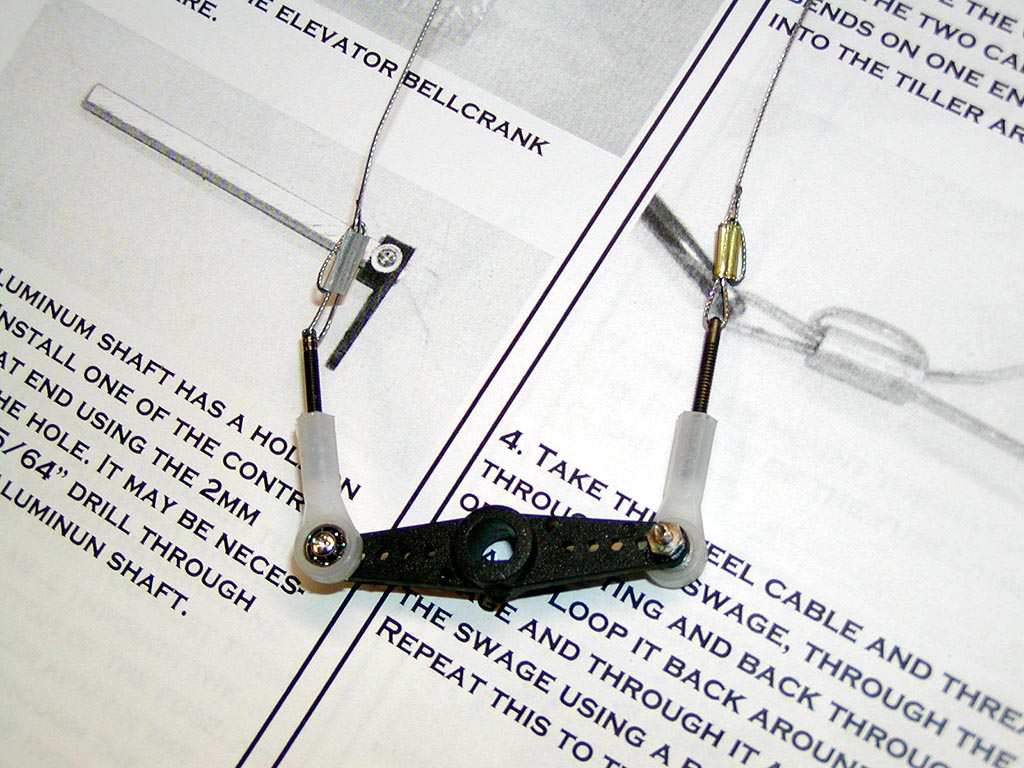

1600 / 1024 / 640 - Pull-Pull elevator drives a bellcrank.

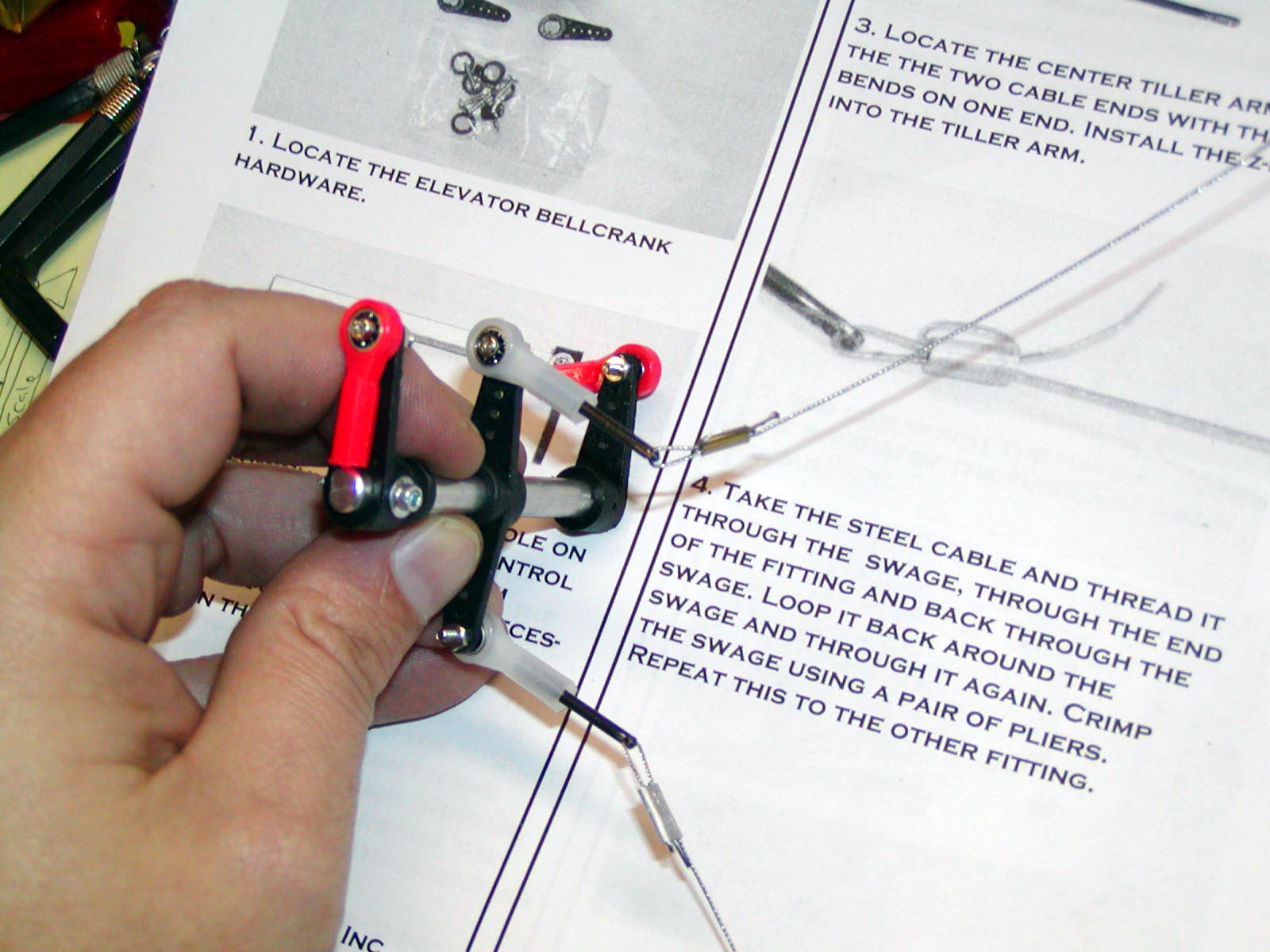

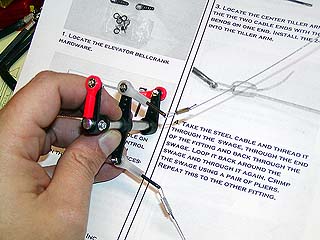

1600 / 1024 / 640 - Ready to install.

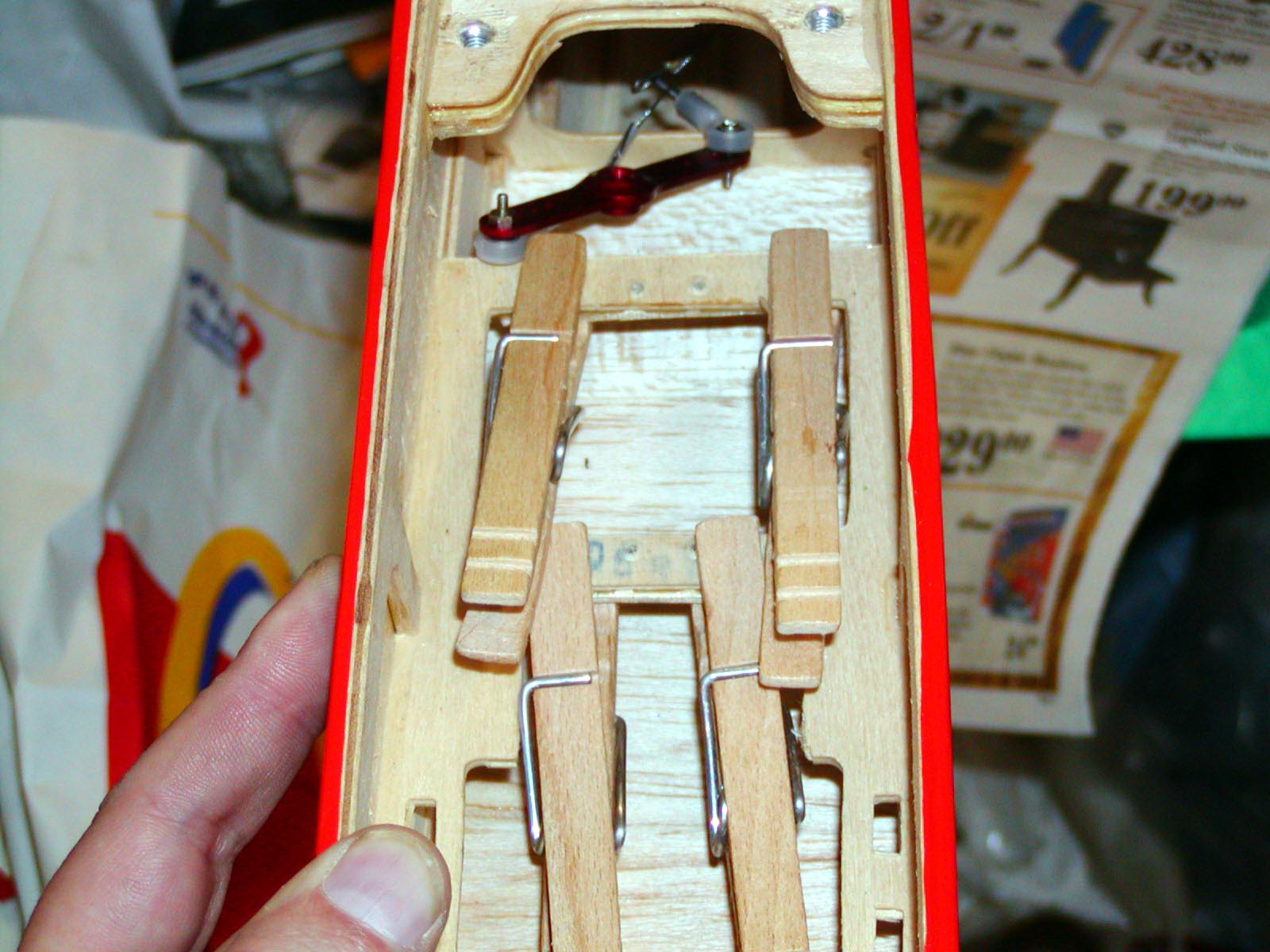

1600 / 1024 / 640 - Had to beef up servo tray.

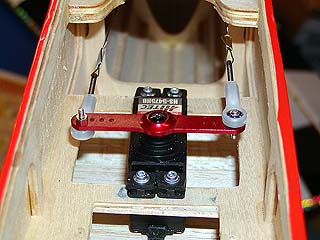

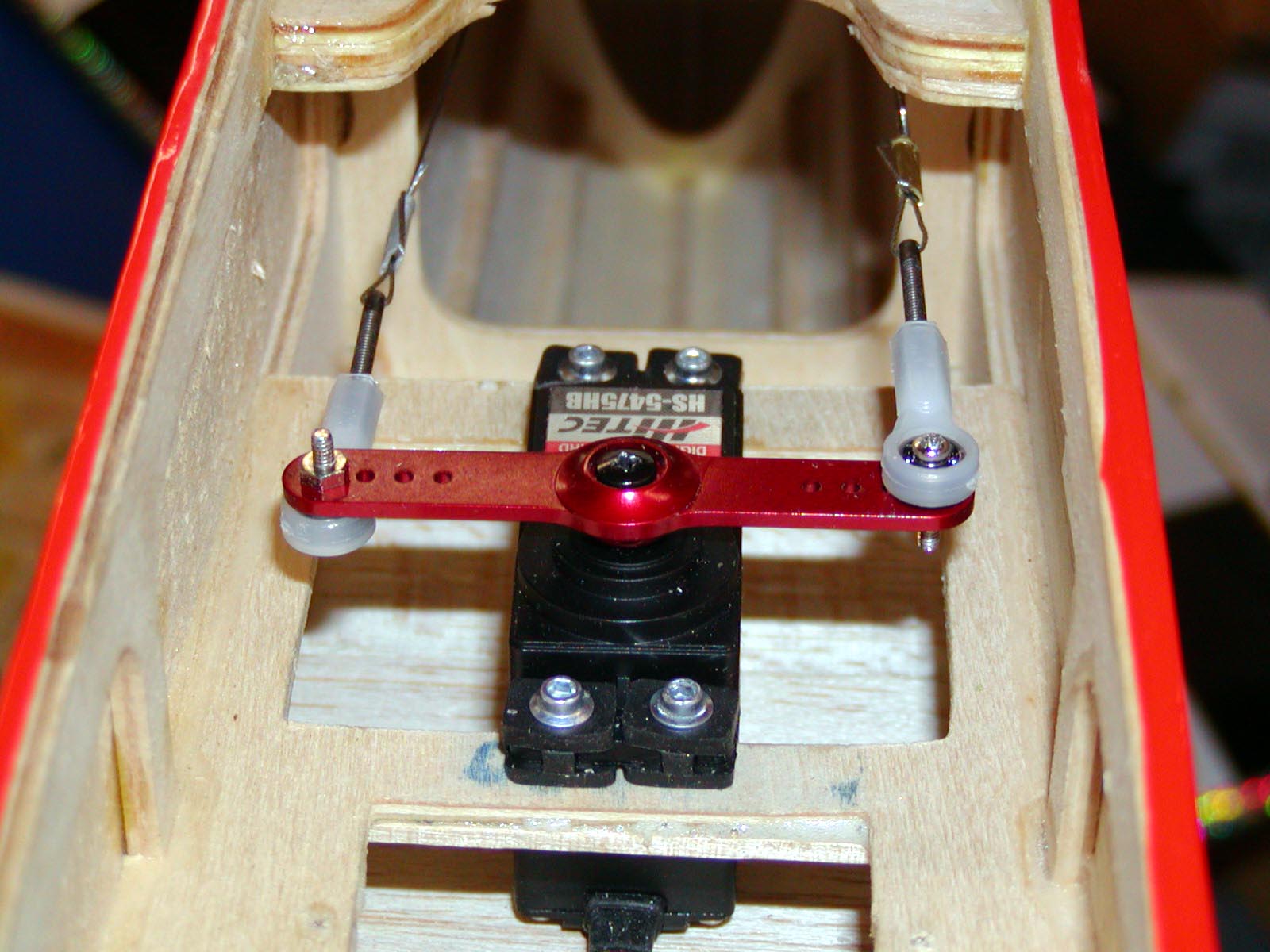

1600 / 1024 / 640 - Servo and pull-pull wire installed.

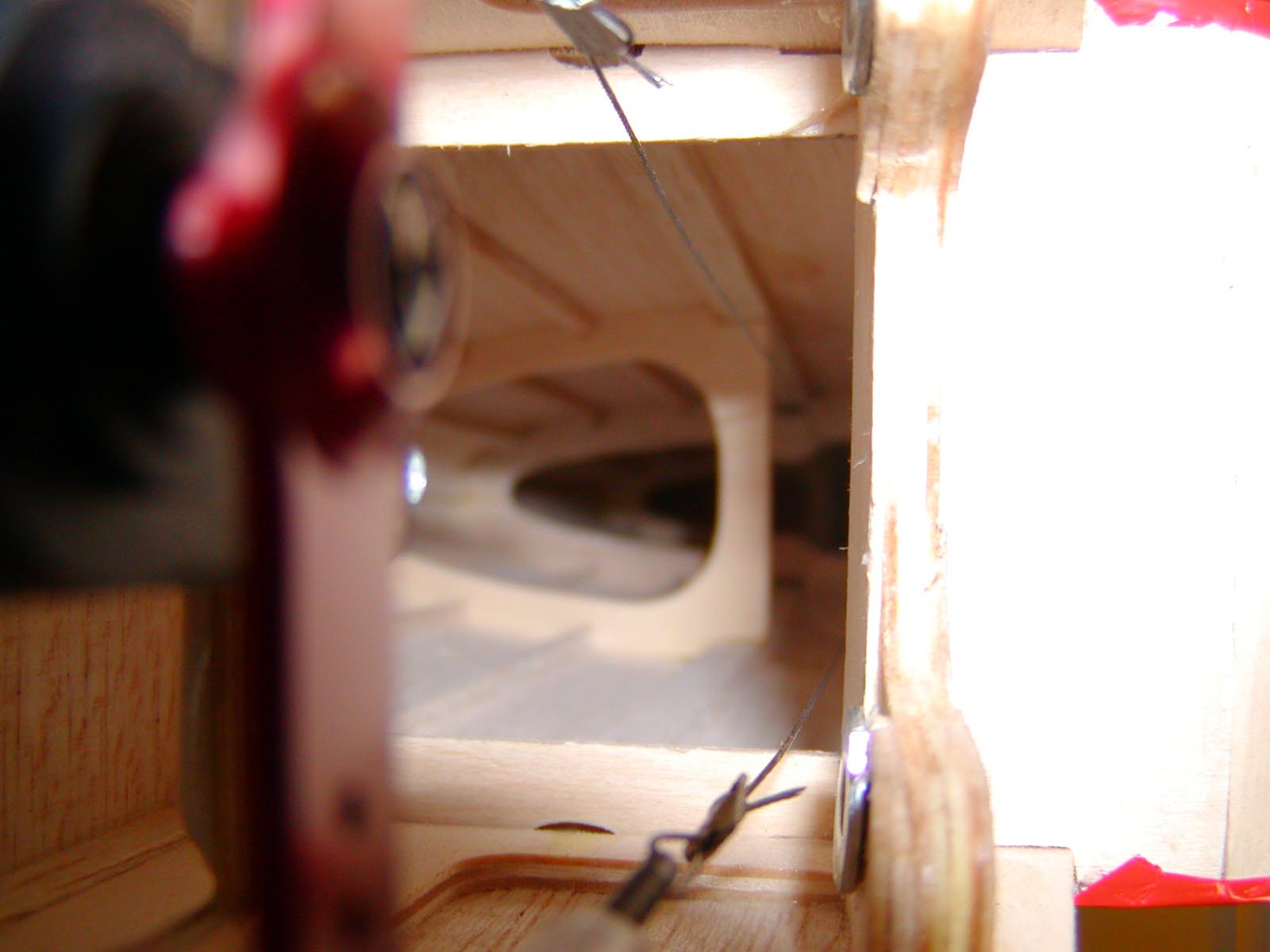

1600 / 1024 / 640 - Wire clears everything.

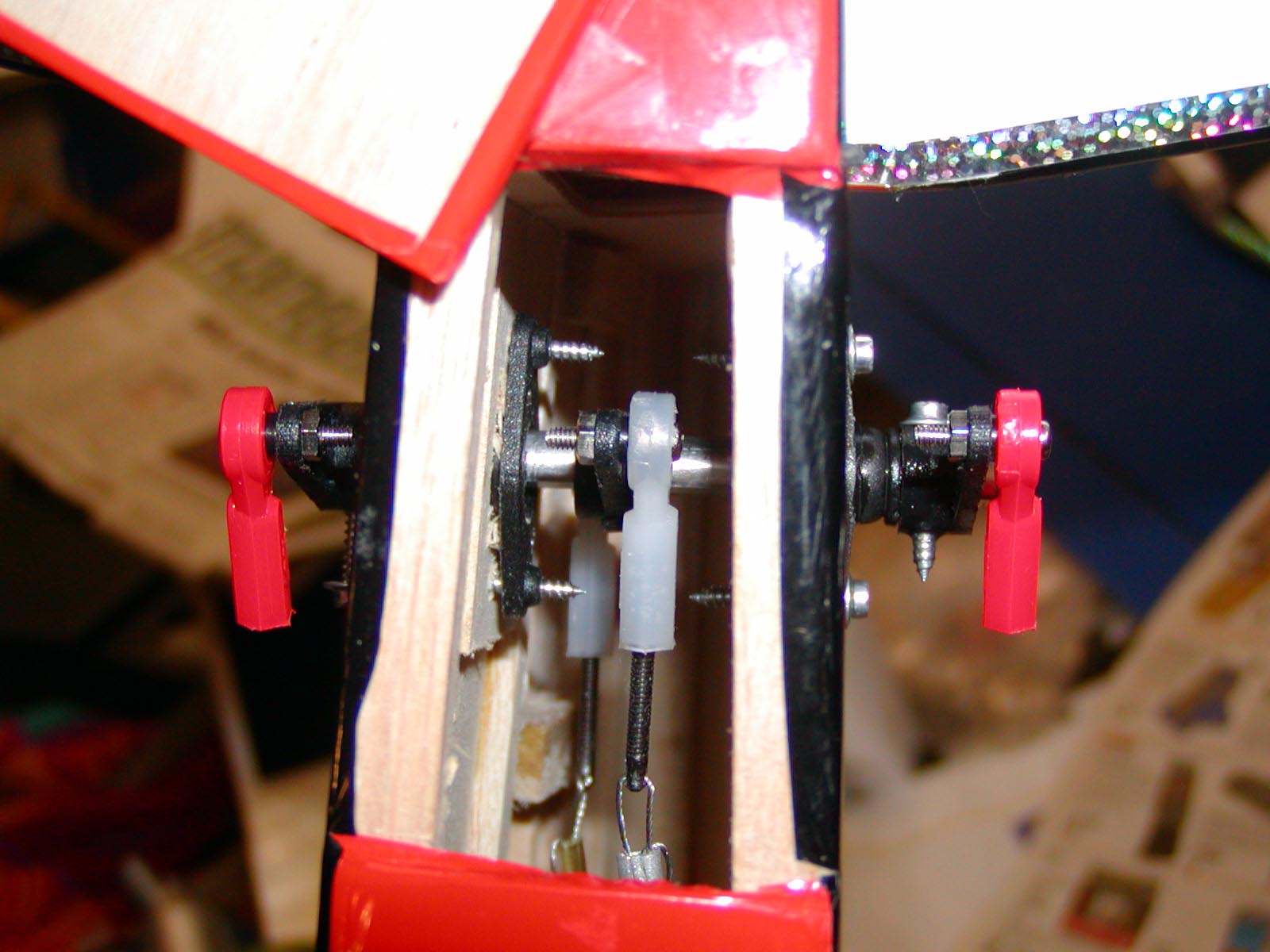

1600 / 1024 / 640 - View of bellcrank.
1600 / 1024 / 640 - Carbon Fiber and Titainium pushrods.
1600 / 1024 / 640 - 5/32" diameter, with 4-40 ends.

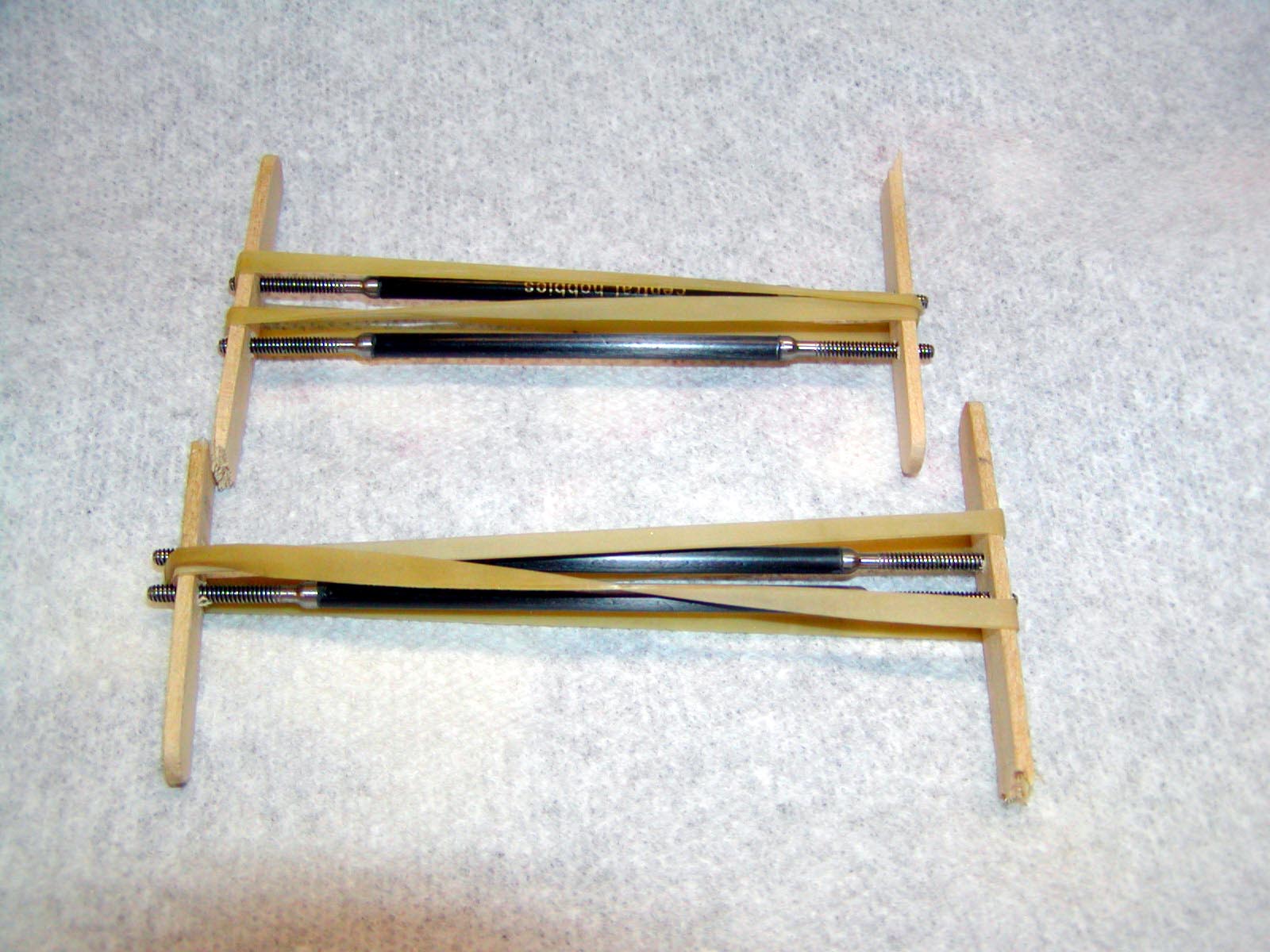

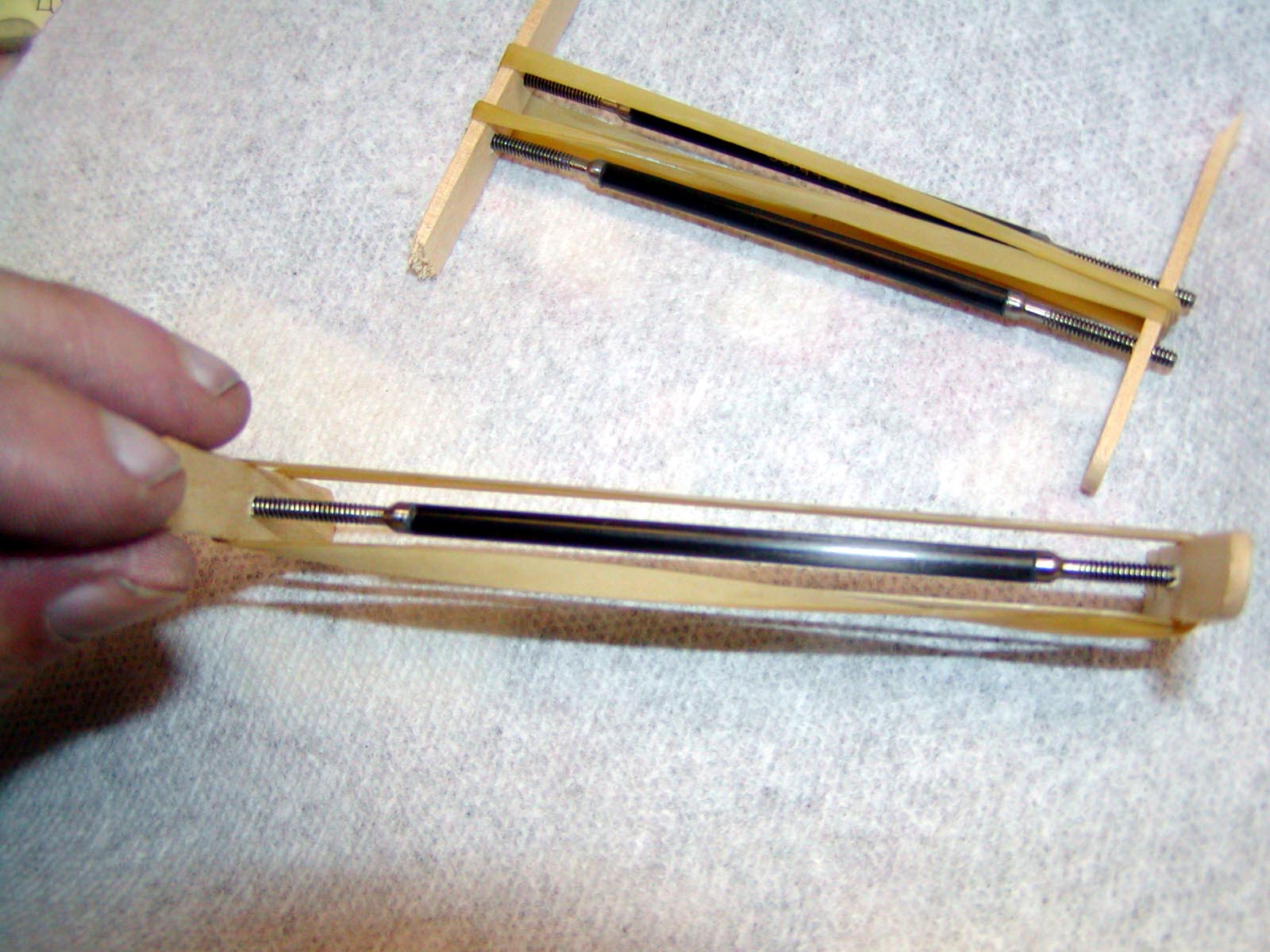

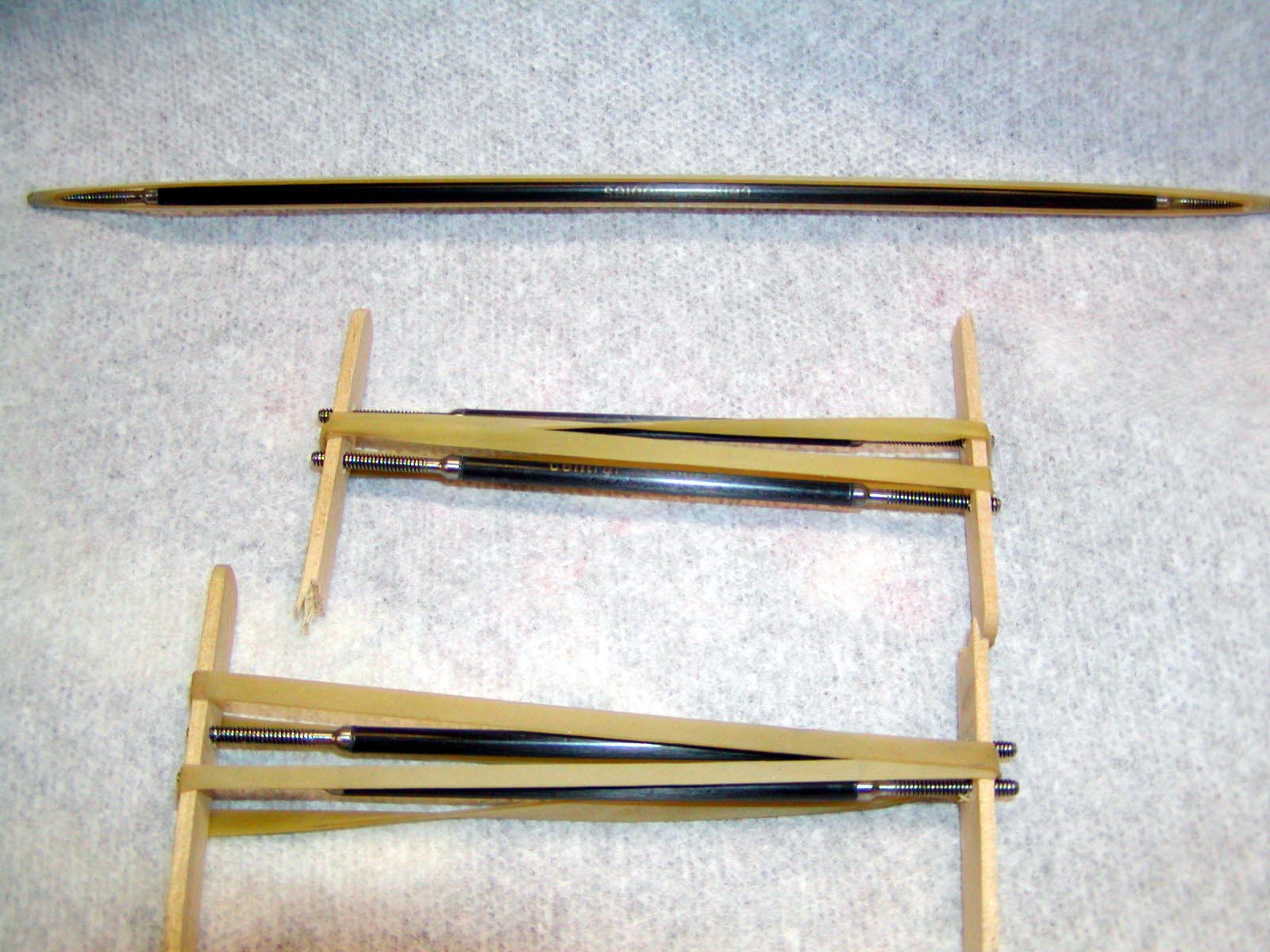

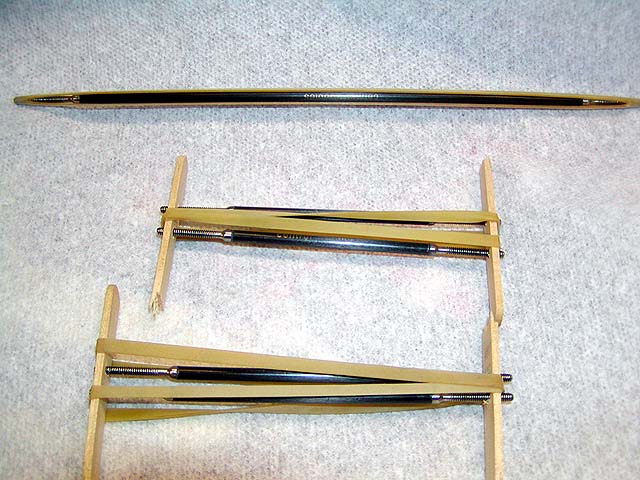

1600 / 1024 / 640 - Rubberbands hold while JBWeld sets.

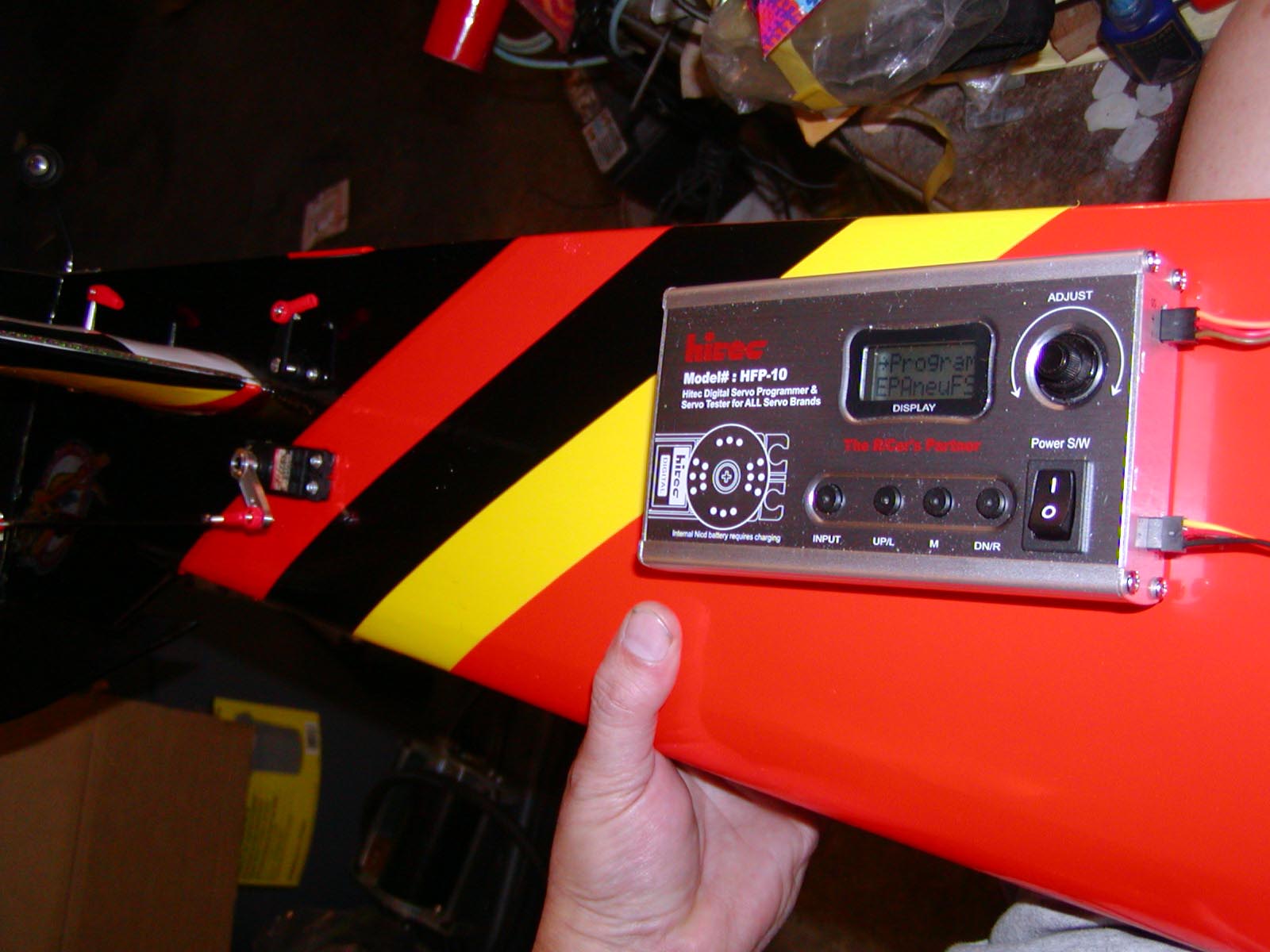

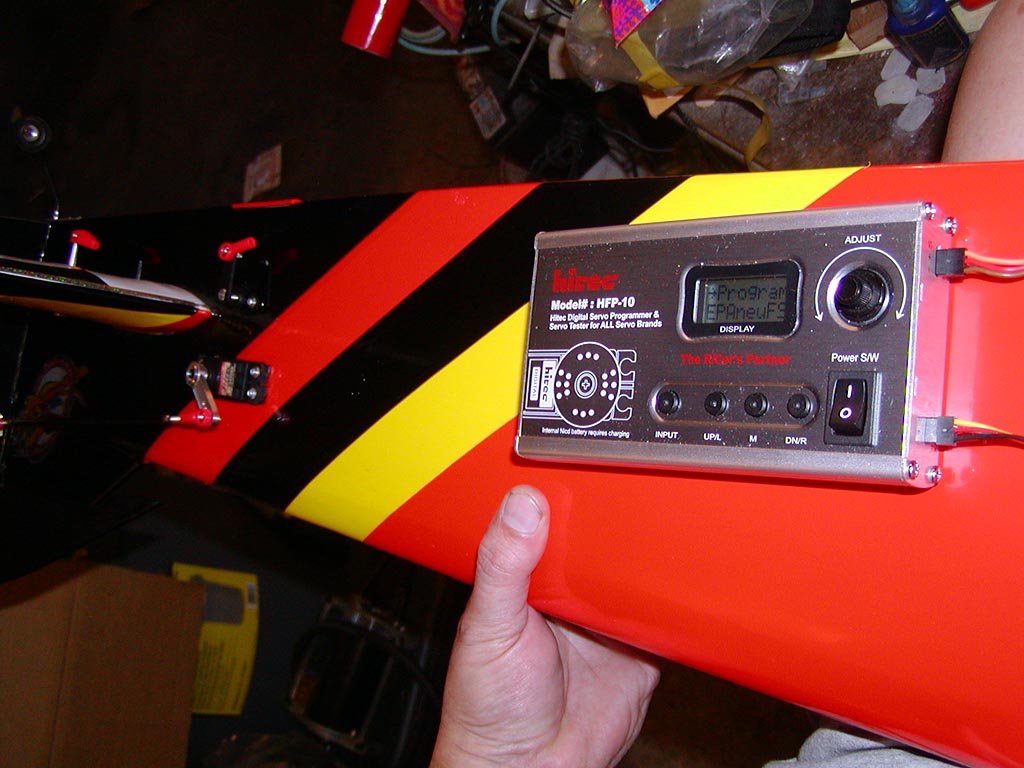

1600 / 1024 / 640 - Servo programmer a valuable tool!

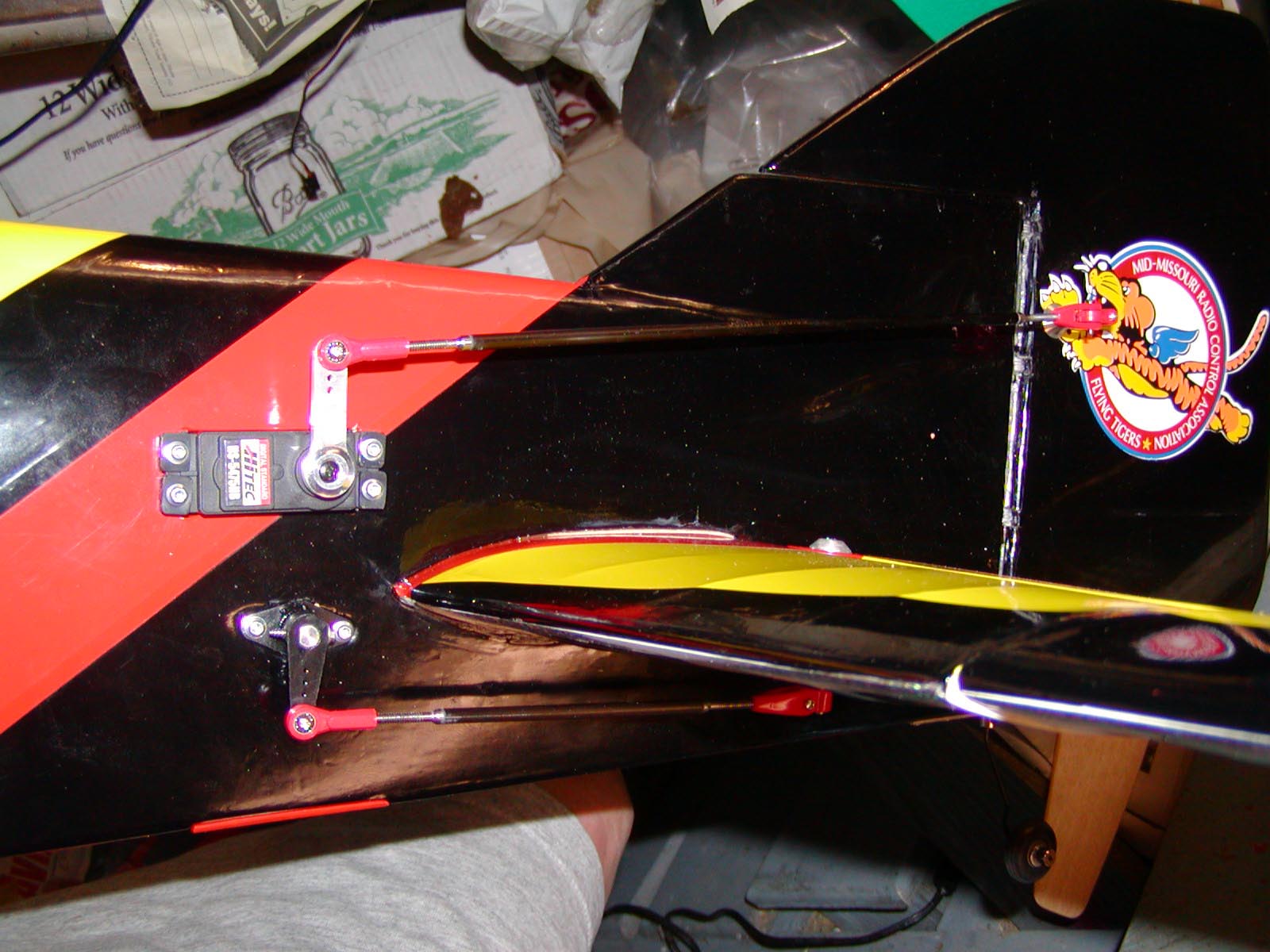

1600 / 1024 / 640 - Rudder and Elevator linkages.

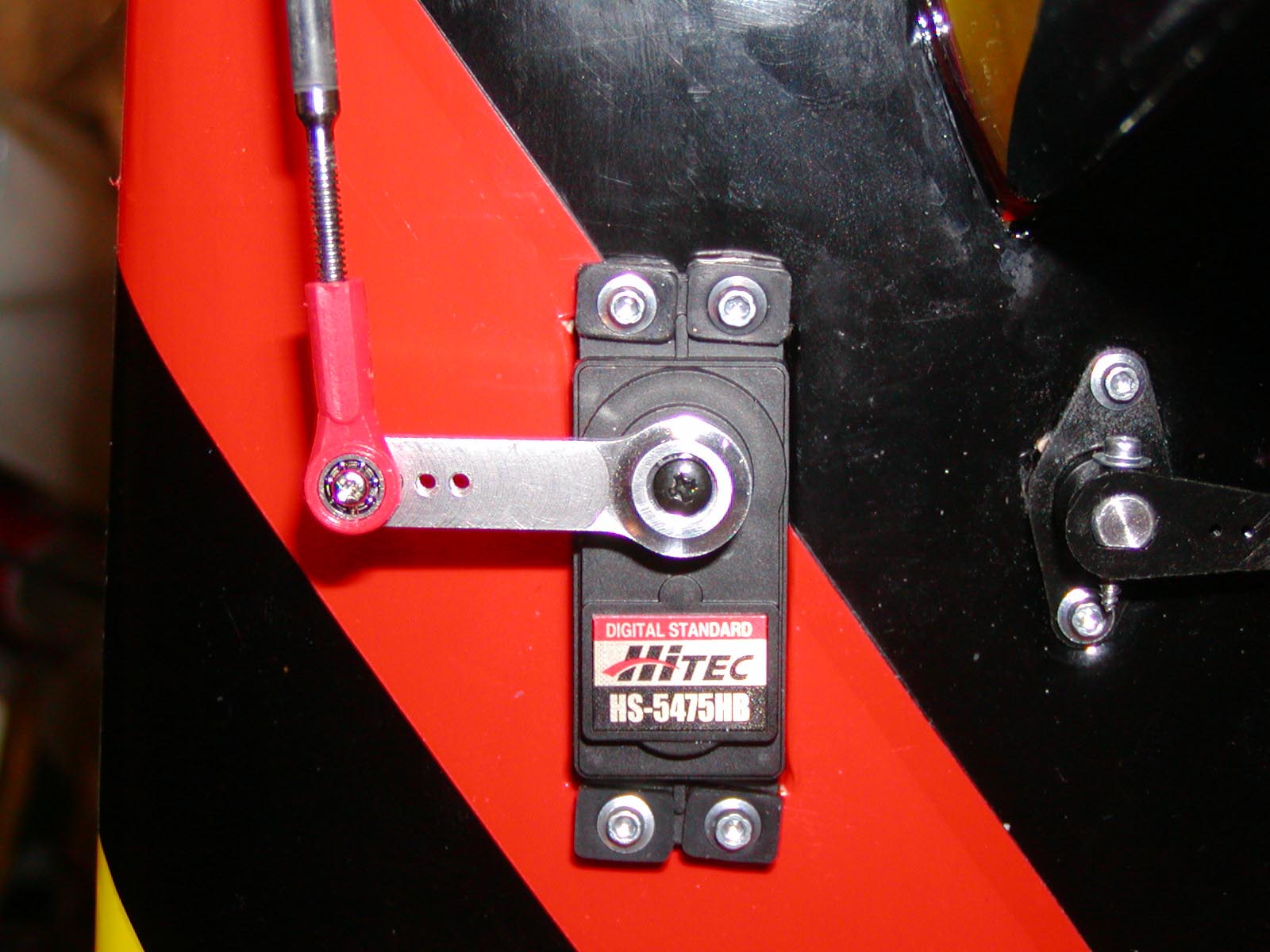

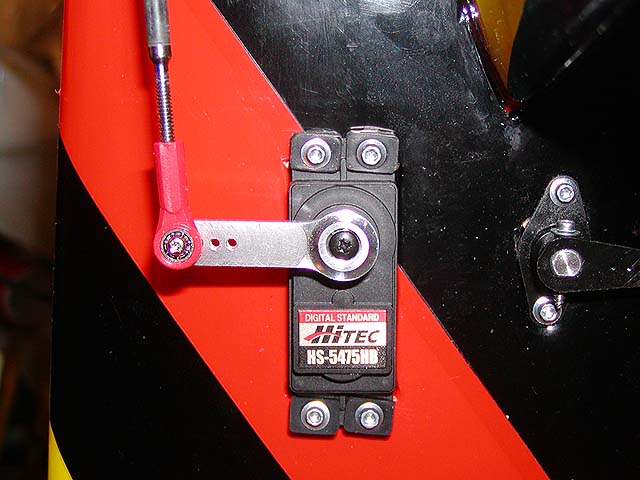

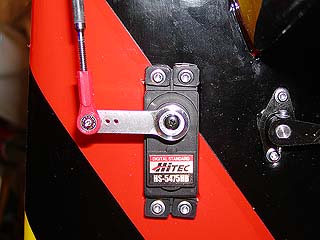

1600 / 1024 / 640 - Rudder servo installed.

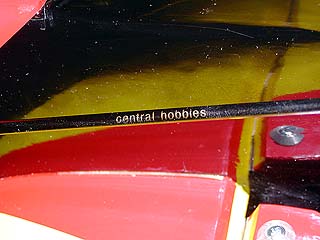

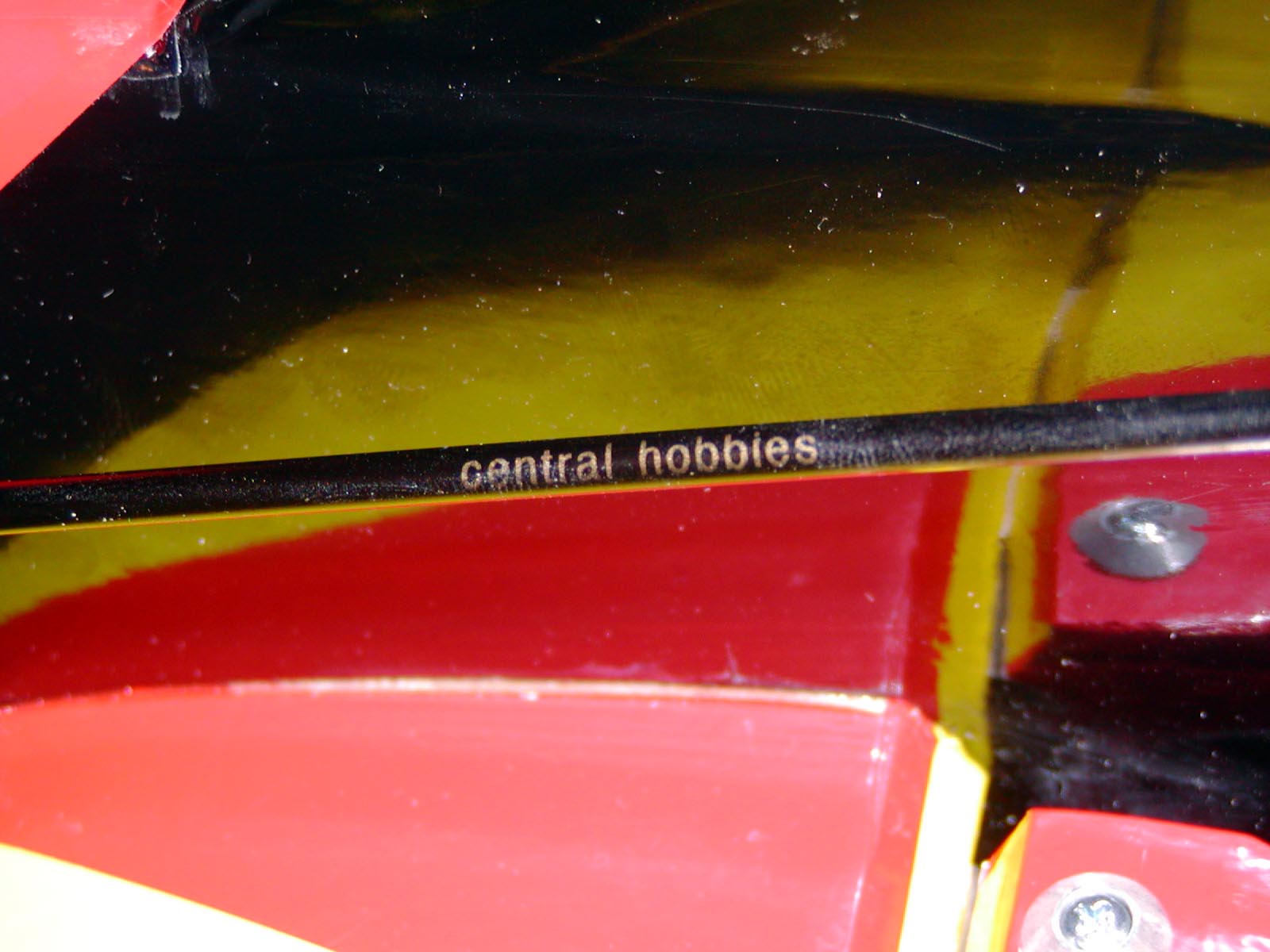

1600 / 1024 / 640 - All linkages from Central Hobbies.

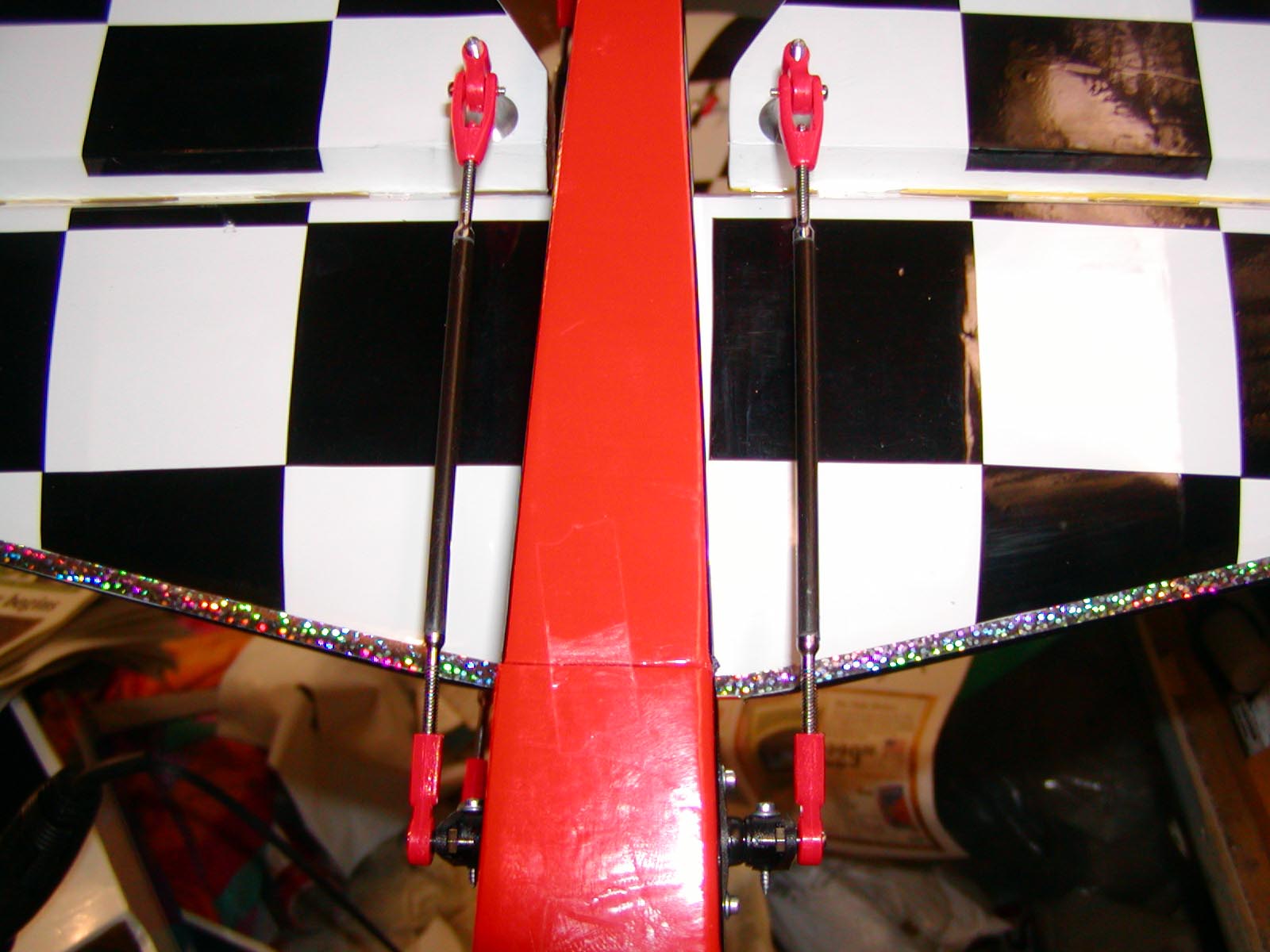

1600 / 1024 / 640 - Elevator pushrods installed.

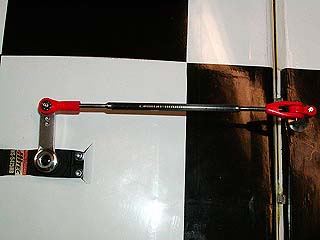

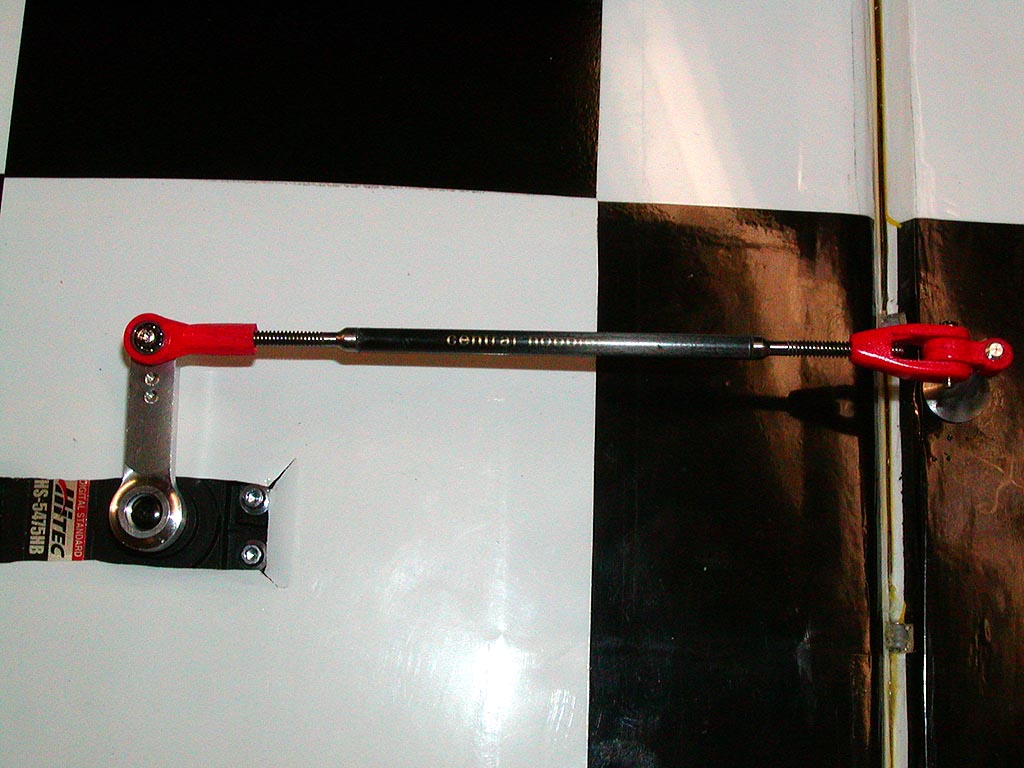

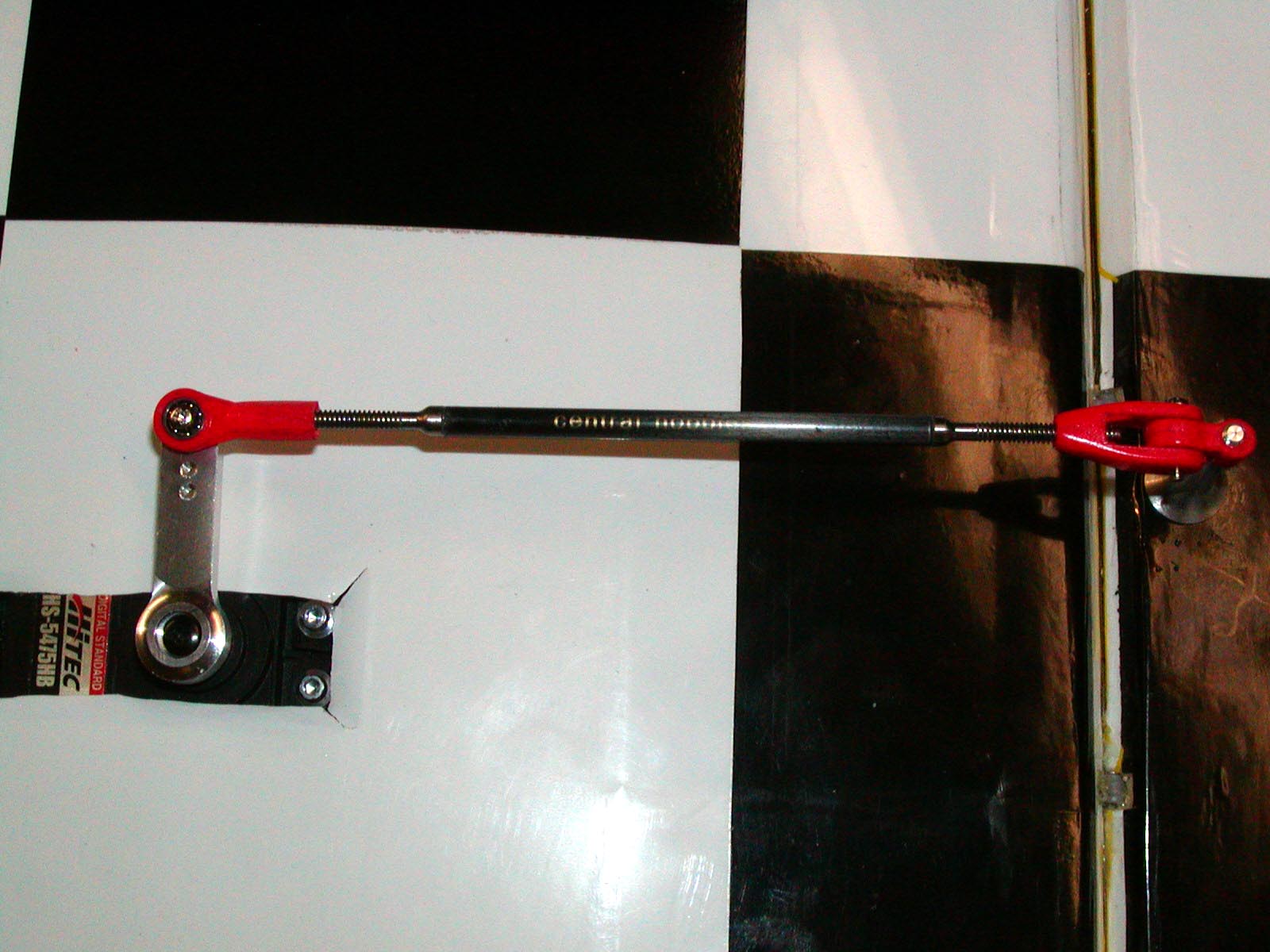

1600 / 1024 / 640 - Aileron pushrods installed.

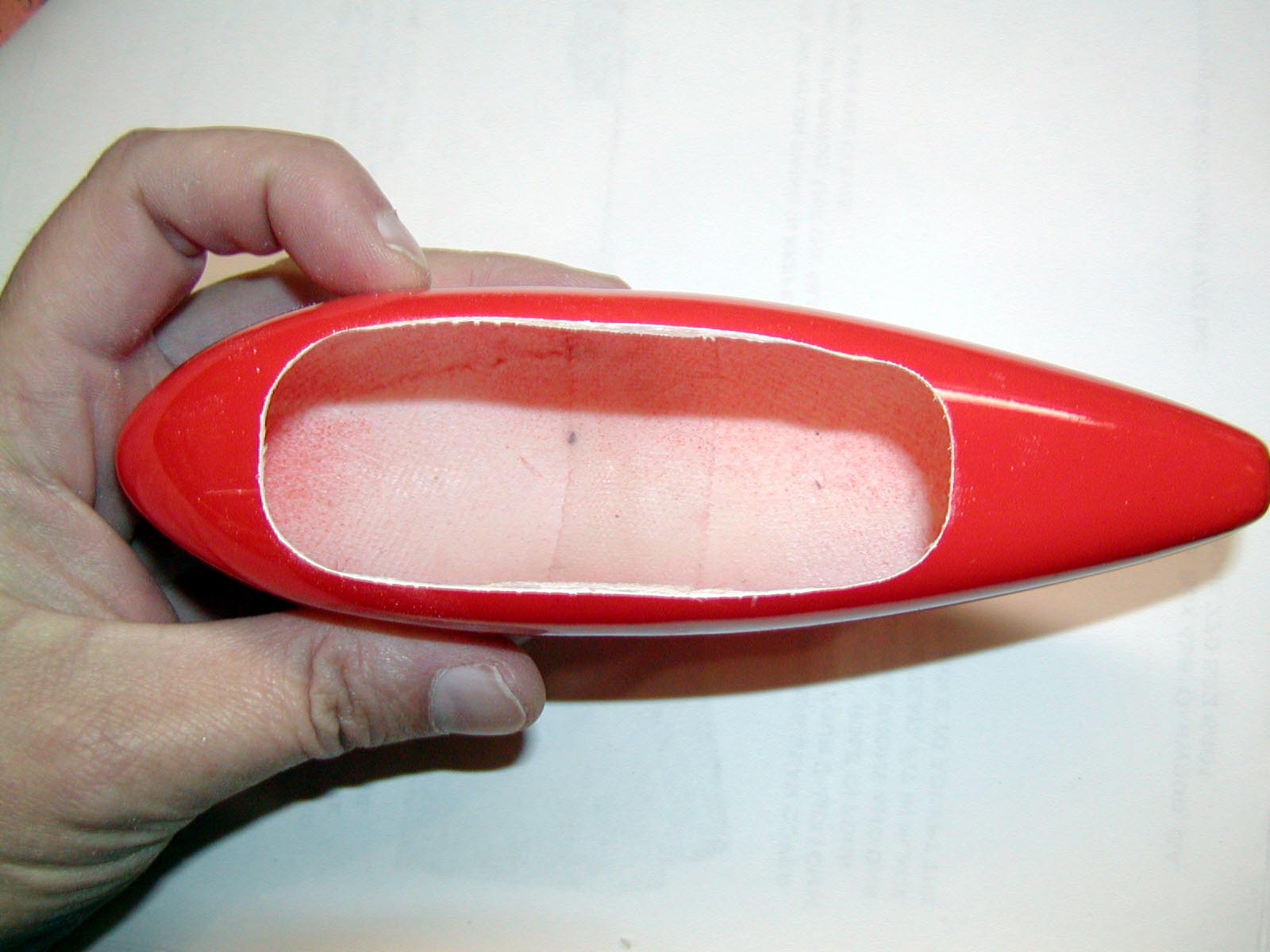

1600 / 1024 / 640 - Wheelpant opened to fit bigger tire.

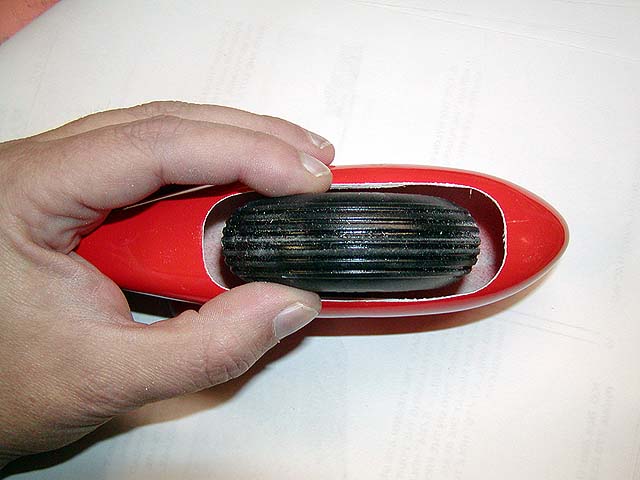

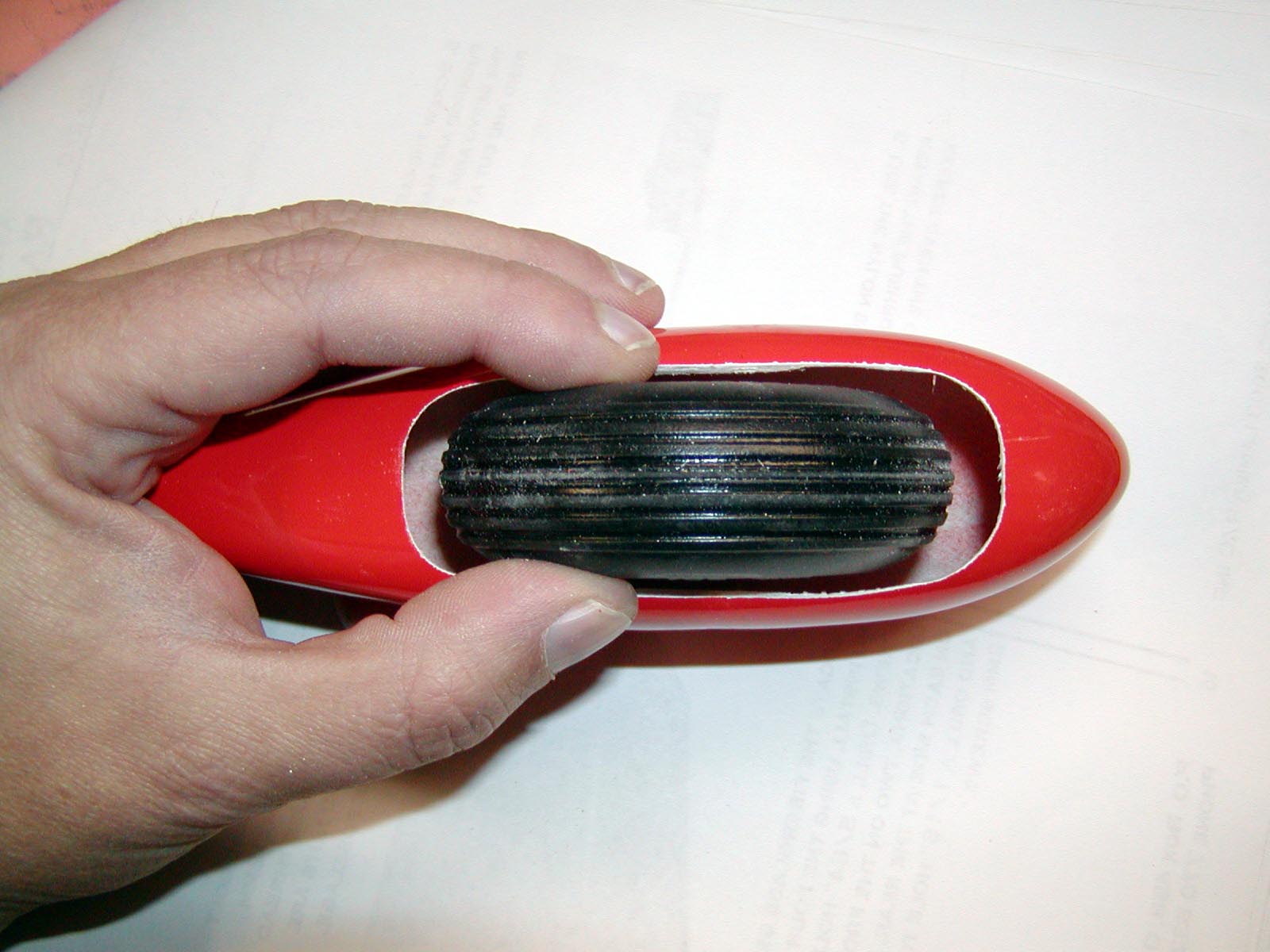

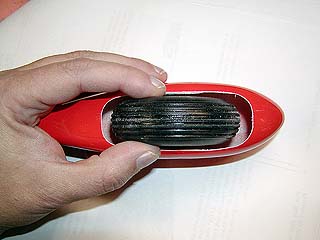

1600 / 1024 / 640 - This is a 3" tire, it proved too big

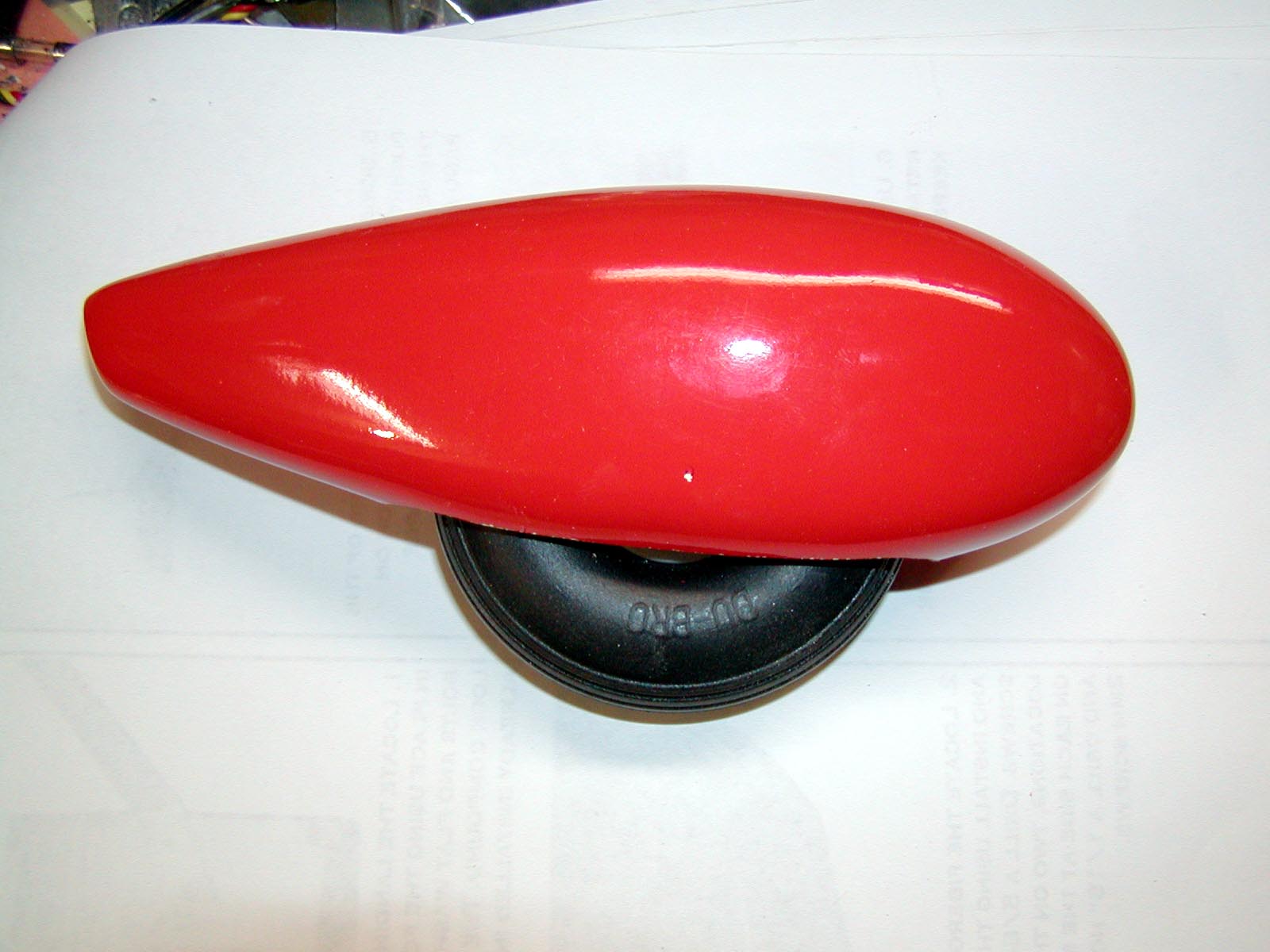

1600 / 1024 / 640 - 2.75" fits better.
